| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

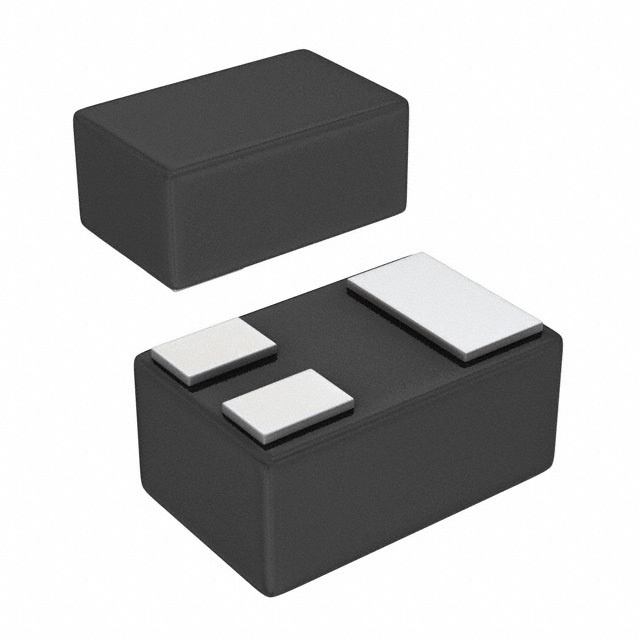

DMP2078LCA3-7MOSFET P-CH 20V 3.4A X4DSN1006-3 |
19,470 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.4A (Ta) | 1.8V, 8V | 78mOhm @ 500mA, 8V | 1.2V @ 250µA | 1.6 nC @ 4.5 V | -12V | 228 pF @ 10 V | - | 810mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSS84WQ-7-FMOSFET P-CH 50V 130MA SOT323 |
61,310 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 130mA (Ta) | 5V | 10Ohm @ 100mA, 5V | 2V @ 1mA | - | ±20V | 45 pF @ 25 V | - | 200mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP2104V-7MOSFET P-CH 20V 2.1A SOT563 |
4,825 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.1A (Ta) | 1.8V, 4.5V | 150mOhm @ 950mA, 4.5V | 1V @ 250µA | - | ±12V | 320 pF @ 16 V | - | 850mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMT3006LFG-7MOSFET N-CH 30V PWRDI3333 |
4,000 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 55.6A (Tc) | 4.5V, 10V | 6mOhm @ 12A, 10V | 3V @ 250µA | 22.6 nC @ 10 V | ±20V | 1320 pF @ 15 V | - | 27.8W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3025LFV-13MOSFET N-CH 30V 25A POWERDI3333 |
995 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Tc) | 4.5V, 10V | 18mOhm @ 7A, 10V | 2V @ 250µA | 9.8 nC @ 10 V | ±20V | 500 pF @ 15 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3016LFDE-13MOSFET N-CH 30V 10A 6UDFN |
19,958 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V, 10V | 12mOhm @ 11A, 10V | 2V @ 250µA | 25.1 nC @ 10 V | ±20V | 1415 pF @ 15 V | - | 730mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

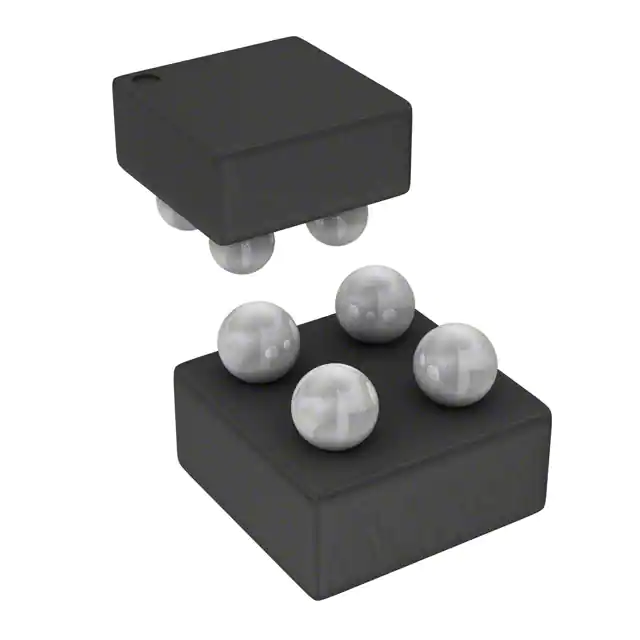

DMP1100UCB4-7MOSFET P-CH 12V 2.5A WLB0808 |
4,560 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 2.5A (Ta) | 1.3V, 4.5V | 83mOhm @ 3A, 4.5V | 800mV @ 250µA | 14 nC @ 4.5 V | ±8V | 820 pF @ 6 V | - | 670mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP2004TK-7MOSFET P-CH 20V 430MA SOT523 |
64,400 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 430mA (Ta) | 1.8V, 4.5V | 1.1Ohm @ 430mA, 4.5V | 1V @ 250µA | - | ±8V | 175 pF @ 16 V | - | 150mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP2040UFDF-7MOSFET P-CH 20V 13A 6UDFN |
5,764 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 13A (Tc) | 2.5V, 4.5V | 32mOhm @ 8.9A, 4.5V | 1.5V @ 250µA | 19 nC @ 8 V | ±12V | 834 pF @ 10 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3025LFG-7MOSFET N CH 30V 7.5A POWERDI |
21,265 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | 4.5V, 10V | 18mOhm @ 7.8A, 10V | 2V @ 250µA | 11.6 nC @ 10 V | ±20V | 605 pF @ 15 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMG4800LFG-7MOSFET N-CH 30V 7.44A 8DFN |
2,781 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.44A (Ta) | 4.5V, 10V | 17mOhm @ 9A, 10V | 1.5V @ 250µA | 9.47 nC @ 5 V | ±25V | 798 pF @ 10 V | - | 940mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP2035UFDF-7MOSFET P-CH 20V 8.1A 6UDFN |
2,704 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 8.1A (Ta) | 1.5V, 4.5V | 29mOhm @ 6.4A, 4.5V | 1V @ 250µA | 20.5 nC @ 4.5 V | ±8V | 1808 pF @ 15 V | - | 2.03W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN2044UCB4-7MOSFET N-CH 20V 3.3A U-WLB1010-4 |
5,466 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.3A (Ta) | 1.5V, 4.5V | 40mOhm @ 1.5A, 4.5V | 900mV @ 250µA | 47 nC @ 8 V | ±8V | 1400 pF @ 10 V | - | 720mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2005UFG-13MOSFET N-CH 20V 18.1A PWRDI3333 |
3,000 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 18.1A (Tc) | 2.5V, 4.5V | 4.6mOhm @ 13.5A, 4.5V | 1.2V @ 250µA | 164 nC @ 10 V | ±12V | 6495 pF @ 10 V | - | 1.05W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN6069SFG-7MOSFET N-CH 60V 5.6A POWERDI333 |
11,841 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 5.6A (Ta), 18A (Tc) | 4.5V, 10V | 50mOhm @ 4.5A, 10V | 3V @ 250µA | 25 nC @ 10 V | ±20V | 1480 pF @ 30 V | - | 930mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN10H170SFG-13MOSFET N-CH 100V PWRDI3333 |
1,995 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 2.9A (Ta), 8.5A (Tc) | 4.5V, 10V | 122mOhm @ 3.3A, 10V | 3V @ 250µA | 14.9 nC @ 10 V | ±20V | 870.7 pF @ 25 V | - | 940mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMS3014SFGQ-7MOSFET N-CH 30V 9.5A PWRDI3333-8 |
11,740 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.5A (Ta) | 4.5V, 10V | 14.5mOhm @ 10.4A, 10V | 2.2V @ 250µA | 19.3 nC @ 10 V | ±12V | 4310 pF @ 15 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP2023UFDF-7MOSFET P-CH 20V 7.6A 6UDFN |
14,157 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.6A (Ta) | 1.5V, 4.5V | 27mOhm @ 7A, 4.5V | 1V @ 250µA | 27 nC @ 4.5 V | ±8V | 1837 pF @ 15 V | - | 730mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP1245UFCL-7MOSFET P-CH 12V 6.6A X1-DFN1616 |
13,895 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 6.6A (Ta) | 1.5V, 4.5V | 29mOhm @ 4A, 4.5V | 950mV @ 250µA | 26.1 nC @ 8 V | ±8V | 1357.4 pF @ 10 V | - | 613mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMNH6042SK3Q-13MOSFET N-CH 60V 25A TO252 |
2,500 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 25A (Tc) | 4.5V, 10V | 50mOhm @ 6A, 10V | 3V @ 250µA | 8.8 nC @ 10 V | ±20V | 584 pF @ 25 V | - | 2W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
