| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPZ60R040C7XKSA1MOSFET N-CH 600V 50A TO247-4 |
3,504 | 17.36 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 50A (Tc) | 10V | 40mOhm @ 24.9A, 10V | 4V @ 1.24mA | 107 nC @ 10 V | ±20V | 4340 pF @ 400 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPW65R041CFDFKSA1MOSFET N-CH 650V 68.5A TO247-3 |
2,731 | 17.75 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 68.5A (Tc) | 10V | 41mOhm @ 33.1A, 10V | 4.5V @ 3.3mA | 300 nC @ 10 V | ±20V | 8400 pF @ 100 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
AIMW120R045M1XKSA1SICFET N-CH 1200V 52A TO247-3 |
3,182 | 24.04 |
RFQ |
Bulk,Tube | Automotive, AEC-Q101, CoolSiC™ | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 52A (Tc) | - | 59mOhm @ 20A, 15V | 5.7V @ 10mA | 57 nC @ 15 V | +20V, -7V | 2130 pF @ 800 V | - | 228W (Tc) | -40°C ~ 175°C (TJ) | Through Hole | |
|

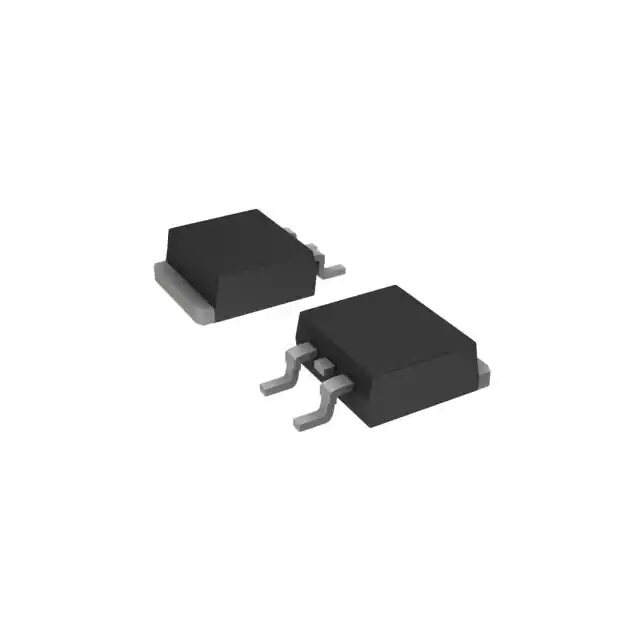

IPB60R055CFD7ATMA1MOSFET N-CH 650V 38A TO263-3-2 |
3,743 | 9.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 38A (Tc) | 10V | 55mOhm @ 18A, 10V | 4.5V @ 900µA | 79 nC @ 10 V | ±20V | 3194 pF @ 400 V | - | 178W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IMW120R030M1HXKSA1SICFET N-CH 1.2KV 56A TO247-3 |
2,258 | 28.15 |
RFQ |
Datasheet |
Tube | CoolSiC™ | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 56A (Tc) | 15V, 18V | 40mOhm @ 25A, 18V | 5.7V @ 10mA | 63 nC @ 18 V | +23V, -7V | 2120 pF @ 800 V | - | 227W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

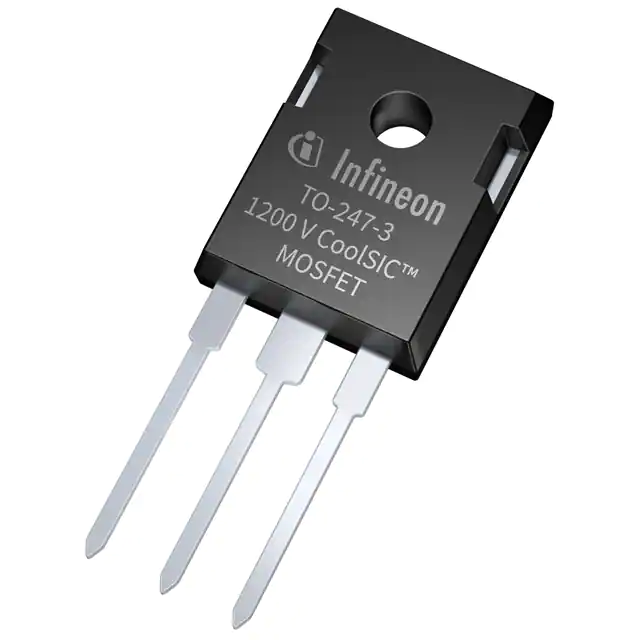

IMZ120R030M1HXKSA1SICFET N-CH 1.2KV 56A TO247-4 |
3,430 | 30.40 |
RFQ |
Datasheet |
Tube | CoolSiC™ | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 56A (Tc) | 15V, 18V | 40mOhm @ 25A, 18V | 5.7V @ 10mA | 63 nC @ 18 V | +23V, -7V | 2120 pF @ 800 V | - | 227W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IPP60R040C7XKSA1MOSFET N-CH 600V 50A TO220-3 |
3,827 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 50A (Tc) | 10V | 40mOhm @ 24.9A, 10V | 4V @ 1.24mA | 107 nC @ 10 V | ±20V | 4340 pF @ 400 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SPW55N80C3FKSA1MOSFET N-CH 800V 54.9A TO247-3 |
2,489 | 17.92 |
RFQ |
Datasheet |
Tube | CoolMOS™ C3 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 54.9A (Tc) | 10V | 85mOhm @ 32.6A, 10V | 3.9V @ 3.3mA | 288 nC @ 10 V | ±20V | 7520 pF @ 100 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SN7002NH6433XTMA1MOSFET N-CH 60V 200MA SOT23-3 |
3,294 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 1.8V @ 26µA | 1.5 nC @ 10 V | ±20V | 45 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS138NH6433XTMA1MOSFET N-CH 60V 230MA SOT23-3 |
3,401 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Ta) | 4.5V, 10V | 3.5Ohm @ 230mA, 10V | 1.4V @ 26µA | 1.4 nC @ 10 V | ±20V | 41 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSS138WH6433XTMA1MOSFET N-CH 60V 280MA SOT323-3 |
2,636 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | SIPMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 280mA (Ta) | 4.5V, 10V | 3.5Ohm @ 200mA, 10V | 1.4V @ 26µA | 1.5 nC @ 10 V | ±20V | 43 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS123NH6433XTMA1MOSFET N-CH 100V 190MA SOT23-3 |
2,812 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 190mA (Ta) | 4.5V, 10V | 6Ohm @ 190mA, 10V | 1.8V @ 13µA | 0.9 nC @ 10 V | ±20V | 20.9 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS209PWH6327XTSA1MOSFET P-CH 20V 630MA SOT323-3 |
40,545 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 630mA (Tc) | 2.5V, 4.5V | 550mOhm @ 630mA, 4.5V | 1.2V @ 3.5µA | 1.3 nC @ 4.5 V | ±12V | 115 pF @ 15 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SN7002NH6327XTSA2MOSFET N-CH 60V 200MA SOT23-3 |
2,535 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 1.8V @ 26µA | 1.5 nC @ 10 V | ±20V | 45 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRLML2244TRPBFMOSFET P-CH 20V 4.3A SOT23 |
2,163 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.3A (Ta) | 2.5V, 4.5V | 54mOhm @ 4.3A, 4.5V | 1.1V @ 10µA | 6.9 nC @ 4.5 V | ±12V | 570 pF @ 16 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSS139IXTSA1SMALL SIGNAL MOSFETS PG-SOT23-3 |
2,729 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 100mA (Ta) | 0V, 10V | 14Ohm @ 100mA, 10V | 1V @ 56µA | 2.3 nC @ 5 V | ±20V | 60 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLML6402TRPBFMOSFET P-CH 20V 3.7A SOT23 |
2,599 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.7A (Ta) | 2.5V, 4.5V | 65mOhm @ 3.7A, 4.5V | 1.2V @ 250µA | 12 nC @ 5 V | ±12V | 633 pF @ 10 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS126IXTSA1MOSFET N-CH 600V 21MA SOT23-3 |
3,363 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21mA (Ta) | - | 500Ohm @ 16mA, 10V | 1.6V @ 8µA | 1.4 nC @ 5 V | ±20V | 21 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSR92PH6327XTSA1MOSFET P-CH 250V 140MA SC59 |
2,942 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | P-Channel | MOSFET (Metal Oxide) | 250 V | 140mA (Ta) | 2.8V, 10V | 11Ohm @ 140mA, 10V | 2V @ 130µA | 4.8 nC @ 10 V | ±20V | 109 pF @ 25 V | - | 500mW (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPN60R3K4CEATMA1MOSFET N-CH 600V 2.6A SOT223 |
3,278 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.6A (Tc) | 10V | 3.4Ohm @ 500mA, 10V | 3.5V @ 40µA | 4.6 nC @ 10 V | ±20V | 93 pF @ 100 V | Super Junction | 5W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
