| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

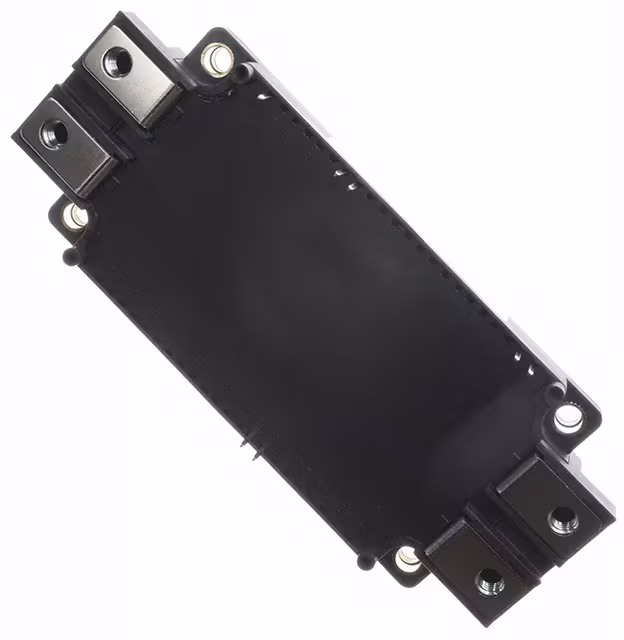

CM450DX-24AIGBT MOD 1200V 450A 2840W |
2,888 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1200 V | 450 A | 2840 W | 2.6V @ 15V, 450A | 1 mA | 68 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|

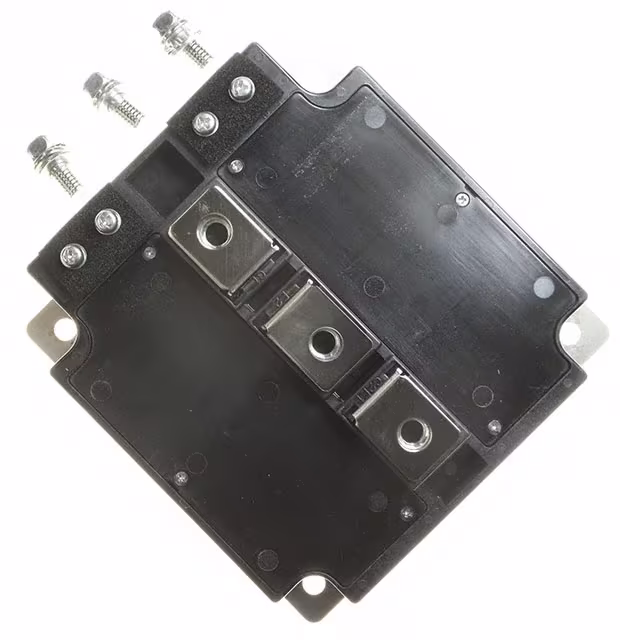

CM600DU-24NFIGBT MOD 1200V 600A 2080W |
2,900 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1200 V | 600 A | 2080 W | 2.65V @ 15V, 600A | 1 mA | 140 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

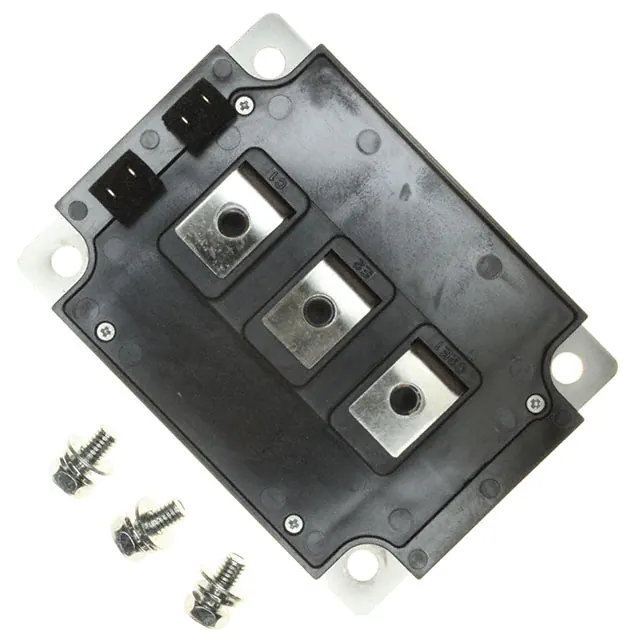

CM600DY-12NFIGBT MOD 600V 600A 1130W |
3,835 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 600 V | 600 A | 1130 W | 2.2V @ 15V, 600A | 1 mA | 90 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

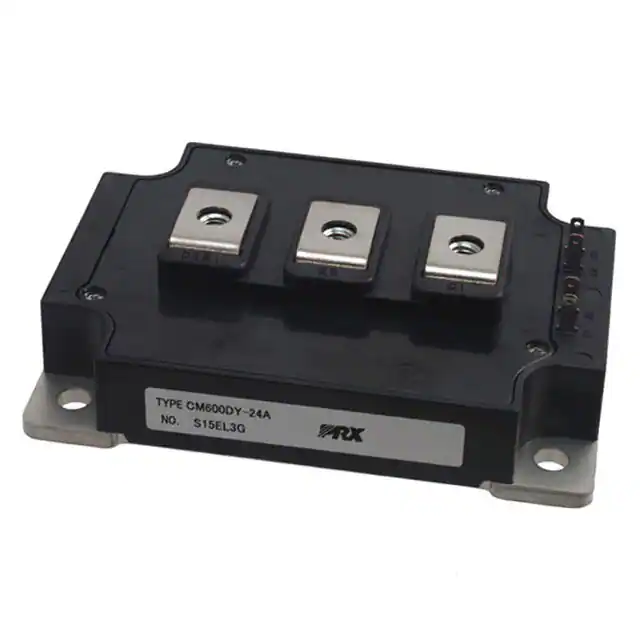

CM600DY-24AIGBT MOD 1200V 600A 3670W |
2,474 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 600 A | 3670 W | 3V @ 15V, 600A | 1 mA | 94 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

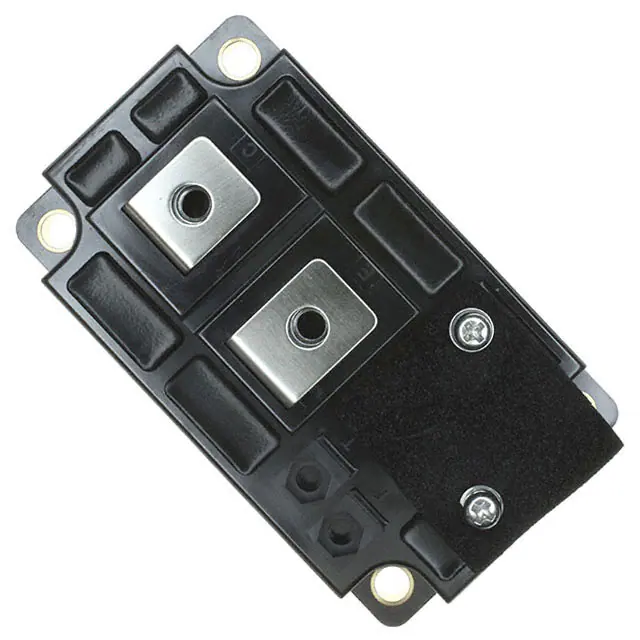

CM600HA-24AIGBT MOD 1200V 600A 3670W |
2,867 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Single | 1200 V | 600 A | 3670 W | 3V @ 15V, 600A | 1 mA | 105 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

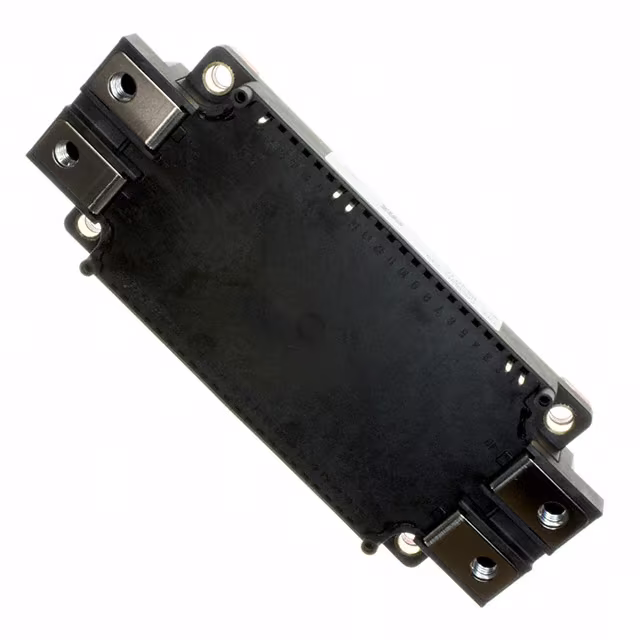

CM600HX-24AIGBT MOD 1200V 600A 3785W |
2,912 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Single | 1200 V | 600 A | 3785 W | 2.6V @ 15V, 600A | 1 mA | 100 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
CM900DU-24NFIGBT MOD 1200V 900A 2550W |
3,958 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 900 A | 2550 W | 2.5V @ 15V, 900A | 1 mA | 140 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
CM1000HA-24HIGBT MOD 1200V 1000A 5800W |
3,165 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Single | 1200 V | 1000 A | 5800 W | 3.6V @ 15V, 1000A | 6 mA | 200 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM1000HA-28HIGBT MOD 1400V 1000A 5800W |
2,095 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Single | 1400 V | 1000 A | 5800 W | 4.5V @ 15V, 1000A | 2 mA | 200 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM100BU-12HIGBT MOD 600V 100A 400W |
2,979 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Full Bridge Inverter | 600 V | 100 A | 400 W | 3V @ 15V, 100A | 1 mA | 8.8 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM100DU-12FIGBT MOD 600V 100A 350W |
2,610 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | Trench | Half Bridge | 600 V | 100 A | 350 W | 2.2V @ 15V, 100A | 1 mA | 27 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM100DU-12HIGBT MOD 600V 100A 400W |
2,114 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 600 V | 100 A | 400 W | 3V @ 15V, 100A | 1 mA | 8.8 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM100DU-24FIGBT MOD 1200V 100A 500W |
2,739 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | Trench | Half Bridge | 1200 V | 100 A | 500 W | 2.4V @ 15V, 100A | 1 mA | 39 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM100DU-24HIGBT MOD 1200V 100A 600W |
3,351 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 100 A | 600 W | 3.7V @ 15V, 100A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM100DU-34KAIGBT MOD 1700V 100A 890W |
2,542 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1700 V | 100 A | 890 W | 4V @ 15V, 100A | 1 mA | 14 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM100DUS-12FIGBT MOD 600V 100A 350W |
2,654 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | Trench | Half Bridge | 600 V | 100 A | 350 W | 2.7V @ 15V, 100A | 1 mA | 27 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM100DY-12HIGBT MOD 600V 100A 400W |
3,647 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 600 V | 100 A | 400 W | 2.8V @ 15V, 100A | 1 mA | 10 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM100DY-24HIGBT MOD 1200V 100A 780W |
2,272 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1200 V | 100 A | 780 W | 3.4V @ 15V, 100A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM100DY-28HIGBT MOD 1400V 100A 780W |
2,417 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1400 V | 100 A | 780 W | 4.2V @ 15V, 100A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM100DY-34AIGBT MOD 1700V 100A 960W |
3,269 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1700 V | 100 A | 960 W | 2.8V @ 15V, 100A | 1 mA | 24.7 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
