| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM150DU-24HIGBT MOD 1200V 150A 890W |
3,805 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1200 V | 150 A | 890 W | 3.7V @ 15V, 150A | 1 mA | 22 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

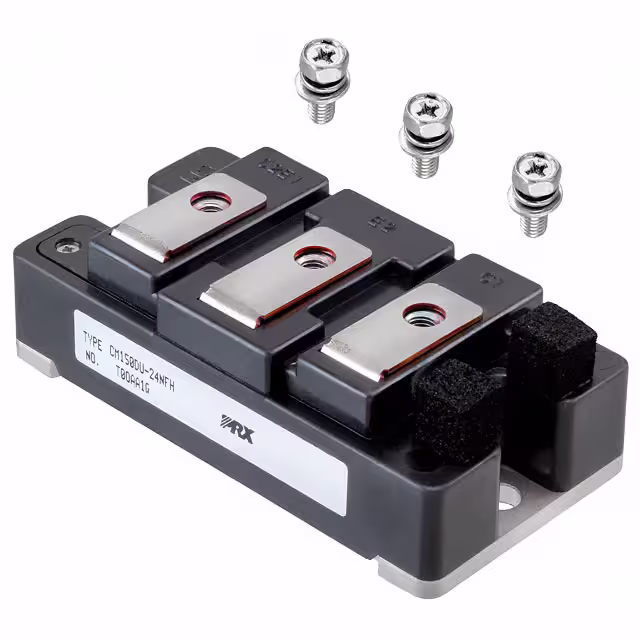

CM150DU-24NFHIGBT MOD 1200V 150A 650W |
2,087 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1200 V | 150 A | 650 W | 6.5V @ 15V, 150A | 1 mA | 24 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM150DU-34KAIGBT MOD 1700V 150A 1100W |
3,017 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1700 V | 150 A | 1100 W | 4V @ 15V, 150A | 1 mA | 21 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
CM150DUS-12FIGBT MOD 600V 150A 520W |
2,825 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | Trench | Half Bridge | 600 V | 150 A | 520 W | 2.7V @ 15V, 150A | 1 mA | 41 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM150DY-12HIGBT MOD 600V 150A 600W |
3,073 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 600 V | 150 A | 600 W | 2.8V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM150DY-24AIGBT MOD 1200V 150A 960W |
2,893 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 150 A | 960 W | 3V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

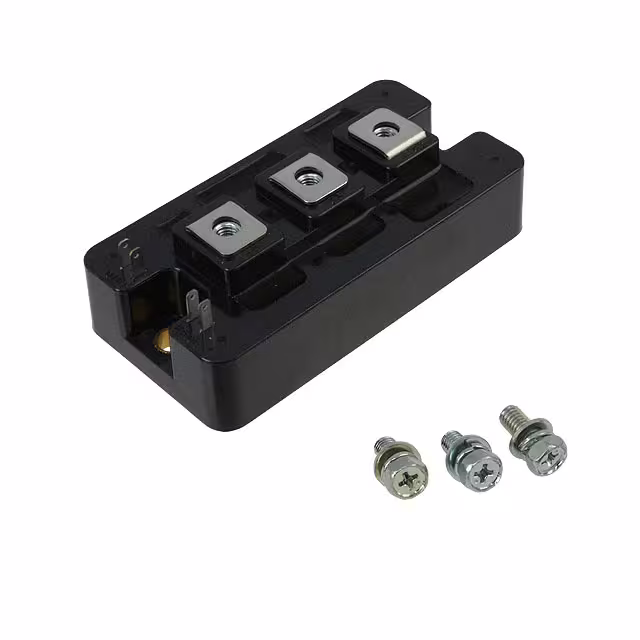

CM150DY-24HIGBT MOD 1200V 150A 1100W |
3,243 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1200 V | 150 A | 1100 W | 3.4V @ 15V, 150A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM150DY-24NFIGBT MOD 1200V 150A 780W |
3,539 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 150 A | 780 W | 2.5V @ 15V, 150A | 1 mA | 35 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM150DY-28HIGBT MOD 1400V 150A 1100W |
3,963 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1400 V | 150 A | 1100 W | 4.2V @ 15V, 150A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM150DY-34AIGBT MOD 1700V 150A 1600W |
3,198 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1700 V | 150 A | 1600 W | 2.8V @ 15V, 150A | 1 mA | 37 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM150E3U-12HIGBT MOD 600V 150A 600W |
2,103 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Single | 600 V | 150 A | 600 W | 3V @ 15V, 150A | 1 mA | 13.2 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM150E3U-24HIGBT MOD 1200V 150A 890W |
2,920 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Single | 1200 V | 150 A | 890 W | 3.7V @ 15V, 150A | 1 mA | 22 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM150RL-12NFIGBT MOD 600V 150A 730W |
2,292 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Three Phase Inverter with Brake | 600 V | 150 A | 730 W | 2.2V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM150RL-24NFIGBT MOD 1200V 150A 890W |
2,701 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 150 A | 890 W | 3V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM150RX-12AIGBT MOD 600V 150A 520W |
2,630 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Three Phase Inverter with Brake | 600 V | 150 A | 520 W | 2.1V @ 15V, 150A | 1 mA | 18 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM150TF-12HIGBT MOD 600V 150A 600W |
3,045 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Three Phase Inverter | 600 V | 150 A | 600 W | 2.8V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM150TL-12NFIGBT MOD 600V 150A 730W |
3,334 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Three Phase Inverter | 600 V | 150 A | 730 W | 2.2V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM150TL-24NFIGBT MOD 1200V 150A 890W |
3,536 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Three Phase Inverter | 1200 V | 150 A | 890 W | 3V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM150TU-12FIGBT MOD 600V 150A 520W |
3,676 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Discontinued at Mosen | Trench | Three Phase Inverter | 600 V | 150 A | 520 W | 2.2V @ 15V, 150A | 1 mA | 41 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM150TU-12HIGBT MOD 600V 150A 600W |
3,774 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Three Phase Inverter | 600 V | 150 A | 600 W | 3V @ 15V, 150A | 1 mA | 13.2 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
