| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6SMB33CAT3GTVS DIODE 28.2VWM 45.7VC SMB |
46,741 | 0.28 |
RFQ |
Datasheet |
DO-214AA, SMB | Bulk | P6SMB | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 13.2A | 600W | No | General Purpose | 305pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
P6SMB180AT3GTVS DIODE 154VWM 246VC 425TEPBGA |
26,500 | 0.29 |
RFQ |
Datasheet |
DO-214AA, SMB | Bulk | - | Active | Zener | 1 | - | 154V | 171V | 246V | 2.4A | 600W | No | General Purpose | 130pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
1SMB130AT3GTVS DIODE 130VWM 209VC 425TEPBGA |
22,331 | 0.29 |
RFQ |
Datasheet |
DO-214AA, SMB | Bulk | - | Active | Zener | 1 | - | 130V | 144V | 209V | 2.9A | 600W | No | Telecom | 150pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
CM1223-04MRTRANS VOLTAGE SUPPRESSOR DIODE |
16,000 | 0.29 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NUP8028MNT1GTRANS VOLTAGE SUPPRESSOR DIODE |
17,987 | 0.30 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MRJ2535-2LFDIODE TVS SINGLE UNI-DIR 20V 2PI |
103,783 | 0.53 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MRJ2535-2LFGTRANS VOLTAGE SUPPRESSOR DIODE |
396,005 | 1.07 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SZESD7371HT1GTVS DIODE 5.3VWM SOD323 |
8,549 | 0.41 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Last Time Buy | Zener | 1 | - | 5.3V (Max) | 7V | - | - | - | No | Automotive, RF Antenna | 0.43pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
MMBZ15VALT1GTVS DIODE 12VWM 21VC SOT23-3 |
5,951 | 0.25 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | 1 | 12V | 14.25V | 21V | 1.9A | 40W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SZMMBZ15VALT3GTVS DIODE 12VWM 21VC SOT23-3 |
4,660 | 0.31 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | 1 | 12V | 14.25V | 21V | 1.9A | 40W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|

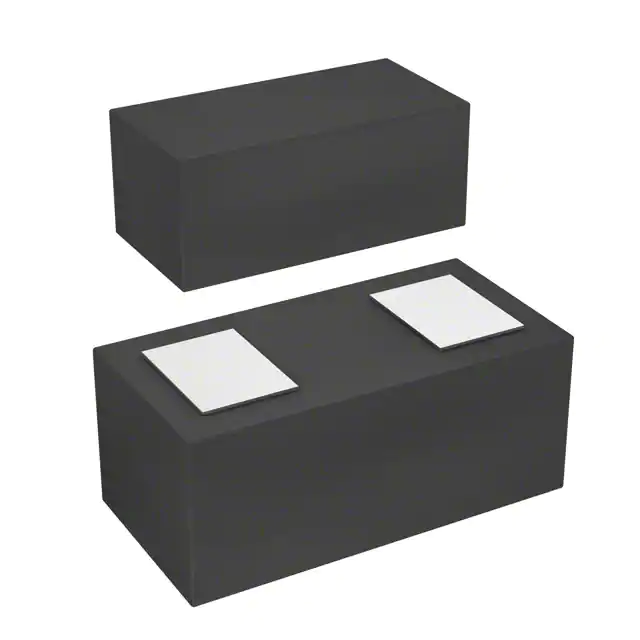

ESD5111FCT5GTVS DIODE 3.3VWM 6.5VC 2WLCSP |
5,146 | 0.33 |
RFQ |
Datasheet |
2-XFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Steering (Rail to Rail) | 1 | - | 3.3V (Max) | 3.68V | 6.5V | 16A (100ns) | - | No | General Purpose | 5.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
NZQA6V2XV5T1GTVS DIODE 4VWM 11.5VC SOT553 |
3,164 | 0.37 |
RFQ |
Datasheet |
SOT-553 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 4V | 5.89V | 11.5V | 9A (8/20µs) | 100W | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|

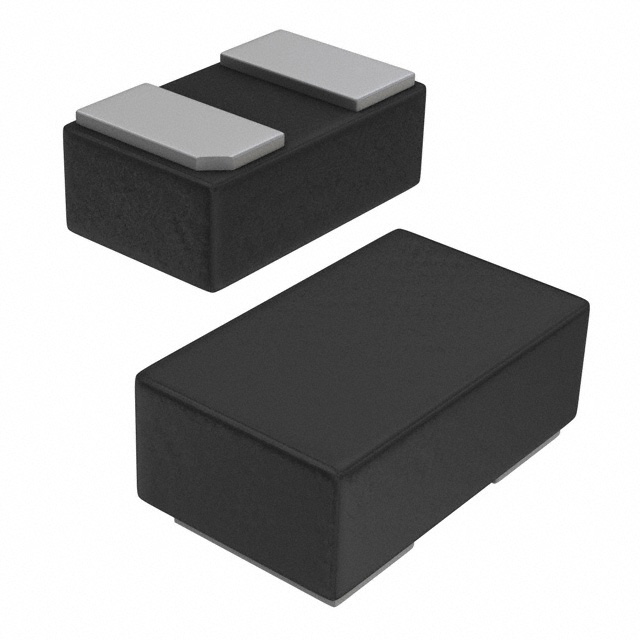

ESDM1131MX4T5GTVS DIODE 3.3VWM 5.6VC 2X4DFN |
8,220 | 0.36 |
RFQ |
Datasheet |
01005 (0402 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 4V | 5.6V (Typ) | - | - | No | General Purpose | 4pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
ESD7551N2T5GTVS DIODE 3.3VWM 13VC 2X2DFN |
14,720 | 0.37 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 5V | 13V | - | - | No | General Purpose | 0.25pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
ESD7371P2T5GTVS DIODE 5.3VWM SOD923 |
6,881 | 0.37 |
RFQ |
Datasheet |
SOD-923 | Tape & Reel (TR),Cut Tape (CT) | - | Last Time Buy | Zener | 1 | - | 5.3V (Max) | 7V | - | - | - | No | RF Antenna | 0.43pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ESD9101P2T5GTVS DIODE 5VWM 7VC SOD923 |
2,310 | 0.37 |
RFQ |
Datasheet |
SOD-923 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 5.3V | 7V (Typ) | 16A | - | No | General Purpose | 0.36pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
MA3075WALT1GTVS DIODE 6.5VWM SOT23-3 |
2,920 | 0.37 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | - | 6.5V | 7.2V | - | - | 15W | No | Automotive | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
SZMMBZ15VAWT1GTVS DIODE 12VWM 21VC SC70-3 |
1,196 | 0.38 |
RFQ |
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | 1 | 12V | 14.25V | 21V | 1.9A | 40W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ESD9M5.0ST5GTVS DIODE 5VWM 9.8VC SOD923 |
6,438 | 0.39 |
RFQ |
Datasheet |
SOD-923 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 5V (Max) | 5.8V | 9.8V | 1A (8/20µs) | - | No | Automotive | 2.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SZMMBZ27VAWT1GTVS DIODE 22VWM 40VC SC70-3 |
2,405 | 0.40 |
RFQ |
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | 1 | 22V | 25.65V | 40V | 1A | 40W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
