| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

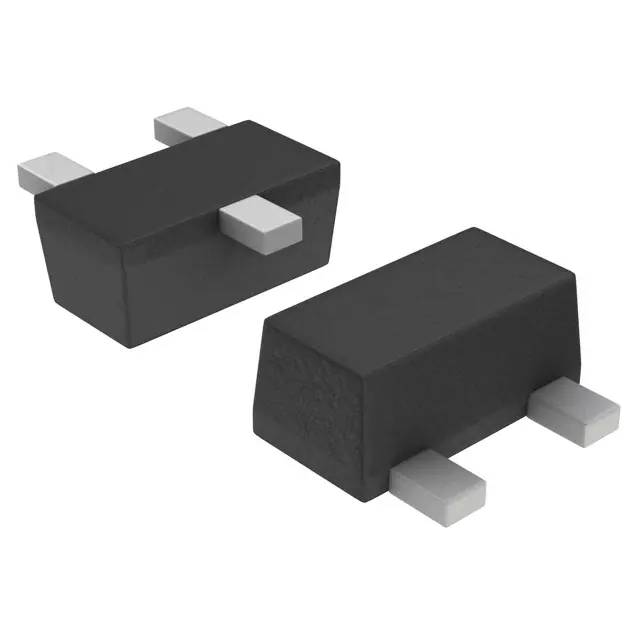

NZL5V6AXV3T1GTVS DIODE 3VWM 7VC SC89-3 |
2,240 | 0.43 |
RFQ |
Datasheet |
SC-89, SOT-490 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | - | 3V | 5.32V | 7V | 10.1A (8/20µs) | 50W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
SD12T1GTVS DIODE 12VWM 19VC SOD323 |
1,917 | 0.43 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 12V | 13.3V | 19V | 15A (8/20µs) | 350W | No | Automotive | 150pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
ESD9P5.0ST5GTVS DIODE 5VWM 9.8VC SOD923 |
3,914 | 0.44 |
RFQ |
Datasheet |
SOD-923 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 5V (Max) | 5.8V | 9.8V | 1A (8/20µs) | - | No | Automotive | 1.3pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
CM1293A-02SRTVS DIODE 3.3VWM 9.9VC SOT143-4 |
1,076 | 0.45 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 2 | - | 3.3V | - | 9.9V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | Surface Mount |
|
SZMMQA33VT1GTVS DIODE 25VWM 48.6VC SC74 |
2,990 | 0.46 |
RFQ |
Datasheet |
SC-74, SOT-457 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, MMQA | Active | Zener | 4 | - | 25V (Max) | 31.4V | 48.6V | 504mA (8/20µs) | 150W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
ESD8351MUT5GTVS DIODE 3.3VWM 11.2VC 2X3DFN |
7,680 | 0.49 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 3.3V (Max) | 5.5V | 11.2V | 5A (8/20µs) | - | No | General Purpose | 0.37pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
CM1213A-01SOTVS DIODE 3.3VWM 10VC SOT23-3 |
2,199 | 0.49 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 1 | - | 3.3V | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ESDR0524PMUTAGTVS DIODE 5VWM 15VC 10UDFN |
1,322 | 0.49 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 5V (Max) | 5.5V | 15V | 1A (8/20µs) | - | No | HDMI | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
ESD7C5.0DT5GTVS DIODE 5VWM SOT723 |
1,094 | 0.49 |
RFQ |
Datasheet |
SOT-723 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 5V (Max) | 11V | - | - | - | No | General Purpose | 6.2pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|

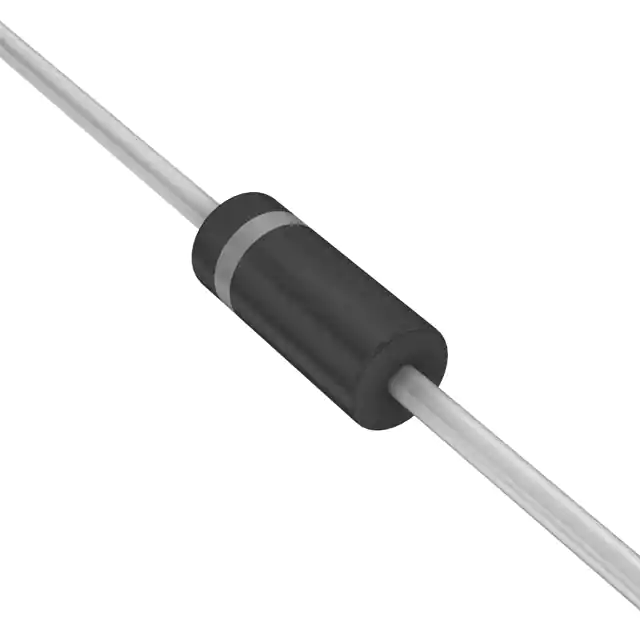

P6KE33ARLTVS DIODE 28.2VWM 45.7VC AXIAL |
2,253 | 0.00 |
RFQ |
Datasheet |
T-18, Axial | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 13.2A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Through Hole |
|
SMS15CT1GTVS DIODE 15VWM 29VC 6TSOP |
2,490 | 0.53 |
RFQ |
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 5 | - | 15V (Max) | 17V | 29V | 12A (8/20µs) | 350W | No | General Purpose | 95pF @ 1MHz | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
NSP2201MR6T1GTVS DIODE 5VWM 12VC 6TSOP |
2,821 | 0.54 |
RFQ |
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 5V (Max) | 6V | 12V | 25A (8/20µs) | 500W | Yes | DVI, USB | 3pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
SZSM05T1GTVS DIODE 5VWM 9.8VC SOT23-3 |
2,634 | 0.54 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | - | 5V | 6.2V | 9.8V | 17A (8/20µs) | 300W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SZNSP2201MR6T1GTVS DIODE 5VWM 12VC 6TSOP |
1,699 | 0.56 |
RFQ |
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 5V (Max) | 6V | 12V | 25A (8/20µs) | 500W | Yes | DVI, USB | 3pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
SZESD7421N2T5GTVS DIODE 5VWM 38.1VC 2XDFN |
8,000 | 0.58 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 5V | 10.5V | 38.1V | 16A (100ns) | - | No | Automotive | 0.3pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
NSPM2052MUT5GTVS DIODE 3UDFN |
7,968 | 0.58 |
RFQ |
3-UDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | |
|
NSPM5131MUTBGTVS DIODE 13.5VWM 21.5VC 6UDFN |
1,363 | 0.59 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 13.5V (Max) | 13.6V | 21.5V | 160A (8/20µs) | - | No | General Purpose | - | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
NSPU5201MUTBGTVS DIODE 20VWM 31.5VC 6UDFN |
2,950 | 0.61 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 20V | 21.7V | 31.5V | 140A (8/20µs) | - | No | General Purpose | - | -55°C ~ 125°C (TA) | Surface Mount |
|
|
ESD7M5.0DT5GTVS DIODE 5VWM 10.4VC SOT723 |
2,914 | 0.65 |
RFQ |
Datasheet |
SOT-723 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | 1 | 5V (Max) | 5.4V | 10.4V | 1A (8/20µs) | - | No | General Purpose | 2.5pF @ 1MHz, 1.25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ESD7205DT5GTVS DIODE 5VWM 12.5VC SOT723 |
7,668 | 0.80 |
RFQ |
Datasheet |
SOT-723 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 5V (Max) | 5.2V | 12.5V (Typ) | - | - | No | Ethernet, USB OTG | 0.34pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
