Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)
CSS0603FT10L0 RES 0.01 OHM 1% 1/3W 0603 Stackpole Electronics Inc	16,510	0.58	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSS	Active	10 mOhms	±1%	0.333W, 1/3W	Metal Element	Automotive AEC-Q200, Current Sense	±50ppm/°C	-55°C ~ 150°C	AEC-Q200	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.016 (0.40mm)
CSS0805FT5L00 RES 0.005 OHM 1% 1/2W 0805 Stackpole Electronics Inc	5,000	0.13	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR)	CSS	Active	5 mOhms	±1%	0.5W, 1/2W	Metal Element	Automotive AEC-Q200, Current Sense	±50ppm/°C	-55°C ~ 150°C	AEC-Q200	0.080 L x 0.050 W (2.03mm x 1.27mm)	0.016 (0.40mm)

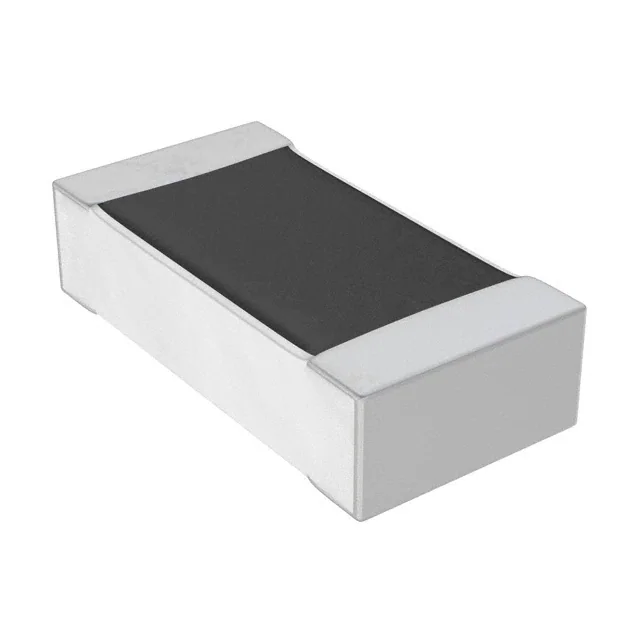

CSRT2512FTR150-UP RES, CS, 2512, 0.15 OHM, 1%, 3.5 Stackpole Electronics Inc	19,378	0.68	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRT	Active	150 mOhms	±1%	3.5W	Thin Film	Automotive AEC-Q200, Current Sense	±50ppm/°C	-55°C ~ 170°C	AEC-Q200	0.248 L x 0.126 W (6.30mm x 3.20mm)	0.033 (0.85mm)
CSRT2512FT4R70-UP RES, CS, 2512, 4.7 OHM, 1%, 3.5W Stackpole Electronics Inc	21,290	0.68	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRT	Active	4.7 Ohms	±1%	3.5W	Thin Film	Automotive AEC-Q200, Current Sense	±50ppm/°C	-55°C ~ 170°C	AEC-Q200	0.248 L x 0.126 W (6.30mm x 3.20mm)	0.033 (0.85mm)
CSRT2512FT50L0-UP RES, CS, 2512, 0.05 OHM, 1%, 3.5 Stackpole Electronics Inc	15,617	0.68	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRT	Active	50 mOhms	±1%	3.5W	Thin Film	Automotive AEC-Q200, Current Sense	±50ppm/°C	-55°C ~ 170°C	AEC-Q200	0.248 L x 0.126 W (6.30mm x 3.20mm)	0.033 (0.85mm)
CSRT2512FTR500-UP RES, CS, 2512, 0.5 OHM, 1%, 3.5W Stackpole Electronics Inc	4,769	0.68	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRT	Active	500 mOhms	±1%	3.5W	Thin Film	Automotive AEC-Q200, Current Sense	±50ppm/°C	-55°C ~ 170°C	AEC-Q200	0.248 L x 0.126 W (6.30mm x 3.20mm)	0.033 (0.85mm)
CSRT2512FTR200-UP RES, CS, 2512, 0.2 OHM, 1%, 3.5W Stackpole Electronics Inc	7,071	0.68	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRT	Active	200 mOhms	±1%	3.5W	Thin Film	Automotive AEC-Q200, Current Sense	±50ppm/°C	-55°C ~ 170°C	AEC-Q200	0.248 L x 0.126 W (6.30mm x 3.20mm)	0.033 (0.85mm)
CSRT2512FTR300-UP RES, CS, 2512, 0.3 OHM, 1%, 3.5W Stackpole Electronics Inc	4,457	0.68	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRT	Active	300 mOhms	±1%	3.5W	Thin Film	Automotive AEC-Q200, Current Sense	±50ppm/°C	-55°C ~ 170°C	AEC-Q200	0.248 L x 0.126 W (6.30mm x 3.20mm)	0.033 (0.85mm)
CSRT2512FTR100-UP RES, CS, 2512, 0.1 OHM, 1%, 3.5W Stackpole Electronics Inc	4,173	0.68	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRT	Active	100 mOhms	±1%	3.5W	Thin Film	Automotive AEC-Q200, Current Sense	±50ppm/°C	-55°C ~ 170°C	AEC-Q200	0.248 L x 0.126 W (6.30mm x 3.20mm)	0.033 (0.85mm)
CSRT2512FT1R00-UP RES, CS, 2512, 1 OHM, 1%, 3.5W Stackpole Electronics Inc	2,904	0.68	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRT	Active	1 Ohms	±1%	3.5W	Thin Film	Automotive AEC-Q200, Current Sense	±50ppm/°C	-55°C ~ 170°C	AEC-Q200	0.248 L x 0.126 W (6.30mm x 3.20mm)	0.033 (0.85mm)
CSRN2010FK75L0 RES 0.075 OHM 1% 1W 2010 Stackpole Electronics Inc	17,685	0.58	RFQ	Datasheet	2010 (5025 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRN	Active	75 mOhms	±1%	1W	Thick Film	Current Sense	±250ppm/°C	-55°C ~ 155°C	-	0.197 L x 0.097 W (5.00mm x 2.45mm)	0.030 (0.75mm)
CSRN2010FK25L0 RES 0.025 OHM 1% 1W 2010 Stackpole Electronics Inc	13,411	0.64	RFQ	Datasheet	2010 (5025 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRN	Active	25 mOhms	±1%	1W	Thick Film	Current Sense	±250ppm/°C	-55°C ~ 155°C	-	0.197 L x 0.097 W (5.00mm x 2.45mm)	0.030 (0.75mm)
CSRN2010FK40L0 RES 0.04 OHM 1% 1W 2010 Stackpole Electronics Inc	3,758	0.64	RFQ	Datasheet	2010 (5025 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRN	Active	40 mOhms	±1%	1W	Thick Film	Current Sense	±250ppm/°C	-55°C ~ 155°C	-	0.197 L x 0.097 W (5.00mm x 2.45mm)	0.030 (0.75mm)
CSRN2010FK30L0 RES 0.03 OHM 1% 1W 2010 Stackpole Electronics Inc	3,418	0.64	RFQ	Datasheet	2010 (5025 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRN	Active	30 mOhms	±1%	1W	Thick Film	Current Sense	±250ppm/°C	-55°C ~ 155°C	-	0.197 L x 0.097 W (5.00mm x 2.45mm)	0.030 (0.75mm)

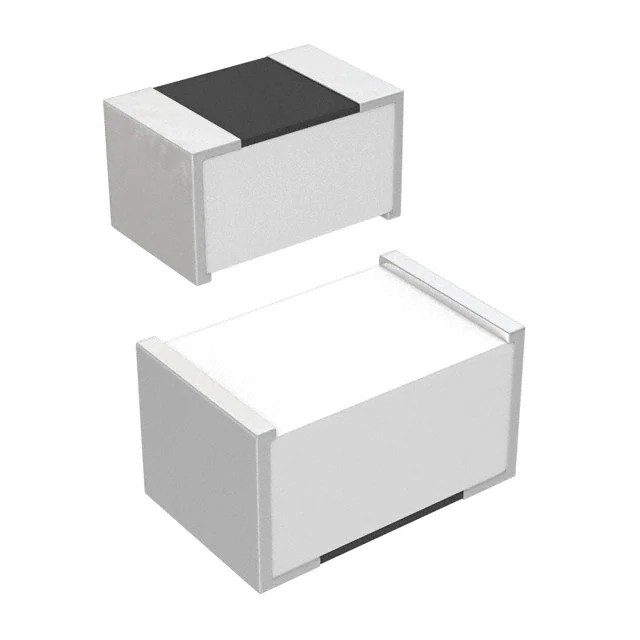

CSRF0402FT5L00 RES 0.005 OHM 1% 1/8W 0402 Stackpole Electronics Inc	7,586	0.55	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRF	Active	5 mOhms	±1%	0.125W, 1/8W	Metal Foil	Automotive AEC-Q200, Current Sense, Moisture Resistant	±200ppm/°C	-55°C ~ 170°C	AEC-Q200	0.039 L x 0.022 W (1.00mm x 0.55mm)	0.022 (0.55mm)
CSM0603FT10L0 RES 0.01 OHM 1% 1/3W 0603 Stackpole Electronics Inc	55,169	0.73	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSM	Active	10 mOhms	±1%	0.333W, 1/3W	Metal Element	Current Sense	±100ppm/°C	-55°C ~ 155°C	-	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.016 (0.40mm)
CSRN2010FK15L0 RES 0.015 OHM 1% 1W 2010 Stackpole Electronics Inc	14,654	0.70	RFQ	Datasheet	2010 (5025 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRN	Active	15 mOhms	±1%	1W	Thick Film	Current Sense	±250ppm/°C	-55°C ~ 155°C	-	0.197 L x 0.097 W (5.00mm x 2.45mm)	0.030 (0.75mm)
CSRF0603FT2L50 RES 0.0025 OHM 1% 1/4W 0603 Stackpole Electronics Inc	49,066	0.55	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRF	Active	2.5 mOhms	±1%	0.25W, 1/4W	Metal Foil	Automotive AEC-Q200, Current Sense, Moisture Resistant	±400ppm/°C	-55°C ~ 170°C	AEC-Q200	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.028 (0.70mm)

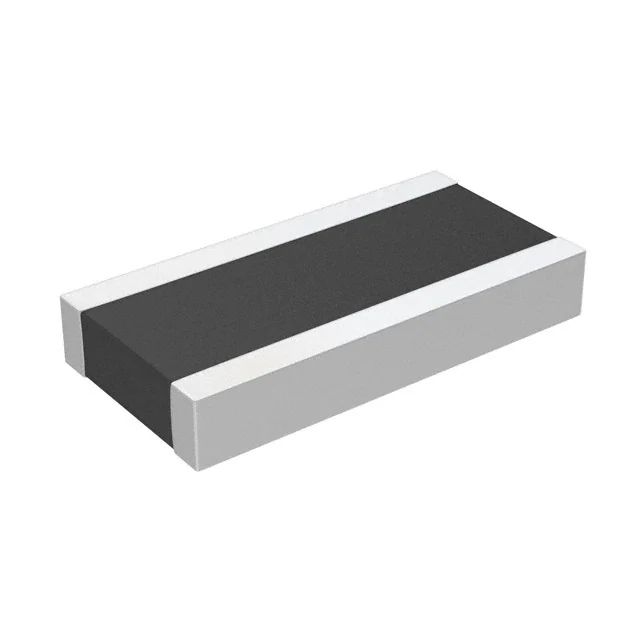

CSRF0612FT5L00 RES 0.005 OHM 1% 1W 1206 WIDE Stackpole Electronics Inc	19,420	0.55	RFQ	Datasheet	Wide 1206 (3216 Metric), 0612	Tape & Reel (TR),Cut Tape (CT)	CSRF	Active	5 mOhms	±1%	1W	Metal Foil	Current Sense, Moisture Resistant	±75ppm/°C	-55°C ~ 170°C	-	0.063 L x 0.126 W (1.60mm x 3.20mm)	0.031 (0.80mm)
RNCF0805BKT10K0 RES 10K OHM 0.1% 1/8W 0805 Stackpole Electronics Inc	4,215	0.72	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	RNCF	Active	10 kOhms	±0.1%	0.125W, 1/8W	Thin Film	Automotive AEC-Q200	±10ppm/°C	-55°C ~ 155°C	AEC-Q200	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.026 (0.65mm)
