| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HVCB1206JDC200MRES 200M OHM 5% 1/3W 1206 |
1,150 | 3.26 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 200 MOhms | ±5% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) | |
|
|
HVCB1206FKC100MRES 100M OHM 1% 1/3W 1206 |
18,783 | 4.16 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 100 MOhms | ±1% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) | |
.jpg)
|

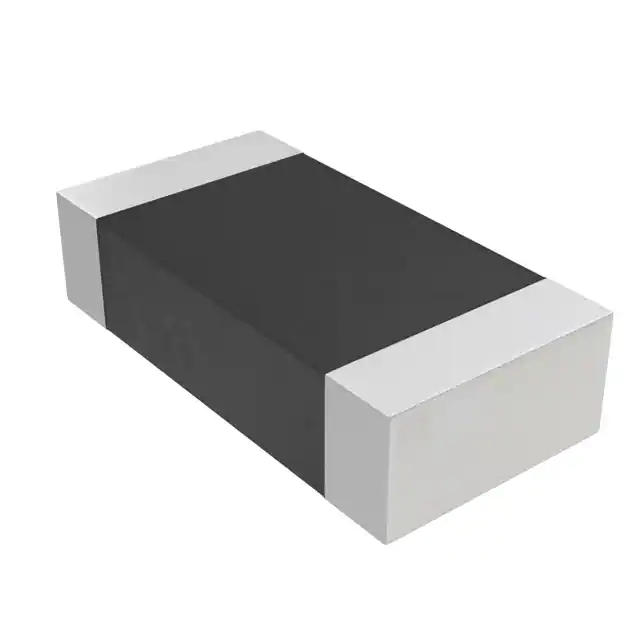

HVCB0603FDD20M0RES 20M OHM 1% 0.06W 0603 |
10,136 | 3.71 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 20 MOhms | ±1% | 0.06W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.063 L x 0.031 W (1.60mm x 0.79mm) | 0.020 (0.51mm) | |
|
|
HVCB1206FDD50K0RES 50K OHM 1% 1/3W 1206 |
3,914 | 3.71 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 50 kOhms | ±1% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) | |
|
|
HVCB0805FDD50M0RES 50M OHM 1% 1/5W 0805 |
2,024 | 3.71 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 50 MOhms | ±1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
|
HVCB0805FDC15M0RES 15M OHM 1% 1/5W 0805 |
2,635 | 3.86 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 15 MOhms | ±1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
|
HVCB2010FKC100MRES 100M OHM 1% 1W 2010 |
17,309 | 4.41 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 100 MOhms | ±1% | 1W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.030 (0.76mm) | |
|
|
HVCB0805GDC200MRES 200M OHM 2% 1/5W 0805 |
24,001 | 4.16 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 200 MOhms | ±2% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
|
HVCB0603JDD1G00RES 1G OHM 5% 0.06W 0603 |
7,919 | 4.13 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 1 GOhms | ±5% | 0.06W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.063 L x 0.031 W (1.60mm x 0.79mm) | 0.020 (0.51mm) | |
|
|
HVCB0805FDC100MRES 100M OHM 1% 1/5W 0805 |
10,808 | 4.27 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 100 MOhms | ±1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
|
HVCB0603FDC100MRES 100M OHM 1% 0.06W 0603 |
11,339 | 4.96 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 100 MOhms | ±1% | 0.06W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.063 L x 0.031 W (1.60mm x 0.79mm) | 0.020 (0.51mm) | |
|
|
HVCB0603FDC50M0RES 50M OHM 1% 0.06W 0603 |
3,252 | 4.96 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 50 MOhms | ±1% | 0.06W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.063 L x 0.031 W (1.60mm x 0.79mm) | 0.020 (0.51mm) | |
|
HVCB0805FDC250MRES SMD 250 MOHMS 1% 1/5W 0805 |
3,952 | 6.45 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 250 MOhms | ±1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
|
HVCB0805JDD5G00RES 5G OHM 5% 1/5W 0805 |
6,815 | 6.36 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 5 GOhms | ±5% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
.jpg)
|
HVCB2512FDD50K0RES 50K OHM 1% 2W 2512 |
1,014 | 6.36 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 50 kOhms | ±1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
|
HVCB2512FDD200MRES 200M OHM 1% 2W 2512 |
1,452 | 7.00 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 200 MOhms | ±1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
|
HVCB2010DDC500MRES 500M OHM 0.5% 1W 2010 |
1,445 | 8.52 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 500 MOhms | ±0.5% | 1W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.030 (0.76mm) | |
|
HVCB1206BDE10M0RES 10M OHM 0.1% 1/3W 1206 |
2,548 | 9.16 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 10 MOhms | ±0.1% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±25ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) | |
|
|
HVCB1206BDE5M00RES HV 1206 5 MOHM 0.1% 25PPM |
4,938 | 9.79 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 5 MOhms | ±0.1% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±25ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.76mm) | |
|
|
HVCB1206BDE100MRES 100M OHM 0.1% 1/3W 1206 |
3,032 | 11.45 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 100 MOhms | ±0.1% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±25ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) |
