Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)

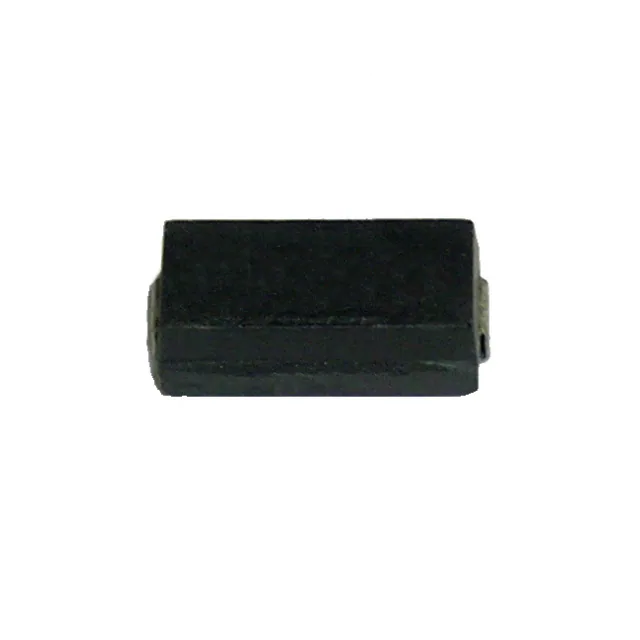

SM4124FT50R0 RES 50 OHM 1% 2W 4124 Stackpole Electronics Inc	4,642	0.88	RFQ	Datasheet	4124 J-Lead	Tape & Reel (TR),Cut Tape (CT)	SM	Active	50 Ohms	±1%	2W	Wirewound	Moisture Resistant, Pulse Withstanding	±20ppm/°C	-55°C ~ 275°C	-	0.410 L x 0.240 W (10.41mm x 6.10mm)	0.195 (4.95mm)
CSSH2728FT4L00 RES 0.004 OHM 1% 4W 2827 WIDE Stackpole Electronics Inc	5,962	1.10	RFQ	Datasheet	Wide 2827 (7067 Metric), 2728	Tape & Reel (TR),Cut Tape (CT)	CSSH	Active	4 mOhms	±1%	4W	Metal Element	Automotive AEC-Q200, Current Sense	±25ppm/°C	-55°C ~ 225°C	AEC-Q200	0.264 L x 0.283 W (6.71mm x 7.19mm)	0.049 (1.24mm)
CSSH2728FT30L0 RES 0.03 OHM 1% 4W 2827 WIDE Stackpole Electronics Inc	4,571	1.10	RFQ	Datasheet	Wide 2827 (7067 Metric), 2728	Tape & Reel (TR),Cut Tape (CT)	CSSH	Active	30 mOhms	±1%	4W	Metal Element	Automotive AEC-Q200, Current Sense	±15ppm/°C	-55°C ~ 225°C	AEC-Q200	0.264 L x 0.283 W (6.71mm x 7.19mm)	0.049 (1.24mm)
RNCF1206TKY4K99 RES 4.99K OHM 0.01% 1/4W 1206 Stackpole Electronics Inc	30,935	2.12	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	RNCF	Active	4.99 kOhms	±0.01%	0.25W, 1/4W	Thin Film	Automotive AEC-Q200	±5ppm/°C	-55°C ~ 155°C	AEC-Q200	0.120 L x 0.061 W (3.05mm x 1.55mm)	0.026 (0.65mm)
SM6227FT50R0 RES 50 OHM 1% 3W 6227 Stackpole Electronics Inc	72,838	1.24	RFQ	Datasheet	6227 J-Lead	Tape & Reel (TR),Cut Tape (CT)	SM	Active	50 Ohms	±1%	3W	Wirewound	Moisture Resistant, Pulse Withstanding	±20ppm/°C	-55°C ~ 275°C	-	0.625 L x 0.275 W (15.88mm x 6.99mm)	0.265 (6.73mm)
CSSH2728FT25L0 RES 0.025 OHM 1% 4W 2827 WIDE Stackpole Electronics Inc	3,257	1.10	RFQ	Datasheet	Wide 2827 (7067 Metric), 2728	Tape & Reel (TR),Cut Tape (CT)	CSSH	Active	25 mOhms	±1%	4W	Metal Element	Automotive AEC-Q200, Current Sense	±15ppm/°C	-55°C ~ 225°C	AEC-Q200	0.264 L x 0.283 W (6.71mm x 7.19mm)	0.049 (1.24mm)

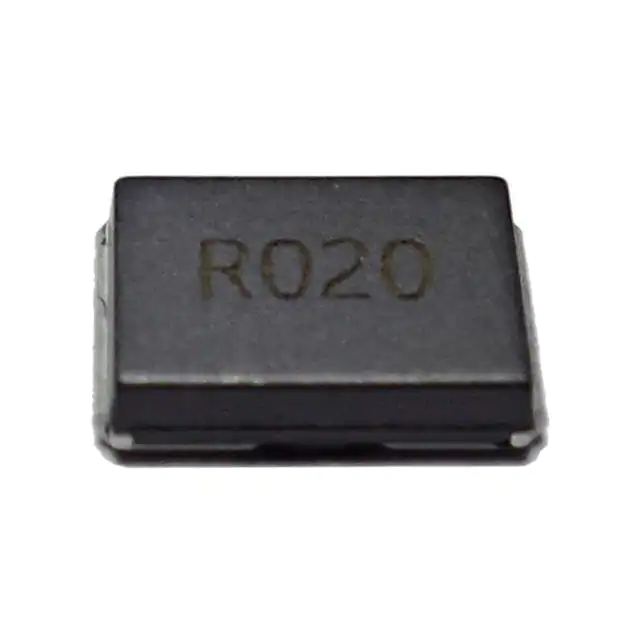

HCSM2818FT10L0 RES 0.01 OHM 5W 1% 2818 SMD Stackpole Electronics Inc	14,773	1.13	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	HCSM	Active	10 mOhms	±1%	5W	Metal Element	Current Sense	±75ppm/°C	-55°C ~ 170°C	-	0.280 L x 0.195 W (7.10mm x 4.95mm)	0.075 (1.90mm)
HCSM2818FT15L0 RES 0.015 OHM 5W 1% 2818 SMD Stackpole Electronics Inc	10,666	1.13	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	HCSM	Active	15 mOhms	±1%	5W	Metal Element	Current Sense	±75ppm/°C	-55°C ~ 170°C	-	0.280 L x 0.195 W (7.10mm x 4.95mm)	0.075 (1.90mm)
RNCF0805TKY49R9 RES 49.9 OHM 0.01% 1/8W 0805 Stackpole Electronics Inc	8,695	1.95	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	RNCF	Active	49.9 Ohms	±0.01%	0.125W, 1/8W	Thin Film	Automotive AEC-Q200	±5ppm/°C	-55°C ~ 155°C	AEC-Q200	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.026 (0.65mm)
SM6227FT1R00 RES 1 OHM 1% 3W 6227 Stackpole Electronics Inc	4,220	1.24	RFQ	Datasheet	6227 J-Lead	Tape & Reel (TR),Cut Tape (CT)	SM	Active	1 Ohms	±1%	3W	Wirewound	Moisture Resistant, Pulse Withstanding	±100ppm/°C	-55°C ~ 275°C	-	0.625 L x 0.275 W (15.88mm x 6.99mm)	0.265 (6.73mm)
RNCF0603TKY24R9 RES 24.9 OHM 0.01% 1/10W 0603 Stackpole Electronics Inc	6,238	1.95	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	RNCF	Active	24.9 Ohms	±0.01%	0.1W, 1/10W	Thin Film	Automotive AEC-Q200	±5ppm/°C	-55°C ~ 155°C	AEC-Q200	0.061 L x 0.031 W (1.55mm x 0.80mm)	0.022 (0.55mm)
RNCF0603TKY20K0 RES 20K OHM 0.01% 1/16W 0603 Stackpole Electronics Inc	7,798	2.12	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	RNCF	Active	20 kOhms	±0.01%	0.1W, 1/10W	Thin Film	Automotive AEC-Q200	±5ppm/°C	-55°C ~ 155°C	AEC-Q200	0.061 L x 0.031 W (1.55mm x 0.80mm)	0.022 (0.55mm)

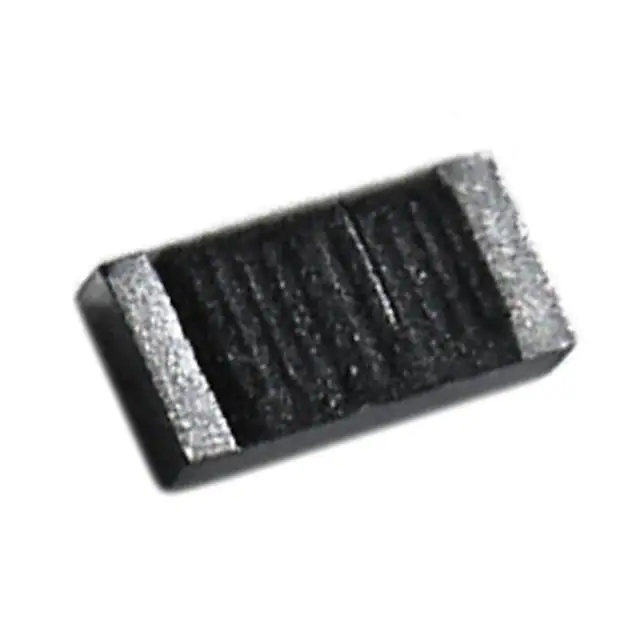

HVCB1206FKC10K0 RES 10K OHM 1% 1/3W 1206 Stackpole Electronics Inc	16,108	2.96	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	10 kOhms	±1%	0.333W, 1/3W	Thick Film	High Voltage, Moisture Resistant, Pulse Withstanding	±50ppm/°C	-55°C ~ 150°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.030 (0.75mm)
HVCB1206FKC100K RES 100K OHM 1% 1/3W 1206 Stackpole Electronics Inc	13,363	2.96	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	100 kOhms	±1%	0.333W, 1/3W	Thick Film	High Voltage, Moisture Resistant, Pulse Withstanding	±50ppm/°C	-55°C ~ 150°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.030 (0.75mm)
HVCB1206FKC2M00 RES 2M OHM 1% 1/3W 1206 Stackpole Electronics Inc	11,927	2.96	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	2 MOhms	±1%	0.333W, 1/3W	Thick Film	High Voltage, Moisture Resistant, Pulse Withstanding	±50ppm/°C	-55°C ~ 150°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.030 (0.75mm)
HVCB1206FKC10M0 RES 10M OHM 1% 1/3W 1206 Stackpole Electronics Inc	9,377	2.96	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	10 MOhms	±1%	0.333W, 1/3W	Thick Film	High Voltage, Moisture Resistant, Pulse Withstanding	±50ppm/°C	-55°C ~ 150°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.030 (0.75mm)
RNCF0603TKW49R9 RES 49.9 OHM, 0.01%, 2 PPM, 0.1W Stackpole Electronics Inc	5,457	2.94	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	RNCF	Active	49.9 Ohms	±0.01%	0.1W, 1/10W	Thin Film	Automotive AEC-Q200	±2ppm/°C	-55°C ~ 155°C	AEC-Q200	0.061 L x 0.031 W (1.55mm x 0.80mm)	0.022 (0.55mm)
HVCB2010FKC1M00 RES 1M OHM 1% 1W 2010 Stackpole Electronics Inc	7,556	3.12	RFQ	Datasheet	2010 (5025 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	1 MOhms	±1%	1W	Thick Film	High Voltage, Moisture Resistant, Pulse Withstanding	±50ppm/°C	-55°C ~ 150°C	-	0.200 L x 0.100 W (5.08mm x 2.54mm)	0.030 (0.76mm)
HVCB1206JDD500M RES 500M OHM 5% 1/3W 1206 Stackpole Electronics Inc	15,897	3.26	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	500 MOhms	±5%	0.333W, 1/3W	Thick Film	High Voltage, Moisture Resistant, Pulse Withstanding	±100ppm/°C	-55°C ~ 150°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.030 (0.75mm)
HVCB0805KDL1G00 RES 1G OHM 10% 1/5W 0805 Stackpole Electronics Inc	8,084	3.26	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	1 GOhms	±10%	0.2W, 1/5W	Thick Film	High Voltage, Moisture Resistant, Pulse Withstanding	±200ppm/°C	-55°C ~ 150°C	-	0.079 L x 0.050 W (2.01mm x 1.27mm)	0.025 (0.64mm)
