Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension
LMT78_12-0.5R DC-DC POL GAPTEC Electronic	249	2.08	RFQ	Datasheet	10-SMD Module, 8 Leads	Tube	LMT78_0.5R	Active	Non-Isolated PoL Module	1	15V	36V	12V	-	-	-	500mA	6 W	-	ITE (Commercial)	Adjustable Output, Remote On/Off	-40°C ~ 85°C	91%	Surface Mount	0.60 L x 0.33 W x 0.32 H (15.2mm x 8.5mm x 8.3mm)
LMT78_15-0.5R DC-DC POL GAPTEC Electronic	195	2.08	RFQ	Datasheet	10-SMD Module, 8 Leads	Tube	LMT78_0.5R	Active	Non-Isolated PoL Module	1	19V	36V	15V	-	-	-	500mA	7.5 W	-	ITE (Commercial)	Adjustable Output, Remote On/Off	-40°C ~ 85°C	93%	Surface Mount	0.60 L x 0.33 W x 0.32 H (15.2mm x 8.5mm x 8.3mm)
LC78_12-0.5 DC-DC POL GAPTEC Electronic	812	2.12	RFQ	Datasheet	3-SIP Module	Tube	LC78_0.5	Active	Non-Isolated PoL Module	1	15V	28V	12V	-	-	-	500mA	6 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	93%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)

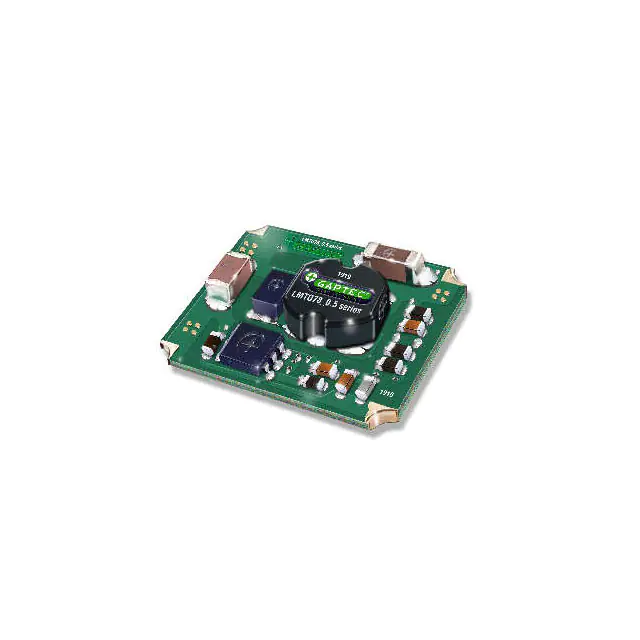

LMTO78_03-0.5 DC-DC POL GAPTEC Electronic	418	2.65	RFQ	Datasheet	4-SMD Module	Tape & Reel (TR),Cut Tape (CT)	LMTO78_0.5	Active	Non-Isolated PoL Module	1	4.75V	36V	3.3V	-	-	-	500mA	1.65 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	80%	Surface Mount	0.53 L x 0.49 W x 0.14 H (13.5mm x 12.5mm x 3.5mm)

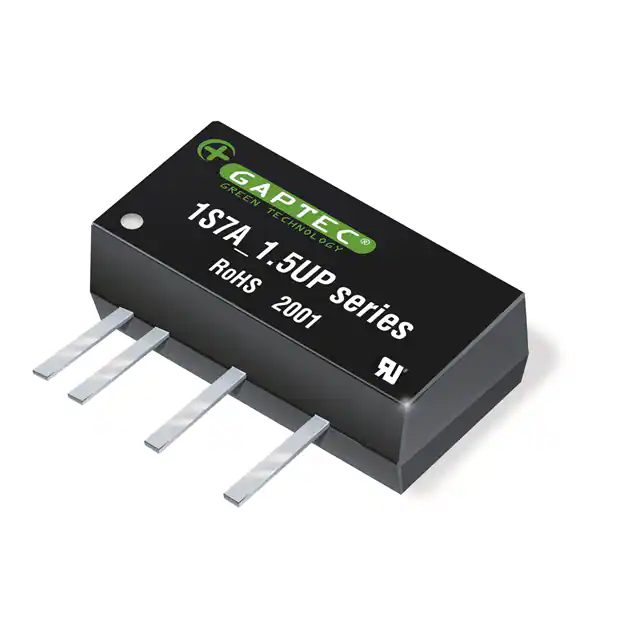

1S7A_0509D1.5UP DC-DC GAPTEC Electronic	313	2.88	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	1S7A_1.5UP (1W)	Active	Isolated Module	2	4.5V	5.5V	9V	-9V	-	-	56mA, 56mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm)
1S7A_0515S1.5UP DC-DC GAPTEC Electronic	116	2.88	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7A_1.5UP (1W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	67mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm)

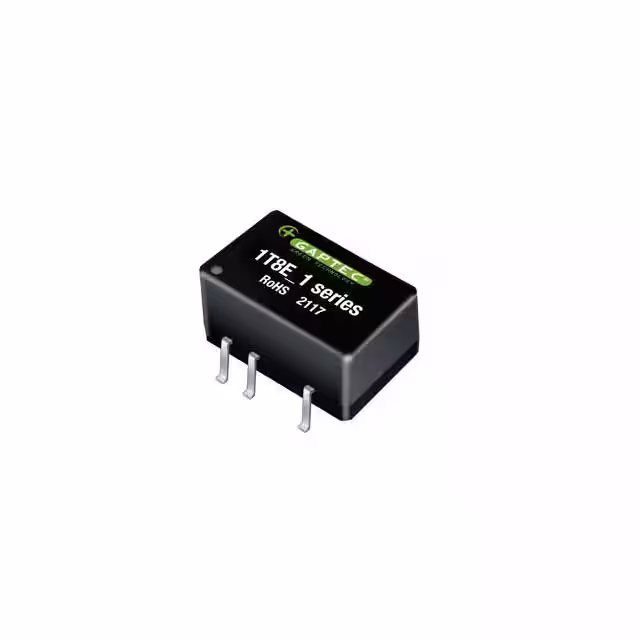

1T8E_0509S1U DC-DC GAPTEC Electronic	344	2.90	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8E_1U (1W)	Active	Isolated Module	1	4.5V	5.5V	9V	-	-	-	110mA	1 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	75%	Surface Mount	0.50 L x 0.30 W x 0.25 H (12.7mm x 7.6mm x 6.4mm)
1S4E_2415S1U DC-DC GAPTEC Electronic	362	3.03	RFQ	Datasheet	4-SIP Module	Tube	1S4E_S1U (1W)	Active	Isolated Module	1	21.6V	26.4V	15V	-	-	-	66.6mA	1 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	81%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.7mm x 6.0mm x 10.2mm)
1D8E_1203S3U DC-DC GAPTEC Electronic	352	3.03	RFQ	Datasheet	8-DIP Module, 4 Leads	Tube	1D8E_3U (1W)	Active	Isolated Module	1	10.8V	13.2V	3.3V	-	-	-	303mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.50 L x 0.40 W x 0.27 H (12.7mm x 10.2mm x 6.9mm)
QS4E_0512S1U DC-DC GAPTEC Electronic	341	3.03	RFQ	Datasheet	4-SIP Module	Tube	QS4E_1U (0.25W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	20.8mA	250 mW	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	76%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.7mm x 6.0mm x 10.2mm)
1D8E_1205S3U DC-DC GAPTEC Electronic	339	3.03	RFQ	Datasheet	8-DIP Module, 4 Leads	Tube	1D8E_3U (1W)	Active	Isolated Module	1	10.8V	13.2V	5V	-	-	-	200mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	79%	Through Hole	0.50 L x 0.40 W x 0.27 H (12.7mm x 10.2mm x 6.9mm)
QS4E_0512S3U DC-DC GAPTEC Electronic	339	3.03	RFQ	Datasheet	4-SIP Module	Tube	QS4E_3U (0.25W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	20.8mA	250 mW	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	76%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.7mm x 6.0mm x 10.2mm)
1S4E_4809S1U DC-DC GAPTEC Electronic	337	3.91	RFQ	Datasheet	4-SIP Module	Tube	1S4E_S1U (1W)	Active	Isolated Module	1	43.2V	52.8V	9V	-	-	-	111.1mA	1 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.7mm x 6.0mm x 10.2mm)
1D8E_1215S1U DC-DC GAPTEC Electronic	336	3.03	RFQ	Datasheet	8-DIP Module, 4 Leads	Tube	1D8E_1U (1W)	Active	Isolated Module	1	10.8V	13.2V	15V	-	-	-	66.6mA	1 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	79%	Through Hole	0.50 L x 0.40 W x 0.27 H (12.7mm x 10.2mm x 6.9mm)
1D8E_2412S1U DC-DC GAPTEC Electronic	336	3.03	RFQ	Datasheet	8-DIP Module, 4 Leads	Tube	1D8E_1U (1W)	Active	Isolated Module	1	21.6V	26.4V	12V	-	-	-	100mA	1.2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.50 L x 0.40 W x 0.27 H (12.7mm x 10.2mm x 6.9mm)
1S4E_1515S1U DC-DC GAPTEC Electronic	336	3.03	RFQ	Datasheet	4-SIP Module	Tube	1S4E_S1U (1W)	Active	Isolated Module	1	13.5V	16.5V	15V	-	-	-	66.6mA	1 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	79%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.7mm x 6.0mm x 10.2mm)
1D8E_2415S3U DC-DC GAPTEC Electronic	336	3.03	RFQ	Datasheet	8-DIP Module, 4 Leads	Tube	1D8E_3U (1W)	Active	Isolated Module	1	21.6V	26.4V	15V	-	-	-	66.6mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	81%	Through Hole	0.50 L x 0.40 W x 0.27 H (12.7mm x 10.2mm x 6.9mm)
1S4E_0305S1U DC-DC GAPTEC Electronic	336	3.03	RFQ	Datasheet	4-SIP Module	Tube	1S4E_S1U (1W)	Active	Isolated Module	1	2.97V	3.63V	5V	-	-	-	200mA	1 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	77%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.7mm x 6.0mm x 10.2mm)
1D8E_1215S3U DC-DC GAPTEC Electronic	336	3.03	RFQ	Datasheet	8-DIP Module, 4 Leads	Tube	1D8E_3U (1W)	Active	Isolated Module	1	10.8V	13.2V	15V	-	-	-	66.6mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	79%	Through Hole	0.50 L x 0.40 W x 0.27 H (12.7mm x 10.2mm x 6.9mm)
1S7BE_2424S3U DC-DC GAPTEC Electronic	334	3.03	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7BE_3U (1W)	Active	Isolated Module	1	21.6V	26.4V	24V	-	-	-	42mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
