Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension
2S7A_0512S1U DC-DC GAPTEC Electronic	227	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7A_1U (2W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	166.7mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	82%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7BE_1203S3U DC-DC GAPTEC Electronic	225	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7BE_3U (2W)	Active	Isolated Module	1	10.8V	13.2V	3.3V	-	-	-	400mA	1.32 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	65%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7BE_2405S3U DC-DC GAPTEC Electronic	225	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7BE_3U (2W)	Active	Isolated Module	1	21.6V	26.4V	5V	-	-	-	400mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	79%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7BE_0315S3U DC-DC GAPTEC Electronic	225	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7BE_3U (2W)	Active	Isolated Module	1	2.97V	3.63V	15V	-	-	-	133.3mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7BE_2412S3U DC-DC GAPTEC Electronic	225	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7BE_3U (2W)	Active	Isolated Module	1	21.6V	26.4V	12V	-	-	-	166.7mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7BE_0515S3U DC-DC GAPTEC Electronic	225	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7BE_3U (2W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	133.3mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	82%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7A_0503S1UP DC-DC GAPTEC Electronic	223	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7A_1U (2W)	Active	Isolated Module	1	4.5V	5.5V	3.3V	-	-	-	400mA	1.32 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	72%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7A_0312S1UP DC-DC GAPTEC Electronic	215	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7A_1U (2W)	Active	Isolated Module	1	2.97V	3.63V	12V	-	-	-	166.7mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	81%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7A_0505S1U DC-DC GAPTEC Electronic	212	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7A_1U (2W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	400mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7BE_0312S3U DC-DC GAPTEC Electronic	210	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7BE_3U (2W)	Active	Isolated Module	1	2.97V	3.63V	12V	-	-	-	166.7mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	81%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7BE_1205S3U DC-DC GAPTEC Electronic	204	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7BE_3U (2W)	Active	Isolated Module	1	10.8V	13.2V	5V	-	-	-	400mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	77%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7BE_0505S3U DC-DC GAPTEC Electronic	197	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7BE_3U (2W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	400mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7BE_2415S3U DC-DC GAPTEC Electronic	130	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7BE_3U (2W)	Active	Isolated Module	1	21.6V	26.4V	15V	-	-	-	133.3mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	82%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
LMT78_03-1.0R DC-DC POL GAPTEC Electronic	212	4.83	RFQ	Datasheet	10-SMD Module, 8 Leads	Tube	LMT78_1.0R	Active	Non-Isolated PoL Module	1	6.5V	36V	3.3V	-	-	-	1A	3.3 W	-	ITE (Commercial)	Adjustable Output, Remote On/Off	-40°C ~ 85°C	80%	Surface Mount	0.60 L x 0.33 W x 0.32 H (15.2mm x 8.5mm x 8.3mm)

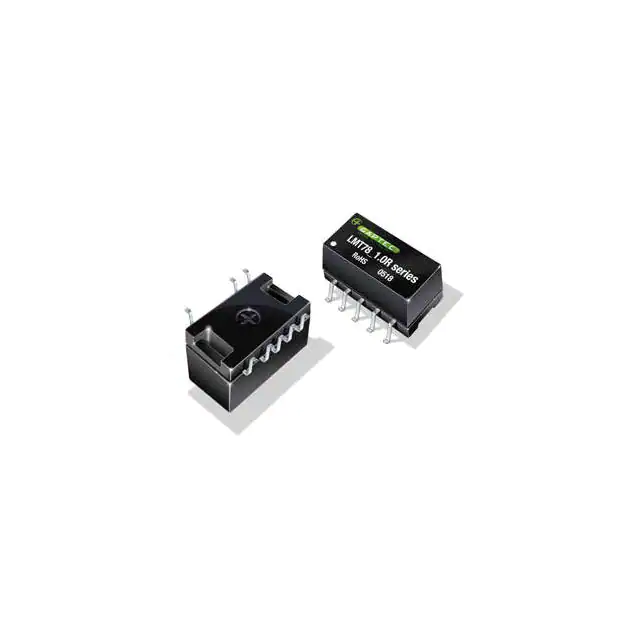

LMT78_15-1.0R DC-DC POL GAPTEC Electronic	102	4.83	RFQ	Datasheet	10-SMD Module, 8 Leads	Tube	LMT78_1.0R	Active	Non-Isolated PoL Module	1	20V	36V	15V	-	-	-	800mA	12 W	-	ITE (Commercial)	Adjustable Output, Remote On/Off	-40°C ~ 85°C	92%	Surface Mount	0.60 L x 0.33 W x 0.32 H (15.2mm x 8.5mm x 8.3mm)
LMS78_15-2.0R DC-DC POL GAPTEC Electronic	196	5.13	RFQ	Datasheet	3-SIP Module	Tube	LMS78_2.0R	Active	Non-Isolated PoL Module	1	18V	36V	15V	-	-	-	2A	30 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	96%	Through Hole	0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm)
LMS78_09-2.0R DC-DC POL GAPTEC Electronic	173	5.13	RFQ	Datasheet	3-SIP Module	Tube	LMS78_2.0R	Active	Non-Isolated PoL Module	1	13V	36V	9V	-	-	-	2A	18 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	95%	Through Hole	0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm)

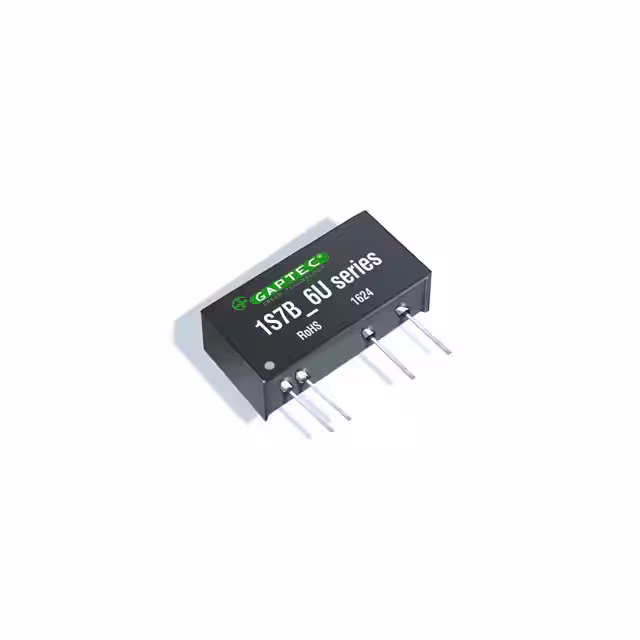

1S7BE_0505S6U DC-DC GAPTEC Electronic	525	5.55	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	1	4.75V	5.25V	5V	-	-	-	200mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	70%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7BE_1505S6U DC-DC GAPTEC Electronic	250	5.55	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	1	14.25V	15.75V	5V	-	-	-	200mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	70%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7BE_0905S6U DC-DC GAPTEC Electronic	248	5.55	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	1	8.55V	9.45V	5V	-	-	-	200mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	70%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
