Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension
2S4E_0515S1U DC-DC GAPTEC Electronic	1,940	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	133mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	85%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_1512S1U DC-DC GAPTEC Electronic	1,638	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	13.5V	16.5V	12V	-	-	-	167mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	84%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_2409S1U DC-DC GAPTEC Electronic	289	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	21.6V	26.4V	9V	-	-	-	222mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	85%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)

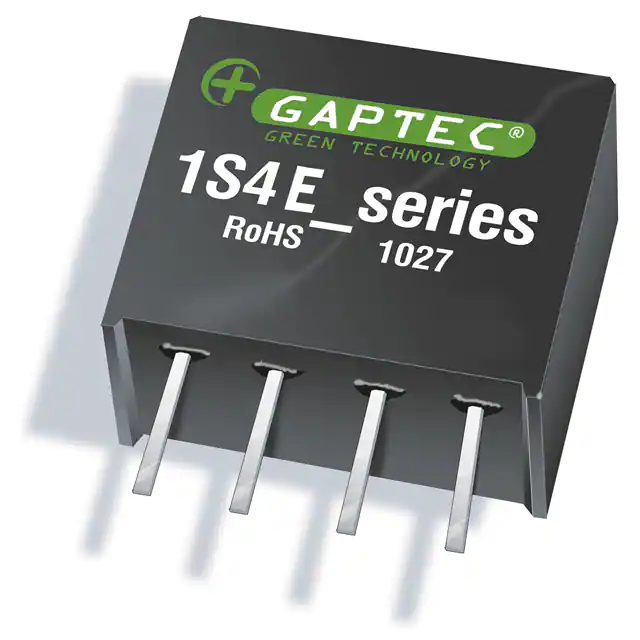

1S4E_4812S1U DC-DC GAPTEC Electronic	282	3.91	RFQ	Datasheet	4-SIP Module	Tube	1S4E_S1U (1W)	Active	Isolated Module	1	43.2V	52.8V	12V	-	-	-	100mA	1.2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	77%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.7mm x 6.0mm x 10.2mm)
LME78_03-1.0 DC-DC POL GAPTEC Electronic	458	4.07	RFQ	Datasheet	3-SIP Module	Tube	LME78_1.0	Active	Non-Isolated PoL Module	1	6V	36V	3.3V	-	-	-	1A	3.3 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	90%	Through Hole	0.46 L x 0.31 W x 0.41 H (11.6mm x 8.0mm x 10.4mm)

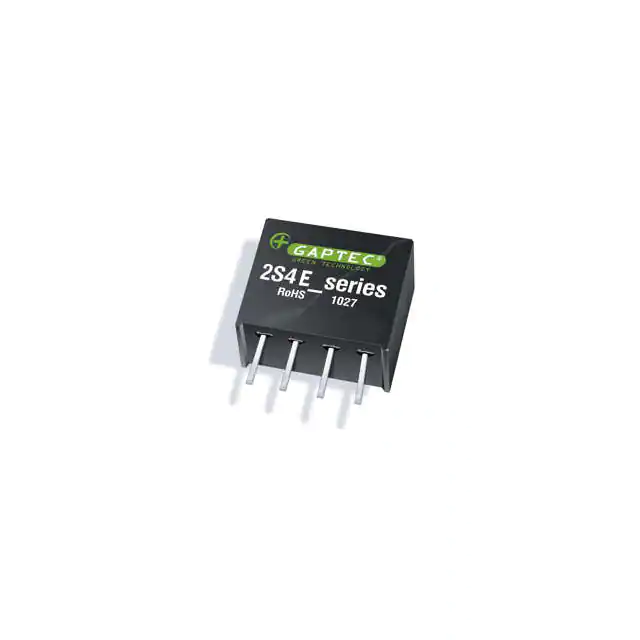

2S4E_1215S1U DC-DC GAPTEC Electronic	244	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	10.8V	13.2V	15V	-	-	-	133mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	85%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_1205S1U DC-DC GAPTEC Electronic	252	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	10.8V	13.2V	5V	-	-	-	400mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	81%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_1203S1U DC-DC GAPTEC Electronic	252	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	10.8V	13.2V	3.3V	-	-	-	400mA	1.32 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	72%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_1209S1U DC-DC GAPTEC Electronic	252	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	10.8V	13.2V	9V	-	-	-	222mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	85%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_2415S1U DC-DC GAPTEC Electronic	252	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	21.6V	26.4V	15V	-	-	-	133mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	86%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_4803S1U DC-DC GAPTEC Electronic	252	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	43.2V	52.8V	3.3V	-	-	-	400mA	1.32 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	74%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_0524S1U DC-DC GAPTEC Electronic	242	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	4.5V	5.5V	24V	-	-	-	83mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	86%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_2405S1U DC-DC GAPTEC Electronic	225	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	21.6V	26.4V	5V	-	-	-	400mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	83%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_4824S1U DC-DC GAPTEC Electronic	202	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	43.2V	52.8V	24V	-	-	-	83mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	86%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_2407S1U DC-DC GAPTEC Electronic	200	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	21.6V	26.4V	7.2V	-	-	-	278mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	82%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_4812S1U DC-DC GAPTEC Electronic	187	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	43.2V	52.8V	12V	-	-	-	167mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	81%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_0507S1U DC-DC GAPTEC Electronic	155	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	4.5V	5.5V	7.2V	-	-	-	278mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_0503S1U DC-DC GAPTEC Electronic	117	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	4.5V	5.5V	3.3V	-	-	-	400mA	1.32 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)

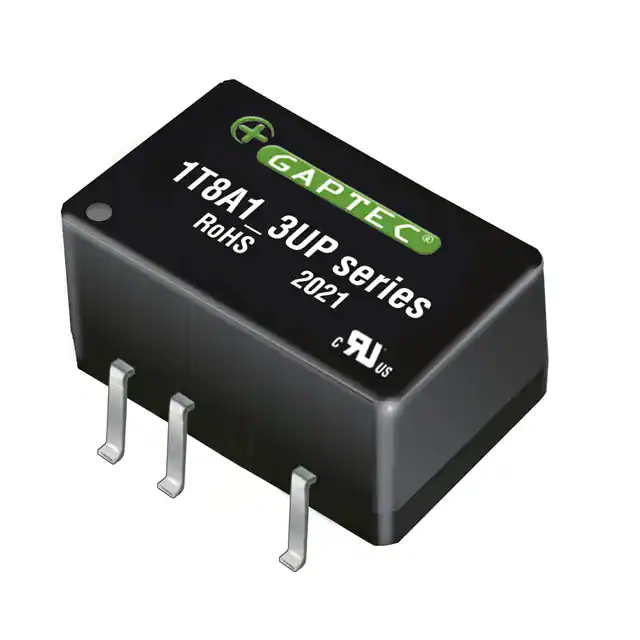

1T8A1_0505S3UP DC-DC GAPTEC Electronic	228	4.35	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8A1_3UP (1W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	200mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	82%	Surface Mount	0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm)

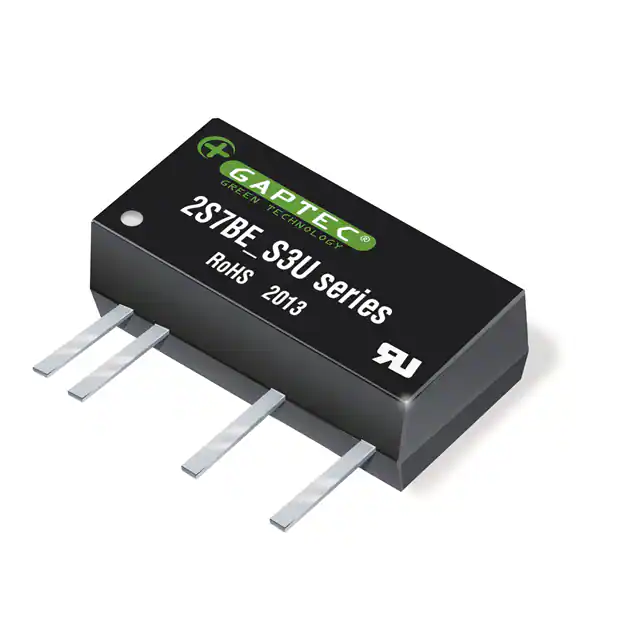

2S7BE_0324S3U DC-DC GAPTEC Electronic	230	4.56	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7BE_3U (2W)	Active	Isolated Module	1	2.97V	3.63V	24V	-	-	-	83.3mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	79%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
