| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

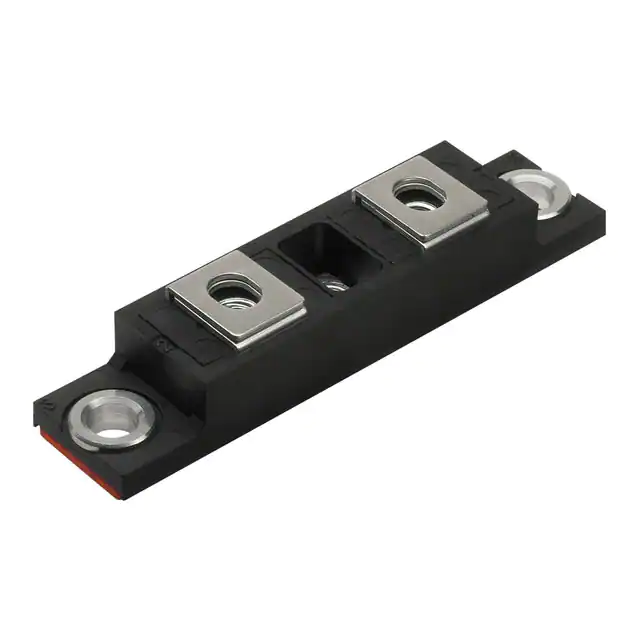

VS-VS5HD240CW60TO-244 - GEN5 FRED IN COMMON CAT |
3,187 | 33.12 |
RFQ |
Datasheet |
Box | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 600 V | 229A (DC) | 1.68 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 52 ns | 500 µA @ 600 V | -40°C ~ 175°C | Chassis Mount |
|
|
VS-VS5HD300CW60TO-244 - GEN5 FRED IN COMMON CAT |
3,458 | 35.43 |
RFQ |
Datasheet |
Box | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 600 V | 259A (DC) | 1.7 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 68 ns | 700 µA @ 600 V | -40°C ~ 175°C | Chassis Mount |
|
|
VS-VS5HD480CW60TO-244 - GEN5 FRED IN COMMON CAT |
3,061 | 39.67 |
RFQ |
Datasheet |
Box | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 600 V | 448A (DC) | 1.7 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | 61 ns | 1 mA @ 600 V | -40°C ~ 175°C | Chassis Mount |
|
|
VS-VS5HD600CW60TO-244 - GEN5 FRED IN COMMON CAT |
3,418 | 41.04 |
RFQ |
Datasheet |
Box | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 600 V | 505A (DC) | 1.7 V @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | 78 ns | 1 mA @ 600 V | -40°C ~ 175°C | Chassis Mount |
|

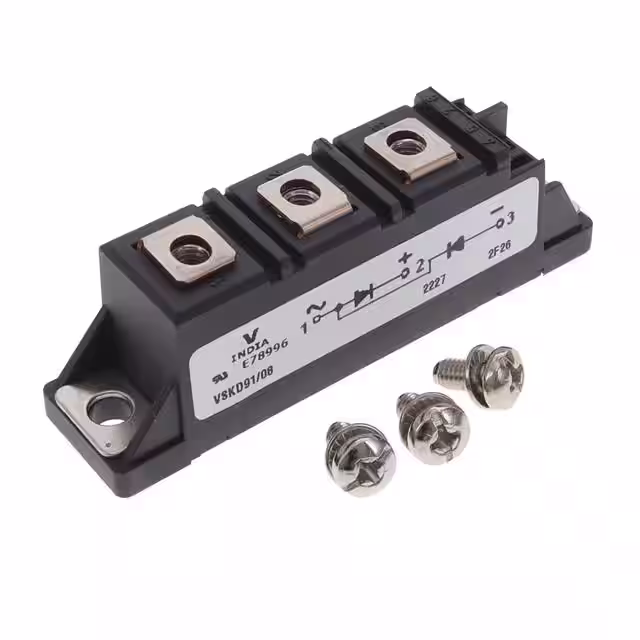

VS-VSKD91/08DIODE GEN PURP 800V 50A ADDAPAK |
2,828 | 41.60 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 800 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
BAV70-HE3-08DIODE ARRAY GP 70V 250MA SOT23 |
640 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, BAV70 | Active | 1 Pair Common Cathode | Standard | 70 V | 250mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 µA @ 70 V | 150°C (Max) | Surface Mount |
|
|
BAW56-HE3-08DIODE ARRAY GP 70V 250MA SOT23 |
542 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Standard | 70 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 mA @ 70 V | 150°C (Max) | Surface Mount |
|
|
BAV70-G3-08DIODE ARRAY GP 70V 250MA SOT23 |
253 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | BAV70-G | Active | 1 Pair Common Cathode | Standard | 70 V | 250mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 µA @ 70 V | -55°C ~ 150°C | Surface Mount |
|
|
BAT54A-E3-08DIODE ARRAY SCHOTTKY 30V SOT23 |
140 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Anode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
SS8P3CL-M3/86ADIODE ARRAY SCHOTTKY 30V TO277A |
494 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | Active | 1 Pair Common Cathode | Schottky | 30 V | 4A | 540 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 30 V | -55°C ~ 150°C | Surface Mount |
|
|
VS-4CSH01-M3/86ADIODE HFAST REC 100V 2A TO277A |
140 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 100 V | 2A | 950 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 16 ns | 2 µA @ 100 V | -65°C ~ 175°C | Surface Mount |
|
V10KM120DUHM3/HDIODE SCHOTTKY 120V 10A FLATPAK |
601 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 2 Independent | Schottky | 120 V | 10A | 890 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 120 V | -40°C ~ 175°C | Surface Mount |
|
|
VS-6DKH02-M3/HDIODE ARRAY GP 200V 3A FLATPAK |
471 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FRED Pt® | Active | 2 Independent | Standard | 200 V | 3A | 940 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 2 µA @ 200 V | -65°C ~ 175°C | Surface Mount |
|
|
VS-10CSH01-M3/86ADIODE ARRAY GP 100V 5A TO277A |
500 | 0.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 100 V | 5A | 980 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 2 µA @ 100 V | 175°C (Max) | Surface Mount |
|
|
VS-8CSH01-M3/86ADIODE HF 100V 4A TO277A |
118 | 0.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 100 V | 4A | 950 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 2 µA @ 100 V | -65°C ~ 175°C | Surface Mount |
|
VS-10CDH06HM3/IDIODE GP 600V 2X5A TO-263AC |
116 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, FRED Pt® | Active | 1 Pair Common Cathode | Standard | 600 V | 5A | 1.5 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 3 µA @ 600 V | 175°C (Max) | Surface Mount |
|
VS-6CVH02HM3/IDIODE GEN PURPOSE 200V SLIMDPAK |
250 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, FRED Pt® | Active | 1 Pair Common Cathode | Standard | 200 V | 3A | 1.2 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 5 µA @ 200 V | -55°C ~ 175°C | Surface Mount |
|
|
VS-8CVH02-M3/IDIODE GEN PURPOSE 200V SLIMDPAK |
350 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 200 V | 4A | 1.14 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 4 µA @ 200 V | -55°C ~ 175°C | Surface Mount |
|
|
VS-10CSH01HM3/86ADIODE ARRAY GP 100V 5A TO277A |
152 | 0.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, FRED Pt® | Active | 1 Pair Common Cathode | Standard | 100 V | 5A | 980 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 2 µA @ 100 V | -55°C ~ 175°C | Surface Mount |
|
|
VS-8CVH02HM3/IDIODE GEN PURPOSE 200V SLIMDPAK |
249 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, FRED Pt® | Active | 1 Pair Common Cathode | Standard | 200 V | 4A | 1.14 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 4 µA @ 200 V | -55°C ~ 175°C | Surface Mount |
