| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V60DM60C-M3/IDIODE ARRAY SCHOTTKY 60V TO263AC |
2,560 | 2.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 60 V | 30A | 710 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2.1 mA @ 60 V | -40°C ~ 175°C | Surface Mount |
|
MBRB30H60CT-E3/81DIODE ARRAY SCHOTTKY 60V TO263AB |
676 | 2.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 15A | 680 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 60 µA @ 60 V | -65°C ~ 175°C | Surface Mount |
|
|
V60DM100CHM3/IDIODE ARRAY SCHOTT 100V TO263AC |
153 | 2.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 100 V | 30A | 860 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 100 V | -40°C ~ 175°C | Surface Mount |
|
VS-VSKJ91/16DIODE GEN PURP 1.6KV 50A ADDAPAK |
2,950 | 43.29 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
VS-12CWQ04FN-M3DIODE ARRAY SCHOTTKY 40V DPAK |
3,453 | 0.93 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 6A | 530 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 40 V | -55°C ~ 150°C | Surface Mount |
|
SS10P4C-M3/86ADIODE ARRAY SCHOTTKY 40V TO277A |
3,588 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | Active | 1 Pair Common Cathode | Schottky | 40 V | 5A | 530 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 40 V | -55°C ~ 150°C | Surface Mount |
|
VS-30CTH03-M3DIODE FRED 300V 15A TO220 |
2,234 | 1.60 |
RFQ |
Datasheet |
Tube | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 300 V | 15A | 1.25 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 36 ns | 40 µA @ 300 V | -65°C ~ 175°C | Through Hole |
|

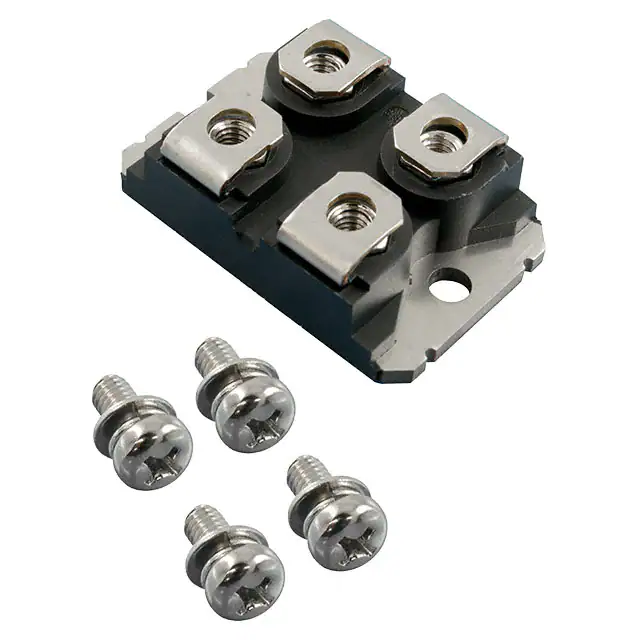

VS-QA250FA20DIODE MOD SCHOT 200V 250A SOT227 |
3,702 | 21.70 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Schottky | 200 V | 250A | 1.2 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 54 ns | 90 µA @ 200 V | -55°C ~ 175°C | Chassis Mount |
|
VS-QA300FA17DIODE MODULE 170V 300A SOT227 |
3,841 | 27.62 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Schottky | 170 V | 300A | 980 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 71 ns | 200 µA @ 170 V | -55°C ~ 175°C | Chassis Mount |
|
BAW56-E3-08DIODE ARRAY GP 70V 250MA SOT23 |
2,672 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Anode | Standard | 70 V | 250mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 µA @ 70 V | 150°C (Max) | Surface Mount |
|
|
BAV70-E3-08DIODE ARRAY GP 70V 250MA SOT23 |
3,079 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | BAV70 | Active | 1 Pair Common Cathode | Standard | 70 V | 250mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 50 µA @ 70 V | 150°C (Max) | Surface Mount |
|
|
BAV99-E3-08DIODE ARRAY GP 70V 150MA SOT23 |
3,382 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Standard | 70 V | 150mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 µA @ 70 V | -55°C ~ 150°C | Surface Mount |
|
|
BAS40-04-HE3-18DIODE ARRAY SCHOTTKY 40V SOT23 |
3,563 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 125°C (Max) | Surface Mount |
|
|
BAS70-04-E3-08DIODE ARRAY SCHOTTKY 70V SOT23 |
2,843 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Schottky | 70 V | 200mA (DC) | 410 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 50 V | 125°C (Max) | Surface Mount |
|
|
BAS70-05-E3-08DIODE ARRAY SCHOTTKY 70V SOT23 |
2,470 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 70 V | 200mA (DC) | 410 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 50 V | 125°C (Max) | Surface Mount |
|
|
BAS70-04-HE3-08DIODE MODULE 70V 200MA SOT23 |
2,446 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Schottky | 70 V | 200mA (DC) | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 50 V | 125°C (Max) | Surface Mount |
|
|
BAV70-HE3-18DIODE ARRAY GP 70V 250MA SOT23 |
3,207 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, BAV70 | Active | 1 Pair Common Cathode | Standard | 70 V | 250mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 µA @ 70 V | 150°C (Max) | Surface Mount |
|
|
V40PWM15C-M3/IDIODE ARRAY SCHOTT 150V SLIMDPAK |
3,134 | 1.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.45 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 150 V | -40°C ~ 175°C | Surface Mount |
|
|
V40PW10CHM3/IDIODE SCHOTTKY 100V 20A SLIMDPAK |
2,109 | 1.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 890 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | -40°C ~ 150°C | Surface Mount |
|
|
VS-6CWQ06FN-M3DIODE ARRAY SCHOTTKY 60V DPAK |
3,142 | 0.81 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 3.5A | 610 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 60 V | 150°C (Max) | Surface Mount |
