| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STTH1602CG-TRDIODE ARRAY GP 200V 10A D2PAK |
2,434 | 1.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 200 V | 10A | 1.1 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 26 ns | 6 µA @ 200 V | 175°C (Max) | Surface Mount |
|
|
STPS30H60CG-TRDIODE ARRAY SCHOTTKY 60V D2PAK |
2,082 | 1.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 15A | 660 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 60 µA @ 60 V | 175°C (Max) | Surface Mount |
;;2.jpg)
|
STPS15L45CB-TRDIODE ARRAY SCHOTTKY 45V DPAK |
3,700 | 2.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 7.5A | 520 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | 150°C (Max) | Surface Mount |
|
|
STTH2003CG-TRDIODE ARRAY GP 300V 10A D2PAK |
2,848 | 2.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 300 V | 10A | 1.25 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 20 µA @ 300 V | 175°C (Max) | Surface Mount |
|
|
STPS10150CG-TRDIODE ARRAY SCHOTTKY 150V D2PAK |
3,156 | 2.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 5A | 920 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 µA @ 150 V | 175°C (Max) | Surface Mount |
|
|
STPS10170CB-TRDIODE ARRAY SCHOTTKY 170V DPAK |
2,328 | 1.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 170 V | 5A | 920 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 170 V | 175°C (Max) | Surface Mount |
|
|
STPS40L45CGY-TRDIODE ARRAY SCHOTTKY 45V D2PAK |
2,565 | 2.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 45 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 45 V | -40°C ~ 150°C | Surface Mount |
|
|
STPS41L60CG-TRDIODE ARRAY SCHOTTKY 60V D2PAK |
3,838 | 2.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 20A | 600 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 60 V | 150°C (Max) | Surface Mount |
|
|
STPS40150CG-TRDIODE ARRAY SCHOTTKY 150V D2PAK |
3,970 | 2.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 920 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 µA @ 150 V | 175°C (Max) | Surface Mount |
|
STPS10H100CFPDIODE ARRAY SCHOTTKY 100V TO220F |
3,184 | 1.65 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 5A | 730 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3.5 µA @ 100 V | 175°C (Max) | Through Hole |
|
STPS30L30CTDIODE ARRAY SCHOTTKY 30V TO220AB |
2,805 | 1.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 15A | 460 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 60 V | 150°C (Max) | Through Hole |
|
|
FERD40U45CTDIODE ARRAY 45V 20A TO220AB |
2,370 | 1.90 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | FERD (Field Effect Rectifier Diode) | 45 V | 20A | 460 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.8 mA @ 45 V | 175°C (Max) | Through Hole |
|
|
STTH30R03CG-TRDIODE ARRAY GP 300V 15A D2PAK |
2,378 | 3.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 300 V | 15A | 1.9 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 20 µA @ 300 V | 175°C (Max) | Surface Mount |
|
|
STPS20150CTDIODE ARRAY SCHOTTKY 150V TO220 |
3,975 | 2.08 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 920 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 150 V | 175°C (Max) | Through Hole |
|
STPS40L45CWDIODE ARRAY SCHOTTKY 45V TO247-3 |
3,839 | 3.01 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 45 V | 150°C (Max) | Through Hole |
|
|
STPS20200CTDIODE ARRAY SCHOTTKY 200V TO220 |
3,757 | 4.08 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 10A | 860 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 µA @ 200 V | -40°C ~ 175°C | Through Hole |
|
|
STPS61170CWDIODE ARRAY SCHOTTKY 170V TO247 |
2,740 | 4.38 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 170 V | 30A | 840 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 60 µA @ 170 V | 175°C (Max) | Through Hole |
|
|
STTH6003CWDIODE ARRAY GP 300V 30A TO247-3 |
2,859 | 4.58 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 300 V | 30A | 1.25 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 60 µA @ 300 V | 175°C (Max) | Through Hole |
|
|
STPS60SM200CWDIODE ARRAY SCHOTTKY 200V TO247 |
2,432 | 5.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 60A | 830 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 200 V | -40°C ~ 175°C | Through Hole |
|

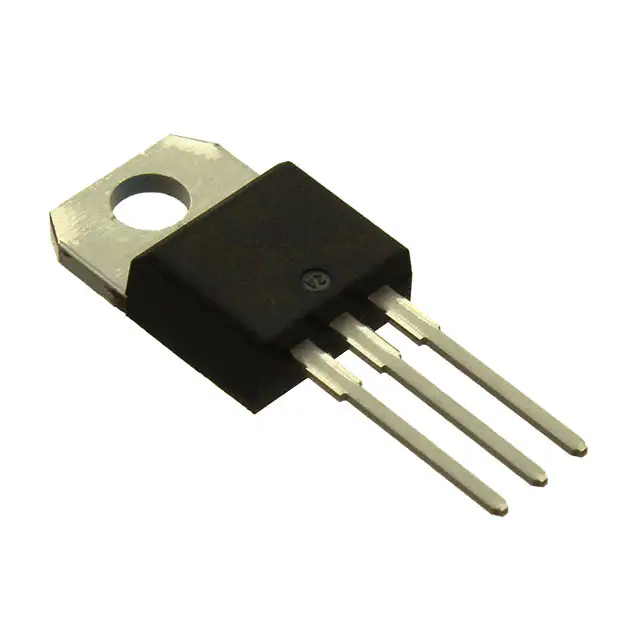

STPSC6TH13TIDIODE ARRAY SCHOTTKY 650V TO220 |
2,397 | 5.65 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Silicon Carbide Schottky | 650 V | 6A | 1.75 V @ 6 A | No Recovery Time > 500mA (Io) | 0 ns | 60 µA @ 650 V | -40°C ~ 175°C | Through Hole |
