Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeConfiguration	DiodeType	Voltage-DCReverse(Vr)(Max)	Current-AverageRectified(Io)(perDiode)	Voltage-Forward(Vf)(Max)@If	Speed	ReverseRecoveryTime(trr)	Current-ReverseLeakage@Vr	OperatingTemperature-Junction	MountingType
STPS16150CT DIODE ARRAY SCHOTTKY 150V TO220 STMicroelectronics	3,126	2.74	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	150 V	8A	920 mV @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 µA @ 150 V	175°C (Max)	Through Hole
STPS4045CT DIODE ARRAY SCHOTTKY 45V TO220AB STMicroelectronics	833	2.27	RFQ	Datasheet	Tube	-	Obsolete	1 Pair Common Cathode	Schottky	45 V	20A	760 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 45 V	175°C (Max)	Through Hole

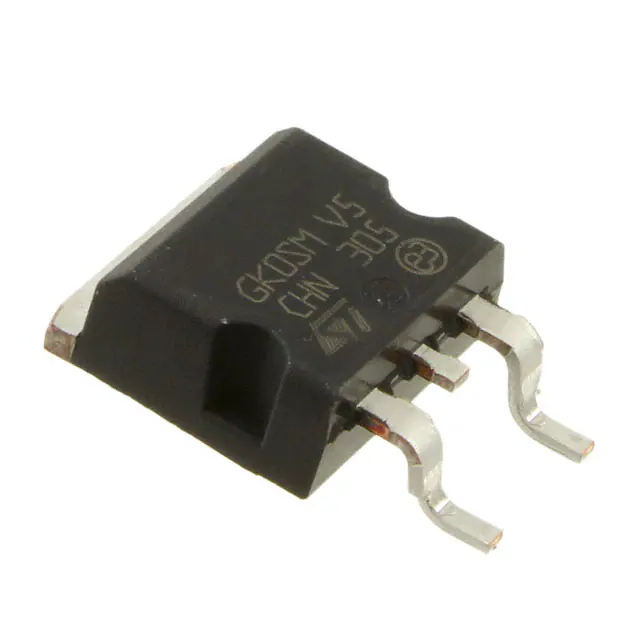

STPS2545CG-TR DIODE ARRAY SCHOTTKY 45V D2PAK STMicroelectronics	390	2.27	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	45 V	12.5A	570 mV @ 12.5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	125 µA @ 45 V	175°C (Max)	Surface Mount
STTH2003CGY-TR DIODE ARRAY GP 300V 10A D2PAK STMicroelectronics	3,916	2.60	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Standard	300 V	10A	1.25 V @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	40 ns	20 µA @ 300 V	-40°C ~ 175°C	Surface Mount
STTH3002CR DIODE ARRAY GP 200V 15A I2PAK STMicroelectronics	2,471	2.66	RFQ	Datasheet	Cut Tape (CT),Tube	-	Obsolete	1 Pair Common Cathode	Standard	200 V	15A	1.05 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	22 ns	20 µA @ 200 V	175°C (Max)	Through Hole
STPS30L60CR DIODE ARRAY SCHOTTKY 60V I2PAK STMicroelectronics	967	2.66	RFQ	Datasheet	Tube	-	Obsolete	1 Pair Common Cathode	Schottky	60 V	15A	600 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	480 µA @ 60 V	150°C (Max)	Through Hole
STPS40M60CR DIODE ARRAY SCHOTTKY 60V I2PAK STMicroelectronics	998	2.68	RFQ	Datasheet	Tube	-	Obsolete	1 Pair Common Cathode	Schottky	60 V	20A	595 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	110 µA @ 60 V	150°C (Max)	Through Hole

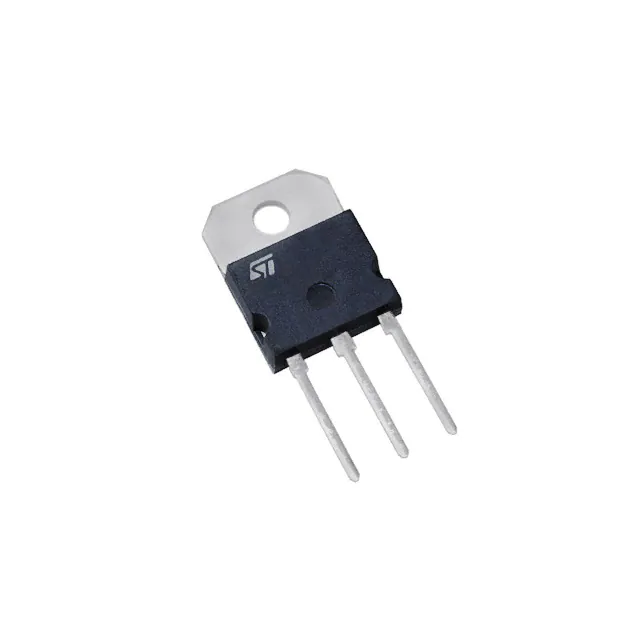

STPS3045CP DIODE ARRAY SCHOTTKY 45V SOT93 STMicroelectronics	365	2.68	RFQ	Datasheet	Tube	-	Obsolete	1 Pair Common Cathode	Schottky	45 V	15A	570 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 45 V	200°C (Max)	Through Hole
STPS30120CTN DIODE ARRAY SCHOTTKY 120V TO220 STMicroelectronics	996	2.79	RFQ	Datasheet	Tube	-	Obsolete	1 Pair Common Cathode	Schottky	120 V	15A	920 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	15 µA @ 120 V	175°C (Max)	Through Hole
STPS40SM80CT DIODE ARRAY SCHOTTKY 80V TO220AB STMicroelectronics	3,521	2.86	RFQ	Datasheet	Tube	-	Obsolete	1 Pair Common Cathode	Schottky	80 V	20A	800 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	50 µA @ 80 V	175°C (Max)	Through Hole
STPS20L60CGY-TR DIODE ARRAY SCHOTTKY 60V D2PAK STMicroelectronics	2,227	3.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Schottky	60 V	10A	600 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	350 µA @ 60 V	-40°C ~ 175°C	Surface Mount
STPS20SM60CFP DIODE ARRAY SCHOTTKY 60V TO220FP STMicroelectronics	989	3.12	RFQ	Datasheet	Tube	-	Obsolete	1 Pair Common Cathode	Schottky	60 V	10A	645 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	40 µA @ 60 V	150°C (Max)	Through Hole
STPS20H100CR DIODE ARRAY SCHOTTKY 100V I2PAK STMicroelectronics	714	3.17	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	100 V	10A	770 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	4.5 µA @ 100 V	175°C (Max)	Through Hole
STPS40SM100CG-TR DIODE ARRAY SCHOTTKY 100V D2PAK STMicroelectronics	2,971	3.76	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	1 Pair Common Cathode	Schottky	100 V	20A	810 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	45 µA @ 100 V	150°C (Max)	Surface Mount
BAT54SFILM DIODE ARRAY SCHOTTKY 40V SOT23-3 STMicroelectronics	2,094	0.37	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Schottky	40 V	300mA (DC)	900 mV @ 100 mA	Fast Recovery =< 500ns, > 200mA (Io)	5 ns	1 µA @ 30 V	-40°C ~ 150°C	Surface Mount
STPS3030CG-TR DIODE ARRAY SCHOTTKY 30V D2PAK STMicroelectronics	2,768	1.72	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	30 V	15A	490 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 30 V	150°C (Max)	Surface Mount
STPS30L30CG-TR DIODE ARRAY SCHOTTKY 30V D2PAK STMicroelectronics	2,752	1.67	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	30 V	15A	460 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.5 mA @ 60 V	150°C (Max)	Surface Mount
STTH802CB-TR DIODE ARRAY GP 200V 4A DPAK STMicroelectronics	2,149	1.08	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Standard	200 V	4A	1.1 V @ 4 A	Fast Recovery =< 500ns, > 200mA (Io)	20 ns	4 µA @ 200 V	175°C (Max)	Surface Mount
STPS40L45CG-TR DIODE ARRAY SCHOTTKY 45V D2PAK STMicroelectronics	3,980	2.07	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	45 V	20A	530 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	600 µA @ 45 V	150°C (Max)	Surface Mount
STTH3002CG-TR DIODE ARRAY GP 200V 15A D2PAK STMicroelectronics	3,853	2.78	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Standard	200 V	15A	1.05 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	22 ns	20 µA @ 200 V	175°C (Max)	Surface Mount
