| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STTH20LCD06CFPDIODE ARRAY GP 600V 10A TO220FP |
927 | 2.47 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 600 V | 10A | 2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 1 µA @ 600 V | 175°C (Max) | Through Hole |
|
FERD40M45CTDIODE ARRAY 45V 20A TO220AB |
3,693 | 2.07 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | FERD (Field Effect Rectifier Diode) | 45 V | 20A | 500 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 650 µA @ 45 V | 175°C (Max) | Through Hole |
|

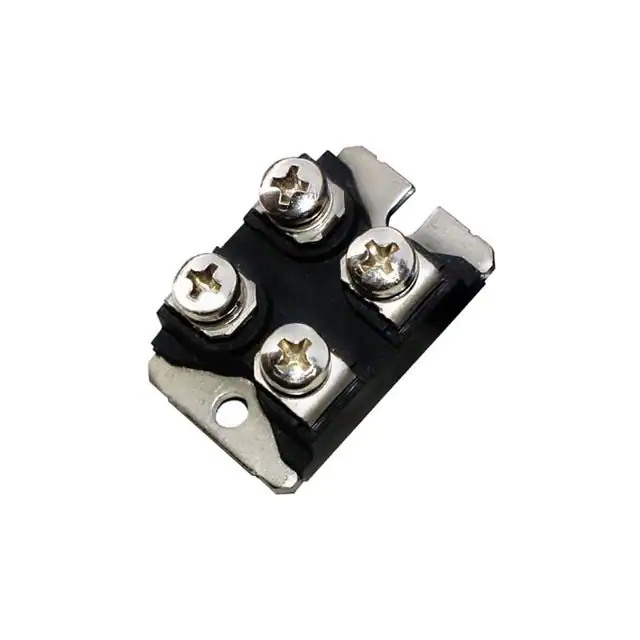

STPS240H100TV1YAUTOMOTIVE 100 V, 2X120A, POWER |
2,979 | 28.93 |
RFQ |
Tube | Automotive, AEC-Q101 | Active | 2 Independent | Schottky | 100 V | 120A | 825 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 90 µA @ 100 V | -40°C ~ 175°C | Chassis Mount | |
|

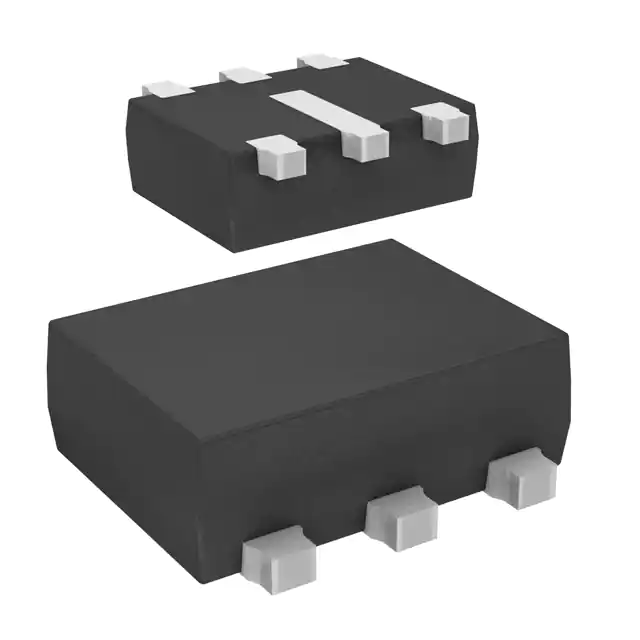

BAS70-09P6FILMDIODE ARRAY SCHOTTKY 70V SOT666 |
285 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 2 Independent | Schottky | 70 V | 70mA (DC) | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 70 V | 150°C (Max) | Surface Mount |
|
BAS70-06WFILMDIODE ARRAY SCHOTTKY 70V SOT323 |
694 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 Pair Common Anode | Schottky | 70 V | 70mA (DC) | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 70 V | 150°C (Max) | Surface Mount |
|
|
BAT54AWFILMYDIODE ARRAY SCHOTTKY 40V SOT323 |
480 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Q Automotive | Active | 1 Pair Common Anode | Schottky | 40 V | 300mA (DC) | 900 mV @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 1 µA @ 30 V | -40°C ~ 150°C | Surface Mount |
|
|
STPS20SM60CTDIODE ARRAY SCHOTTKY 60V TO220AB |
995 | 1.36 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 10A | 645 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 40 µA @ 60 V | 150°C (Max) | Through Hole |
|
STTH1002CSFULTRAFAST DIODE 200V, DUAL 5A |
870 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ECOPACK®2 | Active | 1 Pair Common Cathode | Standard | 200 V | 5A | 1.05 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 4 µA @ 200 V | 175°C | Surface Mount |
|
|
STTH1002CSFYAUTOMOTIVE 200V, DUAL 5A ULTRAFA |
980 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, ECOPACK®2 | Active | 1 Pair Common Cathode | Standard | 200 V | 5A | 1.05 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 4 µA @ 200 V | -40°C ~ 175°C | Surface Mount |
|
STTH1602CRDIODE ARRAY GP 200V 10A I2PAK |
3,085 | 1.01 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 10A | 1.1 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 26 ns | 6 µA @ 200 V | 175°C (Max) | Through Hole |
|
|
STPS20S100CRDIODE ARRAY SCHOTTKY 100V I2PAK |
244 | 1.13 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 850 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3.5 µA @ 100 V | 175°C (Max) | Through Hole |
;;2.jpg)
|
STPS640CBDIODE ARRAY SCHOTTKY 40V 3A DPAK |
868 | 1.25 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 3A | 630 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 40 V | 150°C (Max) | Surface Mount |
|
|
STPS30M60CRDIODE ARRAY SCHOTTKY 60V I2PAK |
959 | 1.28 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 15A | 590 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 80 µA @ 60 V | 150°C (Max) | Through Hole |
|
STTH1002CG-TRDIODE ARRAY GP 200V 8A D2PAK |
668 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 200 V | 8A | 1.1 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 5 µA @ 200 V | 175°C (Max) | Surface Mount |
|
FERD20H60CG-TRDIODE ARRAY 60V 10A D2PAK |
503 | 1.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | FERD (Field Effect Rectifier Diode) | 60 V | 10A | 575 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 60 V | 175°C (Max) | Surface Mount |
|
|
STPS20SM60CRDIODE ARRAY SCHOTTKY 60V I2PAK |
990 | 1.42 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 10A | 645 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 40 µA @ 60 V | 150°C (Max) | Through Hole |
|
|
STPS3030CTDIODE ARRAY SCHOTTKY 30V TO220AB |
3,507 | 1.56 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 15A | 490 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | 150°C (Max) | Through Hole |
|
|
STPS3045CRDIODE ARRAY SCHOTTKY 45V I2PAK |
997 | 1.58 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 570 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | 200°C (Max) | Through Hole |
|
|
STPS20M60CRDIODE ARRAY SCHOTTKY 60V I2PAK |
984 | 1.50 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 10A | 570 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 65 µA @ 60 V | 150°C (Max) | Through Hole |
|
|
STPS30SM60CRDIODE ARRAY SCHOTTKY 60V I2PAK |
999 | 1.51 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 15A | 625 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 65 µA @ 60 V | 150°C (Max) | Through Hole |
