| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-T40HFL20S02DIODE GEN PURP 200V 40A D-55 |
3,992 | 24.28 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 200 ns | 100 µA @ 200 V | 200 V | 40A | - | - | |
|
VS-175BGQ030HF4DIODE SCHOTTKY 175A 30V POWERTAB |
2,619 | 6.11 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 8500pF @ 5V, 1MHz | - | 2 mA @ 30 V | 30 V | 175A | -55°C ~ 150°C | 590 mV @ 175 A |
|
VS-50PFR140DIODE GEN PURP 1.4KV 50A DO203AB |
2,105 | 5.63 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1400 V | 50A | -55°C ~ 160°C | 1.5 V @ 125 A | |
|

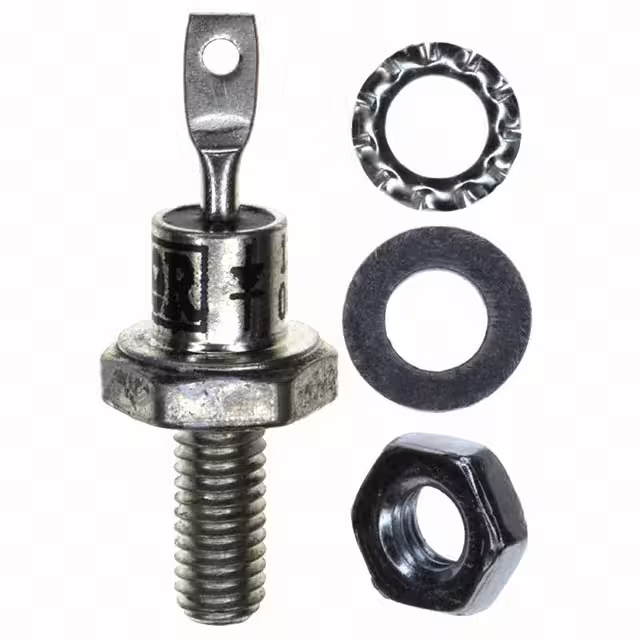

VS-12FL60S02DIODE GEN PURP 600V 12A DO203AA |
2,041 | 5.65 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 50 µA @ 600 V | 600 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
VS-HFA30PB120HN3DIODE GEN PURP 1.2KV 30A TO247AC |
3,947 | 9.69 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 170 ns | 40 µA @ 1200 V | 1200 V | 30A | -55°C ~ 150°C | 4.1 V @ 30 A |
|
|
VS-50PF160DIODE GEN PURP 1.6KV 50A DO203AB |
2,448 | 5.68 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 1600 V | 50A | -55°C ~ 160°C | 1.5 V @ 125 A | |
|
|
VS-T110HF40DIODE GEN PURP 400V 110A D-55 |
2,406 | 33.54 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 20 mA @ 400 V | 400 V | 110A | - | - | |
|
|
VS-50PFR160DIODE GEN PURP 1.6KV 50A DO203AB |
2,345 | 5.68 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1600 V | 50A | -55°C ~ 160°C | 1.5 V @ 125 A | |
|
VS-70HFLR40S05DIODE GEN PURP 400V 70A DO203AB |
3,319 | 9.71 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 100 µA @ 400 V | 400 V | 70A | -40°C ~ 125°C | 1.85 V @ 219.8 A | |
|
VS-12FL40S05DIODE GEN PURP 400V 12A DO203AA |
3,594 | 5.68 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 50 µA @ 400 V | 400 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
|
VS-12FLR40S05DIODE GEN PURP 400V 12A DO203AA |
3,859 | 5.68 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 50 µA @ 400 V | 400 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
|
VS-88HF80DIODE GEN PURP 800V 85A DO203AB |
3,462 | 9.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 800 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
|
|
VS-88HFR80DIODE GEN PURP 800V 85A DO203AB |
3,785 | 9.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 800 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
|
|
VS-40HFL10S05DIODE GEN PURP 100V 40A DO203AB |
3,949 | 9.73 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 100 µA @ 100 V | 100 V | 40A | -40°C ~ 125°C | 1.95 V @ 40 A | |
|
|
VS-86HF80MDIODE GEN PURPOSE 85A DO-5 |
2,230 | 24.55 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 800 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
|
|
VS-40HFL20S05DIODE GEN PURP 200V 40A DO203AB |
3,769 | 9.73 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 100 µA @ 200 V | 200 V | 40A | -40°C ~ 125°C | 1.95 V @ 40 A | |
|
|
VS-86HFR80MDIODE GEN PURP 800V 85A DO203AB |
3,304 | 24.55 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 800 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
|
|
VS-16FL10S02DIODE GEN PURP 100V 16A DO203AA |
2,818 | 5.70 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 50 µA @ 100 V | 100 V | 16A | -65°C ~ 150°C | 1.4 V @ 16 A | |
|
|
VS-16FLR10S02DIODE GEN PURP 100V 16A DO203AA |
3,977 | 5.70 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 50 µA @ 100 V | 100 V | 16A | -65°C ~ 150°C | 1.4 V @ 16 A | |
|
|
VS-70HFLR20S02DIODE GEN PURP 200V 70A DO203AB |
2,288 | 9.27 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 100 µA @ 200 V | 200 V | 70A | -40°C ~ 125°C | 1.85 V @ 219.8 A |
