| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMBD914-HE3-18DIODE GEN PURP 100V 200MA SOT23 |
21,770 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 100 V | 200mA | 150°C (Max) | 1 V @ 10 mA |
|

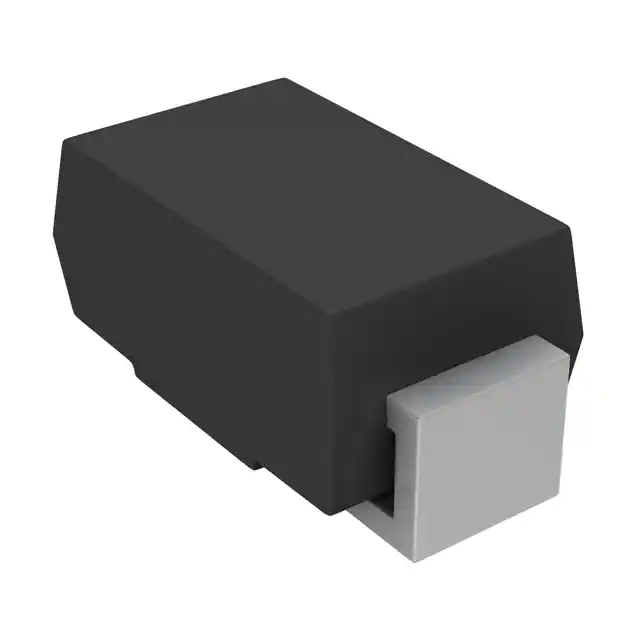

BYG22D-E3/TRDIODE AVALANCHE 200V 2A DO214AC |
31,174 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 25 ns | 1 µA @ 200 V | 200 V | 2A | -55°C ~ 150°C | 1.1 V @ 2 A | |
|
S2JHE3_A/HDIODE GEN PURP 600V 1.5A DO214AA |
80,684 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 16pF @ 4V, 1MHz | 2 µs | 1 µA @ 600 V | 600 V | 1.5A | -55°C ~ 150°C | 1.15 V @ 1.5 A |
|
BAW27-TRDIODE GEN PURP 60V 600MA DO35 |
33,426 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 4pF @ 0V, 1MHz | 6 ns | 100 nA @ 60 V | 60 V | 600mA (DC) | 175°C (Max) | 1.25 V @ 400 mA |
|
1N5402-E3/73DIODE GEN PURP 200V 3A DO201AD |
2,736 | 0.55 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 30pF @ 4V, 1MHz | - | 5 µA @ 200 V | 200 V | 3A | -50°C ~ 150°C | 1.2 V @ 3 A | |
|
ES2G-E3/52TDIODE GEN PURP 400V 2A DO214AA |
157,981 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 50 ns | 10 µA @ 400 V | 400 V | 2A | -55°C ~ 150°C | 1.1 V @ 2 A | |
|
1N4005GP-E3/54DIODE GEN PURP 600V 1A DO204AL |
14,937 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 8pF @ 4V, 1MHz | 2 µs | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A |
|
|
SS26-E3/52TDIODE SCHOTTKY 60V 2A DO214AA |
340 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 60 V | 60 V | 2A | -65°C ~ 125°C | 700 mV @ 2 A | |
|
|
1N4001GP-E3/54DIODE GEN PURP 50V 1A DO204AL |
12,099 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 8pF @ 4V, 1MHz | 2 µs | 5 µA @ 50 V | 50 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A |
|

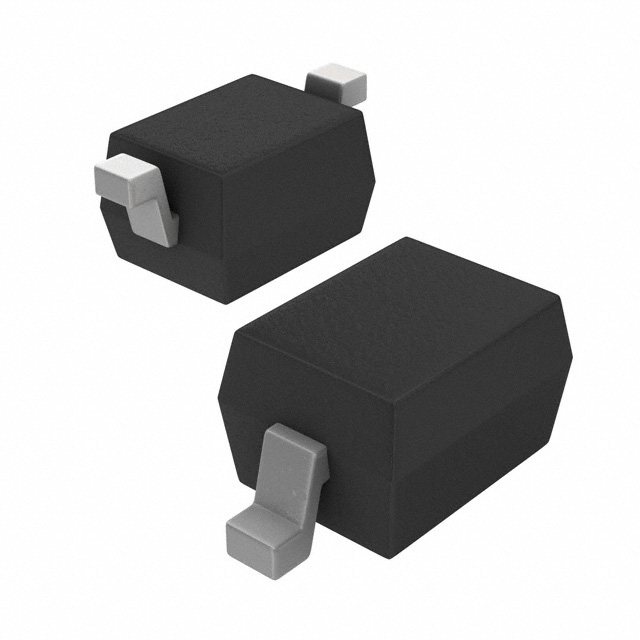

1N4148WS-HE3-18DIODE GEN PURP 75V 150MA SOD323 |
10,087 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 4 ns | 100 µA @ 100 V | 75 V | 150mA | -55°C ~ 150°C | 1.2 V @ 100 mA |
|
|
SSB44-E3/52TDIODE SCHOTTKY 40V 4A DO214AA |
10,531 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 40 V | 40 V | 4A | -65°C ~ 150°C | 490 mV @ 4 A | |
|
|
1N4002GP-E3/54DIODE GEN PURP 100V 1A DO204AL |
10,984 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 8pF @ 4V, 1MHz | 2 µs | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A |
|
|
BAS21-HE3-18DIODE GEN PURP 200V 200MA SOT23 |
20,000 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 200 V | 200mA | -55°C ~ 150°C | 1.25 V @ 200 mA |
|
S5M-E3/57TDIODE GEN PURP 1KV 5A DO214AB |
141,141 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | 2.5 µs | 10 µA @ 1000 V | 1000 V | 5A | -55°C ~ 150°C | 1.15 V @ 5 A | |
|
1N4151W-E3-08DIODE GEN PURP 50V 150MA SOD123 |
5,338 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 4 ns | 50 nA @ 50 V | 50 V | 150mA | -55°C ~ 150°C | 1 V @ 50 mA | |
|
|
1N5821-E3/54DIODE SCHOTTKY 30V 3A DO201AD |
7,266 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 2 mA @ 30 V | 30 V | 3A | -65°C ~ 125°C | 500 mV @ 3 A | |
|
|
BAS34-TAPDIODE GEN PURP 60V 200MA DO35 |
104,234 | 0.38 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 3pF @ 0V, 1MHz | - | 1 nA @ 30 V | 60 V | 200mA | 175°C (Max) | 1 V @ 100 mA |
|
|
SS3H10-E3/9ATDIODE SCHOTTKY 100V 3A DO214AB |
10,420 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 20 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 800 mV @ 3 A | |
|
|
1N5820-E3/54DIODE SCHOTTKY 20V 3A DO201AD |
3,117 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 2 mA @ 20 V | 20 V | 3A | -65°C ~ 125°C | 475 mV @ 3 A | |
|
|
SB560A-E3/73DIODE SCHOTTKY 60V 5A DO201AD |
3,502 | 0.56 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 60 V | 60 V | 5A | -65°C ~ 150°C | 700 mV @ 5 A |
