| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SB540A-E3/54DIODE SCHOTTKY 40V 5A DO201AD |
2,172 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 5A | -65°C ~ 150°C | 500 mV @ 5 A | |
|
BAV21WS-E3-08DIODE GEN PURP 200V 250MA SOD323 |
11,008 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 200 V | 250mA (DC) | 150°C (Max) | 1.25 V @ 200 mA | |
|
BYW54-TAPDIODE AVALANCHE 600V 2A SOD57 |
23,370 | 0.64 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 4 µs | 1 µA @ 600 V | 600 V | 2A | -55°C ~ 175°C | 1 V @ 1 A | |
|
SS16-M3/61TDIODE SCHOTTKY 1A 60V DO-214AC |
8,882 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 60 V | 60 V | 1A | -65°C ~ 150°C | 750 mV @ 1 A | |
|
|
SB3H100-E3/54DIODE SCHOTTKY 100V 3A DO201AD |
19,525 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 20 µA @ 100 V | 100 V | 3A | 175°C (Max) | 800 mV @ 3 A | |
|
|
SB550A-E3/54DIODE SCHOTTKY 50V 5A DO201AD |
2,402 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 50 V | 50 V | 5A | -65°C ~ 150°C | 700 mV @ 5 A | |
|
BAT54-HE3-08DIODE SCHOTTKY 30V 200MA SOT23 |
44,829 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 1V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA (DC) | 125°C (Max) | 800 mV @ 100 mA |
~~2.jpg)
|
SS2PH9-M3/84ADIODE SCHOTTKY 90V 2A DO220AA |
6,500 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 65pF @ 4V, 1MHz | - | 1 µA @ 90 V | 90 V | 2A | -55°C ~ 175°C | 800 mV @ 2 A |
|
|
SF1200-TAPDIODE GEN PURP 1.2KV 1A SOD57 |
22,382 | 0.67 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 5 µA @ 1200 V | 1200 V | 1A | 125°C (Max) | 3.4 V @ 1 A | |
|
SD103C-TRDIODE SCHOTTKY 20V DO35 |
18,724 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 10 V | 20 V | - | 125°C (Max) | 600 mV @ 200 mA | |
|
|
BYW55-TAPDIODE AVALANCHE 800V 2A SOD57 |
13,309 | 0.67 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 4 µs | 1 µA @ 800 V | 800 V | 2A | -55°C ~ 175°C | 1 V @ 1 A | |
|
|
SB550-E3/54DIODE SCHOTTKY 50V 5A DO201AD |
4,427 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 50 V | 50 V | 5A | -65°C ~ 150°C | 650 mV @ 5 A | |
|
|
BYG21K-E3/TRDIODE AVALANCHE 800V 1.5A |
4,033 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 120 ns | 1 µA @ 800 V | 800 V | 1.5A | -55°C ~ 150°C | 1.6 V @ 1.5 A | |
|

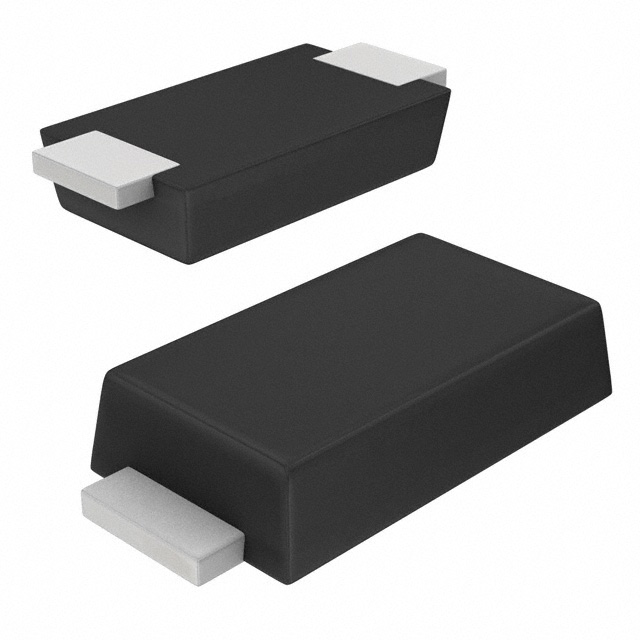

SE30AFG-M3/6ADIODE GEN PURP 400V 1.4A DO221AC |
16,927 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 19pF @ 4V, 1MHz | 1.5 µs | 10 µA @ 400 V | 400 V | 1.4A (DC) | -55°C ~ 175°C | 1.1 V @ 3 A |
|

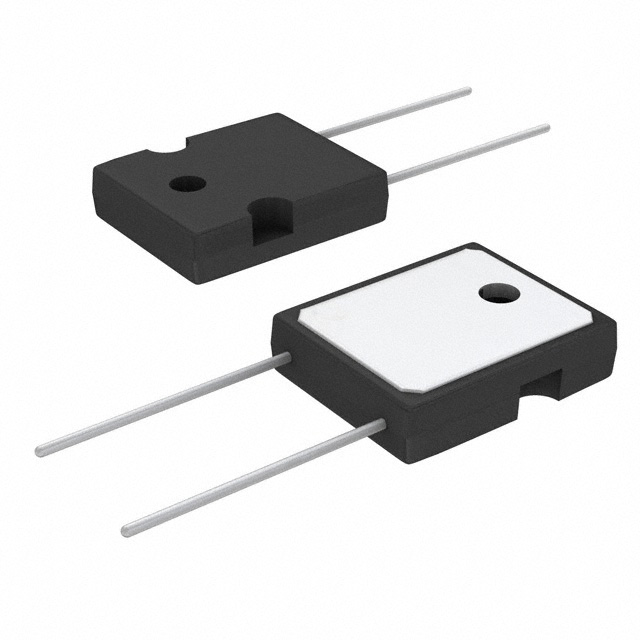

VS-E4PU6006LHN3DIODE GEN PURP 600V 60A TO247AD |
203 | 3.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 74 ns | 50 µA @ 600 V | 600 V | 60A | -55°C ~ 175°C | 1.7 V @ 60 A |
|
S8CJ-M3/IDIODE GEN PURP 600V 8A DO214AB |
6,725 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 79pF @ 4V, 1MHz | 4 µs | 10 µA @ 600 V | 600 V | 8A | -55°C ~ 150°C | 985 mV @ 8 A | |
|
|
GSD2004WS-E3-08DIODE GEN PURP 240V 225MA SOD323 |
26,515 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 240 V | 240 V | 225mA (DC) | 150°C (Max) | 1 V @ 100 mA | |
;;3.jpg)
|
VS-CPU6006LHN3DIODE GEN PURP 600V 30A TO247AD |
231 | 3.64 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 42 ns | 30 µA @ 600 V | 600 V | 30A | -55°C ~ 175°C | 1.75 V @ 30 A |
|
VS-EPH6007L-N3RECTIFER HYPERFAST 60A TO-247AD |
165 | 3.81 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 65 ns | 30 µA @ 650 V | 650 V | 60A | -55°C ~ 175°C | 2.2 V @ 60 A | |
|
|
SB530-E3/54DIODE SCHOTTKY 30V 5A DO201AD |
8,867 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 30 V | 30 V | 5A | -65°C ~ 150°C | 480 mV @ 5 A |
