| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBYV27-200-E3/54DIODE GEN PURP 200V 2A DO204AC |
4,539 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 15 ns | 5 µA @ 200 V | 200 V | 2A | -55°C ~ 150°C | 1.07 V @ 3 A | |
|
BAT85S-TAPDIODE SCHOTTKY 30V 200MA DO35 |
10,479 | 0.40 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 10pF @ 1V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA (DC) | -65°C ~ 150°C | 800 mV @ 100 mA | |
|
|
SBYV27-50-E3/54DIODE GEN PURP 50V 2A DO204AC |
5,530 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 15 ns | 5 µA @ 50 V | 50 V | 2A | -55°C ~ 150°C | 1.07 V @ 3 A | |
|
|
BAT85S-TRDIODE SCHOTTKY 30V 200MA DO35 |
13,683 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 10pF @ 1V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA (DC) | -65°C ~ 150°C | 800 mV @ 100 mA | |
|
ES1D-M3/61TDIODE GEN PURP 200V 1A DO214AC |
6,386 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 25 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 920 mV @ 1 A | |
|
RGP02-12E-E3/73DIODE GEN PURP 1.2KV 500MA DO204 |
5,850 | 0.62 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | SUPERECTIFIER® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 300 ns | 5 µA @ 1200 V | 1200 V | 500mA | -65°C ~ 175°C | 1.8 V @ 100 mA |
|
|
US1G-E3/61TDIODE GEN PURP 400V 1A DO214AC |
14,400 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 50 ns | 10 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
ES07B-GS08DIODE GEN PURP 100V 500MA DO219 |
58,823 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 4V, 1MHz | 25 ns | 10 µA @ 100 V | 100 V | 500mA | -55°C ~ 150°C | 980 mV @ 1 A |
|
|
ES07D-GS08DIODE GEN PURP 200V 1.2A DO219AB |
48,053 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 4V, 50MHz | 25 ns | 10 µA @ 200 V | 200 V | 500mA | -55°C ~ 150°C | 980 mV @ 1 A | |
|
|
SL02-GS08DIODE SCHOTTKY 20V 1.1A DO219AB |
23,463 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | 10 ns | 250 µA @ 20 V | 20 V | 1.1A | 125°C (Max) | 420 mV @ 1.1 A |
|

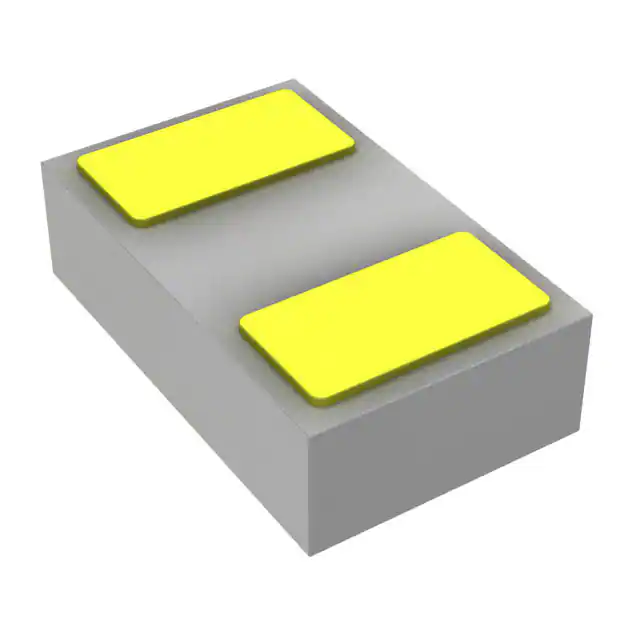

VSKY05301006-G4-08DIODE SCHTKY 30V 500MA CLP10062L |
132,440 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 140pF @ 0V, 1MHz | - | 75 µA @ 30 V | 30 V | 500mA | 150°C (Max) | 430 mV @ 500 mA | |
|
|
S1J-E3/5ATDIODE GEN PURP 600V 1A DO214AC |
37,294 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 12pF @ 4V, 1MHz | 1.8 µs | 1 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
S1G-E3/5ATDIODE GEN PURP 400V 1A DO214AC |
15,262 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 12pF @ 4V, 1MHz | 1.8 µs | 1 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
SS1H10-M3/61TDIODE SCHOTTKY 1A 100V DO-214AC |
5,335 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 µA @ 90 V | 100 V | 1A | -65°C ~ 175°C | 860 mV @ 2 A | |
|
|
SD103B-TAPDIODE SCHOTTKY 30V SGL DO35 |
75,019 | 0.37 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 20 V | 30 V | 200mA | 125°C (Max) | 600 mV @ 200 mA |
|
SD103B-TRDIODE SCHOTTKY 30V DO35 |
68,386 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 50pF @ 0V, 1MHz | 10 ns | 5 µA @ 20 V | 30 V | - | 125°C (Max) | 600 mV @ 200 mA | |
~~2.jpg)
|
AS1PM-M3/84ADIODE AVALANCHE 1KV 1.5A DO220 |
6,000 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | 10.4pF @ 4V, 1MHz | 1.5 µs | 5 µA @ 1000 V | 1000 V | 1.5A (DC) | -55°C ~ 175°C | 1.15 V @ 1.5 A |
|
|
SB240-E3/73DIODE SCHOTTKY 40V 2A DO204AC |
3,150 | 0.45 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 2A | -65°C ~ 125°C | 500 mV @ 2 A | |
|
S3JHE3_A/HDIODE GEN PURP 600V 3A DO214AB |
14,335 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | 2.5 µs | 10 µA @ 600 V | 600 V | 3A | -55°C ~ 150°C | 1.15 V @ 2.5 A |
|
|
BYG10D-E3/TRDIODE AVALANCHE 200V 1.5A |
11,808 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 4 µs | 1 µA @ 200 V | 200 V | 1.5A | -55°C ~ 150°C | 1.15 V @ 1.5 A |
