| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6626UE3RECTIFIER UFR,FRR |
3,656 | 10.53 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 2 µA @ 200 V | 200 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A | ||
|
1N459ADIODE GEN PURP 200V 150MA DO35 |
3,715 | 10.56 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 1 µA @ 200 V | 200 V | 150mA | -65°C ~ 150°C | 1 V @ 100 mA | |
|
JANS1N5623US/TRRECTIFIER UFR,FRR |
3,886 | 86.25 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 500 ns | - | - | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
CDLL5712DIODE SCHOTTKY 20V 75MA DO213AA |
2,288 | 10.58 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 150 nA @ 16 V | 20 V | 75mA | -65°C ~ 150°C | 1 V @ 35 mA | |
|

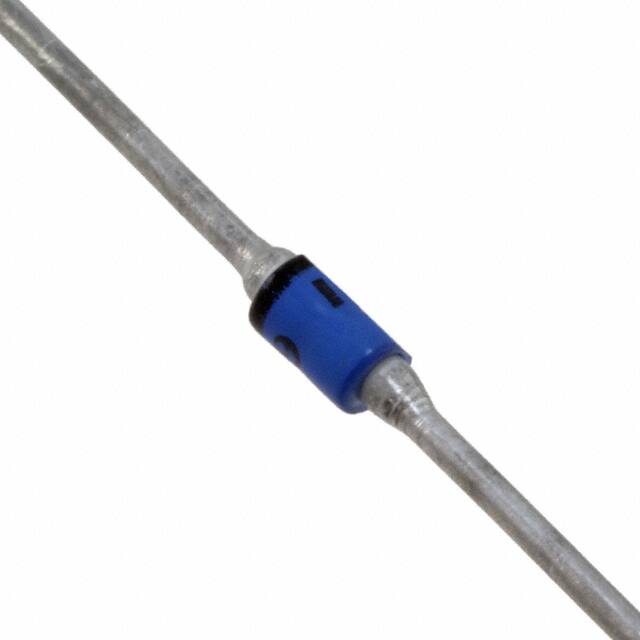

JANTXV1N5622DIODE GEN PURP 1KV 1A AXIAL |
2,030 | 10.58 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 1000 V | 1000 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
|
1N5712UR-1SCHOTTKY DIODE |
3,991 | 10.58 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
JAN1N5802US/TRRECTIFIER UFR,FRR |
3,553 | 10.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 10V, 1MHz | 25 ns | 1 µA @ 50 V | 50 V | 2.5A | -65°C ~ 175°C | 975 mV @ 2.5 A |
|
|
1N6545DIODE RECT ULT FAST REC A-PKG |
3,596 | 10.59 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
CDLL6759DIODE SCHOTTKY 60V 1A DO213AB |
2,228 | 86.76 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 60 V | 60 V | 1A | -55°C ~ 125°C | 690 mV @ 1 A | |
|
JANTXV1N5615USDIODE GEN PURP 200V 1A D-5A |
2,352 | 10.61 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 12V, 1MHz | 150 ns | 500 nA @ 600 V | 200 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A |
|
|
CDLL6761DIODE SCHOTTKY 100V 1A DO213AB |
3,075 | 86.76 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 100 V | 100 V | 1A | -55°C ~ 125°C | 690 mV @ 1 A | |
|
JAN1N5416USDIODE GEN PURP 100V 3A AXIAL |
2,321 | 10.62 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|
|
1N6761UR-1RECTIFIER DIODE |
2,377 | 86.76 |
RFQ |
Bulk | Military, MIL-PRF-19500/586 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 70pF @ 5V, 1MHz | - | 100 µA @ 100 V | 100 V | 1A | -65°C ~ 150°C | 690 mV @ 1 A | |
|
|
JAN1N5420USDIODE GEN PURP 600V 3A D5B |
2,923 | 10.62 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 400 ns | 1 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|
CDLL6760/TRDIODE SMALL-SIGNAL SCHOTTKY |
3,486 | 86.76 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 80 V | 80 V | 1A | -55°C ~ 125°C | 690 mV @ 1 A | |
|
|
UFR7130RECTIFIER |
2,471 | 86.79 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 150pF @ 10V, 1MHz | 75 ns | 25 µA @ 300 V | 300 V | 70A | -65°C ~ 175°C | 1.25 V @ 70 A | |
|

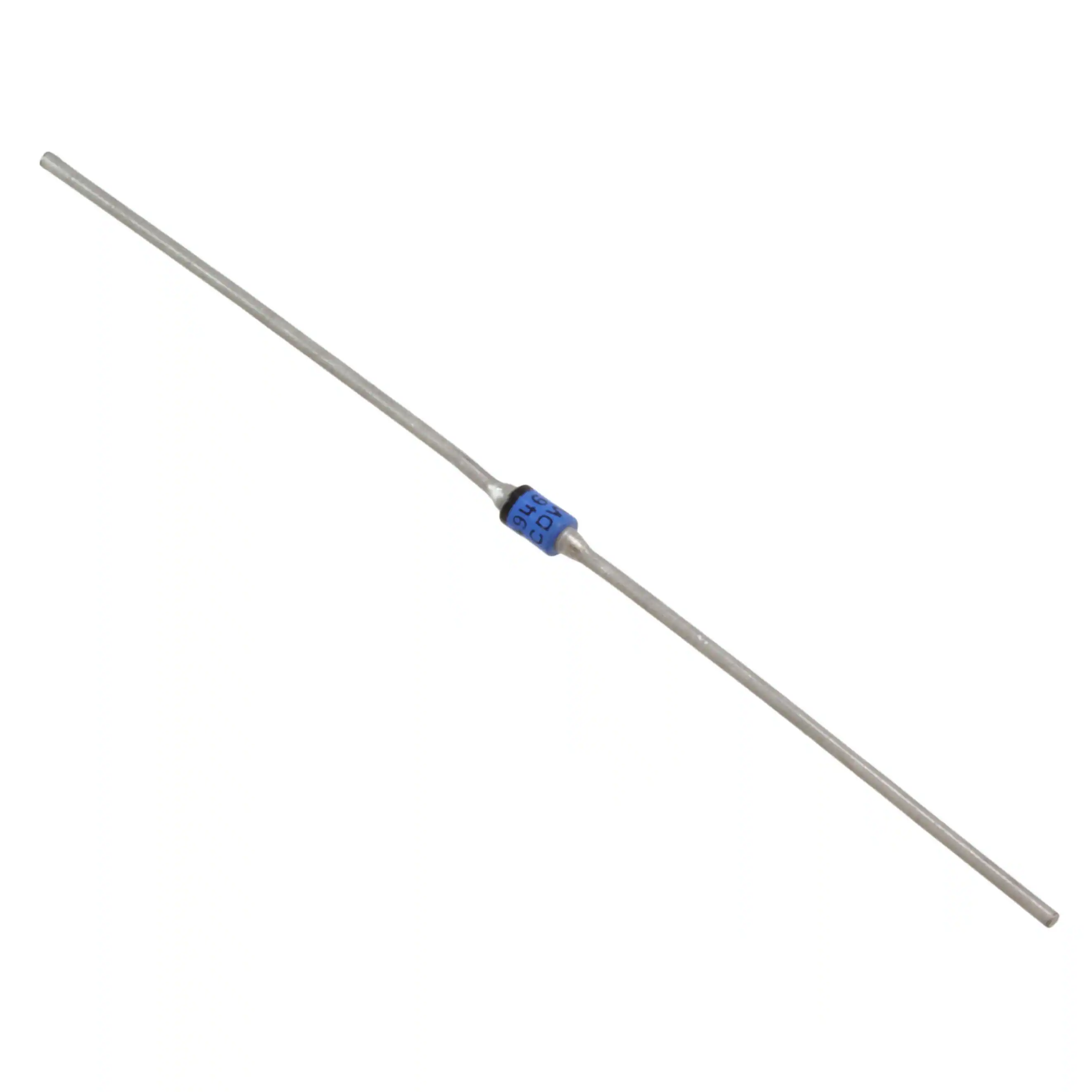

JANTX1N4946DIODE GEN PURP 600V 1A AXIAL |
3,773 | 10.68 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/359 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 250 ns | 1 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A |
|
|
UFR7140RECTIFIER |
3,451 | 86.79 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 150pF @ 10V, 1MHz | 75 ns | 25 µA @ 400 V | 400 V | - | -65°C ~ 175°C | 1.25 V @ 70 A | |
|
|
UFR7150RECTIFIER |
3,327 | 86.79 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 150pF @ 10V, 1MHz | 75 ns | 25 µA @ 500 V | 500 V | 70A | -65°C ~ 175°C | 1.25 V @ 70 A | |
|
|
UFR3150RRECTIFIER |
2,162 | 86.82 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | 115pF @ 10V, 1MHz | 50 ns | 15 µA @ 500 V | 500 V | 30A | -65°C ~ 175°C | 1.25 V @ 30 A |
