| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTXV1N5622/TRSTD RECTIFIER |
2,323 | 10.73 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 1 V | 1000 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A | |
|
JANTX1N6641USDIODE GEN PURP 50V 300MA B-MELF |
2,682 | 10.74 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/609 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 5 ns | 100 µA @ 50 V | 50 V | 300mA (DC) | -65°C ~ 175°C | 1.1 V @ 300 mA |
|
|
CDLL5712/TRSCHOTTKY |
2,043 | 10.74 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 150 nA @ 16 V | 16 V | 75mA | -65°C ~ 150°C | 1 V @ 35 mA | ||
|
CDLL6760DIODE SCHOTTKY 80V 1A DO213AB |
2,162 | 86.92 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 80 V | 80 V | 1A | -55°C ~ 125°C | 690 mV @ 1 A | |
|
1N5712UR-1/TRDIODE SMALL-SIGNAL SCHOTTKY |
2,682 | 10.74 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 150 nA @ 16 V | 16 V | 75mA | -65°C ~ 150°C | 1 V @ 35 mA | |
|
|
CDLL6761/TRSCHOTTKY |
2,925 | 86.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 70pF @ 5V, 1MHz | - | 100 µA @ 100 V | 100 V | 1A | -65°C ~ 150°C | 690 mV @ 1 A | |
|
|
1N6545/TRRECTIFIER UFR,FRR |
2,578 | 10.76 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
1N6761UR-1/TRDIODE SMALL-SIGNAL SCHOTTKY |
2,117 | 86.93 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/586 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 70pF @ 5V, 1MHz | - | 100 µA @ 100 V | 100 V | 1A | -65°C ~ 150°C | 690 mV @ 1 A | |
|
JANTXV1N5615US/TRRECTIFIER UFR,FRR |
2,850 | 10.76 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 12V, 1MHz | 150 ns | 500 nA @ 600 V | 200 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
CDLL6759/TRDIODE SMALL-SIGNAL SCHOTTKY |
3,897 | 86.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 60 V | 60 V | 1A | -55°C ~ 125°C | 690 mV @ 1 A | |
|
|
JANTX1N3645DIODE GEN PURP 2KV 250MA AXIAL |
2,935 | 10.77 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/279 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 2000 V | 2000 V | 250mA | -65°C ~ 175°C | 5 V @ 250 mA |
|
|
JAN1N5416US/TRRECTIFIER UFR,FRR |
3,607 | 10.77 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
|
JAN1N5420US/TRRECTIFIER UFR,FRR |
3,684 | 10.77 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 400 ns | 1 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
|
JANTXV1N6643UDIODE GEN PURP 75V 300MA D-MELF |
3,543 | 10.80 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 20 ns | 500 nA @ 75 V | 75 V | 300mA | -65°C ~ 175°C | 1.2 V @ 100 mA |
|
|
UFR7140RRECTIFIER |
2,436 | 89.03 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 150pF @ 10V, 1MHz | 60 ns | - | 400 V | 70A | 175°C (Max) | 1.25 V @ 70 A | ||
|
|
UFR7130RRECTIFIER |
2,296 | 89.03 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 150pF @ 10V, 1MHz | 75 ns | 25 µA @ 300 V | 300 V | 70A | -65°C ~ 175°C | 1.25 V @ 70 A | |
|
JANTX1N4946/TRRECTIFIER UFR,FRR |
2,117 | 10.83 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/359 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 250 ns | 1 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A |
|
|
UFR7150RRECTIFIER |
3,696 | 89.03 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 150pF @ 10V, 1MHz | 75 ns | 25 µA @ 500 V | 500 V | 70A | -65°C ~ 175°C | 1.25 V @ 70 A | |
|

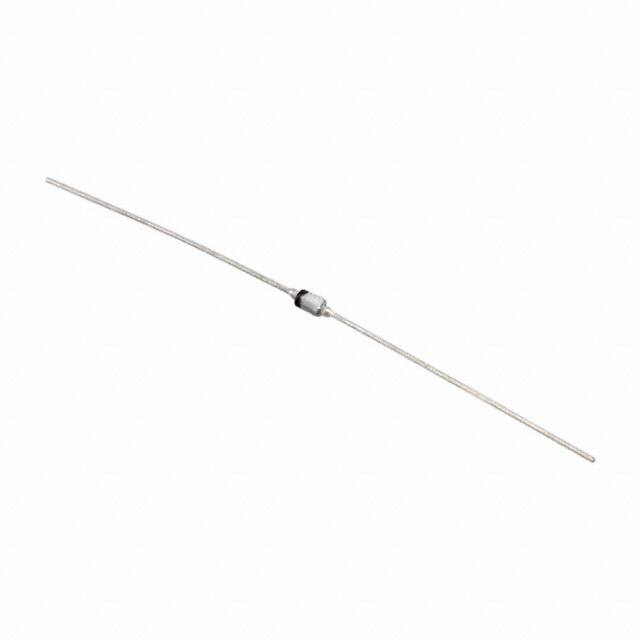

JANTX1N6640DIODE GEN PURP 50V 300MA AXIAL |
2,292 | 10.86 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/609 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 4 ns | 100 nA @ 50 V | 50 V | 300mA | -65°C ~ 175°C | 1 V @ 200 mA |
|
|
JAN1N6621DIODE GEN PURP 440V 2A AXIAL |
3,552 | 10.86 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 10V, 1MHz | 30 ns | 500 nA @ 440 V | 440 V | 2A | -65°C ~ 150°C | 1.6 V @ 2 A |
