| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

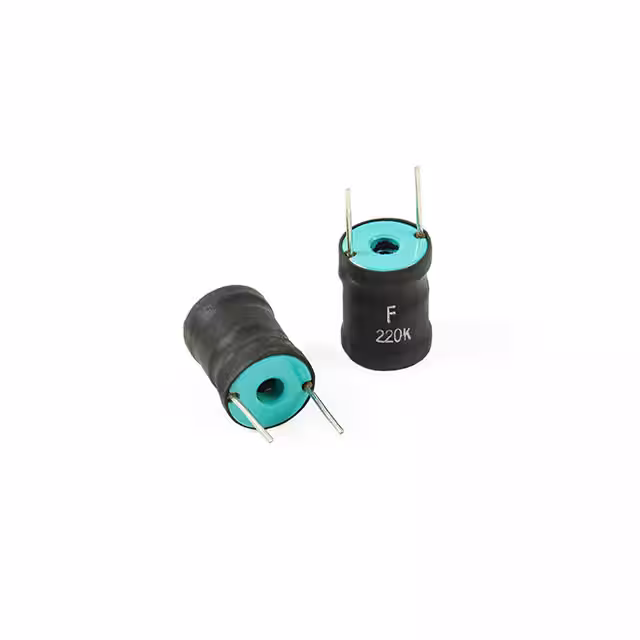

RDC10-331K-RC330H 10% RADIAL DRUM CORE IND |
2,458 | 4.75 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC10 | Active | Drum Core, Wirewound | - | 330 µH | ±10% | 1.3 A | 3.8A | Unshielded | 336mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|

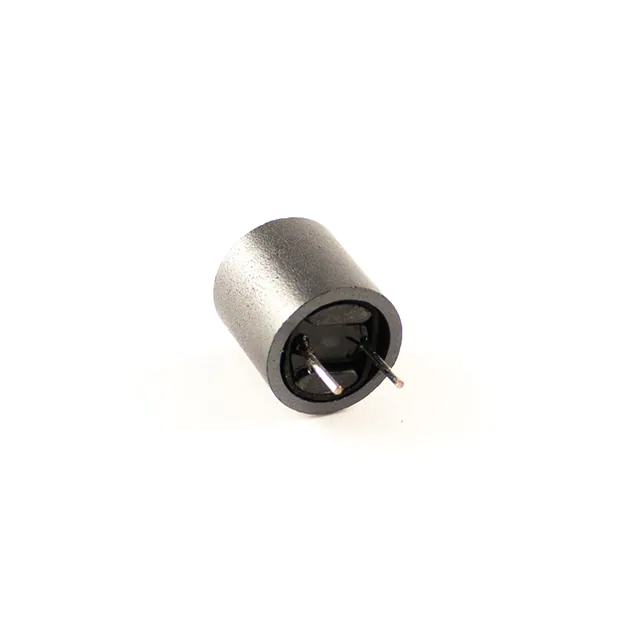

RBS181-102K1.0MH, RADIAL LEADED SHIELDED IN |
3,422 | 5.50 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Tray | - | Active | - | - | 1 mH | ±10% | 90 mA | - | Shielded | 3.4mOhm Max | 70 @ 50kHz | 770kHz | - | -55°C ~ 105°C | 50 kHz | - | Through Hole | Radial |
|

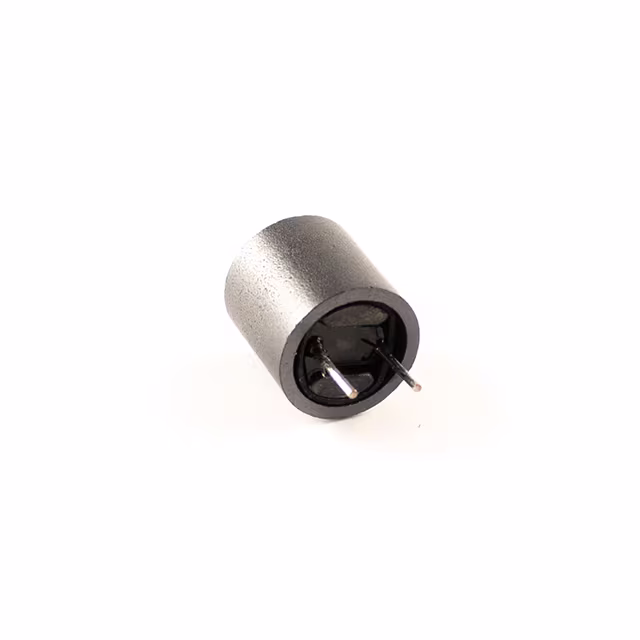

RBS181-563K56MH, RADIAL LEADED SHIELDED IND |
2,245 | 5.50 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Tray | - | Active | - | - | 56 mH | ±10% | 12 mA | - | Shielded | 58mOhm Max | 100 @ 50kHz | 120kHz | - | -55°C ~ 105°C | 50 kHz | - | Through Hole | Radial |
|

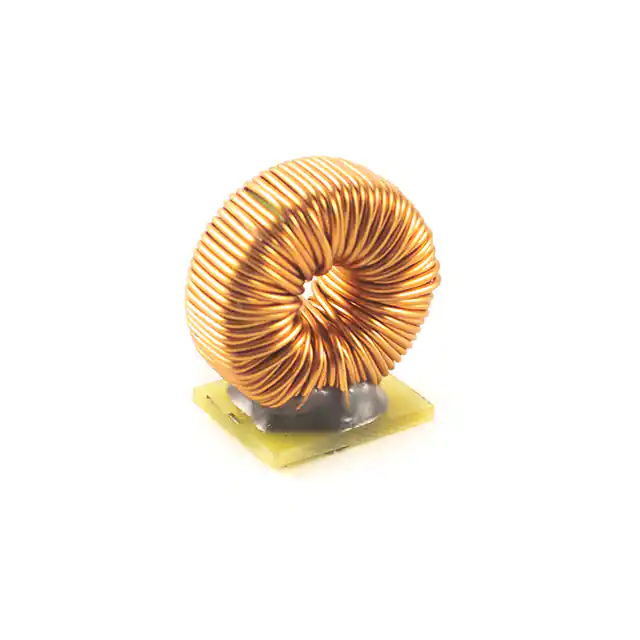

VTCB2213-361360UH, TOROIDAL CHOKE |
2,062 | 5.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Box | - | Active | Toroidal | - | 360 µH | - | 2.5 A | - | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 40 kHz | - | Through Hole | - |
|
RDC20-181K-RC180 UH 20% RADIAL DRUM CORE |
3,476 | 6.50 |
RFQ |
Datasheet |
Radial | Box | RDC20 | Active | Drum Core, Wirewound | - | 180 µH | ±10% | 4 A | 7.8A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|

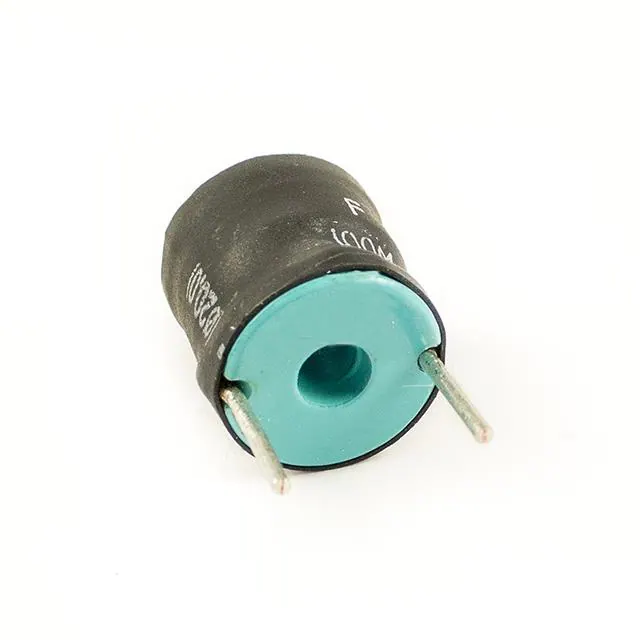

RDC20-102K-RC1000UH RADIAL DRUM CORE INDUCTOR |
2,462 | 6.50 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | RDC20 | Active | Drum Core, Wirewound | - | 1 mH | ±10% | 1 A | 3.1A | Unshielded | 818mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial Lead |
|

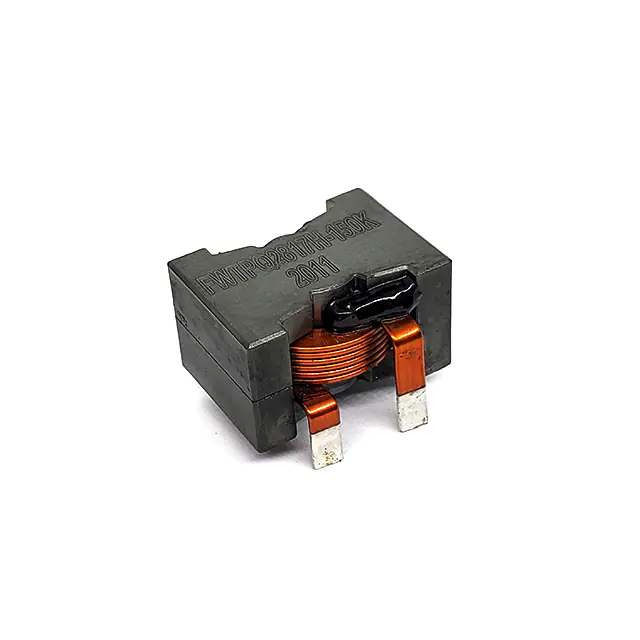

FWPQ2817H-150KFIXED IND 15UH 28A 2.82 MOHM TH |
3,691 | 6.50 |
RFQ |
Datasheet |
Nonstandard | Tray | - | Active | Wirewound | - | 15 µH | ±10% | 28 A | 21.9A | Shielded | 2.82mOhm | - | 16MHz | - | -40°C ~ 85°C | 500 kHz | - | Through Hole | - |
|
FWPQ2616-6R8K-RC6.8UH +/-10% FLAT WIRE SMD INDUC |
2,439 | 6.50 |
RFQ |
Datasheet |
Nonstandard | Tray | - | Active | Wirewound | - | 6.8 µH | ±10% | 28.8 A | 45.9A | Shielded | 2.85mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
RDC20-221K-RC220 UH 20% Radial Drum Core |
2,090 | 6.50 |
RFQ |
Datasheet |
Radial | Box | RDC20 | Active | Drum Core, Wirewound | - | 220 µH | ±10% | 2.8 A | 7A | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC20-150K-RC15 UH 20% RADIAL DRUM CORE |
2,294 | 6.50 |
RFQ |
Datasheet |
Radial | Box | RDC20 | Active | Drum Core, Wirewound | - | 15 µH | ±10% | 9 A | 25A | Unshielded | 13mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC20-220K-RC22 UH 20% RADIAL DRUM CORE |
2,916 | 6.50 |
RFQ |
Datasheet |
Radial | Box | RDC20 | Active | Drum Core, Wirewound | - | 22 µH | ±10% | 7.2 A | 21A | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC20-471K-RC470 UH 20% Radial Drum Core |
3,488 | 6.50 |
RFQ |
Datasheet |
Radial | Box | RDC20 | Active | Drum Core, Wirewound | - | 470 µH | ±10% | 1.6 A | 4.5A | Unshielded | 355mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC20-120K-RC12UH 10% RADIAL DRUM CORE |
3,436 | 6.50 |
RFQ |
Datasheet |
Radial | Box | RDC20 | Active | Drum Core, Wirewound | - | 12 µH | ±10% | 11.4 A | 27A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC20-100M-RC10UH 20% RADIAL DRUM CORE |
3,464 | 6.50 |
RFQ |
Datasheet |
Radial | Box | RDC20 | Active | Drum Core, Wirewound | - | 10 µH | ±20% | 11.4 A | 30A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC20-390K-RC39 UH 20% Radial Drum Core |
3,011 | 6.50 |
RFQ |
Datasheet |
Radial | Box | RDC20 | Active | Drum Core, Wirewound | - | 39 µH | ±10% | 5.5 A | 17A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC20-820K-RC82 UH 20% Radial Drum Core |
2,662 | 6.50 |
RFQ |
Datasheet |
Radial | Box | RDC20 | Active | Drum Core, Wirewound | - | 82 µH | ±10% | 4.8 A | 11.3A | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
RDC20-8R2M-RC8.2 UH 20% Radial Drum Core |
2,277 | 6.50 |
RFQ |
Datasheet |
Radial | Box | RDC20 | Active | Drum Core, Wirewound | - | 8.2 µH | ±20% | 11.4 A | 36A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC20-180K-RC18 UH 20% RADIAL DRUM CORE |
3,745 | 6.50 |
RFQ |
Datasheet |
Radial | Box | RDC20 | Active | Drum Core, Wirewound | - | 18 µH | ±10% | 7.2 A | 22A | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
RDC20-100K-RC10uH +/-10% Radial Drum Core |
3,373 | 6.50 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC20 | Active | Drum Core | - | 10 µH | ±10% | 11.4 A | 30A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC20-330K-RC33uH +/-10% Radial Drum Core |
2,300 | 6.50 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC20 | Active | Drum Core | - | 33 µH | ±10% | 5.5 A | 18.6A | Unshielded | 29mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder |
