Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Material-Core	Inductance	Tolerance	CurrentRating(Amps)	Current-Saturation(Isat)	Shielding	DCResistance(DCR)	Q@Freq	Frequency-SelfResonant	Ratings	OperatingTemperature	InductanceFrequency-Test	Features	MountingType	Size/Dimension
RDC20-222K-RC 2200uH +/-10% Radial Drum Core Allied Components International	3,384	6.50	RFQ	Datasheet	Radial, Vertical Cylinder	Box	RDC20	Active	Drum Core	-	2.2 mH	±10%	800 mA	2A	Unshielded	1.54Ohm Max	-	-	-	-40°C ~ 85°C	1 kHz	-	Through Hole	Radial, Vertical Cylinder
RDC20-121K-RC 120uH +/- 10% Radial Drum Core Allied Components International	2,017	6.50	RFQ	Datasheet	Radial, Vertical Cylinder	Box	RDC20	Active	Drum Core	-	120 µH	±10%	4 A	9.4A	Unshielded	90mOhm Max	-	-	-	-40°C ~ 85°C	1 kHz	-	Through Hole	Radial, Vertical Cylinder
RDC20-151K-RC 150uH +/- 10% Radial Drum Core Allied Components International	3,936	6.50	RFQ	Datasheet	Radial, Vertical Cylinder	Box	RDC20	Active	Drum Core	-	150 µH	±10%	4 A	8.6A	Unshielded	98mOhm Max	-	-	-	-40°C ~ 85°C	1 kHz	-	Through Hole	Radial, Vertical Cylinder
RDC20-2R2K-RC 2.2uH +/- 10% Radial Drum Core Allied Components International	3,627	6.50	RFQ	Datasheet	Radial, Vertical Cylinder	Box	RDC20	Active	Drum Core	-	2.2 µH	±10%	11.4 A	68A	Unshielded	4mOhm Max	-	-	-	-40°C ~ 85°C	1 kHz	-	Through Hole	Radial
RDC20-560K-RC 56uH +/- 10% Radial Drum Core Allied Components International	2,326	6.50	RFQ	Datasheet	Radial, Vertical Cylinder	Box	RDC20	Active	Drum Core	-	56 µH	±10%	5.5 A	13.6A	Unshielded	39mOhm Max	-	-	-	-40°C ~ 85°C	1 kHz	-	Through Hole	Radial, Vertical Cylinder
RDC20-152K-RC 1500uH +/- 10% Radial Drum Core Allied Components International	2,751	6.50	RFQ	Datasheet	Radial, Vertical Cylinder	Box	RDC20	Active	Drum Core	-	1.5 mH	±10%	800 mA	2.4A	Unshielded	1.26Ohm Max	-	-	-	-40°C ~ 85°C	1 kHz	-	Through Hole	Radial, Vertical Cylinder
RDC20-681K-RC 680uH +/-10% Radial Drum Core Allied Components International	2,778	6.50	RFQ	Datasheet	Radial, Vertical Cylinder	Box	RDC20	Active	Drum Core	-	680 µH	±10%	1.6 A	3.7A	Unshielded	430mOhm Max	-	-	-	-40°C ~ 85°C	1 kHz	-	Through Hole	Radial, Vertical Cylinder
RDC20-392K-RC 3900uH +/-10% Radial Drum Core Allied Components International	3,636	6.50	RFQ	Datasheet	Radial, Vertical Cylinder	Box	RDC20	Active	Drum Core	-	3.9 mH	±10%	-	-	Unshielded	-	-	-	-	-40°C ~ 85°C	1 kHz	-	Through Hole	Radial
FWPQ2817H-100K 10uH +/-10% Flat Wire SMD Power Allied Components International	3,847	6.50	RFQ	Datasheet	2-SMD, Gull Wing	Tray	FWTPQ2817H	Active	Wirewound	-	10 µH	±10%	28 A	32.1A	Shielded	2.82mOhm	-	20MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD
FWPQ2817H-3R3K 3.3uH +/-10% Flat Wire SMD Power Allied Components International	2,328	6.50	RFQ	Datasheet	2-SMD, Gull Wing	Tray	FWTPQ2817H	Active	Wirewound	-	3.3 µH	±10%	28 A	93.6A	Shielded	2.82mOhm	-	40MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD
FWPQ2817H-6R8K 6.8uH +/-10% Flat Wire SMD Power Allied Components International	2,099	6.50	RFQ	Datasheet	2-SMD, Gull Wing	Tray	FWTPQ2817H	Active	Wirewound	-	6.8 µH	±10%	28 A	45.9A	Shielded	2.82mOhm	-	25MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD
FWPQ2817H-4R7K 4.7uH +/-10% Flat Wire SMD Power Allied Components International	3,510	6.50	RFQ	Datasheet	2-SMD, Gull Wing	Tray	FWTPQ2817H	Active	Wirewound	-	4.7 µH	±10%	28 A	62.4A	Shielded	2.82mOhm	-	30MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD
FWPQ2817H-220K 22uH +/-10% Flat Wire SMD Power Allied Components International	3,253	6.50	RFQ	Datasheet	2-SMD, Gull Wing	Tray	FWTPQ2817H	Active	Wirewound	-	22 µH	±10%	28 A	15A	Shielded	2.82mOhm	-	15MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD
FWPQ2817H-330K 33uH+/-10% Flat Wire Pwr Induct. Allied Components International	3,736	6.50	RFQ		2-SMD, Gull Wing	Tray	FWTPQ2817H	Active	Wirewound	-	33 µH	±10%	28 A	9.6A	Shielded	2.82mOhm Max	-	10MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD

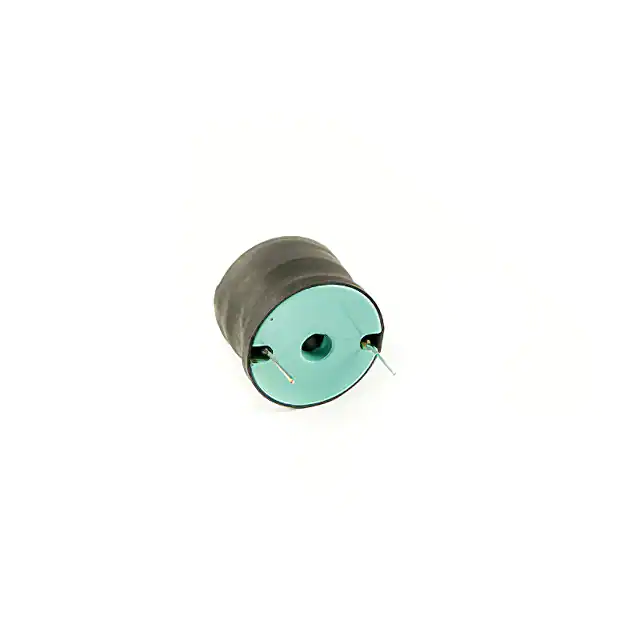

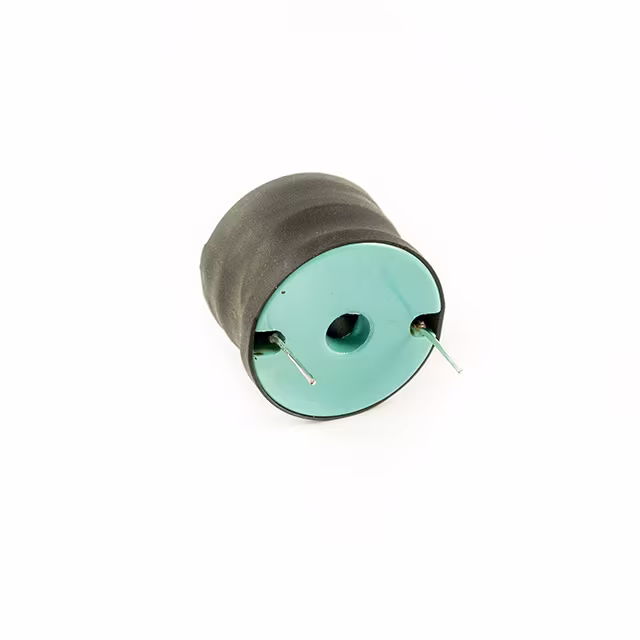

RDC30-270K-RC 27UH RADIAL DRUM CORE INDUCTOR Allied Components International	2,350	7.25	RFQ	Datasheet	Radial, Vertical Cylinder	Bulk	RDC30	Active	Drum Core, Wirewound	-	27 µH	±10%	13.5 A	23A	Unshielded	12mOhm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Through Hole	Radial Lead

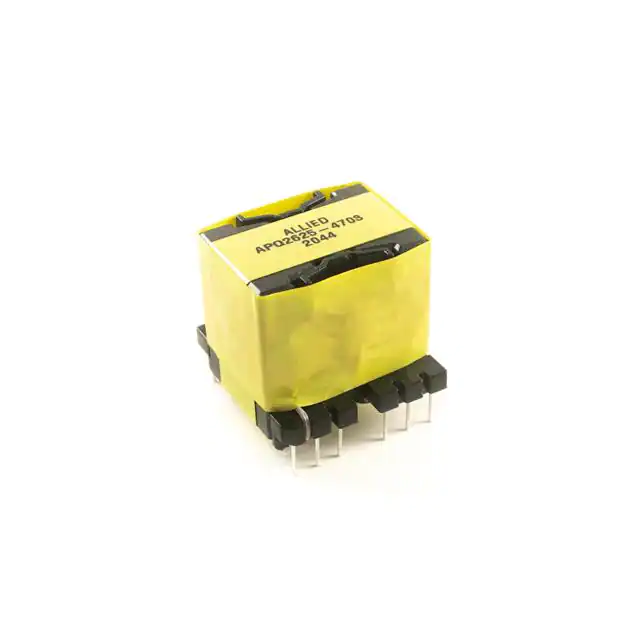

APQ2625-4703 160UH, PQ2625 LC Resonant Induct Allied Components International	2,325	7.25	RFQ	Datasheet	Radial, Vertical 12 Leads	Box	-	Active	-	-	160 µH	±10%	7 A	-	Unshielded	75mOhm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Through Hole	Radial

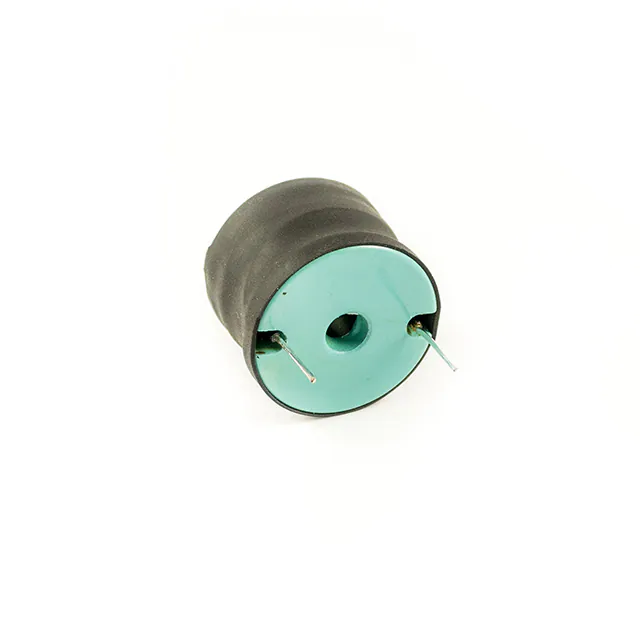

RDC30-8R2K-RC 8.2UH RADIAL DRUM CORE INDUCTOR Allied Components International	3,504	7.25	RFQ	Datasheet	Radial, Vertical Cylinder	Bulk	RDC30	Active	Drum Core, Wirewound	-	8.2 µH	±10%	21 A	42A	Unshielded	4mOhm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Through Hole	Radial Lead

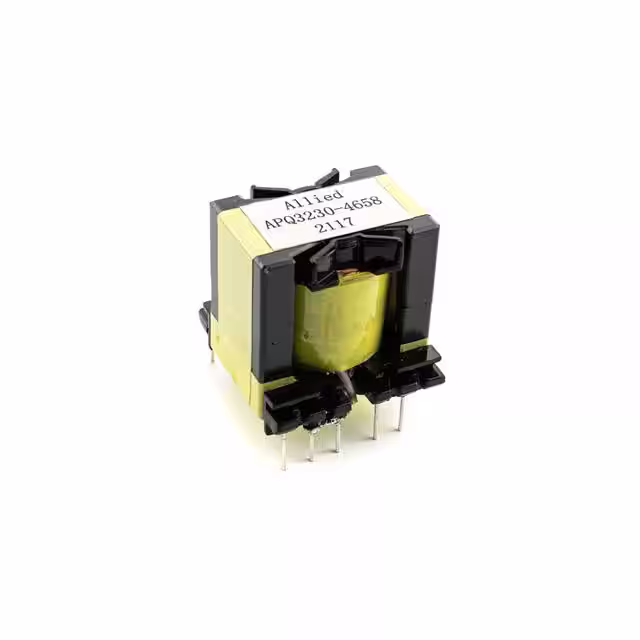

APQ3230-4658 100uh 15% @ 0A, 75uh @ 7.5Arms Allied Components International	3,636	7.25	RFQ	Datasheet	Radial, Vertical 12 Leads	Box	-	Active	-	-	90 µH	±12%	7.5 A	-	Unshielded	50mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Through Hole	Radial

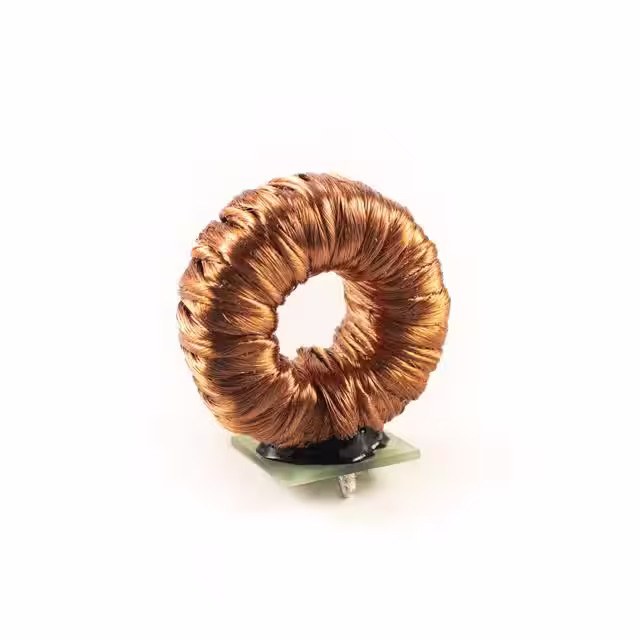

VTCB4728-101-6A 100UH @ 6.5A VERT. MNT. TOROID Allied Components International	2,056	7.50	RFQ	Datasheet	Radial, Vertical (Open)	Box	-	Active	Toroidal	-	107 µH	±15%	6.5 A	-	Unshielded	22mOhm Max	-	-	-	-20°C ~ 125°C	10 kHz	-	Through Hole	Radial, Vertical (Open)
RDC30-331K-RC 330UH 10% Radial Drum Core Allied Components International	2,946	7.55	RFQ	Datasheet	Radial, Vertical Cylinder	Box	RDC30	Active	Drum Core, Wirewound	-	330 µH	±10%	4.5 A	7.1A	Unshielded	122mOhm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Through Hole	Radial
