| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDC30-181K-RC180uH +/-10% Radial Drum Core |
3,836 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 180 µH | ±10% | 5.5 A | 9.7A | Unshielded | 72mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-222K-RC2200uH +/-10% Radial Drum Core |
2,838 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 2.2 µH | ±10% | 1.3 A | 2.5A | Unshielded | 1.02Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-122K-RC1200uH +/-10% Radial Drum Core |
2,683 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 1.2 µH | ±10% | 2 A | 3.7A | Unshielded | 462mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-390K-RC39uH +/-10% Radial Drum Core |
2,902 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 39 µH | ±10% | 11.4 A | 19.1A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-3R3K-RC3.3uH +/-10% Radial Drum Core |
2,461 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 3.3 µH | ±10% | 21 A | 74A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-271K-RC270uH +/-10% Radial Drum Core |
3,600 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 270 µH | ±10% | 4.5 A | 7.9A | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-332K-RC3300uH +/-10% Radial Drum Core |
2,617 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 3.3 µH | ±10% | 1.3 A | 2A | Unshielded | 1.27Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-472K-RC4700uH +/-10% Radial Drum Core |
2,283 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 4.7 µH | ±10% | 1 A | 1.7A | Unshielded | 1.86Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-272K-RC2700uH +/-10% Radial Drum Core |
3,564 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 2.7 µH | ±10% | 1.3 A | 2.3A | Unshielded | 1.14Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-502K-RC5000uH +/-10% Radial Drum Core |
2,974 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 5 mH | ±10% | - | - | Unshielded | - | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-680K-RC68uH +/-10% Radial Drum Core |
2,175 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 68 µH | ±10% | 9 A | 15.6A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-4R7M-RC4.7uH +/-10% Radial Drum Core |
3,953 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 4.7 µH | ±20% | 21 A | 54A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-821K-RC820uH +/-10% Radial Drum Core |
3,240 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 820 µH | ±10% | 2.8 A | 4.5A | Unshielded | 288mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-8R2M-RC8.2uH +/-20% Radial Drum Core |
2,343 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 8.2 µH | ±20% | 21 A | 42A | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
RDC30-330K-RC33uH +/-10% Radial Drum Core |
3,994 | 7.55 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Box | RDC30 | Active | Drum Core | - | 33 µH | ±10% | 13.5 A | 20A | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|

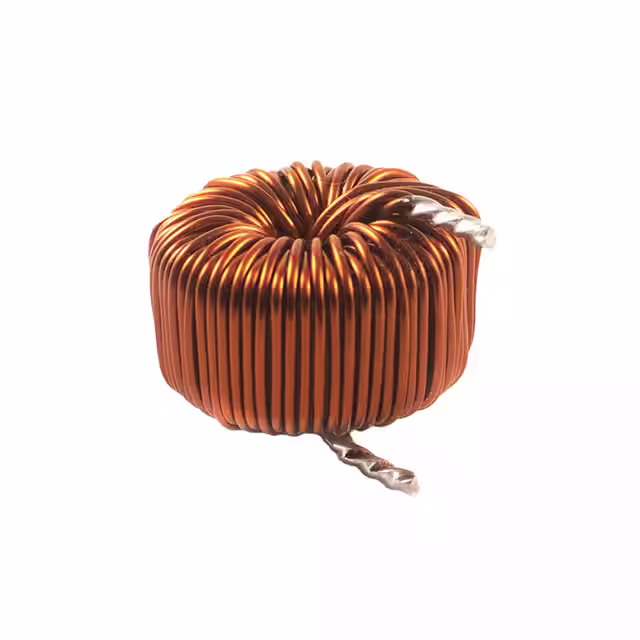

VTC3221-500-20A50uH @ 20A Vert. Mount Toroid |
3,385 | 7.75 |
RFQ |
Datasheet |
Vertical, No Base, 2 PC Pin | Tape & Reel (TR) | VTC3221-500-20A | Active | Toroidal | - | 58.75 µH | ±12% | 20 A | - | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin |
|
FWTPQ2817H-150K15UH 10% Flat Wire SMD Pwr Ind |
3,751 | 7.98 |
RFQ |
Nonstandard | Tray | - | Active | Wirewound | - | 15 µH | ±10% | 28 A | 21.9A | Shielded | 2.82mOhm | - | 16MHz | - | -40°C ~ 85°C | 500 kHz | - | Through Hole | - | |
|

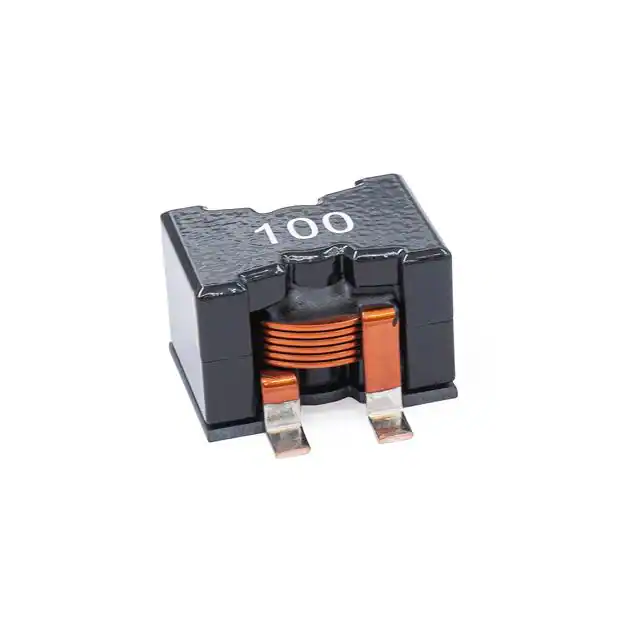

FWPQ2918BS-330M-RC33UH 20% Flat Wire SMD Pwr Ind |
3,758 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 33 µH | ±20% | 28 A | 8.7A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|

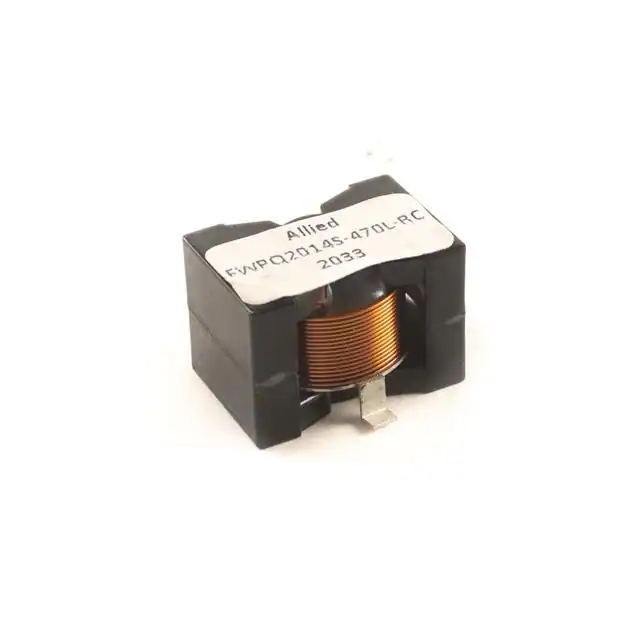

FWPQ2014S-470L-RC47UH 15% Flat Wire SMD Pwr Ind |
3,650 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 47 µH | ±15% | 12 A | 8.5A | Unshielded | 13.2Ohm | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|

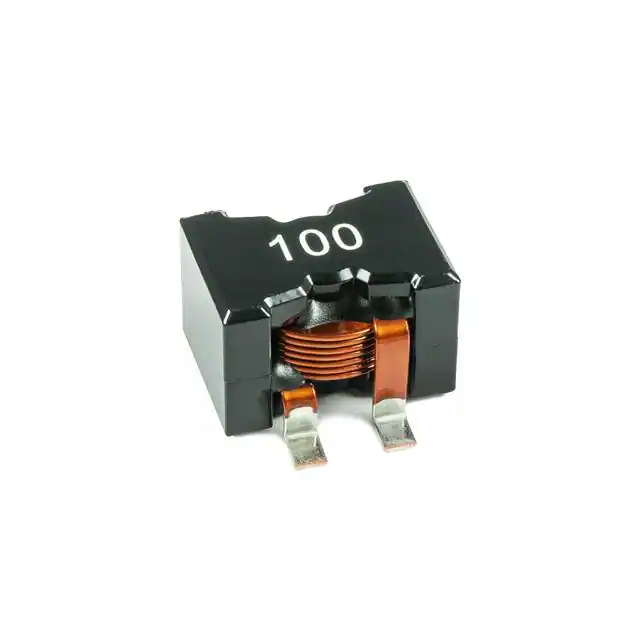

FWPQ2918S-4R7M-RC4.7UH 20% Flat Wire SMD Pwr Ind |
2,977 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 4.7 µH | ±20% | 28 A | 61.2A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD |
