| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

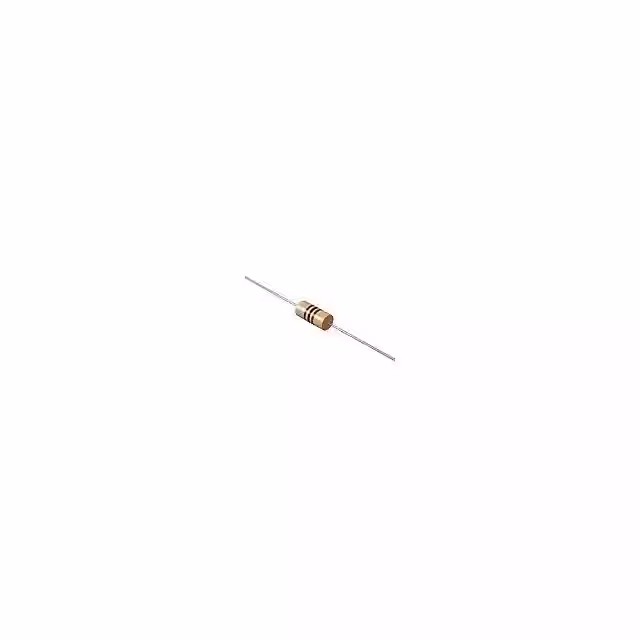

CTS2F-471J470UH AXL MOLDED SHLD INDUCTOR |
100 | 2.02 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS2F | Active | Molded | - | 470 µH | ±5% | 100 mA | - | Shielded | 32.2Ohm Max | 50 @ 790kHz | 6.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial |
|

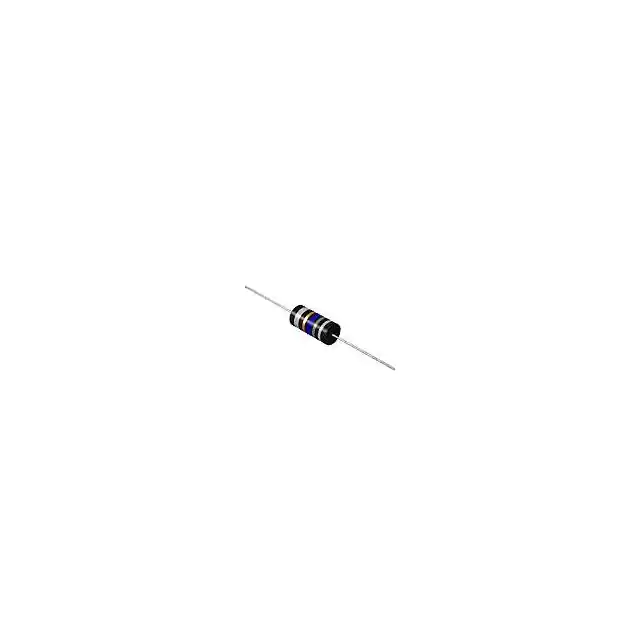

CTS3F-471K470UH AXL MOLDED SHLD INDUCTOR |
100 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 470 µH | ±10% | 92 mA | - | Shielded | 9.5Ohm Max | 60 @ 790kHz | 5.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial |
|
|
CTS3F-5R6J5.6UH AXL MOLDED SHLD INDUCTOR |
100 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 5.6 µH | ±5% | 335 mA | - | Shielded | 720mOhm Max | 47 @ 7.9MHz | 65MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial |
|
|
CTS3F-4R7J4.7UH AXL MOLDED SHLD INDUCTOR |
2,985 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 4.7 µH | ±5% | 380 mA | - | Shielded | 550mOhm Max | 44 @ 7.9MHz | 70MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial |
|
|
CTS3F-102K1000UH AXIAL SHIELDD INDUCTOR |
3,417 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 1 mH | ±10% | 70 mA | - | Shielded | 17Ohm Max | 65 @ 790kHz | 3.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial |
|
|
CTS3F-153K15000UH AXIAL SHIELDD INDUCTOR |
3,587 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 15 mH | ±10% | 22 mA | - | Shielded | 157Ohm Max | 30 @ 79kHz | 290kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | Axial |
|

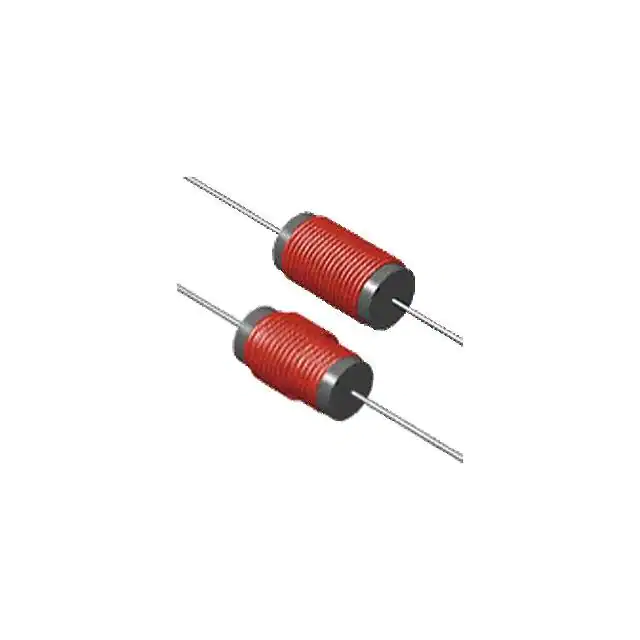

CTH9F-251M250UH AXIAL PWR LINE INDUCTOR |
100 | 2.19 |
RFQ |
Datasheet |
Axial | Bulk | CTH9F | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±20% | - | 2.5A | Unshielded | 170mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH9F-102M1000UH AXIAL PWR LINE INDUCTOR |
3,647 | 2.19 |
RFQ |
Datasheet |
Axial | Bulk | CTH9F | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | - | 1A | Unshielded | 550mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
CTH8F-393K39000UH AXIAL PWR LINE INDUCTOR |
2,560 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 39 mH | ±10% | 100 mA | 143mA | Unshielded | 29Ohm Max | - | 150kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH8F-221K220UH AXIAL PWR LINE INDUCTOR |
2,919 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 220 µH | ±10% | 1.6 A | 1.89A | Unshielded | 162mOhm Max | - | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH8F-152K1500UH AXIAL PWR LINE INDUCTOR |
2,912 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 1.5 mH | ±10% | 600 mA | 700mA | Unshielded | 1.18Ohm Max | - | 750kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH8F-182K1800UH AXIAL PWR LINE INDUCTOR |
3,803 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 1.8 mH | ±10% | 600 mA | 640mA | Unshielded | 1.56Ohm Max | - | 720kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH8F-822K8200UH AXIAL PWR LINE INDUCTOR |
2,281 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 8.2 mH | ±10% | 250 mA | 293mA | Unshielded | 6.32Ohm Max | - | 300kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH8F-330K33UH AXIAL PWR LINE INDUCTOR |
3,615 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 33 µH | ±10% | 4 A | 4.82A | Unshielded | 32mOhm Max | - | 9MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH8F-3R9K3.9UH AXIAL PWR LINE INDUCTOR |
3,028 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 3.9 µH | ±10% | 4 A | 15.5A | Unshielded | 7mOhm Max | - | 34MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
CTSD14F-221MSMD SHLDED POWER INDUCTOR |
100 | 2.44 |
RFQ |
Nonstandard | Bulk | CTSD14F | Obsolete | - | - | 220 µH | ±20% | - | 249mA | Shielded | 4.713Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | |
|
CTC2F-R39KAXL LEADED CONF COATED INDUCTOR |
100 | 3.34 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | ctc2f | Active | - | - | 390 nH | ±10% | - | - | - | 170mOhm | - | 220MHz | - | -55°C ~ 125°C | - | - | Through Hole | - |
|
|
CTC2F-R56JAXL LEADED CONF COATED INDUCTOR |
2,824 | 3.34 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | ctc2f | Active | - | - | 560 nH | ±5% | - | - | - | 170mOhm | - | 180MHz | - | -55°C ~ 125°C | - | - | Through Hole | - |
|
|
CTC2F-102JAXL LEADED CONF COATED INDUCTOR |
2,072 | 3.34 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | ctc2f | Active | - | - | 1 mH | ±5% | - | - | - | 30Ohm | - | 1.2MHz | - | -55°C ~ 125°C | - | - | Through Hole | - |
|
|
CTC2F-3R3JAXL LEADED CONF COATED INDUCTOR |
3,945 | 3.34 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | ctc2f | Active | - | - | 3.3 µH | ±5% | - | - | - | 300mOhm | - | 70MHz | - | -55°C ~ 125°C | - | - | Through Hole | - |
