| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTH7F-820K82UH AXIAL PWR LINE INDUCTOR |
100 | 3.55 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTH7F | Active | - | - | 82 µH | ±10% | 800 mA | 1.4A | Unshielded | 150mOhm Max | - | 4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH7F-103K10000UH AXIAL PWR LINE INDUCTOR |
100 | 3.55 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTH7F | Active | - | - | 10 mH | ±10% | 50 mA | 120mA | Unshielded | 26Ohm Max | - | 300kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH7F-100K10UH AXIAL PWR LINE INDUCTOR |
100 | 3.55 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTH7F | Active | - | - | 10 µH | ±10% | 1.3 A | 4.1A | Unshielded | 30mOhm Max | - | 17MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH7F-561K560UH AXIAL PWR LINE INDUCTOR |
100 | 3.55 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTH7F | Active | - | - | 560 µH | ±10% | 320 mA | 540mA | Unshielded | 1.3Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH7F-331K330UH AXIAL PWR LINE INDUCTOR |
3,363 | 3.55 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTH7F | Active | - | - | 330 µH | ±10% | 400 mA | 700mA | Unshielded | 670mOhm Max | - | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH7F-102K1000UH AXIAL PWR LINE INDUCTOR |
2,146 | 3.55 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTH7F | Active | - | - | 1 mH | ±10% | 200 mA | 400mA | Unshielded | 2.3Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH7F-122K1200UH AXIAL PWR LINE INDUCTOR |
3,734 | 3.55 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTH7F | Active | - | - | 1.2 mH | ±10% | 200 mA | 350mA | Unshielded | 2.7Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
CT106F-101K-VHIGH CURRENT POWER TOROID |
100 | 3.84 |
RFQ |
Datasheet |
- | Bulk | ct106f | Active | Toroidal | - | 100 µH | - | - | - | - | - | - | - | - | -20°C ~ 80°C | - | - | - | - |
|
CTDR1F-6R8M6.8UH RADIAL DRUM CORE INDUCTOR |
2,129 | 4.56 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR1F | Active | Drum Core, Wirewound | - | 6.8 µH | ±20% | - | 9A | Unshielded | 8mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder |
|
|
CTDR1F-331K330UH RADIAL DRUM CORE INDUCTOR |
3,809 | 4.56 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR1F | Active | Drum Core, Wirewound | - | 330 µH | ±10% | - | 1.3A | Unshielded | 336mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder |
|
CTS4F-121K120UH XIALSHIELDED INDUCTOR |
100 | 4.90 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS4F | Active | Molded | - | 120 µH | ±10% | 311 mA | 95mA | Shielded | 2.4Ohm Max | 65 @ 790kHz | 11MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTS4F-2R2K2.2UH XIALSHIELDED INDUCTOR |
2,934 | 4.90 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS4F | Active | Molded | - | 2.2 µH | ±10% | 1.29 A | 1.29A | Shielded | 140mOhm Max | 42 @ 7.9MHz | 108MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial |
|
|
CTS4F-221K220UH XIALSHIELDED INDUCTOR |
2,395 | 4.90 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS4F | Active | Molded | - | 220 µH | ±10% | 251 mA | 80mA | Shielded | 3.5Ohm Max | 65 @ 790kHz | 9.4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTS4F-1R0K1UH XIALSHIELDED INDUCTOR |
3,540 | 4.90 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS4F | Active | Molded | - | 1 µH | ±10% | 2.08 A | 2.08A | Shielded | 50mOhm Max | 42 @ 25MHz | 156MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial |
|

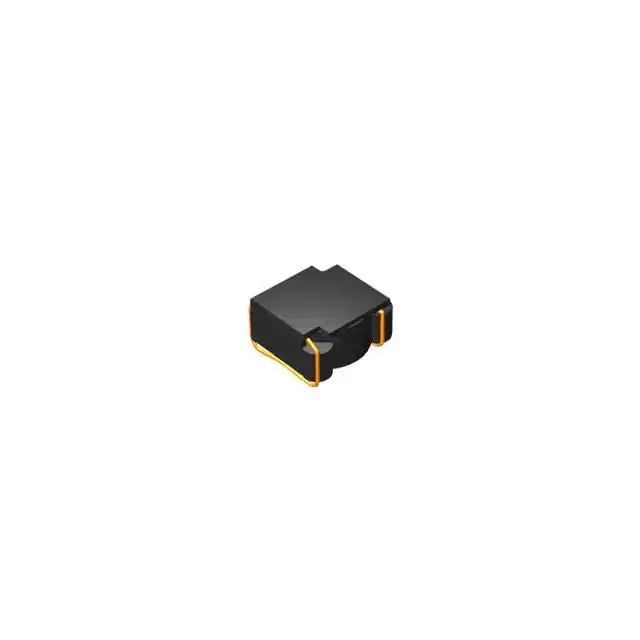

CTSPT30LF-522M5.2UH SMT STD TOROIDAL INDUCTOR |
2,275 | 4.90 |
RFQ |
Nonstandard | Bulk | CTSPT-L | Active | Toroidal | - | 5.2 µH | ±20% | 4.8 A | - | Unshielded | 17mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | |
|
CTDR2F-681K680UH RADIAL DRUM CORE INDUCTOR |
3,209 | 7.20 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR2F | Active | Drum Core, Wirewound | - | 680 µH | ±10% | 1.6 A | - | Unshielded | 430mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR2F-221K220UH RADIAL DRUM CORE INDUCTOR |
3,405 | 7.20 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR2F | Active | Drum Core, Wirewound | - | 220 µH | ±10% | 2.8 A | - | Unshielded | 150mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|

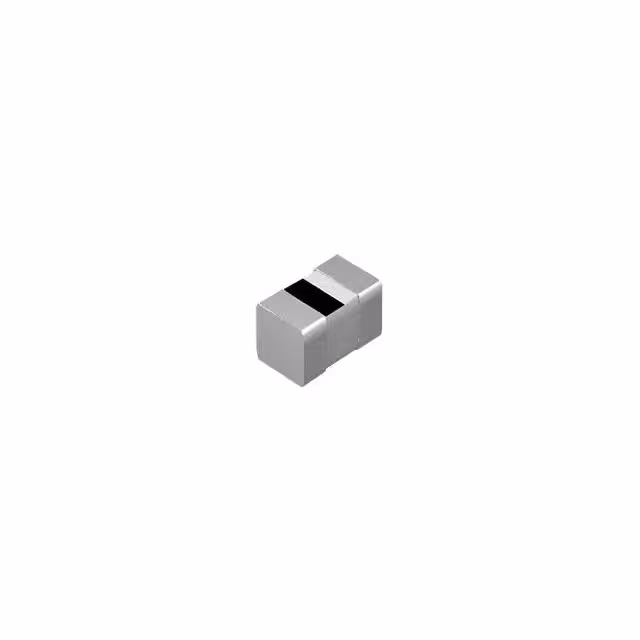

CT0201HQF-2N4BSMD CER CORE MULTI-LAYR INDUCTOR |
3,515 | 0.02 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | ct0201hqf | Active | Multilayer | - | 2.4 nH | ±0.1nH | - | - | - | 260mOhm | - | 10GHz | - | -55°C ~ 125°C | - | - | Surface Mount | - |
|
|
CT0201HQF-2N4CSMD CER CORE MULTI-LAYR INDUCTOR |
2,664 | 0.02 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | ct0201hqf | Active | Multilayer | - | 2.4 nH | ±0.2nH | - | - | - | 260mOhm | - | 10GHz | - | -55°C ~ 125°C | - | - | Surface Mount | - |
|
|
CT0201HQF-2N3CSMD CER CORE MULTI-LAYR INDUCTOR |
2,777 | 0.02 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | ct0201hqf | Active | Multilayer | - | 2.3 nH | ±0.2nH | - | - | - | 240mOhm | - | 10GHz | - | -55°C ~ 125°C | - | - | Surface Mount | - |
