Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	SwitchCircuit	Multiplexer/DemultiplexerCircuit	NumberofCircuits	On-StateResistance(Max)	Channel-to-ChannelMatching(ΔRon)	Voltage-SupplySingle(V+)	Voltage-SupplyDual(V±)	SwitchTime(TonToff)(Max)	-3dbBandwidth	ChargeInjection	ChannelCapacitance(CS(off)CD(off))	Current-Leakage(IS(off))(Max)	Crosstalk	OperatingTemperature	MountingType
ADG658YRUZ-REEL7 IC MULTIPLEXER 8X1 16TSSOP Analog Devices Inc.	3,295	6.26	RFQ		16-TSSOP (0.173, 4.40mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	8:1	1	75Ohm	1.3Ohm	2V ~ 12V	±2V ~ 6V	115ns, 45ns	210MHz	2pC	4pF, 23pF	200pA	-	-40°C ~ 125°C (TA)	Surface Mount
ADG794BRQZ IC MUX/DEMUX QUAD 2X1 16QSOP Analog Devices Inc.	2,418	2.94	RFQ	Datasheet	16-SSOP (0.154, 3.90mm Width)	Tube	-	Active	SPDT	2:1	4	7Ohm	400mOhm	3.3V, 5V	-	7ns, 5ns (Typ)	300MHz	7.5pC	8pF, 14pF	1pA (Typ)	-70dB @ 10MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG658YRQZ IC MULTIPLEXER 8X1 16QSOP Analog Devices Inc.	3,108	6.26	RFQ		16-SSOP (0.154, 3.90mm Width)	Tube	-	Active	-	8:1	1	75Ohm	1.3Ohm	2V ~ 12V	±2V ~ 6V	115ns, 45ns	210MHz	2pC	4pF, 23pF	200pA	-	-40°C ~ 125°C (TA)	Surface Mount
ADG411BNZ IC SWITCH QUAD SPST 16DIP Analog Devices Inc.	3,610	6.91	RFQ	Datasheet	16-DIP (0.300, 7.62mm)	Tube	-	Active	SPST - NC	1:1	4	35Ohm	-	12V	±15V	175ns, 145ns	-	5pC	9pF, 9pF	250pA	-85dB @ 1MHz	-40°C ~ 85°C (TA)	Through Hole
ADG452BNZ IC SWITCH QUAD SPST 16DIP Analog Devices Inc.	3,230	8.17	RFQ	Datasheet	16-DIP (0.300, 7.62mm)	Tube	-	Active	SPST - NO	1:1	4	5Ohm	100mOhm	12V	±4.5V ~ 20V	180ns, 140ns	-	20pC	37pF, 37pF	500pA	-90dB @ 1MHz	-40°C ~ 85°C (TA)	Through Hole
LTC1391IGN#PBF IC MULTIPLEXER 8X1 16SSOP Analog Devices Inc.	3,644	9.23	RFQ	Datasheet	16-SSOP (0.154, 3.90mm Width)	Tube	-	Active	-	8:1	1	75Ohm	-	2.7V	±5V	400ns, 200ns	-	2pC	5pF, 10pF	5nA	-	-40°C ~ 85°C (TA)	Surface Mount
ADG436BNZ IC SWITCH DUAL SPDT 16DIP Analog Devices Inc.	3,630	10.27	RFQ	Datasheet	16-DIP (0.300, 7.62mm)	Tube	-	Active	SPDT	2:1	2	12Ohm (Typ)	1Ohm	3V ~ 30V	±3V ~ 20V	70ns, 60ns (Typ)	-	10pC	13pF	250pA	-90dB @ 1MHz	-40°C ~ 85°C (TA)	Through Hole
ADG508FBRWZ IC MULTIPLEXER 8X1 16SOIC Analog Devices Inc.	2,539	12.21	RFQ	Datasheet	16-SOIC (0.295, 7.50mm Width)	Tube	-	Active	-	8:1	1	270Ohm (Typ)	8.1Ohm	15V	±15V	230ns, 130ns	-	15pC	3pF, 22pF	1nA	-	-40°C ~ 85°C (TA)	Surface Mount
MUX08FSZ IC MULTIPLEXER 8X1 16SOIC Analog Devices Inc.	3,102	21.12	RFQ	Datasheet	16-SOIC (0.154, 3.90mm Width)	Tube	-	Active	-	8:1	1	300Ohm	21Ohm	-	-	2µs, 400ns	-	-	2.5pF, 7pF	1nA	-70dB @ 500kHz	-40°C ~ 85°C (TA)	Surface Mount
ADG526AKNZ IC MULTIPLEXER 16X1 28DIP Analog Devices Inc.	2,228	26.47	RFQ	Datasheet	28-DIP (0.600, 15.24mm)	Tube	-	Active	-	16:1	1	450Ohm	22.5Ohm	10.8V ~ 16.5V	±10.8V ~ 16.5V	300ns, 300ns	-	4pC	5pF, 44pF	1nA	-	-40°C ~ 85°C (TA)	Through Hole
ADG701LBRMZ IC SWITCH SPST 8MSOP Analog Devices Inc.	2,463	2.47	RFQ	Datasheet	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)	Tube	-	Active	SPST - NO	1:1	1	3Ohm	-	1.8V ~ 5V	-	12ns, 8ns (Typ)	200MHz	5pC	17pF, 17pF	250pA	-	-40°C ~ 85°C (TA)	Surface Mount
ADG701BRMZ IC SWITCH SPST 8MSOP Analog Devices Inc.	2,595	2.91	RFQ		8-TSSOP, 8-MSOP (0.118, 3.00mm Width)	Bulk,Tube	-	Active	SPST - NO	1:1	1	3Ohm	-	1.8V ~ 5V	-	12ns, 8ns (Typ)	200MHz	5pC	17pF, 17pF	10pA (Typ)	-	-40°C ~ 85°C (TA)	Surface Mount
LTC203CN#PBF IC SWITCH QUAD SPST 16DIP Analog Devices Inc.	2,497	8.10	RFQ	Datasheet	16-DIP (0.300, 7.62mm)	Tube	-	Active	SPST - NO/NC	1:1	4	125Ohm	6.25Ohm	5V	±15V	400ns, 300ns	-	8pC	5pF, 12pF	5nA	-90dB @ 100kHz	0°C ~ 70°C (TA)	Through Hole
ADG513BRZ IC SWITCH QUAD SPST 16SOIC Analog Devices Inc.	3,040	11.13	RFQ	Datasheet	16-SOIC (0.154, 3.90mm Width)	Tube	-	Active	SPST - NO/NC	1:1	4	30Ohm (Typ)	-	3V ~ 5.5V	±4.5V ~ 5.5V	200ns, 120ns (Typ)	-	11pC	9pF, 9pF	100pA	-85dB @ 1MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG528FBPZ IC MULTIPLEXER 8X1 20PLCC Analog Devices Inc.	3,856	16.09	RFQ	Datasheet	20-LCC (J-Lead)	Tube	-	Active	-	8:1	1	300Ohm (Typ)	15Ohm	15V	±15V	250ns, 250ns	-	4pC	5pF, 50pF	1nA	-	-40°C ~ 85°C (TA)	Surface Mount
ADG527AKPZ IC MUX ANLG DUAL 8CH 28-PLCC Analog Devices Inc.	3,924	27.52	RFQ	Datasheet	28-LCC (J-Lead)	Tube	-	Active	-	8:1	2	450Ohm	22.5Ohm	10.8V ~ 16.5V	±10.8V ~ 16.5V	300ns, 300ns	-	4pC	5pF, 44pF	1nA	-	-40°C ~ 85°C (TA)	Surface Mount

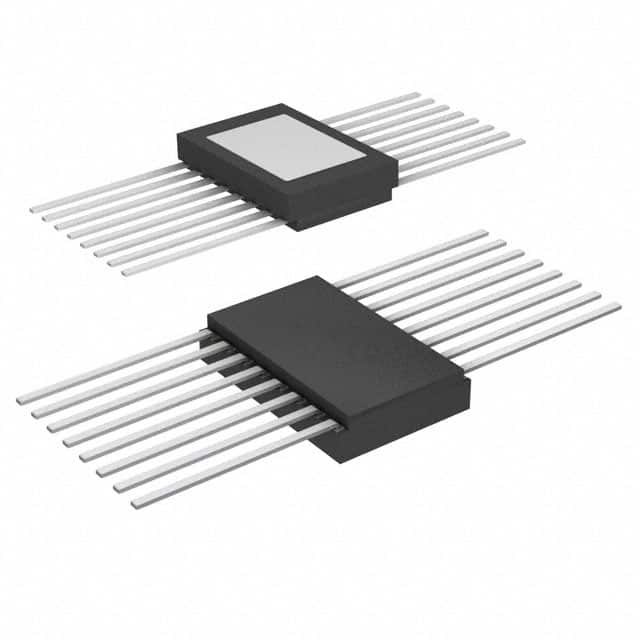

ADG798HFRZ IC MUX/DEMUX 8:1 16FLATPACK Analog Devices Inc.	3,240	177.16	RFQ	Datasheet	16-CFlatPack	Tray	-	Active	-	8:1	1	10Ohm	1.25Ohm	3V ~ 5.5V	±2.5V	30ns, 20ns	55MHz	3pC	13pF, 85pF	180nA	-60dB @ 10MHz	-55°C ~ 210°C (TA)	Surface Mount
ADG429TQ DIFFERENTIAL MUX,4 CHANNEL Analog Devices Inc.	325	8.12	RFQ	Datasheet	18-CDIP (0.300, 7.62mm)	Bulk	-	Active	SP4T	4:1	2	100Ohm	10Ohm	12V, ±15V	12V, ±15V	150ns, 150ns	-	4pC	11pF, 20pF	500pA	-85dB @ 100kHz	-55°C ~ 125°C (TA)	Through Hole
ADG5243FBRUZ IC MULTIPLEXER 2:1 20TSSOP Analog Devices Inc.	2,175	11.46	RFQ	Datasheet	20-TSSOP (0.173, 4.40mm Width)	Tube	-	Active	SPDT	2:1	3	335Ohm	3Ohm	8V ~ 44V	±5V ~ 22V	215ns, 85ns	350MHz	-1.4pC	-	1nA	-85dB @ 1MHz	-40°C ~ 125°C (TA)	Surface Mount
ADG212AKP-REEL QUAD SPST SWITCH Analog Devices Inc.	1,000	1.28	RFQ	Datasheet	20-LCC (J-Lead)	Bulk	-	Active	SPST - NC	1:1	4	115Ohm	5.75Ohm	15V, ±15V	15V, ±15V	600ns, 450ns	-	20pC	5pF, 5pF	5nA	-80dB @ 100kHz	-40°C ~ 85°C	Surface Mount
