Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	SwitchCircuit	Multiplexer/DemultiplexerCircuit	NumberofCircuits	On-StateResistance(Max)	Channel-to-ChannelMatching(ΔRon)	Voltage-SupplySingle(V+)	Voltage-SupplyDual(V±)	SwitchTime(TonToff)(Max)	-3dbBandwidth	ChargeInjection	ChannelCapacitance(CS(off)CD(off))	Current-Leakage(IS(off))(Max)	Crosstalk	OperatingTemperature	MountingType
ADG839YKSZ-REEL7 IC SWITCH SPDT SC70-6 Analog Devices Inc.	981	2.84	RFQ	Datasheet	6-TSSOP, SC-88, SOT-363	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPDT	2:1	1	500mOhm	40mOhm	1.65V ~ 3.6V	-	16ns, 8.5ns	25MHz	70pC	74pF	200pA (Typ)	-57dB @ 100kHz	-40°C ~ 125°C (TA)	Surface Mount
ADG793ABCPZ-REEL IC MUX/DEMUX TRIPLE 3X1 24LFCSP Analog Devices Inc.	4,790	2.79	RFQ	Datasheet	24-VFQFN Exposed Pad, CSP	Cut Tape (CT)	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Surface Mount

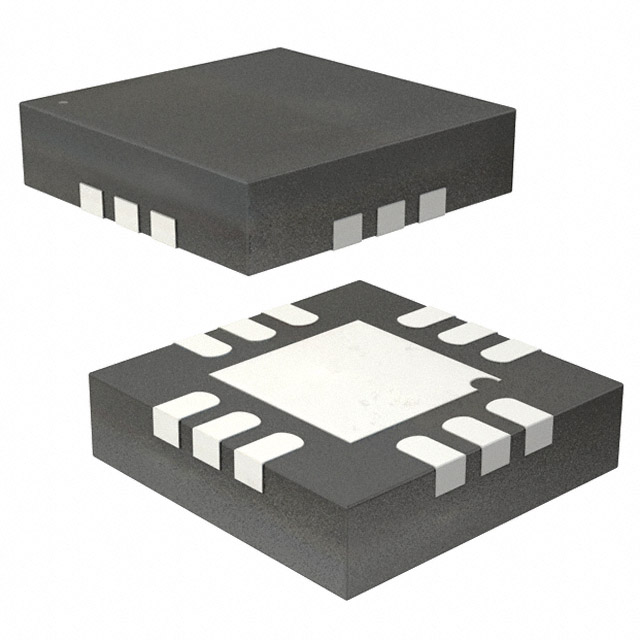

ADG772BCPZ-1REEL IC MUX/DEMUX DUAL SPDT 12LFCSP Analog Devices Inc.	1,669	2.89	RFQ	Datasheet	12-WFQFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPDT	2:1	2	6.7Ohm (Typ)	40mOhm	2.7V ~ 3.6V	-	12.5ns, 9.5ns	630MHz	0.5pC	2.4pF, 6.9pF	200pA	-90dB @ 1MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG854BCPZ-REEL7 IC SWITCH DUAL SPDT 10LFCSP Analog Devices Inc.	237	3.26	RFQ	Datasheet	10-UFQFN, CSP	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPDT	2:1	2	850mOhm	20mOhm	1.8V ~ 5.5V	-	23ns, 8.5ns	100MHz	30pC	19.5pF	10pA (Typ)	-85dB @ 100kHz	-40°C ~ 85°C (TA)	Surface Mount
ADG793GBCPZ-REEL IC MUX/DEMUX TRIPLE 3X1 24LFCSP Analog Devices Inc.	4,845	2.93	RFQ	Datasheet	24-VFQFN Exposed Pad, CSP	Cut Tape (CT)	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Surface Mount
ADG601BRMZ-REEL7 IC SWITCH SPST 8MSOP Analog Devices Inc.	630	3.34	RFQ		8-TSSOP, 8-MSOP (0.118, 3.00mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPST - NO	1:1	1	2.5Ohm	-	2.7V ~ 5.5V	±2.7V ~ 5.5V	120ns, 75ns	180MHz	250pC	50pF, 50pF	250pA	-	-40°C ~ 85°C (TA)	Surface Mount
ADG722BRMZ-REEL7 IC SWITCH DUAL SPST 8MSOP Analog Devices Inc.	2,272	3.40	RFQ	Datasheet	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPST - NC	1:1	2	4Ohm	300mOhm	1.8V ~ 5.5V	-	14ns, 6ns (Typ)	200MHz	2pC	7pF, 7pF	250pA	-97dB @ 1MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG633YCPZ-REEL7 IC SWITCH TRIPLE SPDT 16LFCSP Analog Devices Inc.	1,391	3.12	RFQ	Datasheet	16-VQFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPDT	2:1	3	75Ohm	800mOhm	2V ~ 12V	±2V ~ 6V	95ns, 40ns	580MHz	2pC	4pF, 7pF	200pA	-90dB @ 1MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG712BRZ-REEL7 IC SWITCH QUAD SPST 16SOIC Analog Devices Inc.	3,214	4.10	RFQ	Datasheet	16-SOIC (0.154, 3.90mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPST - NO	1:1	4	4Ohm	-	1.8V ~ 5.5V	-	11ns, 6ns (Typ)	200MHz	3pC	10pF, 10pF	100pA	-90dB @ 10MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG781BCPZ-REEL7 IC SWITCH QUAD SPST 20LFCSP Analog Devices Inc.	968	4.13	RFQ	Datasheet	20-WFQFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPST - NC	1:1	4	4Ohm	-	1.8V ~ 5.5V	-	11ns, 6ns (Typ)	200MHz	3pC	10pF, 10pF	100pA	-90dB @ 10MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG792GBCPZ-REEL IC MUX/DEMUX TRIPLE 4X1 24LFCSP Analog Devices Inc.	3,700	3.66	RFQ	Datasheet	24-VFQFN Exposed Pad, CSP	Cut Tape (CT)	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Surface Mount
ADG823BRMZ-REEL7 IC SWITCH DUAL SPST 8MSOP Analog Devices Inc.	450	4.44	RFQ	Datasheet	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPST - NO/NC	1:1	2	600mOhm	160mOhm	1.8V ~ 5.5V	-	45ns, 16ns	24MHz	15pC	85pF, 98pF	250pA	-82dB @ 1MHz	-40°C ~ 125°C (TA)	Surface Mount
ADG1309BRZ-REEL7 IC MULTIPLEXER DUAL 4X1 16SOIC Analog Devices Inc.	9,678	4.00	RFQ	Datasheet	16-SOIC (0.154, 3.90mm Width)	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Active	SP4T	4:1	2	210Ohm	5Ohm	5V ~ 16.5V	±5V ~ 16.5V	100ns, 100ns	500MHz	2pC	10pF, 15pF	1nA	-80dB @ 1MHz	-40°C ~ 105°C (TA)	Surface Mount
ADG804YRMZ-REEL IC MULTIPLEXER 4X1 10MSOP Analog Devices Inc.	2,664	4.55	RFQ	Datasheet	10-TFSOP, 10-MSOP (0.118, 3.00mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	SP4T	4:1	1	650mOhm	40mOhm	1.65V ~ 3.6V	-	29ns, 6ns	33MHz	28pC	24pF, 105pF	2nA	-75dB @ 100kHz	-40°C ~ 125°C (TA)	Surface Mount
ADG5401BCPZ-RL7 IC SWITCH SPST 8LFCSP Analog Devices Inc.	17,620	5.56	RFQ	Datasheet	8-WFDFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPST - NO	1:1	1	7Ohm	-	9V ~ 40V	±9V ~ 22V	21ns, 23ns	170MHz	275pC	21pF, 23pF	500pA	-	-40°C ~ 125°C (TA)	Surface Mount
ADG784BCPZ-REEL7 IC MUX/DEMUX QUAD 2X1 20LFCSP Analog Devices Inc.	1,346	1.00	RFQ	Datasheet	20-WFQFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Active	SPDT	2:1	4	2.2Ohm (Typ)	150mOhm	3.3V, 5V	-	-	240MHz	10pC	10pF, 20pF	500pA	-75dB @ 10MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG774ABCPZ-REEL IC MUX/DEMUX QUAD 2X1 16LFCSP Analog Devices Inc.	1,328	6.01	RFQ	Datasheet	16-WFQFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPDT	2:1	4	3.5Ohm	150mOhm	3V ~ 5V	-	12ns, 6ns	400MHz	6pC	5pF, 7.5pF	100pA	-70dB @ 10MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG888YRUZ-REEL7 IC SWITCH DUAL DP4T 16TSSOP Analog Devices Inc.	353	6.15	RFQ	Datasheet	16-TSSOP (0.173, 4.40mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	DPDT	2:2	2	480mOhm	40mOhm	1.8V ~ 5.5V	-	30ns, 17ns	29MHz	70pC	58pF	200pA (Typ)	-99dB @ 100kHz	-40°C ~ 125°C (TA)	Surface Mount
ADG5421BCPZ-RL7 IC SWITCH SPST DUAL 10LFCSP Analog Devices Inc.	763	6.46	RFQ	Datasheet	10-VFDFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPST - NO	1:1	2	14Ohm	100mOhm	9V ~ 40V	±9V ~ 22V	199ns, 184ns	250MHz	120pC	11pF, 12pF	250pA	-85dB @ 1MHz	-40°C ~ 125°C (TA)	Surface Mount
ADG509AKPZ-REEL IC MULTIPLEXER DUAL 4X1 20PLCC Analog Devices Inc.	7,610	6.64	RFQ	Datasheet	20-LCC (J-Lead)	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Active	SP4T	4:1	2	450Ohm	22.5Ohm	10.8V ~ 16.5V	±10.8V ~ 16.5V	300ns, 300ns	-	4pC	5pF, 11pF	1nA	-	-40°C ~ 85°C (TA)	Surface Mount
