| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW7510BQQUAD SPST JFET SWITCH |
847 | 12.96 |
RFQ |
Datasheet |
16-CDIP | Bulk | - | Active | SPST - NO | 1:1 | 4 | 100Ohm | 15Ohm | 36V | 36V | 550ns, 450ns | - | - | 6.5pF, 6.5pF | 3nA | 60dB @ 100kHz | -55°C ~ 125°C | Through Hole |
|
MUX08BIEQ8-CH JFET ANALOG MULTIPLEXERS |
451 | 13.31 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Bulk | - | Active | - | 8:1 | 1 | 400Ohm | 80Ohm | - | - | 2µs, 400ns | - | - | 2.5pF, 7pF | 2nA | -70dB @ 500kHz | -55°C ~ 125°C | Through Hole |
|
SW01BIFQQUAD SPST BIFET SWITCH |
826 | 14.35 |
RFQ |
Datasheet |
- | Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SW7510AQ/883CQUAD SPST JFET SWITCH |
616 | 16.19 |
RFQ |
Datasheet |
16-CDIP | Bulk | - | Active | SPST - NO | 1:1 | 4 | 75Ohm | 11.25Ohm | 36V | 36V | 450ns, 300ns | - | - | 6.5pF, 6.5pF | 1nA | 60dB @ 100kHz | -55°C ~ 125°C | Through Hole |
|
|
MUX24BQDUAL 4-CH ANALOG MULTIPLEXER |
455 | 18.03 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Bulk | - | Active | SP4T | 4:1 | 2 | 400Ohm | 80Ohm | ±15V | ±15V | 2µs, 600ns | - | - | 2.5pF, 7pF | 2nA | -70dB @ 500kHz | -55°C ~ 125°C | Through Hole |
|
AD7507JNMULTIPLEXERS/SWITCHES,8 CHANNEL |
501 | 18.55 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Bulk | - | Active | SP4T | 4:1 | 2 | - | - | - | - | - | - | - | - | - | - | - | Through Hole |
|
MUX08EPZIC MULTIPLEXER 8X1 16DIP |
2,968 | 28.11 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | - | 8:1 | 1 | 300Ohm | 21Ohm | - | - | 2µs, 400ns | - | - | 2.5pF, 7pF | 1nA | -70dB @ 500kHz | 0°C ~ 70°C (TA) | Through Hole |
|
|
SW7510BQ/883CQUAD SPST JFET SWITCH |
3,054 | 29.15 |
RFQ |
Datasheet |
16-CDIP | Bulk | - | Active | SPST - NO | 1:1 | 4 | 100Ohm | 15Ohm | 36V | 36V | 550ns, 450ns | - | - | 6.5pF, 6.5pF | 3nA | 60dB @ 100kHz | -55°C ~ 125°C | Through Hole |
|
ADG509ATQIC MULTIPLEXER DUAL 4X1 16CDIP |
3,371 | 35.99 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Tube | - | Active | SP4T | 4:1 | 2 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 11pF | 1nA | - | -55°C ~ 125°C (TA) | Through Hole |
|
|
MUX08EQIC MULTIPLEXER 8X1 16CDIP |
3,138 | 38.91 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Tube | - | Active | - | 8:1 | 1 | 300Ohm | 21Ohm | - | - | 2µs, 400ns | - | - | 2.5pF, 7pF | 1nA | -70dB @ 500kHz | -25°C ~ 85°C (TA) | Through Hole |
|
AD7506JNZIC MULTIPLEXER 16X1 28DIP |
2,113 | 54.73 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Tube | - | Active | - | 16:1 | 1 | 450Ohm | 18Ohm | - | ±15V | 1.5µs, 1µs | - | - | 5pF, 40pF | - | - | 0°C ~ 70°C (TA) | Through Hole |
|

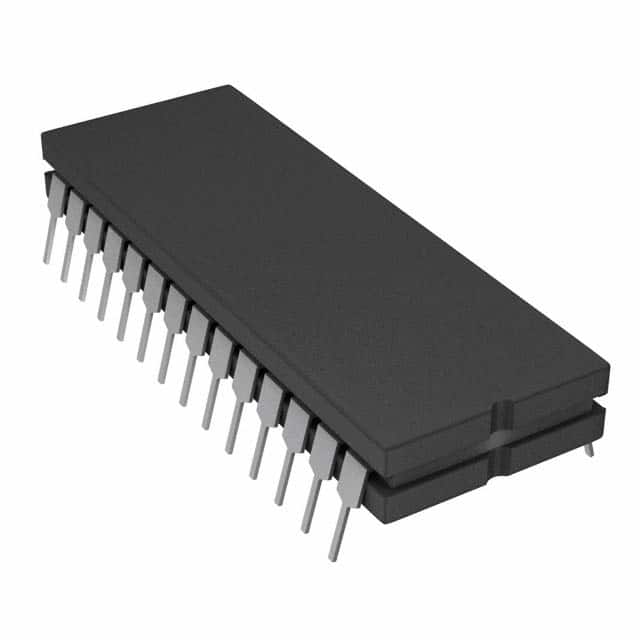

5962-8971001XXIC MULTIPLEXER 16X1 28CERDIP |
3,555 | 106.98 |
RFQ |
28-CDIP (0.600, 15.24mm) | Tube | - | Active | SPST | 16:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -55°C ~ 125°C | Through Hole | |
|
ADG701LBRMZ-REEL7IC SWITCH SPST 8MSOP |
34,608 | 2.06 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPST - NO | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 250pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG842YKSZ-500RL7IC SWITCH SPST SC70-6 |
423 | 2.75 |
RFQ |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NC | 1:1 | 1 | 370mOhm | - | 1.65V ~ 3.6V | - | 14ns, 7.8ns | 21MHz | 200pC | 160pF, 160pF | 200pA (Typ) | - | -40°C ~ 125°C (TA) | Surface Mount | |
|
ADG794BRQZ-REEL7IC MUX/DEMUX QUAD 2X1 16QSOP |
625 | 2.94 |
RFQ |
Datasheet |
16-SSOP (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 4 | 7Ohm | 400mOhm | 3.3V, 5V | - | 7ns, 5ns (Typ) | 300MHz | 7.5pC | 8pF, 14pF | 1pA (Typ) | -70dB @ 10MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG633YRUZ-REEL7IC SWITCH TRIPLE SPDT 16TSSOP |
570 | 3.12 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 3 | 75Ohm | 800mOhm | 2V ~ 12V | ±2V ~ 6V | 95ns, 40ns | 580MHz | 2pC | 4pF, 7pF | 200pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
ADG782BCPZ-REEL7IC SWITCH QUAD SPST 20LFCSP |
3,614 | 4.13 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG1221BRMZ-REEL7IC SWITCH DUAL SPST 10MSOP |
2,232 | 4.83 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 2 | 200Ohm | 2.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 130ns, 105ns | 960MHz | 0.1pC | 2.2pF, 2.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
ADG888YCPZ-REEL7IC SWITCH DUAL DP4T 16LFCSP |
2,412 | 5.84 |
RFQ |
Datasheet |
16-VQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | DPDT | 2:2 | 2 | 480mOhm | 40mOhm | 1.8V ~ 5.5V | - | 30ns, 17ns | 29MHz | 70pC | 58pF | 200pA (Typ) | -99dB @ 100kHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
ADW54010Z-0REELIC SWITCH DUAL SPDT 10MSOP |
2,645 | 6.10 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | Automotive | Active | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 12ns, 5ns (Typ) | 200MHz | - | 9pF | 10pA (Typ) | -82dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
