Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
PC-34-700 PWR XFMR LAMINATED 24VA TH Signal Transformer	2,686	18.14	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 17V, Series 34V	Parallel 1.4A, Series 700mA	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
DST-6-16 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,757	18.46	RFQ	Datasheet	Box	DST	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 2.5A, Series 1.25A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
241-6-10 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	3,727	18.65	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	10V	3A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-16 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2,999	18.65	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	16V	2A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
DP-241-6-16 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	3,605	20.68	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	16V	2A	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
DP-241-6-20 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	3,683	20.68	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	20V	1.5A	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
DP-241-6-28 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2,262	20.68	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	28V	1.1A	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
DP-241-6-36 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	3,903	20.68	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	36V	850mA	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-7-10 PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	2,517	21.67	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	10V	5A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect	93.70mm L x 49.20mm W	57.80mm	2500Vrms
241-7-36 PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	2,142	21.67	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	36V	1.5A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect	93.70mm L x 49.20mm W	57.80mm	2500Vrms
241-7-48 PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	2,287	21.67	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	48V	1.2A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect	93.70mm L x 49.20mm W	57.80mm	2500Vrms

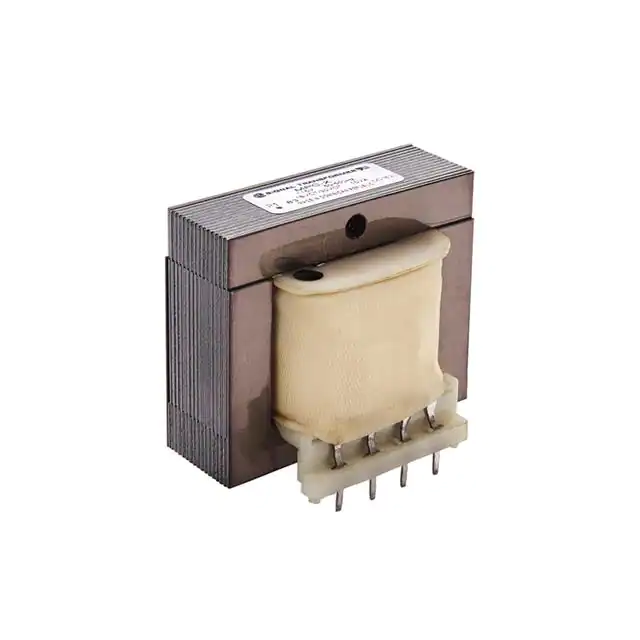

MPC-Y-12 PWR XFMR LAMINATED 24VA TH Signal Transformer	2,176	21.72	RFQ	Datasheet	Bulk	MPC	Active	Laminated Core	115V	Parallel 5V, Series 12V	Parallel 835mA, Series 150mA	Single	Dual	Yes	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.90mm	1500Vrms

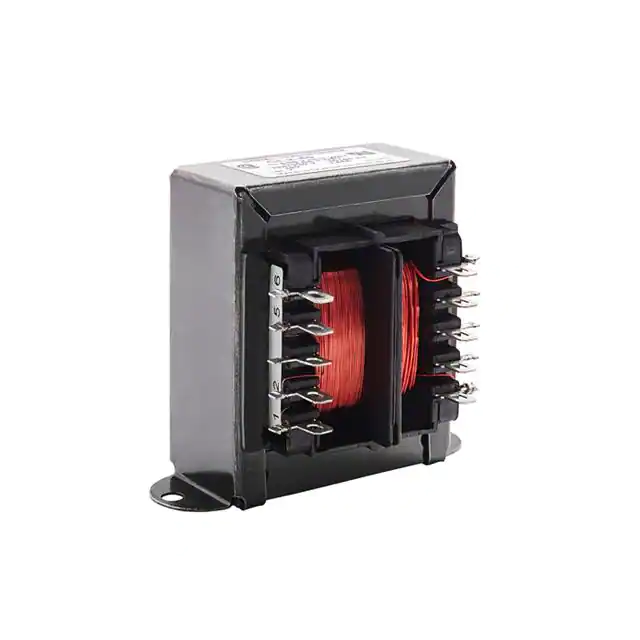

CL2-40-12 PWR XFMR LAMINATED 40VA CHAS MT Signal Transformer	3,857	21.76	RFQ	Datasheet	Bulk	CL2	Active	Laminated Core	115V, 230V	12V	3.33A	Dual	Single	No	40VA	Chassis Mount	Solder, Quick Connect	79.40mm L x 54.40mm W	68.20mm	4000Vrms
DP-241-7-10 PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	3,979	21.82	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	10V	5A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect	93.70mm L x 49.20mm W	57.80mm	2500Vrms
14A-56-515 PWR XFMR LAMINATED 56VA TH Signal Transformer	2,074	24.16	RFQ	Datasheet	Bulk	One-4-All™	Active	Laminated Core	115V, 230V	5V, ±15V	3A, 250mA	Dual	Dual	Yes	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.00mm	4000Vrms
IF-18-34 PWR XFMR SEMI-TORO 18VA TH Signal Transformer	191	27.92	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 17V, Series 34V	Parallel 1.06A, Series 530mA	Dual	Dual	No	18VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	27.60mm	4000Vrms
DP-241-8-10 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	163	29.44	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	10V	10A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms

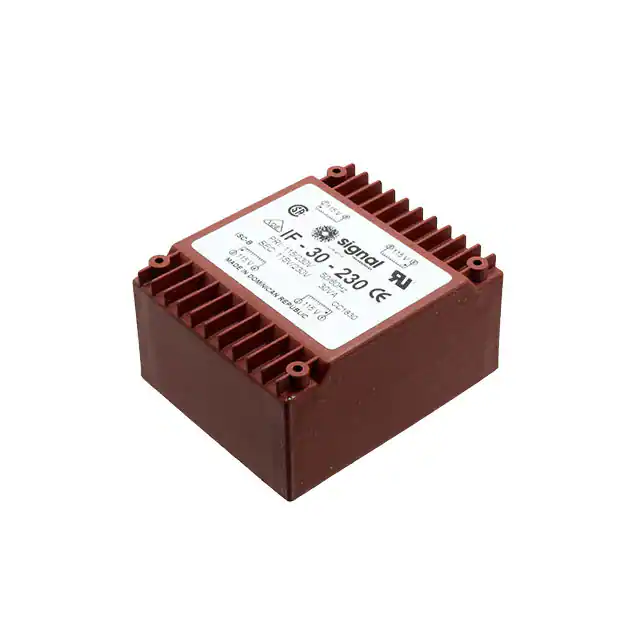

IF-30-230 PWR XFMR SEMI-TORO 30VA TH Signal Transformer	2,862	32.81	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 260mA, Series 130mA	Dual	Dual	No	30VA	Through Hole	PC Pin	68.00mm L x 57.50mm W	35.30mm	4000Vrms
IF-30-24 PWR XFMR SEMI-TORO 30VA TH Signal Transformer	3,610	32.81	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 2.5A, Series 1.25A	Dual	Dual	No	30VA	Through Hole	PC Pin	68.00mm L x 57.50mm W	35.30mm	4000Vrms
A41-130-36 PWR XFMR LAMINATED 130VA CHAS MT Signal Transformer	3,680	40.94	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 7.2A, Series 3.6A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 76.20mm W	85.70mm	4000Vrms
