Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

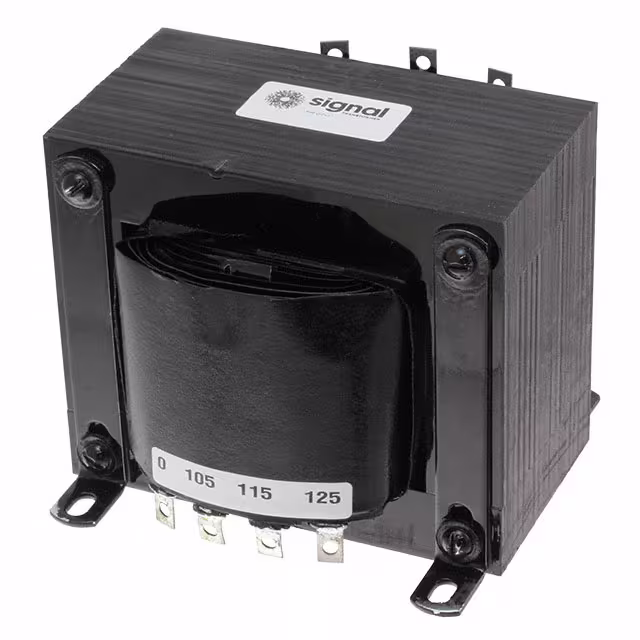

24-12 PWR XFMR LAMINATED 288VA CHAS MT Signal Transformer	2,668	101.55	RFQ	Datasheet	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 12V, Series 24V	Parallel 24A, Series 12A	Single, Multiple Taps	Dual	Yes	288VA	Chassis Mount	Solder, Quick Connect	114.30mm L x 114.30mm W	95.30mm	1500Vrms
12.8-12 PWR XFMR LAMINATED 153.6VA CHAS Signal Transformer	2,697	101.87	RFQ	Datasheet	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 6.4V, Series 12.8V	Parallel 24A, Series 12A	Single, Multiple Taps	Single, Multiple Taps	Yes	153.6VA	Chassis Mount	Solder, Quick Connect	104.80mm L x 82.60mm W	87.30mm	1500Vrms
56-4 PWR XFMR LAMINATED 224VA CHAS MT Signal Transformer	3,395	106.24	RFQ	Datasheet	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 28V, Series 56V	Parallel 8A, Series 4A	Single, Multiple Taps	Dual	Yes	224VA	Chassis Mount	Solder, Quick Connect	104.80mm L x 95.30mm W	87.30mm	1500Vrms
MPI-200-230 PWR XFMR LAMINATED 200VA CHAS MT Signal Transformer	2,247	137.30	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 115V, Series 230V	Parallel 1.7A, Series 870mA	Dual, Multiple Taps	Dual	No	200VA	Chassis Mount	Terminal Block	95.30mm L x 113.30mm W	93.10mm	4000Vrms
MPI-250-24 PWR XFMR LAMINATED 250VA CHAS MT Signal Transformer	2,574	148.42	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 12V, Series 24V	Parallel 20.8A, Series 10.4A	Dual, Multiple Taps	Dual	No	250VA	Chassis Mount	Terminal Block	104.80mm L x 104.90mm W	98.20mm	4000Vrms
MPI-400-48 PWR XFMR LAMINATED 400VA CHAS MT Signal Transformer	2,131	171.59	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 24V, Series 48V	Parallel 16.7A, Series 8.3A	Dual, Multiple Taps	Dual	No	400VA	Chassis Mount	Terminal Block	104.80mm L x 128.10mm W	98.20mm	4000Vrms
MPI-650-16 PWR XFMR LAMINATED 650VA CHAS MT Signal Transformer	2,268	234.64	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 8V, Series 16V	Parallel 81.2A, Series 40.6A	Dual, Multiple Taps	Dual	No	650VA	Chassis Mount	Terminal Block	133.30mm L x 119.40mm W	117.80mm	4000Vrms
MPI-650-36 PWR XFMR LAMINATED 650VA CHAS MT Signal Transformer	2,544	234.64	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 18V, Series 36V	Parallel 36.2A, Series 18.1A	Dual, Multiple Taps	Dual	No	650VA	Chassis Mount	Terminal Block	133.30mm L x 119.40mm W	117.80mm	4000Vrms
MPI-900-24 PWR XFMR LAMINATED 900VA CHAS MT Signal Transformer	3,914	259.70	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 12V, Series 24V	Parallel 75A, Series 37.5A	Dual, Multiple Taps	Dual	No	900VA	Chassis Mount	Terminal Block	133.30mm L x 139.70mm W	117.80mm	4000Vrms
MPI-900-48 PWR XFMR LAMINATED 900VA CHAS MT Signal Transformer	2,329	259.70	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 24V, Series 48V	Parallel 37.5A, Series 18.8A	Dual, Multiple Taps	Dual	No	900VA	Chassis Mount	Terminal Block	133.30mm L x 139.70mm W	117.80mm	4000Vrms
36-50 PWR XFMR LAMINATED 1800VA CHAS Signal Transformer	3,988	433.62	RFQ	Datasheet	Box	-	Active	Laminated Core	105V, 115V, 125V, 230V	Parallel 18V, Series 36V	Parallel 100A, Series 50A	Dual	Dual	Yes	1800VA	Chassis Mount	Solder, Quick Connect	162.00mm L x 184.20mm W	134.90mm	1500Vrms
HPI-27 PWR XFMR LAMINATED 2750VA CHAS Signal Transformer	3,962	632.34	RFQ	Datasheet	Bulk	HPI	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 24A, Series 12A	Dual, Multiple Taps	Dual	No	2750VA	Chassis Mount	Terminal Block	190.50mm L x 149.70mm W	166.50mm	4000Vrms
ST-4-12 PWR XFMR LAMINATED 6VA TH Signal Transformer	2,055	11.64	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 1A, Series 500mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms
DST-2-120 PWR XFMR LAMINATED 1.1VA TH Signal Transformer	2,072	12.09	RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 20mA, Series 10mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	24.60mm	2500Vrms
241-4-12 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,822	13.82	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	12.6V	500mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
LP-20-125 PWR XFMR SEMI-TORO 2VA TH Signal Transformer	3,099	15.25	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 250mA, Series 125mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	16.50mm	1500Vrms

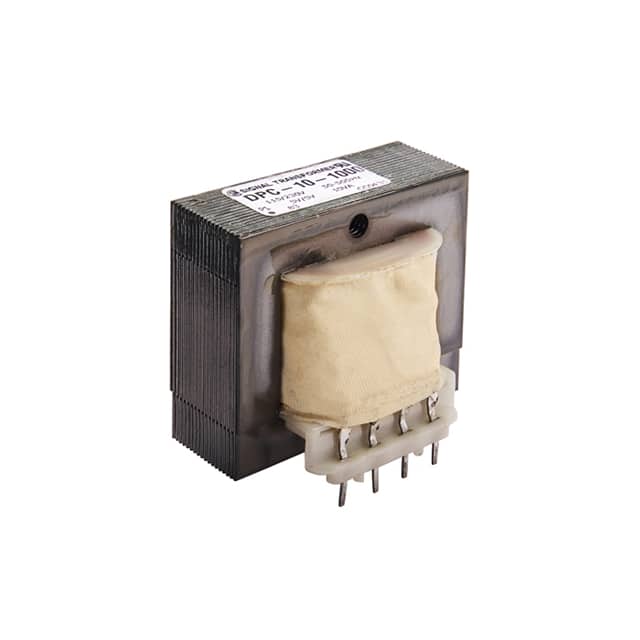

DPC-40-250 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,907	16.09	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 20V, Series 40V	Parallel 500mA, Series 250mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
IF-4-20 PWR XFMR SEMI-TORO 4VA TH Signal Transformer	3,854	18.26	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 400mA, Series 200mA	Dual	Dual	No	4VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	19.60mm	4000Vrms
DMPC-X-15 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,180	18.30	RFQ	Datasheet	Bulk	DMPC	Active	Laminated Core	115V, 230V	Parallel 5V, Series 15V	Parallel 360mA, Series 50mA	Dual	Dual	Yes	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.70mm	1500Vrms
DPC-120-8 PWR XFMR LAMINATED 1VA TH Signal Transformer	2,822	18.60	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 16mA, Series 8mA	Dual	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
