Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
DST-7-56 PWR XFMR LAMINATED 36VA TH Signal Transformer	3,742	18.69	RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 1.3A, Series 650mA	Dual	Dual	No	36VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	40.40mm	2500Vrms
DST-7-10 PWR XFMR LAMINATED 36VA TH Signal Transformer	3,469	18.69	RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 7.2A, Series 3.6A	Dual	Dual	No	36VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	40.40mm	2500Vrms
IF-6-30 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	2,629	18.90	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 400mA, Series 200mA	Dual	Dual	No	6VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	22.60mm	4000Vrms
ST-7-28 PWR XFMR LAMINATED 36VA TH Signal Transformer	3,809	19.82	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 2.6A, Series 1.3A	Single	Dual	No	36VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	40.40mm	2500Vrms
14A-30-10 PWR XFMR LAMINATED 30VA TH Signal Transformer	2,287	20.60	RFQ	Datasheet	Bulk	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 6A, Series 3A	Dual	Dual	No	30VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	39.70mm	4000Vrms
A41-43-20 PWR XFMR LAMINATED 43VA CHAS MT Signal Transformer	3,943	21.52	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 4.4A, Series 2.2A	Dual	Dual	No	43VA	Chassis Mount	Solder, Quick Connect	79.40mm L x 54.40mm W	68.20mm	4000Vrms
14A-56-16 PWR XFMR LAMINATED 56VA TH Signal Transformer	2,384	21.76	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 7A, Series 3.5A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.00mm	4000Vrms

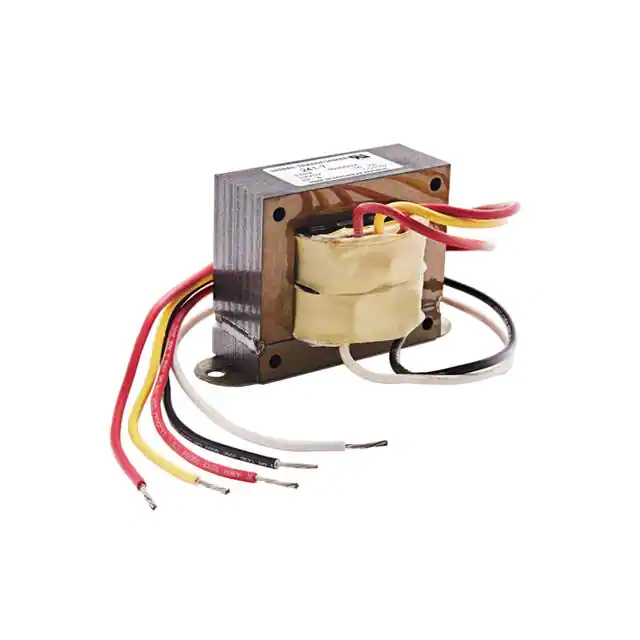

241-7-28L PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	3,266	22.62	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	28V	2A	Single	Single	Yes	56VA	Chassis Mount	Wire Leads	93.70mm L x 49.20mm W	57.80mm	2500Vrms
241-8-10L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,639	29.61	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	10V	10A	Single	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms
241-8-24L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	2,933	29.61	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	24V	4A	Single	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms
241-8-56L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,749	29.61	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	56V	1.8A	Single	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms
DP-241-8-10L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,943	30.45	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	10V	10A	Dual	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms
DP-241-8-120L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,032	30.45	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	120V	850mA	Dual	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms
A41-80-512 PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	2,471	34.80	RFQ	Datasheet	Bulk	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 12V	Parallel 3.5A, Series 600mA	Dual	Dual	Yes	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 64.30mm W	76.20mm	4000Vrms
DMT-8-15 PWR XFMR LAMINATED 8VA CHAS MT Signal Transformer	3,793	35.32	RFQ	Datasheet	Bulk	DMT	Active	Laminated Core	115V, 230V	5V, 15V	4A, 500mA	Dual	Dual	Yes	8VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms
24-1 PWR XFMR LAMINATED 24VA CHAS MT Signal Transformer	3,335	39.82	RFQ	Datasheet	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 12V, Series 24V	Parallel 2A, Series 1A	Single, Multiple Taps	Dual	Yes	24VA	Chassis Mount	Solder, Quick Connect	76.20mm L x 63.50mm W	63.50mm	1500Vrms
A41-175-12 PWR XFMR LAMINATED 175VA CHAS MT Signal Transformer	3,213	40.92	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 28A, Series 14A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.40mm L x 79.70mm W	95.30mm	4000Vrms
A41-175-230L PWR XFMR LAMINATED 175VA CHAS MT Signal Transformer	2,487	41.22	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 1.52A, Series 760mA	Dual	Dual	No	175VA	Chassis Mount	Wire Leads	79.40mm L x 79.70mm W	95.30mm	4000Vrms

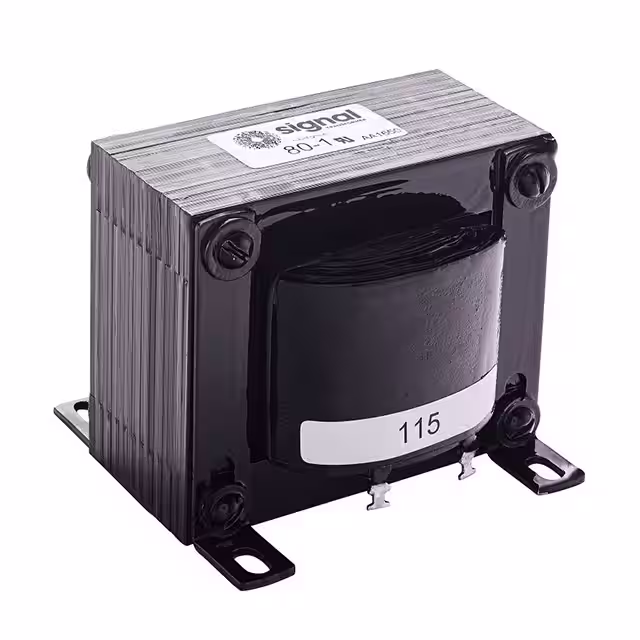

80-1 PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	2,799	48.70	RFQ	Datasheet	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 40V, Series 80V	Parallel 2A, Series 1A	Single, Multiple Taps	Dual	Yes	80VA	Chassis Mount	Solder, Quick Connect	85.70mm L x 77.70mm W	71.40mm	1500Vrms

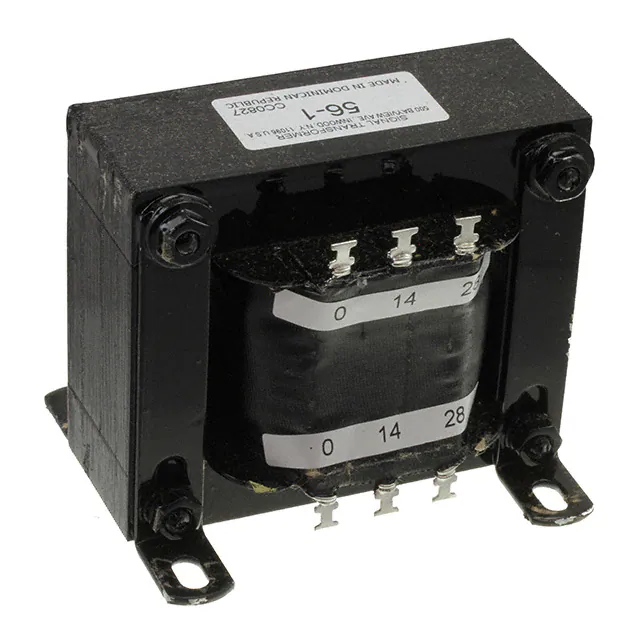

56-1 PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	2,960	54.51	RFQ	Datasheet	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 28V, Series 56V	Parallel 2A, Series 1A	Single, Multiple Taps	Dual	Yes	56VA	Chassis Mount	Solder, Quick Connect	85.70mm L x 73.00mm W	71.40mm	1500Vrms
