Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

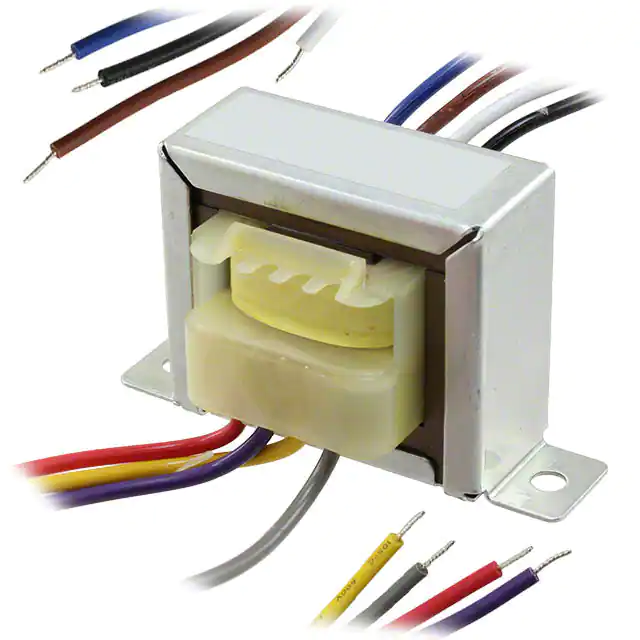

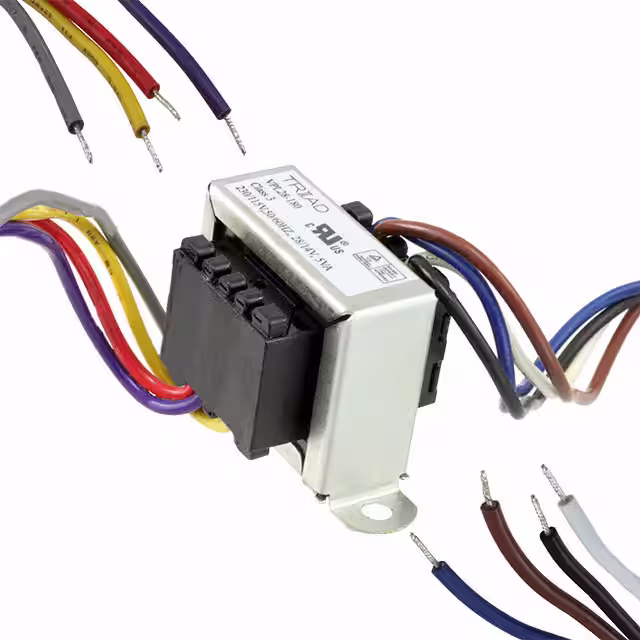

VPL28-180 PWR XFMR LAMINATED 5.0VA CHAS MT Triad Magnetics	3,063	12.02	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	28V	180mA	Dual	Dual	No	5.0VA	Chassis Mount	Wire Leads	36.52mm L x 60.33mm W	36.52mm	3500Vrms

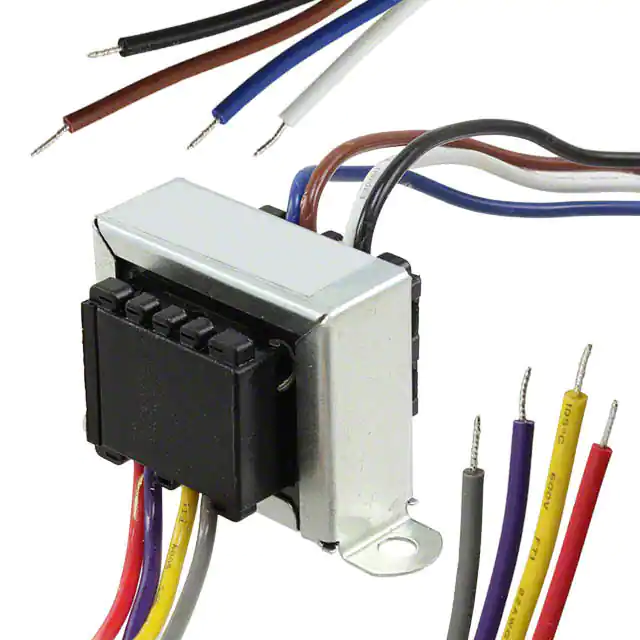

VPL14-360 PWR XFMR LAMINATED 5.0VA CHAS MT Triad Magnetics	3,939	12.02	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	14V	0.36A	Dual	Dual	No	5.0VA	Chassis Mount	Wire Leads	36.52mm L x 60.33mm W	36.52mm	3500Vrms

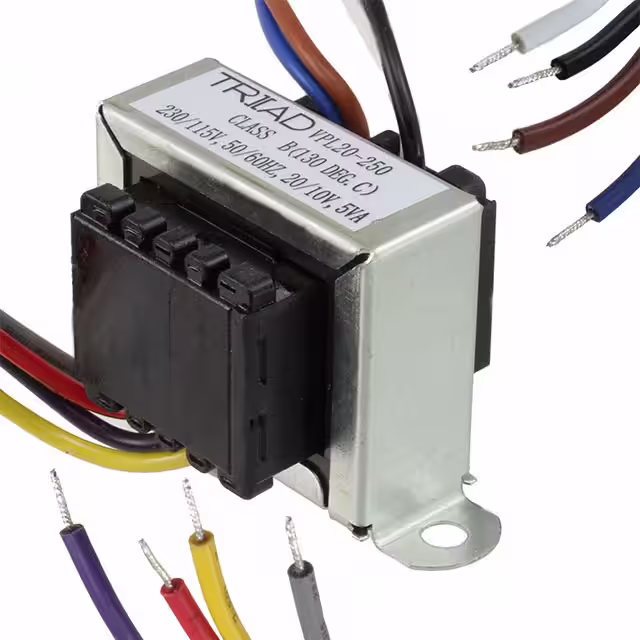

VPL20-250 PWR XFMR LAMINATED 5.0VA CHAS MT Triad Magnetics	2,230	12.02	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	20V	250mA	Dual	Dual	No	5.0VA	Chassis Mount	Wire Leads	36.52mm L x 60.33mm W	36.52mm	3500Vrms
FS12-1000 PWR XFMR LAMINATED 12VA TH Triad Magnetics	3,413	12.89	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 2A, Series 1A	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms
FS36-350 PWR XFMR LAMINATED 12VA TH Triad Magnetics	3,271	12.89	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 700mA, Series 350mA	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms

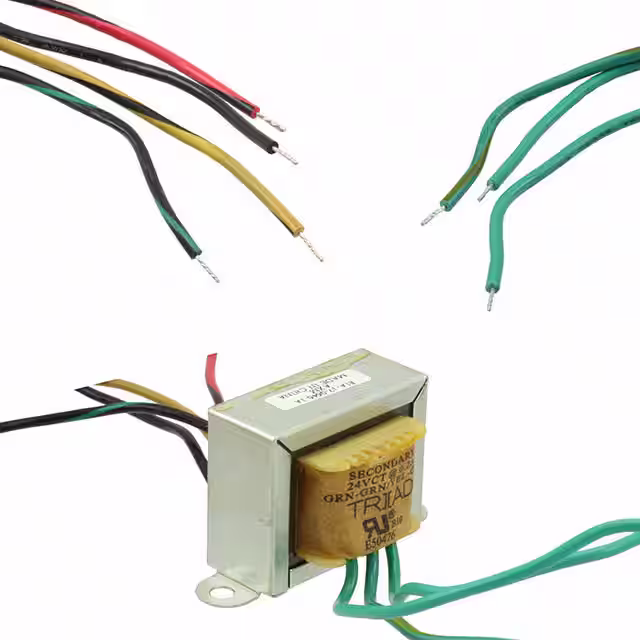

F-3116X PWR XFMR LAMINATED 4.8VA CHAS MT Triad Magnetics	3,621	13.07	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	24V	200mA	Dual	Single	Yes	4.8VA	Chassis Mount	Wire Leads	60.32mm L x 38.10mm W	34.93mm	1500Vrms

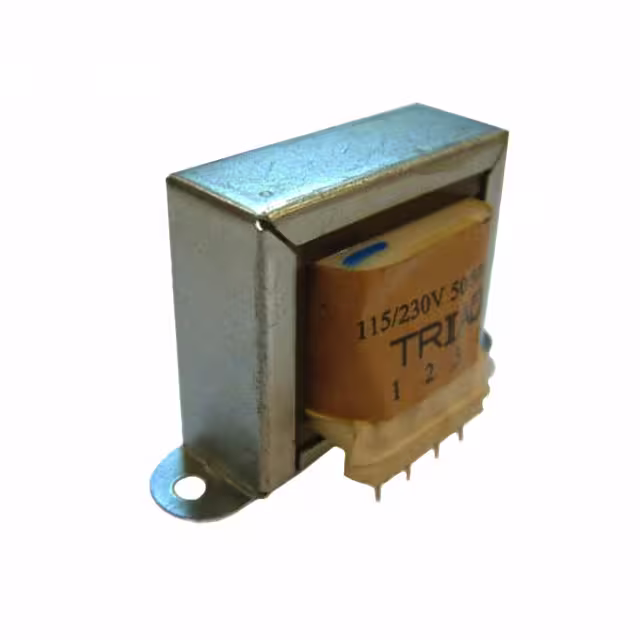

F-348XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	2,577	13.11	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 700mA, Series 350mA	Dual	Dual	No	4.5VA	Chassis Mount	PC Pin	60.32mm L x 31.75mm W	34.93mm	1500Vrms

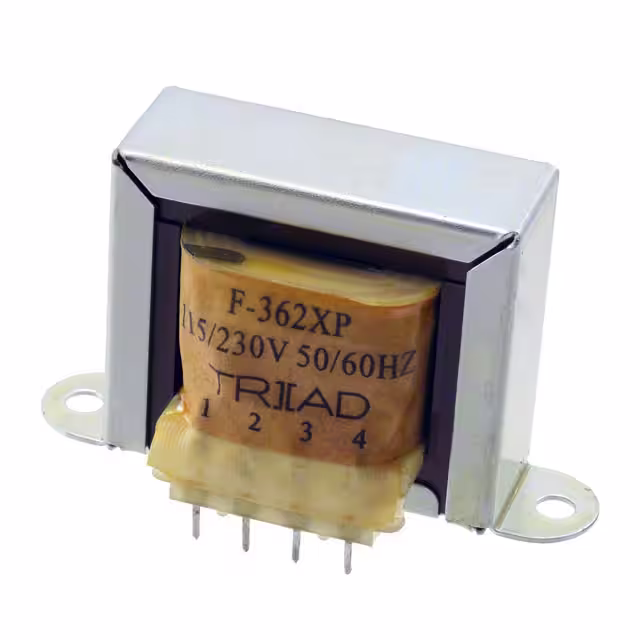

F-362XP PWR XFMR LAMINATED 10VA CHAS MT Triad Magnetics	3,156	13.27	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 1A, Series 500mA	Dual	Dual	No	10VA	Chassis Mount	PC Pin	71.42mm L x 36.50mm W	41.28mm	1500Vrms

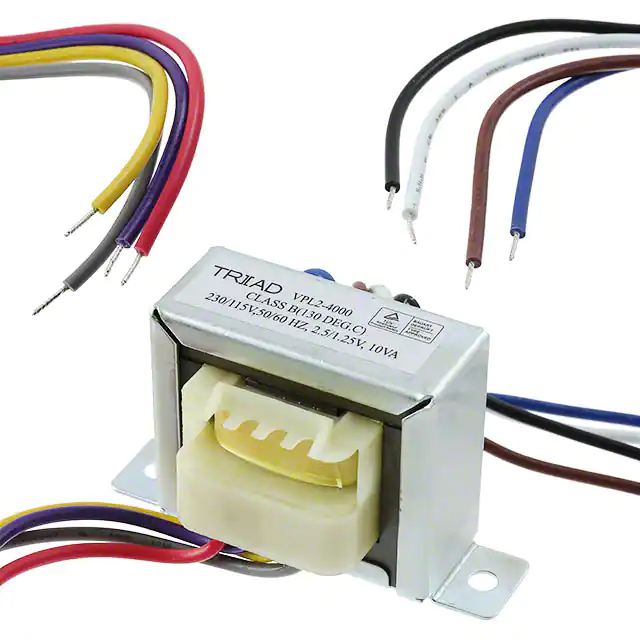

VPL2-4000 PWR XFMR LAMINATED 10.0VA CHAS Triad Magnetics	2,196	14.24	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	2.5V	4A	Dual	Dual	No	10.0VA	Chassis Mount	Wire Leads	36.52mm L x 71.44mm W	44.45mm	3500Vrms

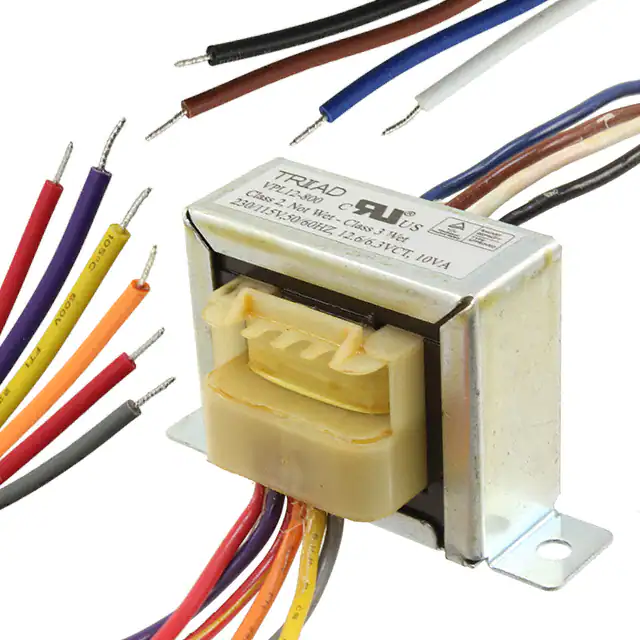

VPL12-800 PWR XFMR LAMINATED 10.0VA CHAS Triad Magnetics	3,971	14.24	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	12.6V	790mA	Dual	Dual	No	10.0VA	Chassis Mount	Wire Leads	36.52mm L x 71.44mm W	44.45mm	3500Vrms

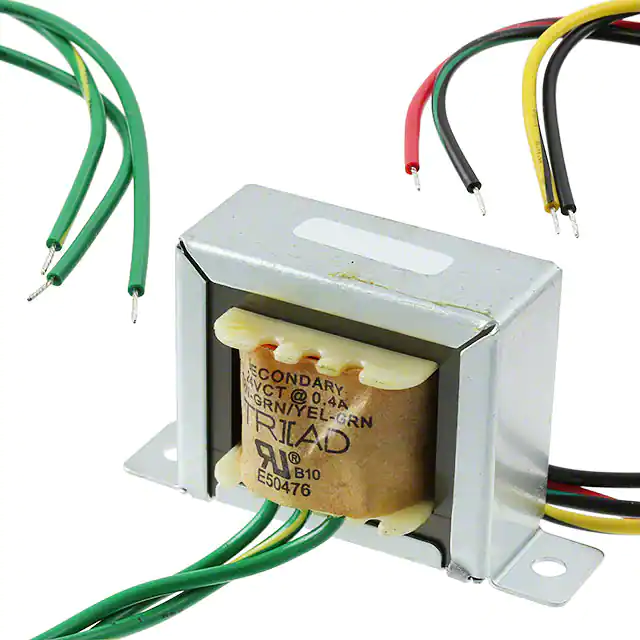

F-3117X PWR XFMR LAMINATED 9.6VA CHAS MT Triad Magnetics	3,031	14.18	RFQ	Datasheet	Bulk	Single Secondary	Active	Laminated Core	115V, 230V	24V	400mA	Dual	Single	Yes	9.6VA	Chassis Mount	Wire Leads	71.42mm L x 38.10mm W	41.28mm	1500Vrms
VPL16-600 PWR XFMR LAMINATED 10.0VA CHAS Triad Magnetics	3,179	14.24	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	16V	630mA	Dual	Dual	No	10.0VA	Chassis Mount	Wire Leads	36.52mm L x 71.44mm W	44.45mm	3500Vrms
VPL20-500 PWR XFMR LAMINATED 10.0VA CHAS Triad Magnetics	3,745	14.24	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	20V	500mA	Dual	Dual	No	10.0VA	Chassis Mount	Wire Leads	36.52mm L x 71.44mm W	44.45mm	3500Vrms
F20-1000 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,035	14.43	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 2A, Series 1A	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F36-550 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,760	14.58	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 1.1A, Series 550mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
VPP10-2000 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,396	15.24	RFQ	Datasheet	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	41.28mm	4000Vrms
VPS28-900 PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	2,706	16.44	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 1.8A, Series 900mA	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
VPS12-2000 PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	3,468	16.44	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 4A, Series 2A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
VPS16-1600 PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	3,946	16.28	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 3.2A, Series 1.6A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 33.27mm W	58.67mm	4000Vrms

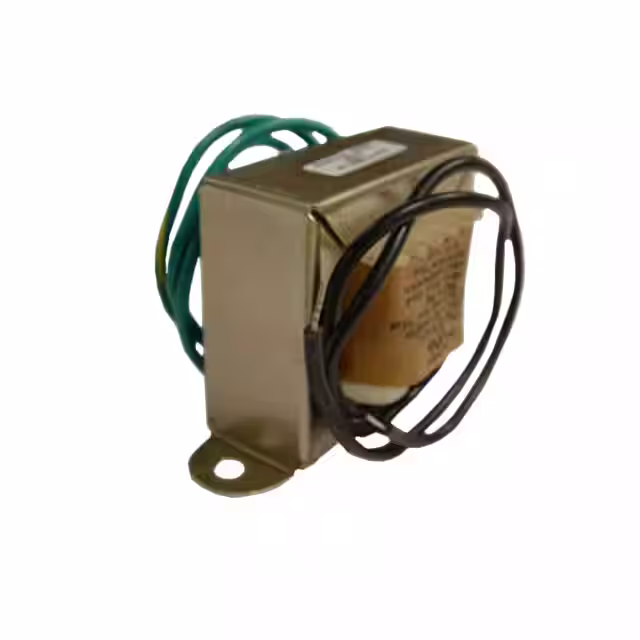

F-44X PWR XFMR LAMINATED 25.2VA CHAS Triad Magnetics	2,698	16.47	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	12.6V	2A	Single	Single	Yes	25.2VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms
