Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
FP20-600 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,972	16.54	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 1.2A, Series 600mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
VPS24-1000 PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	2,966	16.44	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 2A, Series 1A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
VPS10-2500 PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	2,478	16.44	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 5A, Series 2.5A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
F-59X PWR XFMR LAMINATED 24VA CHAS MT Triad Magnetics	3,965	16.47	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	60V	400mA	Single	Single	Yes	24VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms

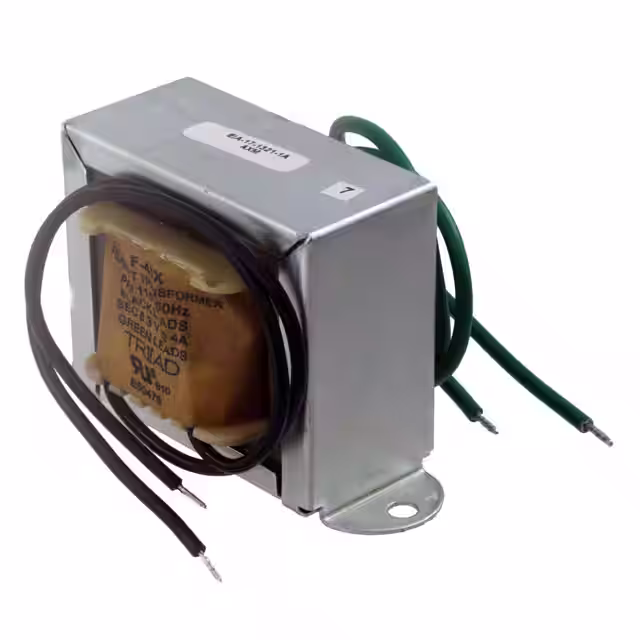

F-43X PWR XFMR LAMINATED 25.2VA CHAS Triad Magnetics	2,468	16.47	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	6.3V	4A	Single	Single	No	25.2VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms

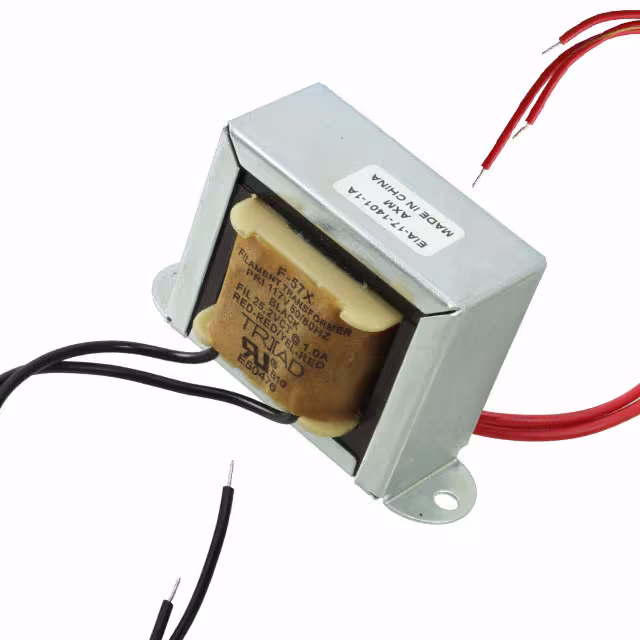

F-57X PWR XFMR LAMINATED 25.2VA CHAS Triad Magnetics	2,450	16.47	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	117V	25.2V	1A	Single	Single	Yes	25.2VA	Chassis Mount	Wire Leads	80.56mm L x 50.80mm W	49.20mm	1500Vrms

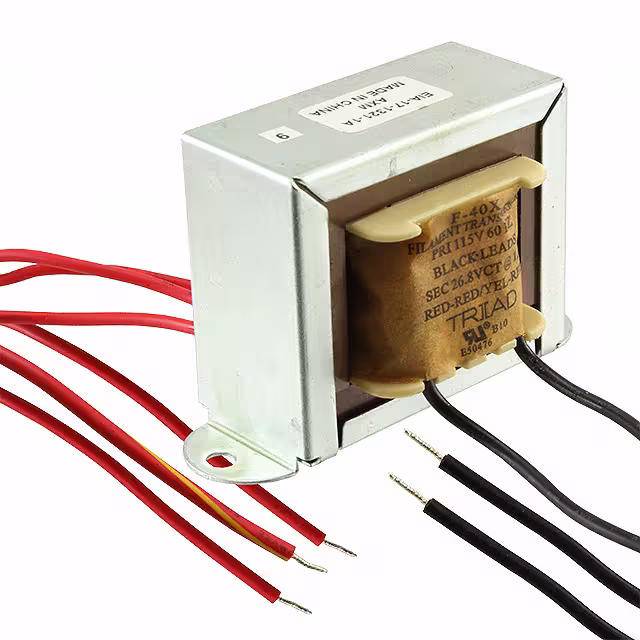

F-40X PWR XFMR LAMINATED 26.8VA CHAS Triad Magnetics	2,923	16.47	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	26.8V	1A	Single	Single	Yes	26.8VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms
FP12-950 PWR XFMR LAMINATED 12VA TH Triad Magnetics	3,157	16.54	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 1.9A, Series 950mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
FP34-340 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,723	16.54	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 17V, Series 34V	Parallel 680mA, Series 340mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
F6-10 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	2,965	16.62	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	10V	3A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC

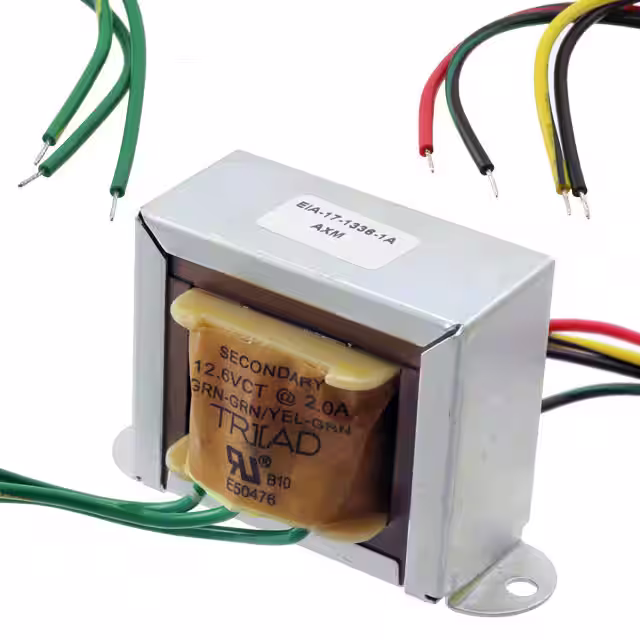

F-344X PWR XFMR LAMINATED 25.2VA CHAS Triad Magnetics	3,257	17.14	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	12.6V	2A	Dual	Single	Yes	25.2VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms

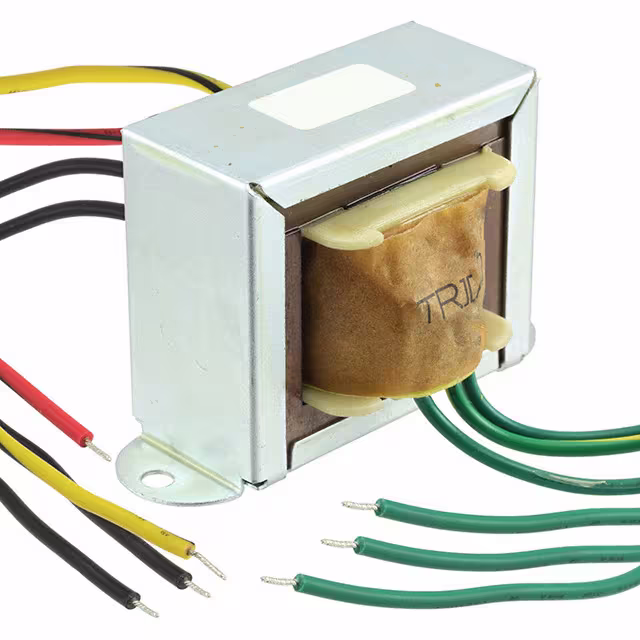

F-345X PWR XFMR LAMINATED 24VA CHAS MT Triad Magnetics	3,080	17.14	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	24V	1A	Dual	Single	Yes	24VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms
FS48-750-C2 PWR XFMR LAMINATED 36VA TH Triad Magnetics	2,368	17.27	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 1.5A, Series 750mA	Dual	Dual	No	36VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	4200Vrms
F28-1300 PWR XFMR LAMINATED 36VA TH Triad Magnetics	2,070	18.11	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 2.6A, Series 1.3A	Single	Dual	No	36VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	2500Vrms
FD6-16 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	3,889	18.20	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	16V	2A	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
FD6-28 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	3,883	18.20	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	28V	1.1A	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
FD6-120 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	2,186	18.20	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	120V	250mA	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
VPP16-1900 PWR XFMR LAMINATED 30VA TH Triad Magnetics	3,684	18.58	RFQ	Datasheet	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 3.8A, Series 1.9A	Dual	Dual	No	30VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	4000Vrms
VPP28-1060 PWR XFMR LAMINATED 30VA TH Triad Magnetics	3,432	18.58	RFQ	Datasheet	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 2.12A, Series 1.06A	Dual	Dual	No	30VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	4000Vrms
VPP36-820 PWR XFMR LAMINATED 30VA TH Triad Magnetics	3,253	18.58	RFQ	Datasheet	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 1.64A, Series 820mA	Dual	Dual	No	30VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	4000Vrms
