Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

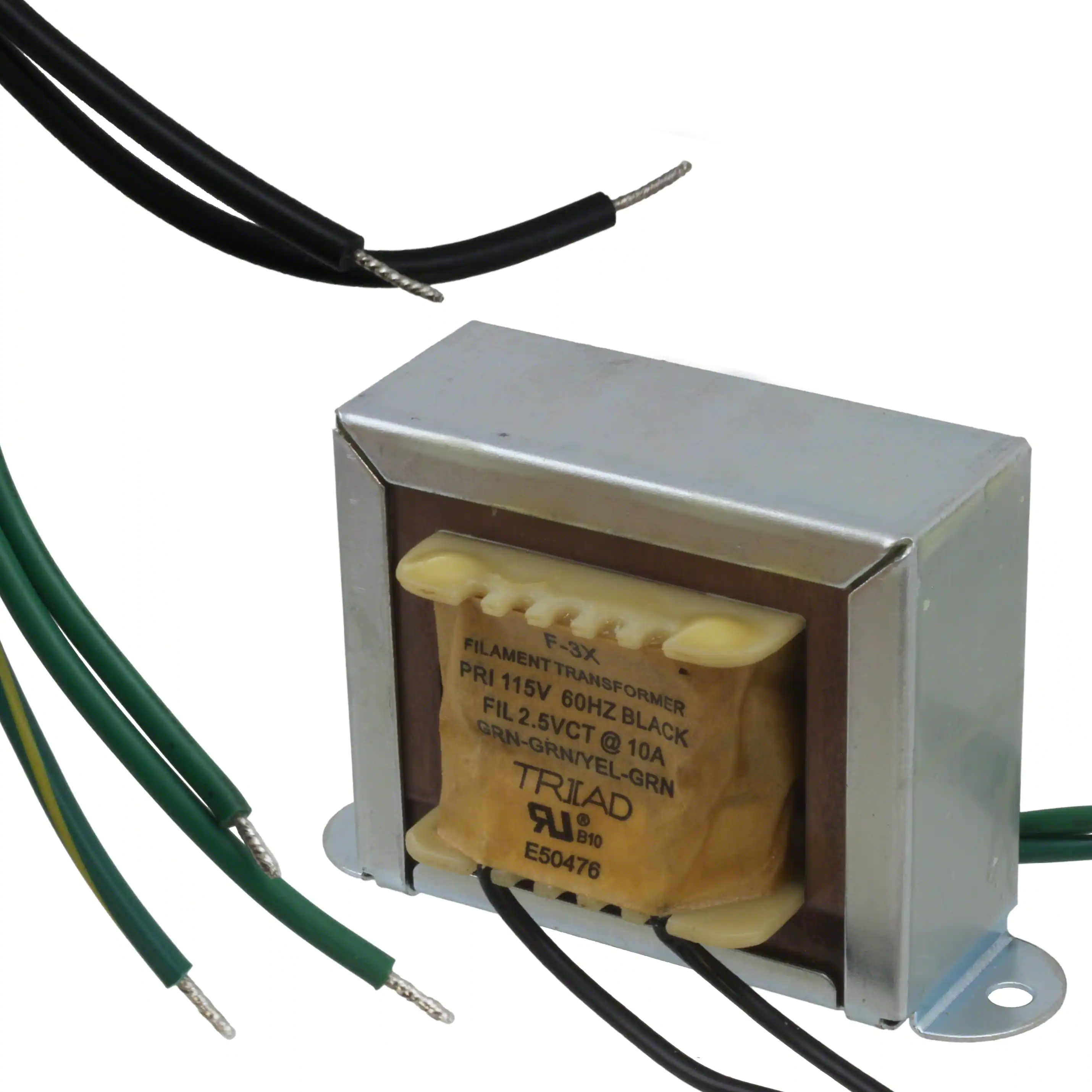

F-3X PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	3,427	23.04	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	2.5V	10A	Single	Single	Yes	25VA	Chassis Mount	Wire Leads	95.25mm L x 53.97mm W	57.94mm	3000Vrms

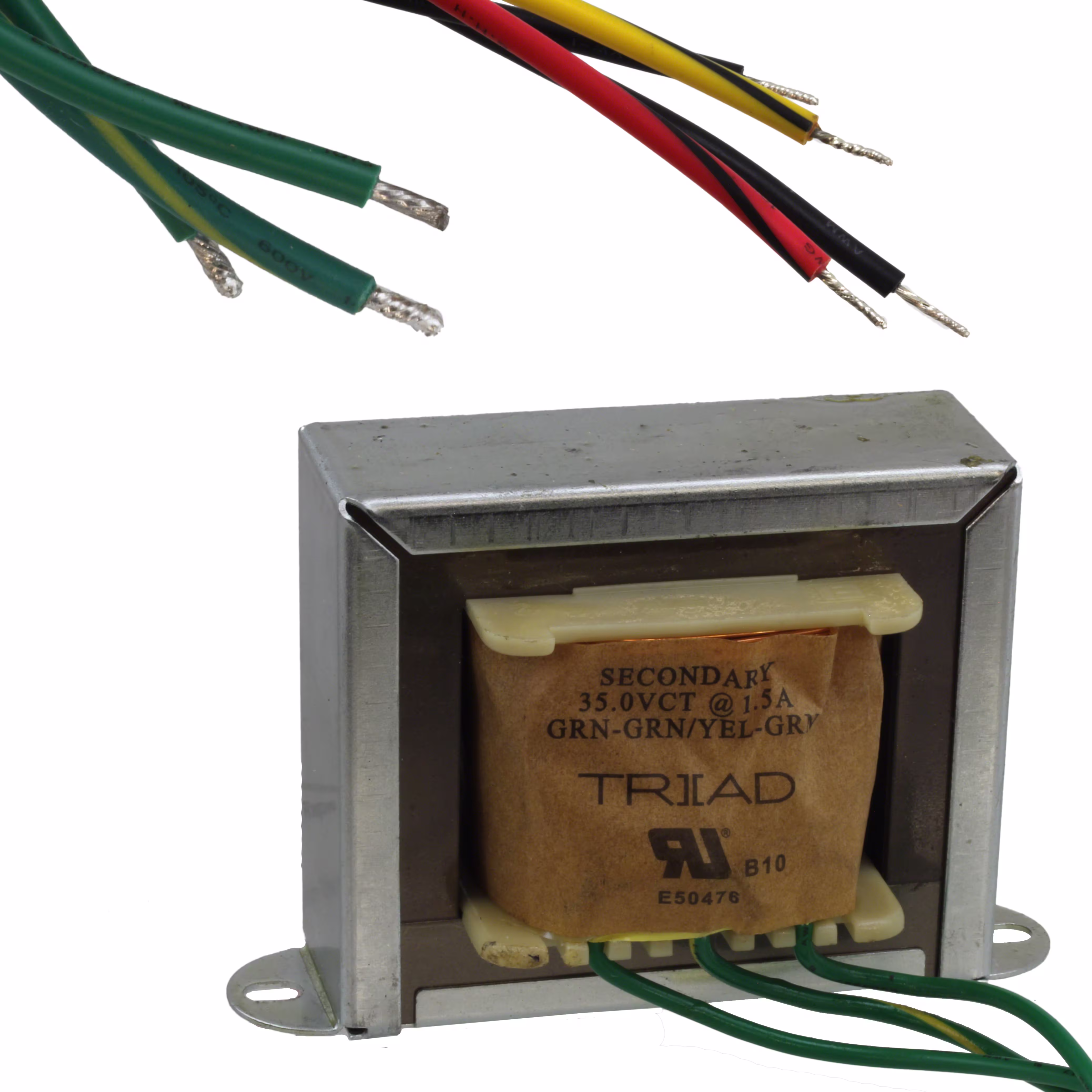

F-354X PWR XFMR LAMINATED 52.5VA CHAS Triad Magnetics	2,352	25.14	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	35V	1.5A	Dual	Single	Yes	52.5VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.86mm	1500Vrms

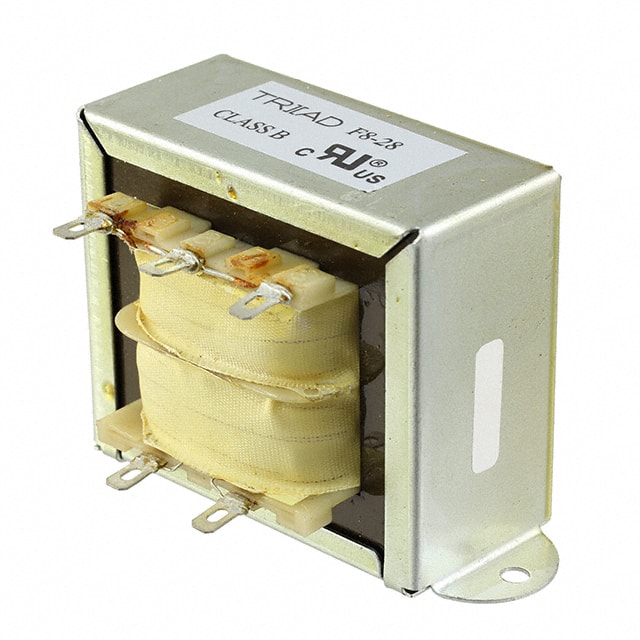

F8-28 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	3,270	26.32	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	28V	3.6A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

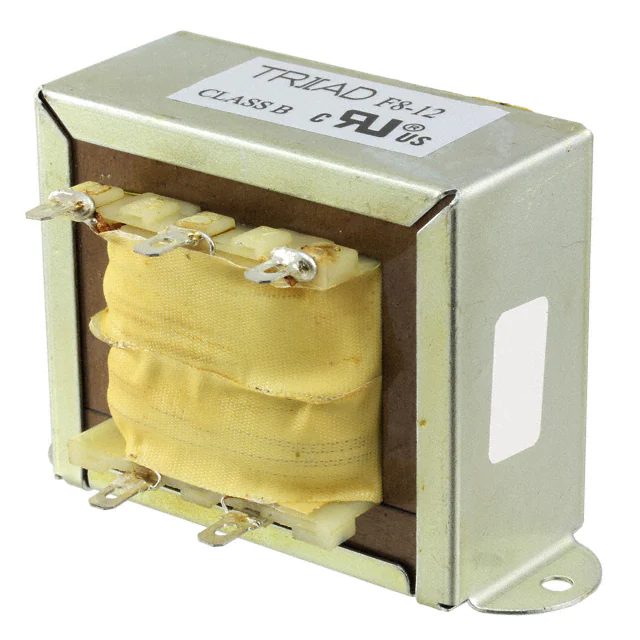

F8-12 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	3,486	26.32	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	12.6V	8A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

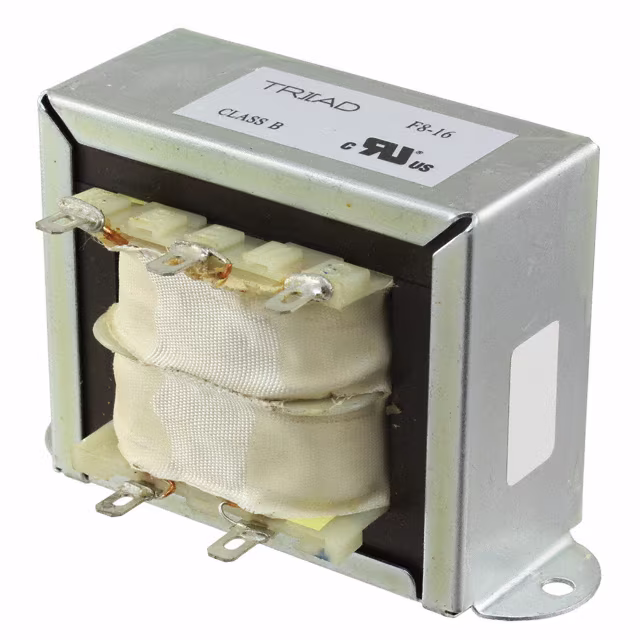

F8-16 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	2,940	26.32	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	16V	6.25A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

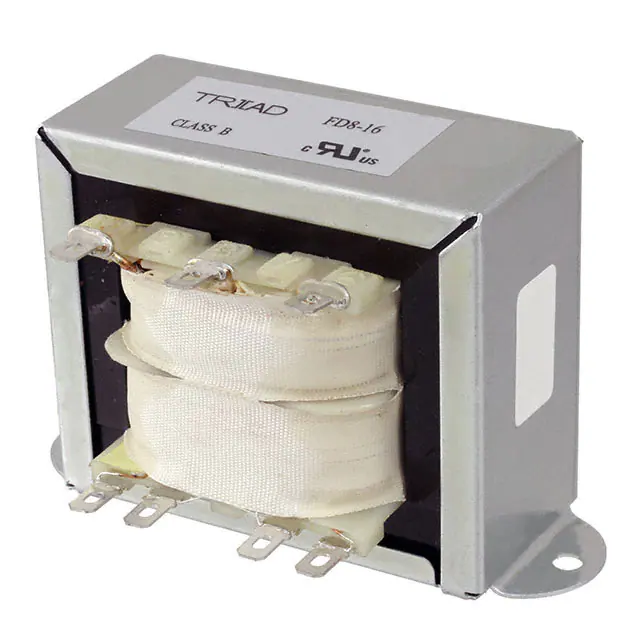

FD8-16 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	2,111	26.82	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	16V	6.25A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

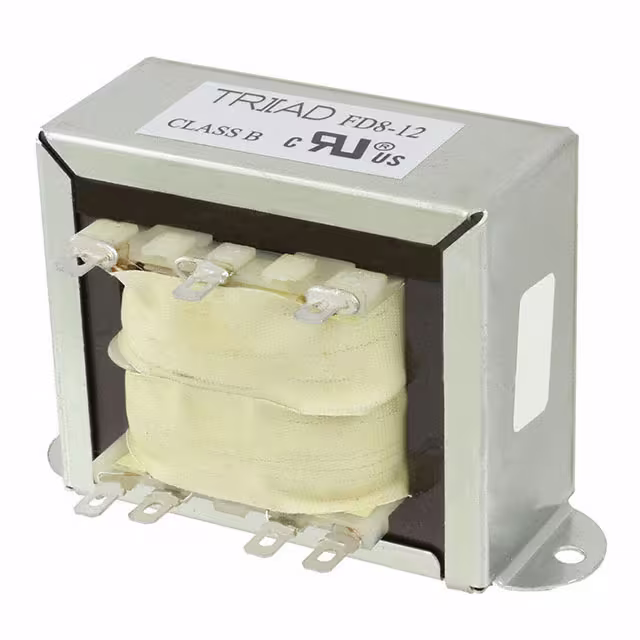

FD8-12 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	3,741	26.82	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	12.6V	8A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

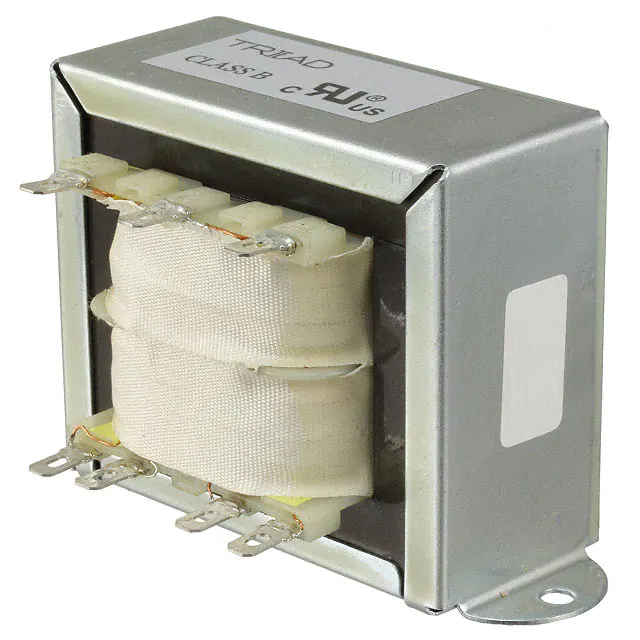

FD8-48 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	2,241	26.82	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	48V	2A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

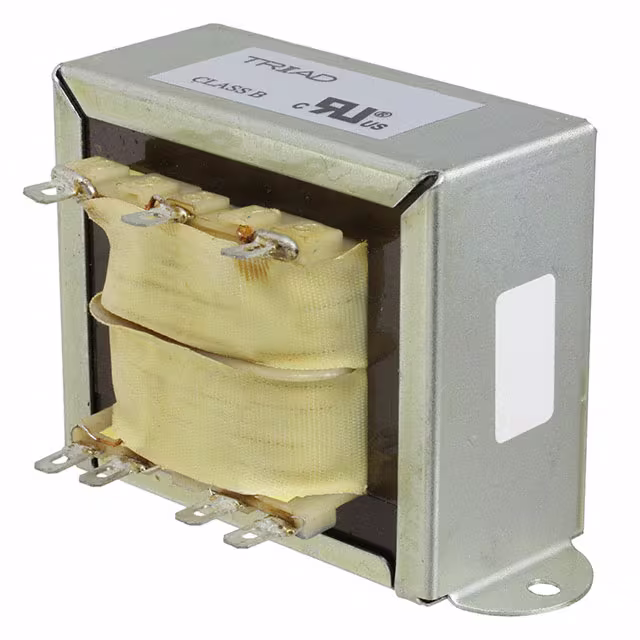

FD8-10 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	2,657	26.82	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	10V	10A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

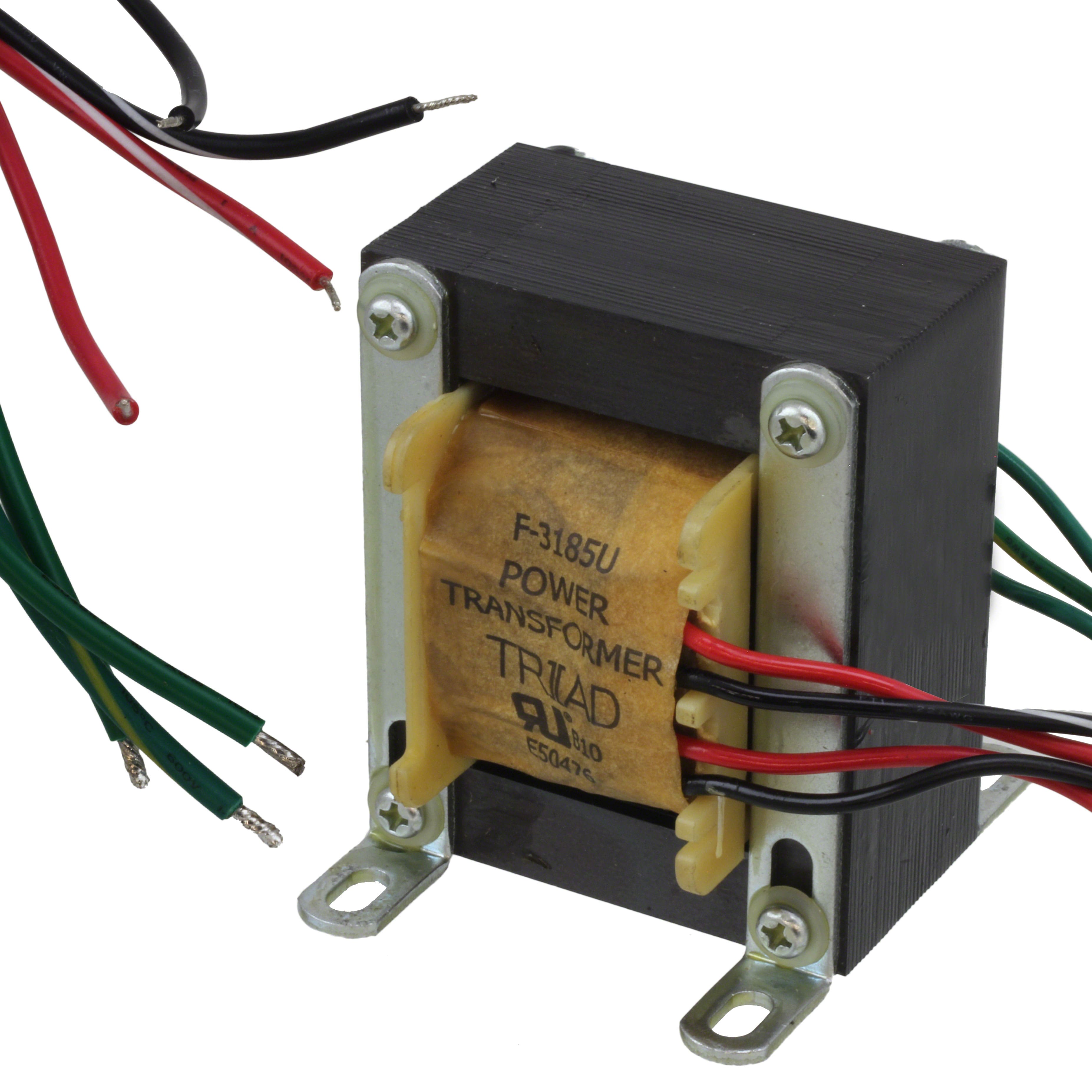

F-3185U PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,295	30.55	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	28V	2A	Dual	Single	Yes	56VA	Chassis Mount	Wire Leads	63.50mm L x 61.90mm W	77.79mm	1500Vrms
VPS10-13000 PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics	3,172	35.71	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 26A, Series 13A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 68.33mm W	85.73mm	4000Vrms
VPS36-3600 PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics	2,707	35.71	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 7.2A, Series 3.6A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 68.33mm W	85.85mm	4000Vrms
VPM24-1040 PWR XFMR TORO 25VA CHAS MT Triad Magnetics	2,706	39.04	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 12V, Series 24V	Parallel 2.08A, Series 1.04A	Dual, Multiple Taps	Dual	No	25VA	Chassis Mount	Wire Leads	84.00mm Dia	37.00mm	4000Vrms

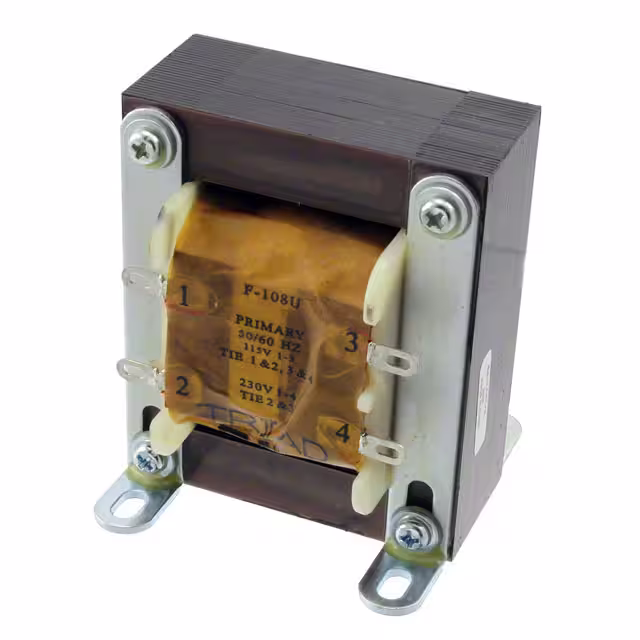

F-108U PWR XFMR LAMINATED 96VA CHAS MT Triad Magnetics	2,522	41.67	RFQ	Datasheet	Box	Control Transformers	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 8A, Series 4A	Dual	Dual	No	96VA	Chassis Mount	Solder Lug	71.42mm L x 63.50mm W	86.51mm	1500Vrms

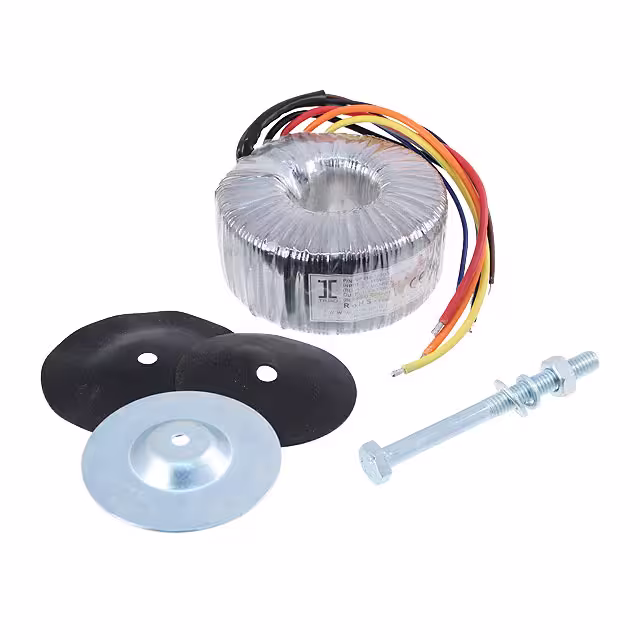

VPT18-13800 PWR XFMR TORO 250VA CHAS MT Triad Magnetics	2,678	69.21	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 27.6A, Series 13.8A	Dual	Dual	No	250VA	Chassis Mount	Wire Leads	112.00mm Dia x 54.00mm W	58.0mm	4000Vrms

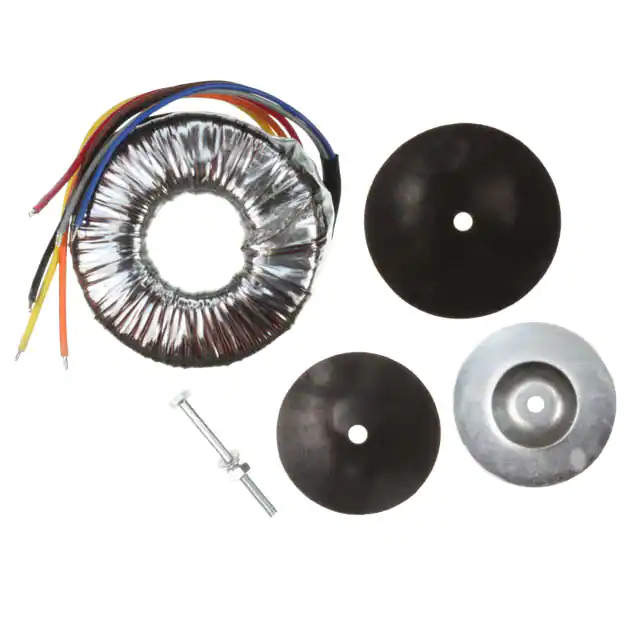

VPT24-10420 PWR XFMR TORO 250VA CHAS MT Triad Magnetics	3,062	69.21	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 20.84A, Series 10.42A	Dual	Dual	No	250VA	Chassis Mount	Wire Leads	112.00mm Dia x 54.00mm W	58.0mm	4000Vrms

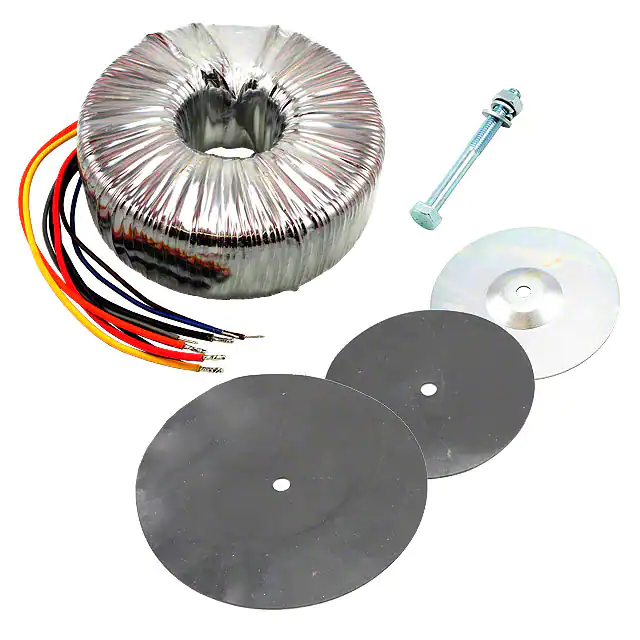

VPT48-20830 PWR XFMR TORO 1000VA CHAS MT Triad Magnetics	2,929	149.16	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 24V, Series 48V	Parallel 41.66A, Series 20.83A	Dual	Dual	No	1000VA	Chassis Mount	Wire Leads	175.00mm Dia x 68.00mm W	76.0mm	4000Vrms
F28-040-C2 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	3,791	5.80	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 80mA, Series 40mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
F56-045 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,848	8.63	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 28 V, Series 56V	Parallel 90mA, Series 45mA	Single	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms

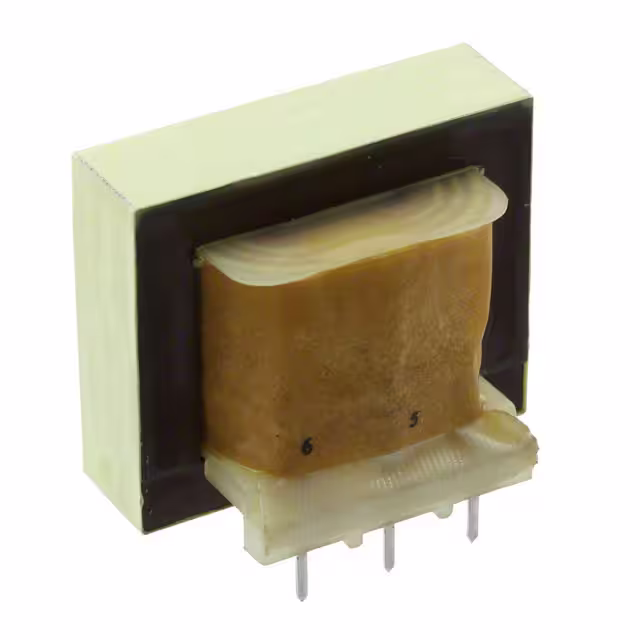

F-133P PWR XFMR LAMINATED 1.5VA TH Triad Magnetics	2,613	8.75	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 15V, Series 30V	Parallel 100mA, Series 50mA	Single	Dual	No	1.5VA	Through Hole	PC Pin	35.31mm L x 39.67mm W	30.15mm	1500Vrms
