| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS48-050PWR XFMR LAMINATED 2.5VA TH |
2,117 | 10.55 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 100mA, Series 50mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
|
FS56-045PWR XFMR LAMINATED 2.5VA TH |
3,468 | 10.55 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 90mA, Series 45mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|

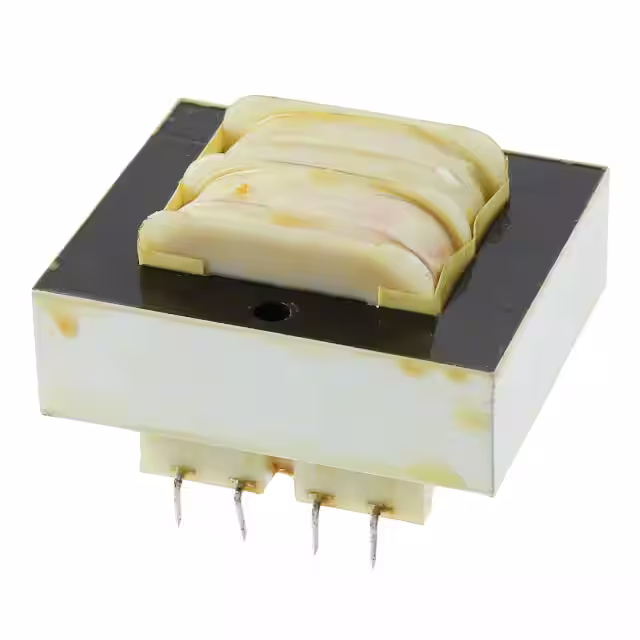

F10-2000PWR XFMR LAMINATED 20VA TH |
2,528 | 10.66 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 4A, Series 2A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
F120-160PWR XFMR LAMINATED 20VA TH |
3,682 | 10.66 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 320mA, Series 160mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
F12-1600PWR XFMR LAMINATED 20VA TH |
2,825 | 10.66 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 3.2A, Series 1.6A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
F16-1250PWR XFMR LAMINATED 20VA TH |
3,079 | 10.66 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 2.5A, Series 1.25A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
F24-800PWR XFMR LAMINATED 20VA TH |
2,922 | 10.66 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 1.6A, Series 800mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
F28-700PWR XFMR LAMINATED 20VA TH |
3,370 | 10.66 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 1.4A, Series 700mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
F56-350PWR XFMR LAMINATED 20VA TH |
2,085 | 10.66 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 28 V, Series 56V | Parallel 700mA, Series 350mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
F-3112XPWR XFMR LAMINATED 3.5VA CHAS MT |
3,100 | 10.95 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 14V | 250mA | Dual | Single | Yes | 3.5VA | Chassis Mount | Wire Leads | 60.33mm L x 38.10mm W | 34.93mm | 1500Vrms |
|
FP10-1200-BPWR XFMR LAMINATED 12VA TH |
2,693 | 11.12 |
RFQ |
Datasheet |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
|
FP16-750-BPWR XFMR LAMINATED 12VA TH |
3,871 | 11.12 |
RFQ |
Datasheet |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 1.5A, Series 750mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
|
FP34-340-BPWR XFMR LAMINATED 12VA TH |
3,274 | 11.12 |
RFQ |
Datasheet |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 680mA, Series 340mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
|
FP56-200-BPWR XFMR LAMINATED 6VA TH |
2,760 | 11.12 |
RFQ |
Datasheet |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|

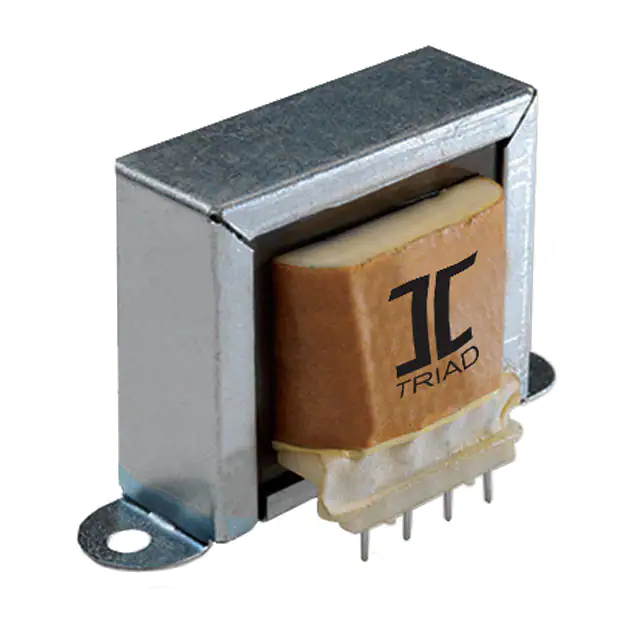

F-168XPPWR XFMR LAMINATED 4.5VA TH |
3,977 | 11.12 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 15V, Series 32V | Parallel 195mA, Series 50mA | Single | Dual | Yes | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.45mm | 1500Vrms |
|
|
FS120-05PWR XFMR LAMINATED 6VA TH |
3,603 | 11.14 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 100mA, Series 50mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
|
FS48-125PWR XFMR LAMINATED 6VA TH |
2,084 | 11.14 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 250mA, Series 125mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
|
FS56-110PWR XFMR LAMINATED 6VA TH |
3,610 | 11.14 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 220mA, Series 110mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
FS10-2000-C2PWR XFMR LAMINATED 20VA TH |
3,799 | 11.20 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 4A, Series 2A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 4200Vrms |
|
|
FS16-1250-C2PWR XFMR LAMINATED 20VA TH |
2,164 | 11.20 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 2.5A, Series 1.25A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 4200Vrms |
