Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
F56-110 PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,134	8.21	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 28 V, Series 56V	Parallel 220mA, Series 110mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
FS48-250-C2 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,602	8.22	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 500mA, Series 250mA	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	4200Vrms
FS56-220-C2 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,605	8.22	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 440mA, Series 220mA	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	4200Vrms
FS10-1200-C2 PWR XFMR LAMINATED 12VA TH Triad Magnetics	3,221	8.22	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	4200Vrms
FS16-800-C2 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,291	8.22	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 1.6A, Series 800mA	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	4200Vrms

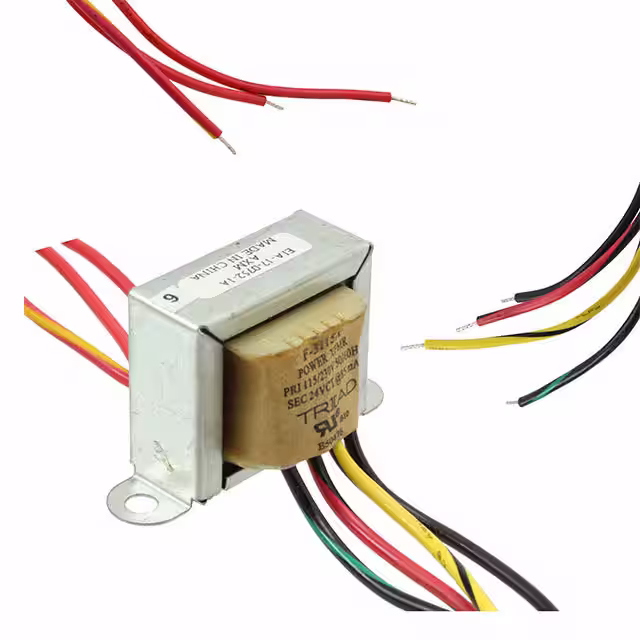

F-3115X PWR XFMR LAMINATED 2VA CHAS MT Triad Magnetics	3,791	8.25	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	24V	85mA	Dual	Single	Yes	2VA	Chassis Mount	Wire Leads	52.37mm L x 34.93mm W	30.15mm	1500Vrms
F20-055 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	3,935	8.26	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 110mA, Series 55mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
F10-110 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,083	8.26	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 220mA, Series 110mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms

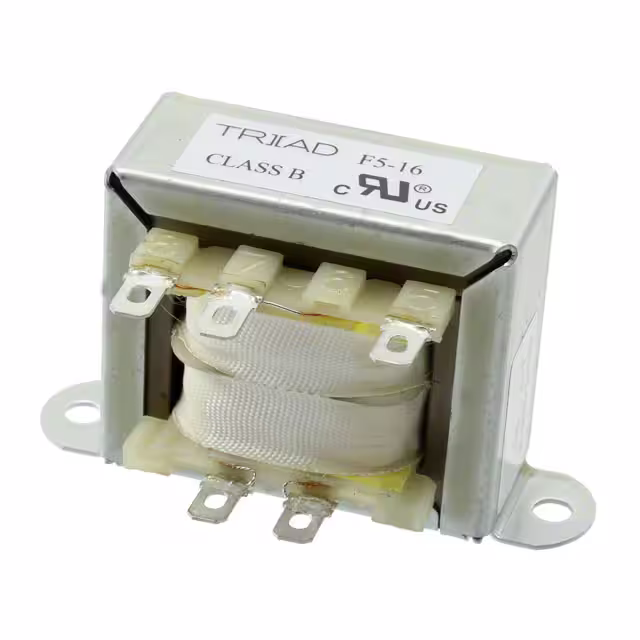

F5-16 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	3,411	8.30	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	16V	800mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
FP10-600-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,601	8.52	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 1.2A, Series 600mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
FP34-170-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,979	8.52	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 17V, Series 34V	Parallel 340mA, Series 170mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
FP56-100-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,090	8.52	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 200mA, Series 100mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms

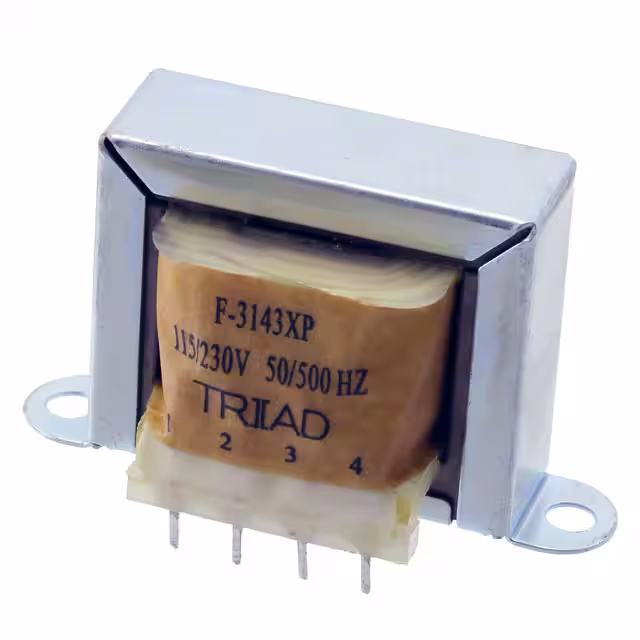

F-3143XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	3,722	8.69	RFQ	Datasheet	Bulk,Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 300mA, Series 150mA	Dual	Dual	No	4.5VA	Chassis Mount	PC Pin	60.32mm L x 31.75mm W	36.50mm	1500Vrms

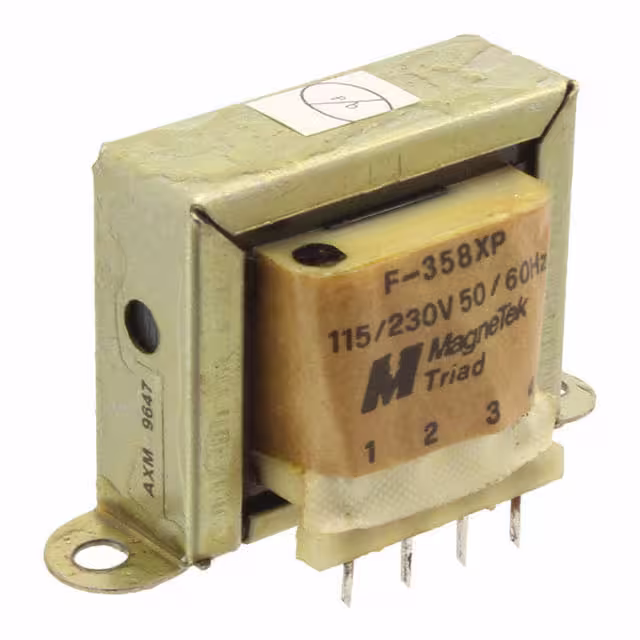

F-358XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	3,308	8.55	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 450mA, Series 225mA	Dual	Dual	No	4.5VA	Chassis Mount	PC Pin	60.32mm L x 31.75mm W	36.50mm	1500Vrms

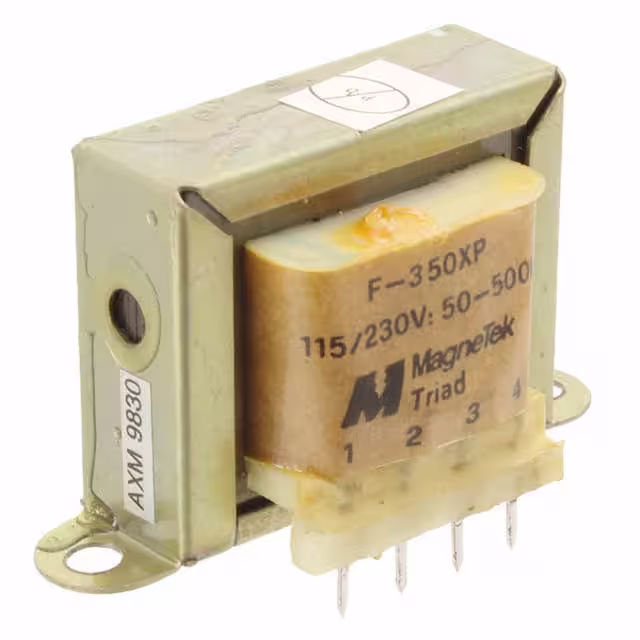

F-350XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	3,011	8.55	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 360mA, Series 180mA	Dual	Dual	No	4.5VA	Chassis Mount	PC Pin	60.32mm L x 31.75mm W	36.50mm	1500Vrms
FP56-45 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,131	8.56	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 90mA, Series 45mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP16-150 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,621	8.56	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 300mA, Series 150mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms

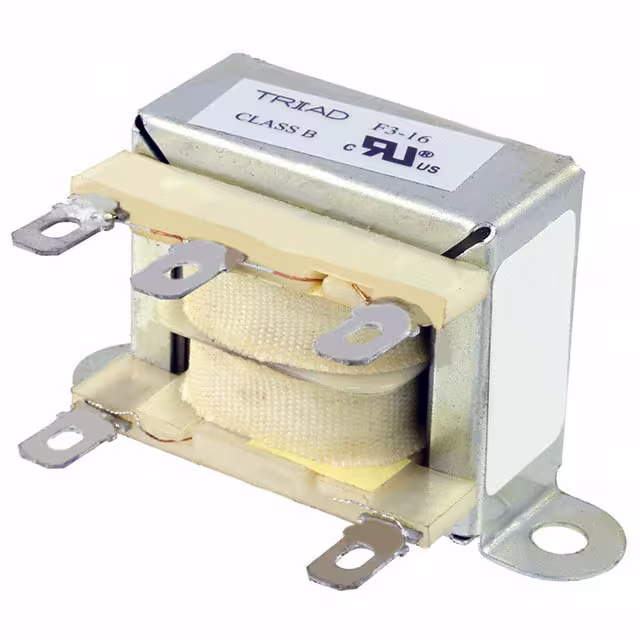

F3-16 PWR XFMR LAMINATED 2.4VA CHAS MT Triad Magnetics	3,712	8.57	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	16V	150mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	41.28mm L x 30.15mm W	30.15mm	2500VAC
F3-20 PWR XFMR LAMINATED 2.4VA CHAS MT Triad Magnetics	2,697	8.57	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	20V	112mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	41.28mm L x 30.15mm W	30.15mm	2500VAC
F3-28 PWR XFMR LAMINATED 2.4VA CHAS MT Triad Magnetics	2,350	8.57	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	28V	85mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	41.28mm L x 30.15mm W	30.15mm	2500VAC
