Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
FP56-100 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,883	13.42	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 200mA, Series 100mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
VPP28-720-B PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,230	9.95	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 1.44A, Series 720mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	41.28mm	4000Vrms
VPP10-2000-B PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,502	9.95	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	41.28mm	4000Vrms
VPP16-1250-B PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,817	9.95	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 2.5A, Series 1.25A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	41.28mm	4000Vrms
F-165P PWR XFMR LAMINATED 1.5VA TH Triad Magnetics	3,581	9.96	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 9V, Series 24V	Parallel 100mA, Series 25mA	Single	Dual	Yes	1.5VA	Through Hole	PC Pin	39.67mm L x 35.31mm W	30.15mm	1500Vrms
F-112X PWR XFMR LAMINATED 3.5VA CHAS MT Triad Magnetics	3,454	10.03	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	14V	250mA	Single	Single	Yes	3.5VA	Chassis Mount	Wire Leads	60.33mm L x 34.93mm W	34.93mm	1500Vrms
F-314X PWR XFMR LAMINATED 7.56VA CHAS Triad Magnetics	2,308	10.37	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	6.3V	1.2A	Dual	Single	Yes	7.56VA	Chassis Mount	PC Pin	71.45mm L x 41.28mm W	41.28mm	2500Vrms
F4-120 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	2,836	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	120V	50mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
F4-16 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,187	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	16V	400mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
F4-20 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,427	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	20V	300mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
F4-28 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,575	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	28V	200mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
F4-36 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,595	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	36V	170mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
F4-48 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,249	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	48V	125mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
F4-56 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,459	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	56V	110mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC

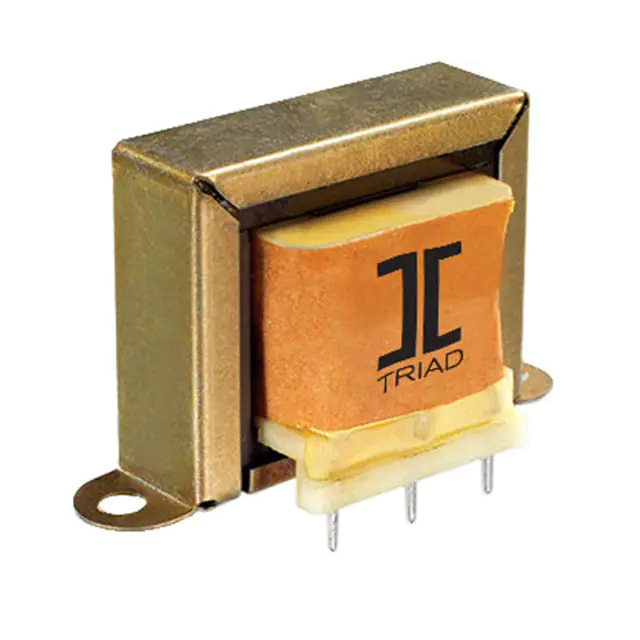

F-141XP PWR XFMR LAMINATED 4.5VA TH Triad Magnetics	3,547	10.48	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 4V, Series 8V	Parallel 1.124A, Series 562mA	Single	Dual	No	4.5VA	Through Hole	PC Pin	60.33mm L x 31.75mm W	36.50mm	1500Vrms
F-145XP PWR XFMR LAMINATED 4.5VA TH Triad Magnetics	3,359	10.48	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 38V, Series 76V	Parallel 120mA, Series 60mA	Single	Dual	No	4.5VA	Through Hole	PC Pin	60.33mm L x 31.75mm W	36.50mm	1500Vrms
F-146XP PWR XFMR LAMINATED 4.5VA TH Triad Magnetics	2,155	10.48	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 58V, Series 116V	Parallel 66mA, Series 33mA	Single	Dual	No	4.5VA	Through Hole	PC Pin	60.33mm L x 31.75mm W	36.50mm	1500Vrms
F-147XP PWR XFMR LAMINATED 4.5VA TH Triad Magnetics	2,699	10.48	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 20V, Series 40V	Parallel 224mA, Series 112mA	Single	Dual	No	4.5VA	Through Hole	PC Pin	60.33mm L x 31.75mm W	36.50mm	1500Vrms
F-161XP PWR XFMR LAMINATED 4.5VA TH Triad Magnetics	3,027	10.48	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 8.5V, Series 17V	Parallel 528mA, Series 264mA	Single	Dual	No	4.5VA	Through Hole	PC Pin	60.33mm L x 31.75mm W	36.50mm	1500Vrms
FS120-02 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,040	10.55	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 40mA, Series 20mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms
