| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
166G28PWR XFMR LAMINATED 14VA CHAS MT |
2,378 | 18.79 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 28V | 500mA | Single | Single | Yes | 14VA | Chassis Mount | Wire Leads | 71.37mm L x 41.40mm W | 42.93mm | 2000Vrms |
|
|
166F12CPWR XFMR LAMINATED 4.2VA CHAS MT |
2,801 | 19.15 |
RFQ |
Datasheet |
Box | 166 | Active | Laminated Core | 115V | 12V | 350mA | Single | Single | Yes | 4.2VA | Chassis Mount | Wire Leads | 60.45mm L x 35.05mm W | 35.05mm | 2000Vrms |
|
162H20PWR XFMR LAMINATED 20VA TH |
2,621 | 19.26 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms |
|

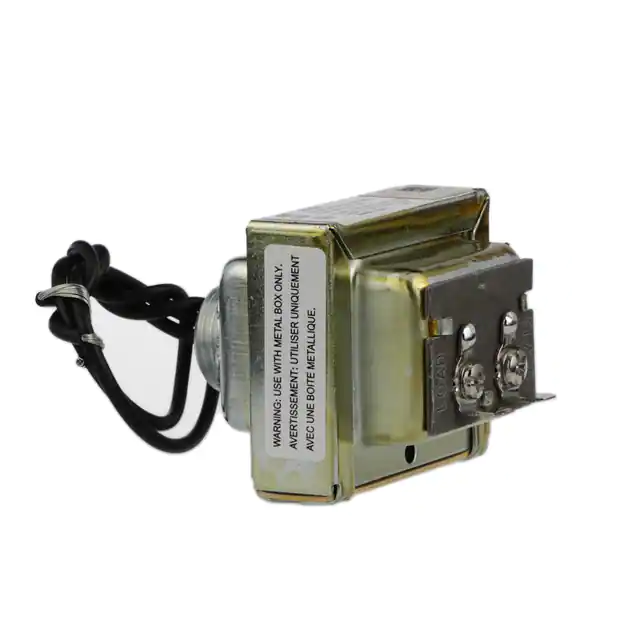

BC2DAPWR XFMR LAMINATED 12VA CHAS MT |
3,112 | 19.33 |
RFQ |
Datasheet |
Bulk | BC | Active | Laminated Core | 120V | 10V | 1.2A | Single | Single | No | 12VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 56.39mm W | 50.29mm | - |
|
|
166F12PWR XFMR LAMINATED 3.78VA CHAS |
3,233 | 19.40 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 12.6V | 300mA | Single | Single | Yes | 3.78VA | Chassis Mount | Wire Leads | 60.45mm L x 35.05mm W | 35.05mm | 2000Vrms |
|
186D12PWR XFMR LAMINATED 31.5VA CHAS |
2,836 | 19.44 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 12.6V | 2.5A | Dual | Single | Yes | 31.5VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 52.20mm W | 49.02mm | 2000Vrms |
|
|
186D20PWR XFMR LAMINATED 30VA CHAS MT |
2,319 | 19.44 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 20V | 1.5A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 52.20mm W | 49.02mm | 2000Vrms |
|
|
186D28PWR XFMR LAMINATED 30VA CHAS MT |
3,584 | 19.44 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 28V | 1.07A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 52.20mm W | 49.02mm | 2000Vrms |
|
|
186D10PWR XFMR LAMINATED 30VA CHAS MT |
2,346 | 19.44 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 10V | 3A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 52.20mm W | 49.02mm | 2000Vrms |
|
|
186D24PWR XFMR LAMINATED 30VA CHAS MT |
3,947 | 19.44 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 24V | 1.25A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 52.20mm W | 49.02mm | 2000Vrms |
|
BD5GPWR XFMR LAMINATED 20VA CHAS MT |
3,847 | 19.93 |
RFQ |
Datasheet |
Bulk | BD | Active | Laminated Core | 240V | 24V | 830mA | Single | Single | No | 20VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 59.44mm W | 50.29mm | - |
|
|
BD2FPWR XFMR LAMINATED 20VA CHAS MT |
3,941 | 19.93 |
RFQ |
Datasheet |
Bulk | BD | Active | Laminated Core | 120V | 16V | 1.25A | Single | Single | No | 20VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 59.44mm W | 50.29mm | - |
|
|
BD5FPWR XFMR LAMINATED 20VA CHAS MT |
2,037 | 19.93 |
RFQ |
Datasheet |
Bulk | BD | Active | Laminated Core | 240V | 16V | 1.25A | Single | Single | No | 20VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 59.44mm W | 50.29mm | - |
|
|
BD2EPWR XFMR LAMINATED 20VA CHAS MT |
3,599 | 19.93 |
RFQ |
Datasheet |
Bulk | BD | Active | Laminated Core | 120V | 12V | 1.67A | Single | Single | No | 20VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 59.44mm W | 50.29mm | - |
|
164H12PWR XFMR LAMINATED 20VA TH |
3,907 | 20.17 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 3.2A, Series 1.6A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms |
|
|
164H10PWR XFMR LAMINATED 20VA TH |
3,665 | 20.17 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 4A, Series 2A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms |
|
|
164H20PWR XFMR LAMINATED 20VA TH |
3,514 | 20.17 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms |
|
|
164H24PWR XFMR LAMINATED 20VA TH |
3,549 | 20.17 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 1.6A, Series 800mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms |
|
|
166L14PWR XFMR LAMINATED 28VA CHAS MT |
2,344 | 20.24 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 14V | 2A | Single | Single | Yes | 28VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms |
|
183H12PWR XFMR LAMINATED 20VA TH |
2,882 | 20.26 |
RFQ |
Datasheet |
Bulk | 183 | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 3.2A, Series 1.6A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 41.28mm | 4000Vrms |
