| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
187B28PWR XFMR LAMINATED 5.6VA CHAS MT |
3,871 | 14.62 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 28V | 200mA | Single | Single | Yes | 5.6VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms |
|
|
187B12PWR XFMR LAMINATED 6.3VA CHAS MT |
3,686 | 14.62 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 12.6V | 500mA | Single | Single | Yes | 6.3VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms |
|
|
187B10PWR XFMR LAMINATED 6VA CHAS MT |
3,485 | 14.62 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 10V | 600mA | Single | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms |
|
|
187B16PWR XFMR LAMINATED 6.4VA CHAS MT |
2,375 | 14.62 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 16V | 400mA | Single | Single | Yes | 6.4VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms |
|
|
187B24PWR XFMR LAMINATED 6VA CHAS MT |
2,346 | 14.62 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 24V | 250mA | Single | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms |
|
166C24PWR XFMR LAMINATED 2.04VA CHAS |
2,278 | 14.75 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 24V | 85mA | Single | Single | Yes | 2.04VA | Chassis Mount | Wire Leads | 52.32mm L x 35.05mm W | 30.23mm | 2000Vrms |
|
|
166F12BPWR XFMR LAMINATED 3.6VA CHAS MT |
2,778 | 14.75 |
RFQ |
Datasheet |
Box | 166 | Active | Laminated Core | 115V | 12V | 300mA | Single | Single | Yes | 3.6VA | Chassis Mount | Wire Leads | 60.45mm L x 35.05mm W | 35.05mm | 2000Vrms |
|
160F20PWR XFMR LAMINATED 4.4VA TH |
3,592 | 14.95 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 440mA, Series 220mA | Dual | Single, Multiple Taps | No | 4.4VA | Through Hole | PC Pin | 42.93mm L x 31.75mm W | 36.83mm | 2000Vrms |
|

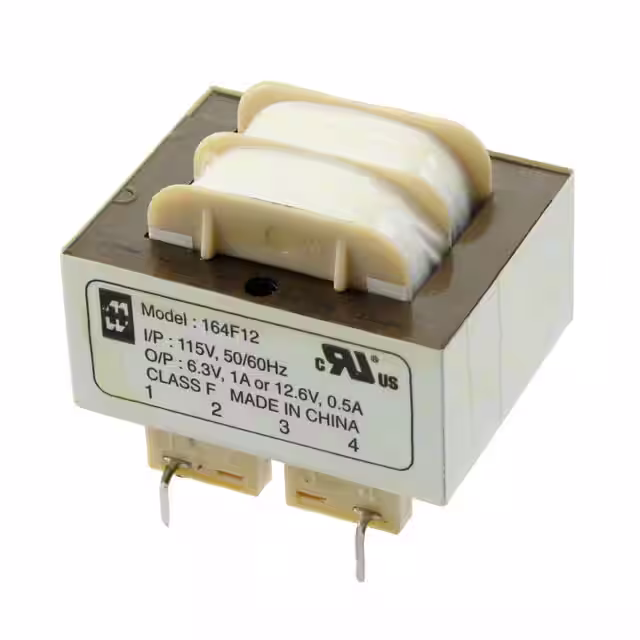

164F12PWR XFMR LAMINATED 6VA TH |
3,383 | 14.95 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 1A, Series 500mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
164F16PWR XFMR LAMINATED 6VA TH |
2,011 | 14.95 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
162F56PWR XFMR LAMINATED 6VA TH |
2,546 | 15.09 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 220mA, Series 110mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
229E56XFRMR SEMI-TORO 2VA THRU HOLE |
2,909 | 15.73 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 90mA, Series 45mA | Dual | Dual | No | 2VA | Through Hole | PC Pin | 39.62mm L x 47.75mm W | 16.51mm | 1750Vrms |
|

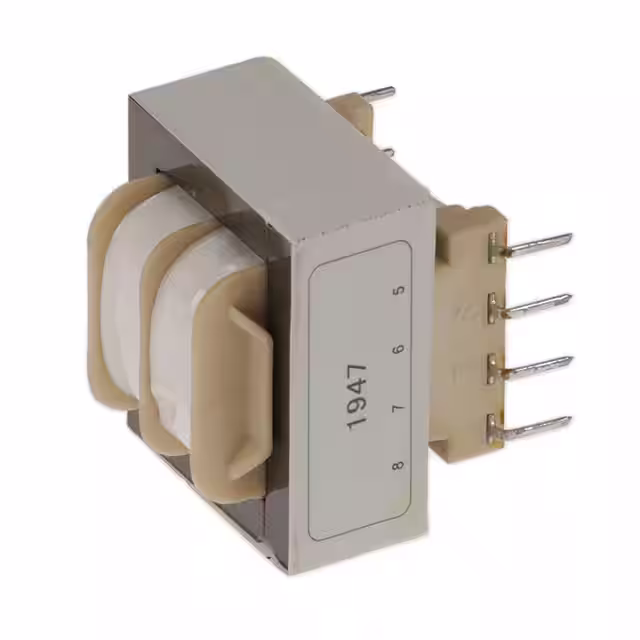

162E10XFRMR LAMINATED 2.4VA THRU HOLE |
3,643 | 15.80 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
|
162E16XFRMR LAMINATED 2.4VA THRU HOLE |
3,553 | 15.80 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 300mA, Series 150mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
|
164G120PWR XFMR LAMINATED 12VA TH |
3,569 | 15.82 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 200mA, Series 100mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms |
|
|
164G12PWR XFMR LAMINATED 12VA TH |
3,749 | 15.82 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 2A, Series 1A | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms |
|
|
164G48PWR XFMR LAMINATED 12VA TH |
2,026 | 15.82 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 500mA, Series 250mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms |
|
183G12PWR XFMR LAMINATED 10VA TH |
2,210 | 15.93 |
RFQ |
Datasheet |
Bulk | 183 | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 34.93mm | 4000Vrms |
|
|
183G36PWR XFMR LAMINATED 10VA TH |
3,655 | 15.93 |
RFQ |
Datasheet |
Bulk | 183 | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 560mA, Series 280mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 34.93mm | 4000Vrms |
|
|
183G16PWR XFMR LAMINATED 10VA TH |
2,195 | 15.93 |
RFQ |
Datasheet |
Bulk | 183 | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 1.25A, Series 625mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 34.93mm | 4000Vrms |
