Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

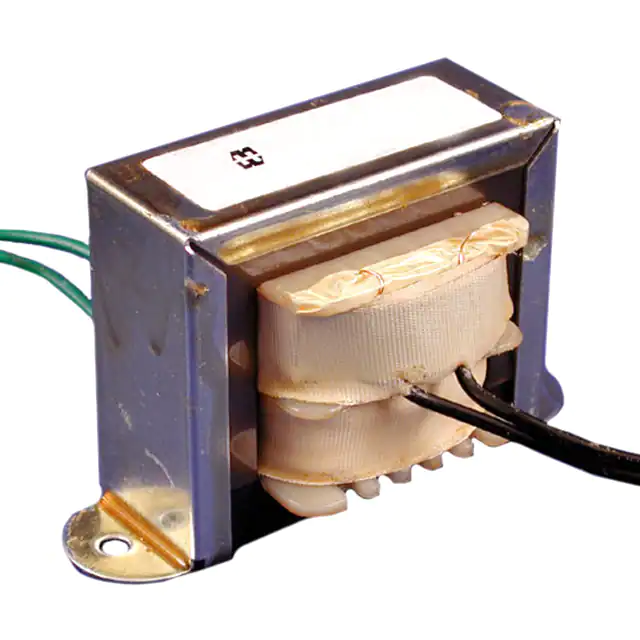

166F12D PWR XFMR LAMINATED 4.2VA CHAS MT Hammond Manufacturing	2,158	19.17	RFQ		Bulk	166	Active	Laminated Core	117V	12V	350mA	Single	Single	Yes	4.2VA	Chassis Mount	Wire Leads	60.45mm L x 35.05mm W	35.05mm	2000Vrms
162H16 PWR XFMR LAMINATED 20VA TH Hammond Manufacturing	2,936	19.26	RFQ	Datasheet	Bulk	162	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 2.5A, Series 1.25A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.52mm	2500Vrms
166G6 PWR XFMR LAMINATED 3.78VA CHAS Hammond Manufacturing	3,243	19.40	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	6.3V	600mA	Single	Single	Yes	3.78VA	Chassis Mount	Wire Leads	60.45mm L x 35.05mm W	35.05mm	2000Vrms
166F14 PWR XFMR LAMINATED 3.5VA CHAS MT Hammond Manufacturing	2,516	19.89	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	14V	250mA	Single	Single	Yes	3.5VA	Chassis Mount	Wire Leads	60.45mm L x 34.29mm W	36.32mm	2000Vrms
BD2FF PWR XFMR LAMINATED 20VA CHAS MT Hammond Manufacturing	2,417	19.93	RFQ	Datasheet	Bulk	BD	Active	Laminated Core	120V	18V	1.11A	Single	Single	No	20VA	Chassis Mount	Wire Leads, Quick Connect	59.18mm L x 59.44mm W	50.29mm	-
164H56 PWR XFMR LAMINATED 20VA TH Hammond Manufacturing	3,941	20.17	RFQ	Datasheet	Bulk	164	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 700mA, Series 350mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.52mm	2500Vrms
164H48 PWR XFMR LAMINATED 20VA TH Hammond Manufacturing	2,464	20.17	RFQ	Datasheet	Bulk	164	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 800mA, Series 400mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.52mm	2500Vrms
166L10 PWR XFMR LAMINATED 20VA CHAS MT Hammond Manufacturing	2,987	20.34	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	10V	2A	Single	Single	Yes	20VA	Chassis Mount	Wire Leads	82.55mm L x 44.45mm W	50.80mm	2000Vrms
183J24 PWR XFMR LAMINATED 30VA TH Hammond Manufacturing	3,927	20.67	RFQ	Datasheet	Bulk	183	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 2.5A, Series 1.25A	Dual	Dual	No	30VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.70mm	4000Vrms
166J25B PWR XFMR LAMINATED 25VA CHAS MT Hammond Manufacturing	3,916	20.69	RFQ	Datasheet	Box	166	Active	Laminated Core	117V	25V	1A	Single	Single	Yes	25VA	Chassis Mount	Wire Leads	82.55mm L x 50.80mm W	50.80mm	2000Vrms
166F36A PWR XFMR LAMINATED 10.8VA CHAS Hammond Manufacturing	2,934	20.72	RFQ	Datasheet	Bulk	166	Active	Laminated Core	117V	36V	300mA	Single	Single	Yes	10.8VA	Chassis Mount	Wire Leads	71.37mm L x 41.40mm W	42.93mm	2000Vrms
229C30 PWR XFMR SEMI-TORO 24VA TH Hammond Manufacturing	3,327	21.43	RFQ	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 1.6A, Series 800mA	Dual	Dual	No	24VA	Through Hole	PC Pin	57.15mm L x 72.90mm W	31.75mm	1750Vrms
185C230 PWR XFMR LAMINATED 25VA CHAS MT Hammond Manufacturing	2,513	21.43	RFQ	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 220mA, Series 110mA	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 56.39mm W	58.67mm	4000Vrms
186E120 XFRMR LAMINATED 60VA CHAS MOUNT Hammond Manufacturing	3,545	21.53	RFQ	Datasheet	Box	186	Active	Laminated Core	115V, 230V	120V	500mA	Dual	Single	Yes	60VA	Chassis Mount	Solder, Quick Connect	93.47mm L x 45.97mm W	57.15mm	2000Vrms
186E48 XFRMR LAMINATED 57.6VA CHAS MNT Hammond Manufacturing	2,356	21.53	RFQ	Datasheet	Box	186	Active	Laminated Core	115V, 230V	48V	1.2A	Dual	Single	Yes	57.6VA	Chassis Mount	Solder, Quick Connect	93.47mm L x 45.97mm W	57.15mm	2000Vrms
266C24 PWR XFMR LAMINATED 2VA CHAS MT Hammond Manufacturing	2,239	21.72	RFQ	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 12V, Series 24V	Parallel 170mA, Series 85mA	Dual	Dual	No	2VA	Chassis Mount	Wire Leads	52.32mm L x 35.05mm W	30.23mm	2000Vrms

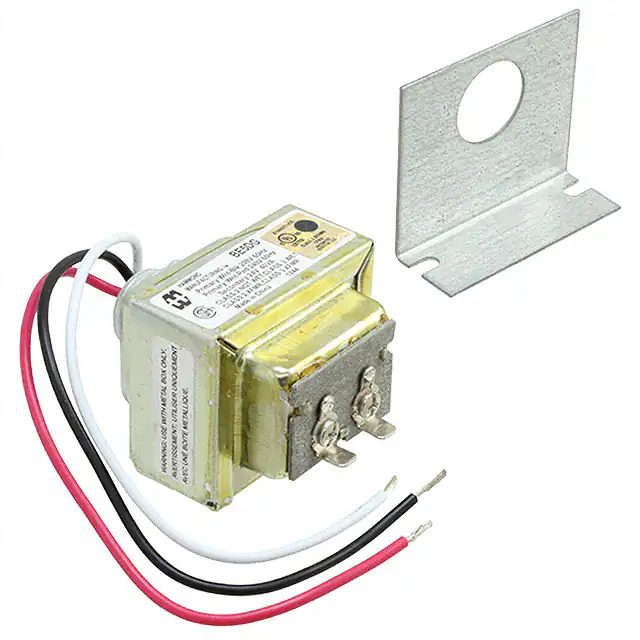

BE5DG PWR XFMR LAMINATED 40VA CHAS MT Hammond Manufacturing	2,108	21.87	RFQ	Datasheet	Bulk	BE	Active	Laminated Core	208V, 240V	24V	1.67A	Single	Single	No	40VA	Chassis Mount	Wire Leads, Quick Connect	59.18mm L x 66.04mm W	50.29mm	-
BE7G PWR XFMR LAMINATED 40VA CHAS MT Hammond Manufacturing	2,358	21.87	RFQ	Datasheet	Bulk	BE	Active	Laminated Core	347V	24V	1.67A	Single	Single	No	40VA	Chassis Mount	Wire Leads, Quick Connect	59.18mm L x 66.04mm W	50.29mm	-
160H20 PWR XFMR LAMINATED 24VA TH Hammond Manufacturing	2,760	22.15	RFQ	Datasheet	Bulk	160	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 2.4A, Series 1.2A	Dual	Single, Multiple Taps	No	24VA	Through Hole	PC Pin	41.40mm L x 57.15mm W	35.05mm	2000Vrms
161H12 PWR XFMR LAMINATED 24VA TH Hammond Manufacturing	2,451	22.15	RFQ	Datasheet	Bulk	161	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 4A, Series 2A	Single	Single, Multiple Taps	No	24VA	Through Hole	PC Pin	41.40mm L x 57.15mm W	35.05mm	2000Vrms
