| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

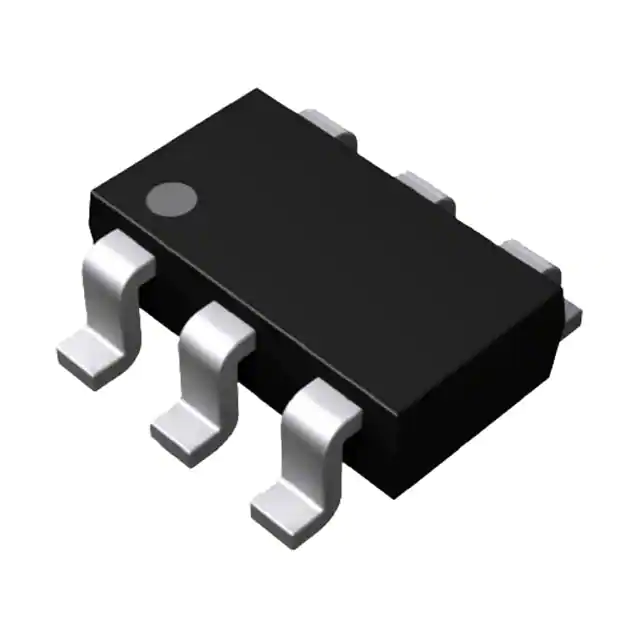

RQ6L035ATTCRPCH -60V -3.5A POWER MOSFET - RQ |
2,536 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 3.5A (Ta) | 4.5V, 10V | 78mOhm @ 3.5A, 10V | 2.5V @ 1mA | 22 nC @ 10 V | ±20V | 1190 pF @ 30 V | - | 950mW (Ta) | 150°C (TJ) | Surface Mount |
|
RD3G03BATTL1PCH -40V -35A POWER MOSFET - RD3 |
2,044 | 1.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 35A (Ta) | 4.5V, 10V | 19.1mOhm @ 35A, 10V | 2.5V @ 1mA | 38 nC @ 10 V | ±20V | 2100 pF @ 20 V | - | 56W (Ta) | 150°C (TJ) | Surface Mount |
|
RSS070P05HZGTBPCH -45V -7A POWER MOSFET. RSS07 |
3,775 | 1.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 45 V | 7A (Ta) | 4V, 10V | 27mOhm @ 7A, 10V | 2.5V @ 1mA | 47.6 nC @ 5 V | ±20V | 4100 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Surface Mount |
|
|
RSS065N06HZGTBNCH 60V 6.5A POWER MOSFET. RSS06 |
3,436 | 1.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6.5A (Ta) | 4V, 10V | 37mOhm @ 6.5A, 10V | 2.5V @ 1mA | 16 nC @ 5 V | ±20V | 900 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Surface Mount |
|
R6504END3TL1650V 4A TO-252, LOW-NOISE POWER |
2,370 | 1.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 1.05Ohm @ 1.5A, 10V | 4V @ 130µA | 15 nC @ 10 V | ±20V | 220 pF @ 25 V | - | 58W (Tc) | 150°C | Surface Mount |
|
|
RSS100N03HZGTBNCH 30V 10A AUTOMOTIVE POWER MOS |
2,567 | 1.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4V, 10V | 13.3mOhm @ 10A, 10V | 2.5V @ 1mA | 20 nC @ 5 V | ±20V | 1070 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Surface Mount |
|
|
RRS090P03HZGTBAUTOMOTIVE PCH -30V -9A POWER MO |
2,587 | 1.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4V, 10V | 15.4mOhm @ 9A, 10V | 2.5V @ 1mA | 30 nC @ 5 V | ±20V | 3000 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Surface Mount |
|
|
R6507KND3TL1HIGH-SPEED SWITCHING, NCH 650V 7 |
2,574 | 1.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 665mOhm @ 2.4A, 10V | 5V @ 200µA | 14.5 nC @ 10 V | ±20V | 470 pF @ 25 V | - | 78W (Tc) | 150°C (TJ) | Surface Mount |
|
|
RH6G040BGTB1NCH 40V 95A, HSMT8, POWER MOSFET |
3,364 | 1.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 4.5V, 10V | 3.6mOhm @ 40A, 10V | 2.5V @ 1mA | 25 nC @ 10 V | ±20V | 1580 pF @ 20 V | - | 59W (Tc) | 150°C (TJ) | Surface Mount |
|
|
RH6P040BHTB1NCH 100V 40A, HSMT8, POWER MOSFE |
2,560 | 1.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 6V, 10V | 15.6mOhm @ 40A, 10V | 4V @ 1mA | 16.7 nC @ 10 V | ±20V | 1080 pF @ 50 V | - | 59W (Tc) | 150°C (TJ) | Surface Mount |
.jpg)
|
RSS070N05HZGTBAUTOMOTIVE NCH 45V 7A POWER MOSF |
2,568 | 2.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 45 V | 7A (Ta) | 4V, 10V | 25mOhm @ 7A, 10V | 2.5V @ 1mA | 16.8 nC @ 5 V | ±20V | 1000 pF @ 10 V | - | 1.4W (Ta) | 150°C (TJ) | Surface Mount |
|
|
RRS100P03HZGTBPCH -30V -10A POWER MOSFET. RRS1 |
3,591 | 2.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V, 10V | 12.6mOhm @ 10A, 10V | 2.5V @ 1mA | 39 nC @ 5 V | ±20V | 3600 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Surface Mount |
|
|
RH6L040BGTB1NCH 60V 65A, HSMT8, POWER MOSFET |
2,812 | 2.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 40A (Ta) | 4.5V, 10V | 7.1mOhm @ 40A, 10V | 2.5V @ 1mA | 18.8 nC @ 10 V | ±20V | 1320 pF @ 30 V | - | 2W (Ta), 59W (Tc) | 150°C (TJ) | Surface Mount |
|
|
RSS130N03HZGTBNCH 30V 13A AUTOMOTIVE POWER MOS |
3,988 | 2.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4V, 10V | 8.3mOhm @ 13A, 10V | 2.5V @ 1mA | 35 nC @ 5 V | ±20V | 2000 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Surface Mount |
|
RD3U080AAFRATL250V 8A TO-252, AUTOMOTIVE POWER |
2,415 | 2.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 8A (Tc) | 10V | 300mOhm @ 4A, 10V | 5V @ 1mA | 25 nC @ 10 V | ±30V | 1440 pF @ 25 V | - | 85W (Tc) | 150°C (TJ) | Surface Mount |
|
|
RSS060P05HZGTBPCH -45V -6A POWER MOSFET: RSS06 |
2,951 | 2.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 45 V | 6A (Ta) | 4V, 10V | 36mOhm @ 6A, 10V | 2.5V @ 1mA | 32.2 nC @ 5 V | ±20V | 2700 pF @ 10 V | - | 1.4W (Ta) | 150°C (TJ) | Surface Mount |
|
|
R6511KND3TL1HIGH-SPEED SWITCHING, NCH 650V 1 |
3,582 | 2.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 400mOhm @ 3.8A, 10V | 5V @ 320µA | 22 nC @ 10 V | ±20V | 760 pF @ 25 V | - | 124W (Tc) | 150°C (TJ) | Surface Mount |
|
|
RD3L07BATTL1PCH -60V -70A POWER MOSFET - RD3 |
3,360 | 2.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 70A (Ta) | 4.5V, 10V | 12.7mOhm @ 70A, 10V | 2.5V @ 1mA | 105 nC @ 10 V | ±20V | 6700 pF @ 30 V | - | 101W (Ta) | 150°C (TJ) | Surface Mount |
|
|
RSS095N05HZGTBNCH 45V 9.5A POWER MOSFET: RSS09 |
3,427 | 2.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 45 V | 9.5A (Ta) | 4V, 10V | 16mOhm @ 9.5A, 10V | 2.5V @ 1mA | 26.5 nC @ 5 V | ±20V | 1830 pF @ 10 V | - | 1.4W (Ta) | 150°C (TJ) | Surface Mount |
|
|
RS1E350BNTB1NCH 30V 80A POWER MOSFET: RS1E35 |
2,419 | 3.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 35A (Ta), 80A (Tc) | 4.5V, 10V | 1.7mOhm @ 35A, 10V | 2.5V @ 1mA | 185 nC @ 10 V | ±20V | 7900 pF @ 15 V | - | 3W (Ta), 35W (Tc) | 150°C (TJ) | Surface Mount |
