| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZXMN2A03E6TCMOSFET N-CH 20V 3.7A SOT23-6 |
3,634 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.7A (Ta) | 2.5V, 4.5V | 55mOhm @ 7.2A, 4.5V | 700mV @ 250µA (Min) | 8.2 nC @ 4.5 V | ±12V | 837 pF @ 10 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMN3A01E6TCMOSFET N-CH 30V 2.4A SOT23-6 |
3,759 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 2.4A (Ta) | 4.5V, 10V | 120mOhm @ 2.5A, 10V | 1V @ 250µA | 3.9 nC @ 10 V | ±20V | 190 pF @ 25 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXMN3A01FTCMOSFET N-CH 30V 1.8A SOT23-3 |
3,891 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.8A (Ta) | 4.5V, 10V | 120mOhm @ 2.5A, 10V | 1V @ 250µA | 3.9 nC @ 10 V | ±20V | 190 pF @ 25 V | - | 625mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMN3A03E6TCMOSFET N-CH 30V 3.7A SOT23-6 |
2,181 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.7A (Ta) | 4.5V, 10V | 50mOhm @ 7.8A, 10V | 1V @ 250µA | 12.6 nC @ 10 V | ±20V | 600 pF @ 25 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXMN3B04N8TCMOSFET N-CH 30V 7.2A 8SO |
3,229 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.2A (Ta) | 2.5V, 4.5V | 25mOhm @ 7.2A, 4.5V | 700mV @ 250µA (Min) | 23.1 nC @ 4.5 V | ±12V | 2480 pF @ 15 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMN6A07FTCMOSFET N-CH 60V 1.2A SOT23-3 |
3,604 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 1.2A (Ta) | 4.5V, 10V | 250mOhm @ 1.8A, 10V | 3V @ 250µA | 3.2 nC @ 10 V | ±20V | 166 pF @ 40 V | - | 625mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXMN6A08E6TCMOSFET N-CH 60V 2.8A SOT26 |
2,330 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 2.8A (Ta) | 4.5V, 10V | 80mOhm @ 4.8A, 10V | 1V @ 250µA | 5.8 nC @ 10 V | ±20V | 459 pF @ 40 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXMN6A11GTCMOSFET N-CH 60V 3.1A SOT223 |
2,841 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 3.1A (Ta) | 4.5V, 10V | 120mOhm @ 2.5A, 10V | 1V @ 250µA | 5.7 nC @ 10 V | ±20V | 330 pF @ 40 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXMNS3BM832TAMOSFET N-CH 30V 2A 8MLP |
3,213 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 2.5V, 4.5V | 180mOhm @ 1.5A, 4.5V | 700mV @ 250µA (Min) | 2.9 nC @ 4.5 V | ±12V | 314 pF @ 15 V | Schottky Diode (Isolated) | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

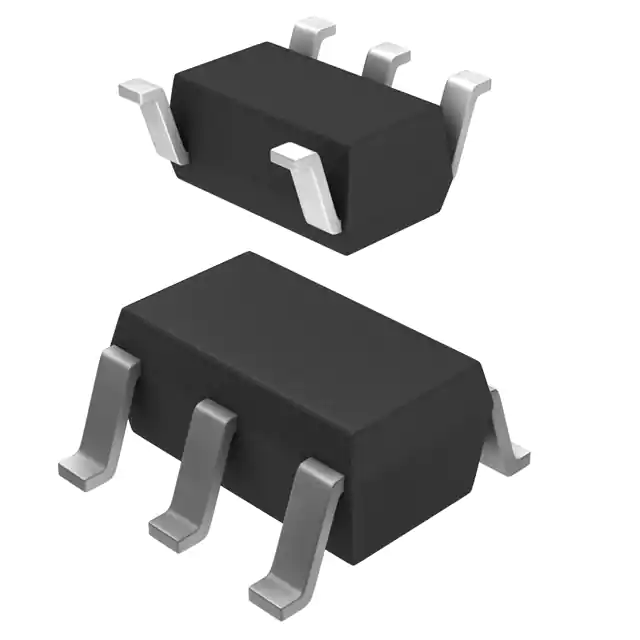

ZXMP2120E5TAMOSFET P-CH 200V 122MA SOT25 |
2,813 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200 V | 122mA (Ta) | 10V | 28Ohm @ 150mA, 10V | 3.5V @ 1mA | - | ±20V | 100 pF @ 25 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN5L06-7MOSFET N-CH 50V 280MA SOT23-3 |
3,035 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 280mA (Ta) | 1.8V, 2.7V | 3Ohm @ 200mA, 2.7V | 1.2V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXMN4A06KTCMOSFET N-CH 40V 7.2A TO252-3 |
2,589 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 7.2A (Ta) | 4.5V, 10V | 50mOhm @ 4.5A, 10V | 1V @ 250µA | 17.1 nC @ 10 V | ±20V | 827 pF @ 20 V | - | 2.15W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMN10A11KMOSFET N-CH 100V 2.4A TO252-3 |
2,305 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 2.4A (Ta) | 6V, 10V | 350mOhm @ 2.6A, 10V | 4V @ 250µA | 5.4 nC @ 10 V | ±20V | 274 pF @ 50 V | - | 2.11W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMN6A25GMOSFET N-CH 60V 4.8A SOT223 |
2,141 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 4.8A (Ta) | 4.5V, 10V | 50mOhm @ 3.6A, 10V | 1V @ 250µA | 20.4 nC @ 10 V | ±20V | 1063 pF @ 30 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMN6A25KMOSFET N-CH 60V 7A TO252-3 |
3,790 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 7A (Ta) | 4.5V, 10V | 50mOhm @ 3.6A, 10V | 3V @ 250µA | 20.4 nC @ 10 V | ±20V | 1063 pF @ 30 V | - | 2.11W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMP10A18KMOSFET P-CH 100V 3.8A TO252-3 |
2,526 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 3.8A (Ta) | 6V, 10V | 150mOhm @ 2.8A, 10V | 4V @ 250µA | 26.9 nC @ 10 V | ±20V | 1055 pF @ 50 V | - | 2.17W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NMSD200B01-7MOSFET N-CH 60V 200MA SOT363 |
3,229 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 5V, 10V | 3Ohm @ 50mA, 5V | 3V @ 1mA | - | ±20V | 50 pF @ 25 V | Schottky Diode (Isolated) | 200mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2170U-7MOSFET N-CH 20V 2.3A SOT23-3 |
2,059 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.3A (Ta) | 1.5V, 4.5V | 70mOhm @ 3A, 4.5V | 1V @ 250µA | - | ±12V | 217 pF @ 10 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3115UDM-7MOSFET N-CH 30V 3.2A SOT-26 |
2,038 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.2A (Ta) | 1.5V, 4.5V | 60mOhm @ 6A, 4.5V | 1V @ 250µA | - | ±8V | 476 pF @ 15 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

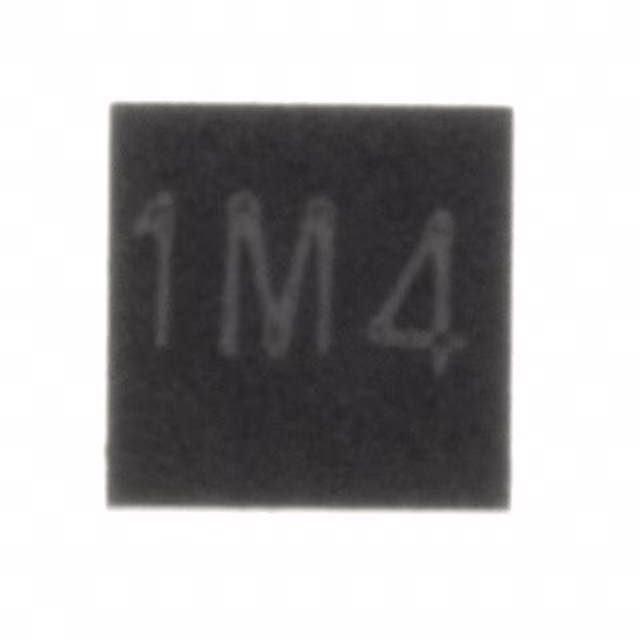

ZXMN2F34MATAMOSFET N-CH 20V 4A DFN322 |
3,362 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 2.5V, 4.5V | 60mOhm @ 2.5A, 4.5V | 1.5V @ 250µA | 2.8 nC @ 4.5 V | ±12V | 277 pF @ 10 V | - | 1.35W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
