| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMP3025LK3-13MOSFET P-CH 30V 10.6A TO252-3 |
2,120 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 10.6A (Ta) | 4.5V, 10V | 25mOhm @ 7.1A, 10V | 3V @ 250µA | 31.6 nC @ 10 V | ±20V | 1678 pF @ 15 V | - | 2.15W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMG4468LFGMOSFET N-CH 30V 7.62A 8DFN |
2,953 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.62A (Ta) | 4.5V, 10V | 15mOhm @ 11.6A, 10V | 2V @ 250µA | 18.85 nC @ 10 V | ±20V | 867 pF @ 10 V | - | 990mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN26D0UFB4-7MOSFET N-CH 20V 230MA 3DFN |
3,262 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 230mA (Ta) | 1.5V, 4.5V | 3Ohm @ 100mA, 4.5V | 1.1V @ 250µA | - | ±10V | 14.1 pF @ 15 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

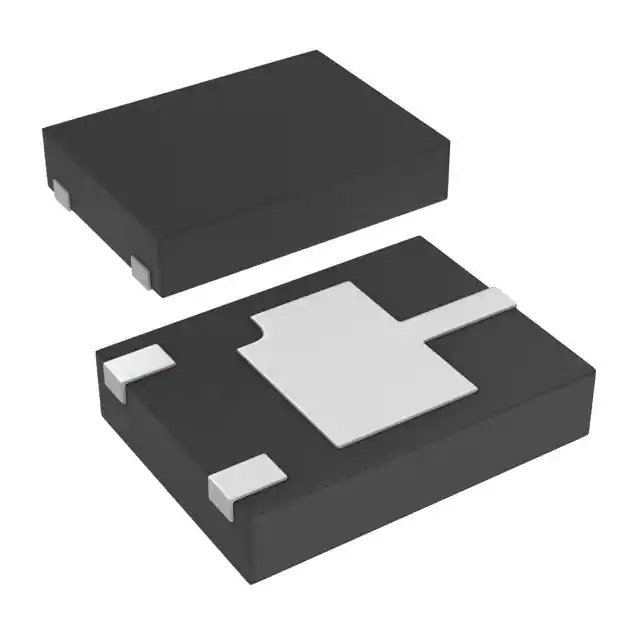

DMG3415UFY4-7MOSFET P-CH 16V 2.5A DFN2015H4-3 |
2,454 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 16 V | 2.5A (Ta) | 1.8V, 4.5V | 39mOhm @ 4A, 4.5V | 1V @ 250µA | 10 nC @ 4.5 V | ±8V | 281.9 pF @ 10 V | - | 400mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMG4712SSS-13MOSFET N-CH 30V 11.2A 8SOP |
447 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.2A (Ta) | 4.5V, 10V | 14mOhm @ 11.2A, 10V | 2.2V @ 250µA | 45.7 nC @ 10 V | ±12V | 2296 pF @ 15 V | Schottky Diode (Body) | 1.55W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG4435SSS-13MOSFET P-CH 30V 7.3A 8SOP |
2,995 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.3A (Ta) | 5V, 20V | 16mOhm @ 11A, 20V | 2.5V @ 250µA | 35.4 nC @ 10 V | ±25V | 1614 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG8880LSS-13MOSFET N-CH 30V 11.6A 8SOP |
3,305 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.6A (Ta) | 4.5V, 10V | 10mOhm @ 11.6A, 10V | 2V @ 250µA | 27.6 nC @ 10 V | ±20V | 1289 pF @ 15 V | - | 1.43W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMP6A17N8TCMOSFET P-CH 60V 2.7A 8SO |
3,555 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.7A (Ta) | 4.5V, 10V | 125mOhm @ 2.3A, 10V | 1V @ 250µA | 17.7 nC @ 10 V | ±20V | 637 pF @ 30 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN4027SSS-13MOSFET N-CH 40V 6A 8SO |
3,696 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 6A (Ta) | 4.5V, 10V | 27mOhm @ 7A, 10V | 3V @ 250µA | 12.9 nC @ 10 V | ±20V | 604 pF @ 20 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMS3014SSS-13MOSFET N-CH 30V 10.4A 8SO |
1,025 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.4A (Ta) | 4.5V, 10V | 13mOhm @ 10.4A, 10V | 2.2V @ 250µA | 45.7 nC @ 10 V | ±12V | 2296 pF @ 15 V | Schottky Diode (Body) | 1.55W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3005LK3-13MOSFET N-CH 30V 14.5A TO252-3 |
3,351 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 30 V | 14.5A (Ta) | 4.5V, 10V | 5mOhm @ 20A, 10V | 2V @ 250µA | 46.9 nC @ 4.5 V | ±20V | 4342 pF @ 15 V | - | 1.68W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMS3016SSSA-13MOSFET N-CH 30V 9.8A 8SO |
3,001 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.8A (Ta) | 4.5V, 10V | 13mOhm @ 9.8A, 10V | 2.3V @ 250µA | 43 nC @ 10 V | ±12V | 1849 pF @ 15 V | Schottky Diode (Body) | 1.54W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP1096UCB4-7MOSFET P-CH 12V 2.6A U-WLB1010-4 |
2,373 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 2.6A (Ta) | 1.5V, 4.5V | 102mOhm @ 500mA, 4.5V | 1V @ 250µA | 3.7 nC @ 4.5 V | -5V | 251 pF @ 6 V | - | 820mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMS3012SFG-7MOSFET N-CH 30V 12A POWERDI3333 |
3,793 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 4.5V, 10V | 10mOhm @ 13.5A, 10V | 2.5V @ 250µA | 14.7 nC @ 10 V | ±20V | 4310 pF @ 15 V | Schottky Diode (Body) | 890mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG4406LSS-13MOSFET N CH 30V 10.3A 8-SO |
2,478 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.3A (Ta) | 4.5V, 10V | 11mOhm @ 12A, 10V | 2V @ 250µA | 26.7 nC @ 10 V | ±20V | 1281 pF @ 15 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP1022UFDE-7MOSFET P-CH 12V 9.1A 6UDFN |
3,012 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 9.1A (Ta) | 1.2V, 4.5V | 16mOhm @ 8.2A, 4.5V | 800mV @ 250µA | 42.6 nC @ 5 V | ±8V | 2953 pF @ 4 V | - | 660mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP57D5UFB-7MOSFET P-CH 50V 200MA 3DFN |
2,726 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 200mA (Ta) | 2.5V, 4V | 6Ohm @ 100mA, 4V | 1V @ 250µA | - | ±8V | 29 pF @ 4 V | - | 425mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP1080UCB4-7MOSFET P-CH 12V 3.3A U-WLB1010-4 |
3,561 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 3.3A (Ta) | 1.5V, 4.5V | 80mOhm @ 500mA, 4.5V | 1V @ 250µA | 5 nC @ 4.5 V | -6V | 350 pF @ 6 V | - | 820mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP21D5UFD-7MOSFET P-CH 20V 600MA 3DFN |
3,321 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 600mA (Ta) | 1.2V, 4.5V | 1Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.8 nC @ 8 V | ±8V | 46.1 pF @ 10 V | - | 400mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMG9N65CTIMOSFET N-CH 650V 9A ITO220AB |
2,545 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 9A (Tc) | 10V | 1.3Ohm @ 4.5A, 10V | 5V @ 250µA | 39 nC @ 10 V | ±30V | 2310 pF @ 25 V | - | 13W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
