| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMG4N65CTMOSFET N CH 650V 4A TO220-3 |
3,292 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 3Ohm @ 2A, 10V | 5V @ 250µA | 13.5 nC @ 10 V | ±30V | 900 pF @ 25 V | - | 2.19W (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
DMP3120L-7MOSFET P-CH 30V 2.8A SOT-23 |
2,142 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.8A (Ta) | 2.5V, 4.5V | 120mOhm @ 2.8A, 4.5V | 1.4V @ 250µA | 6.7 nC @ 10 V | ±12V | 285 pF @ 15 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXM62P03E6TCMOSFET P-CH 30V 1.5A SOT26 |
2,562 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.5A (Ta) | 4.5V, 10V | 230mOhm @ 800mA, 4.5V | 1V @ 250µA | 10.2 nC @ 10 V | ±20V | 330 pF @ 25 V | - | 625mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXMP3F35N8TAMOSFET P-CH 30V 9.3A 8SO |
2,384 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 9.3A (Ta) | 4.5V, 10V | 12mOhm @ 12A, 10V | 2.6V @ 250µA | 77.1 nC @ 10 V | ±20V | 4600 pF @ 15 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMP3F36N8TAMOSFET P-CH 30V 7.2A 8SO |
2,233 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.2A (Ta) | 4.5V, 10V | 20mOhm @ 10A, 10V | 2.5V @ 250µA | 43.9 nC @ 15 V | ±20V | 2265 pF @ 15 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMP3F37N8TAMOSFET P-CH 30V 6.4A 8SO |
2,014 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 6.4A (Ta) | 4.5V, 10V | 25mOhm @ 7.1A, 10V | 2.5V @ 250µA | 31.6 nC @ 10 V | ±20V | 1678 pF @ 15 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP3017SFG-7MOSFET P-CH 30V 11.5A PWRDI3333 |
3,547 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11.5A (Ta) | 4.5V, 10V | 10mOhm @ 11.5A, 10V | 3V @ 250µA | 41 nC @ 10 V | ±25V | 2246 pF @ 15 V | - | 940mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMG6968LSD-13MOSFET N-CH 20V 6.5A 8-SOP |
2,324 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 6.5A (Ta) | 1.8V, 4.5V | 36mOhm @ 3.5A, 1.8V | 1.5V @ 250µA | 8.5 nC @ 4.5 V | - | 151 pF @ 10 V | - | - | - | Surface Mount | |
|
DMP2066LVT-13MOSFET P-CH 20V 4.5A TSOT26 |
3,845 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 2.5V, 4.5V | 45mOhm @ 4.5A, 4.5V | 1.5V @ 250µA | 14.4 nC @ 4.5 V | ±8V | 1496 pF @ 15 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP3017SFG-13MOSFET P-CH 30V 11.5A PWRDI3333 |
3,707 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11.5A (Ta) | 4.5V, 10V | 10mOhm @ 11.5A, 10V | 3V @ 250µA | 41 nC @ 10 V | ±25V | 2246 pF @ 15 V | - | 940mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP3025LK3-13-01MOSFET P-CH 30V 10.6A TO252 |
3,003 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 16.1A (Ta) | 4.5V, 10V | 25mOhm @ 7.1A, 10V | 3V @ 250µA | 31.6 nC @ 10 V | ±20V | 1.678 pF @ 15 V | - | 2.15W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
DMP3065LVT-7MOSFET P-CH 30V 4.9A TSOT-26 |
2,094 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.9A (Ta) | 4.5V, 10V | 42mOhm @ 4.9A, 10V | 2.1V @ 250µA | 12.3 nC @ 10 V | ±20V | 587 pF @ 15 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP2006UFG-7MOSFET P-CH 20V 17.5A POWERDI |
3,034 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 17.5A (Ta), 40A (Tc) | 1.5V, 4.5V | 5.2mOhm @ 15A, 4.5V | 1V @ 250µA | 140 nC @ 10 V | ±10V | 5404 pF @ 10 V | - | 2.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN7022LFG-13MOSFET N-CH 75V 7.8A PWRDI3333-8 |
2,152 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 7.8A (Ta) | 4.5V, 10V | 22mOhm @ 7.2A, 10V | 3V @ 250µA | 56.5 nC @ 10 V | ±20V | 2737 pF @ 35 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

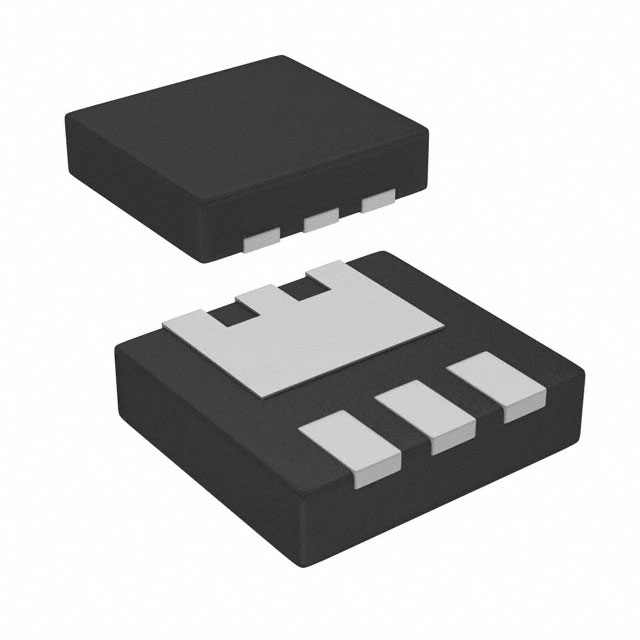

DMP3017SFK-7MOSFET P-CH 30V 10.4A 6UDFN |
3,356 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 10.4A (Ta) | 4.5V, 10V | 14mOhm @ 9.5A, 10V | 3V @ 250µA | 90 nC @ 10 V | ±25V | 4414 pF @ 15 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP1555UFA-7BMOSFET P-CH 12V 200MA 3DFN |
3,415 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 200mA (Ta) | 1.5V, 4.5V | 800mOhm @ 200mA, 4.5V | 1V @ 250µA | 0.84 nC @ 4.5 V | ±8V | 55.4 pF @ 10 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP210DUFB4-7BMOSFET P-CH 20V 200MA 3DFN |
2,563 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 200mA (Ta) | 1.2V, 4.5V | 5Ohm @ 100mA, 4.5V | 1V @ 250µA | - | ±10V | 175 pF @ 15 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP1200UFR4-7MOSFET P-CH 12V 2A X2-DFN1010-3 |
3,043 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 2A (Ta) | 1.5V, 4.5V | 100mOhm @ 2A, 4.5V | 1V @ 250µA | 5.8 nC @ 4.5 V | ±8V | 514 pF @ 5 V | - | 480mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMS3012SFG-13MOSFET N-CH 30V 12A POWERDI3333 |
2,324 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 4.5V, 10V | 10mOhm @ 13.5A, 10V | 2.5V @ 250µA | 14.7 nC @ 10 V | ±20V | 4310 pF @ 15 V | Schottky Diode (Body) | 890mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG3413L-7MOSFET P-CH 20V 3A SOT23 |
2,913 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.8V, 4.5V | 95mOhm @ 3A, 4.5V | 1.3V @ 250µA | 9 nC @ 4.5 V | ±8V | 857 pF @ 10 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
