| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM300HA-24HIGBT MOD 1200V 300A 2100W |
3,410 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Single | 1200 V | 300 A | 2100 W | 3.4V @ 15V, 300A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM300HA-28HIGBT MOD 1400V 300A 2100W |
3,342 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Single | 1400 V | 300 A | 2100 W | 4.2V @ 15V, 300A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM30TF-12HIGBT MODULE 600V 30A 150W |
2,482 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Three Phase Inverter | 600 V | 30 A | 150 W | 2.8V @ 15V, 30A | 1 mA | 3 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM30TF-24HIGBT MOD 1200V 30A 310W |
2,385 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Three Phase Inverter | 1200 V | 30 A | 310 W | 3.4V @ 15V, 30A | 1 mA | 6 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM400DU-12FIGBT MOD 600V 400A 960W |
2,477 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | Trench | Half Bridge | 600 V | 400 A | 960 W | 2.2V @ 15V, 400A | 1 mA | 110 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM400DU-12HIGBT MOD 600V 400A 1130W |
3,232 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 600 V | 400 A | 1130 W | 3V @ 15V, 400A | 1 mA | 35.2 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

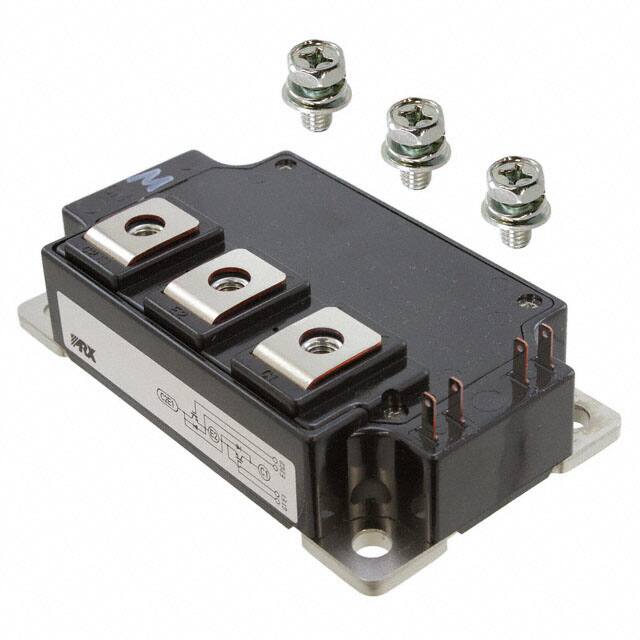

CM400DU-12NFHIGBT MOD 600V 400A 960W |
2,729 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 600 V | 400 A | 960 W | 2.7V @ 15V, 400A | 1 mA | 110 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM400DU-24FIGBT MOD 1200V 400A 1100W |
3,946 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 400 A | 1100 W | 2.4V @ 15V, 400A | 2 mA | 160 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
CM400DU-24HIGBT MOD 1200V 400A 2100W |
3,546 | 0.00 |
RFQ |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1200 V | 400 A | 2100 W | 3.7V @ 15V, 400A | 2 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
|

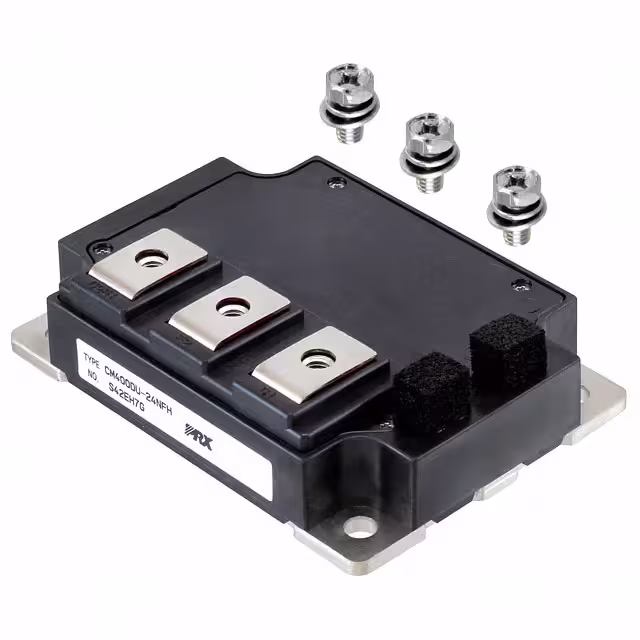

CM400DU-24NFHIGBT MOD 1200V 400A 1040W |
3,889 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 400 A | 1040 W | 6.5V @ 15V, 400A | 1 mA | 63 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM400DU-34KAIGBT MOD 1700V 400A 1950W |
2,808 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1700 V | 400 A | 1950 W | 4.1V @ 15V, 400A | 1 mA | 57 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM400DU-5FIGBT MOD 250V 400A 890W |
2,374 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | Trench | Half Bridge | 250 V | 400 A | 890 W | 1.7V @ 10V, 400A | 1 mA | 110 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
CM400DX-12AIGBT MOD 600V 400A 1340W |
3,447 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 600 V | 400 A | 1340 W | 2.1V @ 15V, 400A | 1 mA | 50 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|

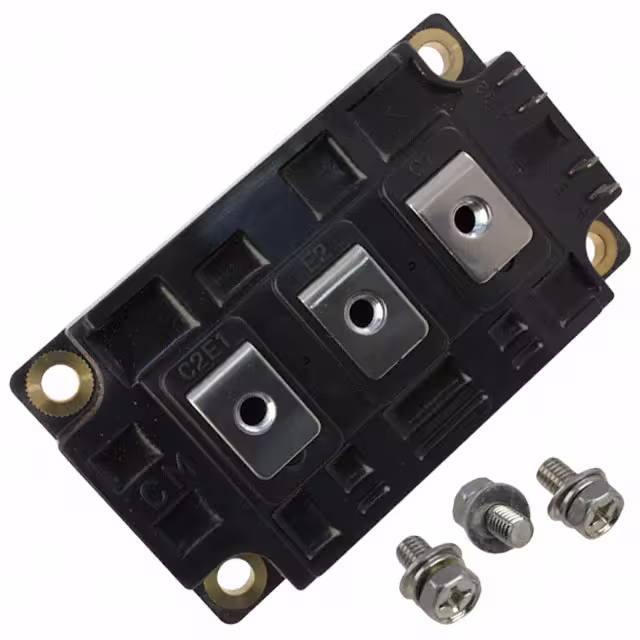

CM400DY-12HIGBT MOD 600V 400A 1500W |
2,111 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 600 V | 400 A | 1500 W | 2.8V @ 15V, 400A | 1 mA | 40 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM400DY-24NFIGBT MOD 1200V 400A 1470W |
2,215 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 400 A | 1470 W | 2.5V @ 15V, 400A | 1 mA | 94 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM400HA-12HIGBT MOD 600V 400A 1500W |
2,744 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Single | 600 V | 400 A | 1500 W | 2.8V @ 15V, 400A | 1 mA | 40 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM400HA-24HIGBT MOD 1200V 400A 2800W |
3,072 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Single | 1200 V | 400 A | 2800 W | 3.4V @ 15V, 400A | 2 mA | 80 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM400HA-28HIGBT MOD 1400V 400A 2800W |
3,129 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Single | 1400 V | 400 A | 2800 W | 4.2V @ 15V, 400A | 2 mA | 80 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CM400HA-34HIGBT MOD 1700V 400A 4100W |
2,429 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Obsolete | - | Single | 1700 V | 400 A | 4100 W | 3.7V @ 15V, 400A | 4 mA | 85 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

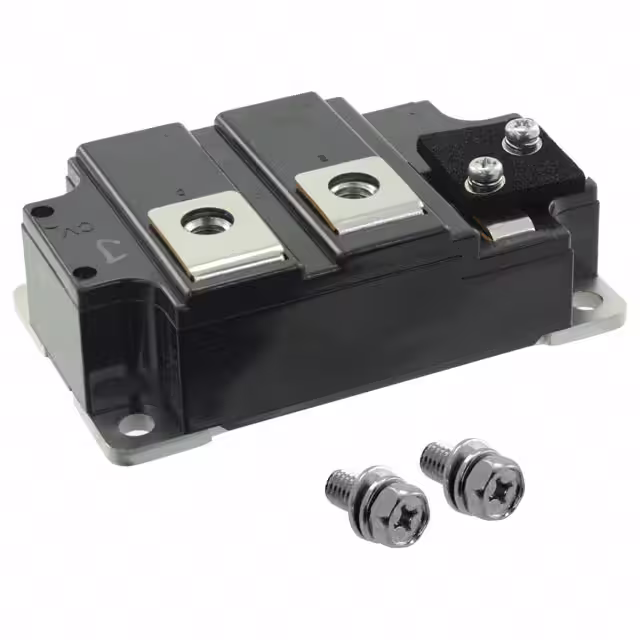

CM400HU-24FIGBT MOD 1200V 400A 1600W |
2,760 | 0.00 |
RFQ |
Datasheet |
Bulk | IGBTMOD™ | Discontinued at Mosen | Trench | Single | 1200 V | 400 A | 1600 W | 2.4V @ 15V, 400A | 2 mA | 160 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
