| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSSA310S-M3/61TDIODE SCHOTTKY 100V 1.7A DO214AC |
10,634 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 175pF @ 4V, 1MHz | - | 150 µA @ 100 V | 100 V | 1.7A (DC) | -40°C ~ 150°C | 800 mV @ 3 A |
;;3.jpg)
|
VS-45APS12LHM3DIODES - TO-247-E3 |
369 | 4.26 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 1200 V | 1200 V | 45A | -40°C ~ 150°C | 1.14 V @ 45 A |
|
UF5402-E3/54DIODE GEN PURP 200V 3A DO201AD |
4,149 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 45pF @ 4V, 1MHz | 50 ns | 10 µA @ 200 V | 200 V | 3A | -55°C ~ 150°C | 1 V @ 3 A | |
|
MURS340HE3_A/IDIODE GEN PURP 400V 3A DO214AB |
6,673 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 10 µA @ 3 V | 400 V | 3A | -65°C ~ 175°C | 1.28 V @ 4 A |
|
BYV26E-TAPDIODE AVALANCHE 1000V 1A SOD57 |
48,687 | 0.74 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 175°C | 2.5 V @ 1 A | |
|

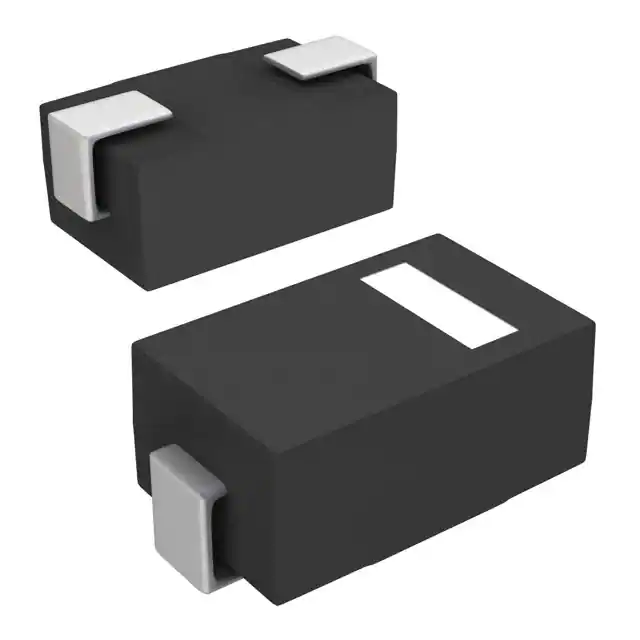

EGF1A-E3/67ADIODE GEN PURP 50V 1A DO214BA |
13,009 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 50 ns | 5 µA @ 50 V | 50 V | 1A | -65°C ~ 175°C | 1 V @ 1 A |
|

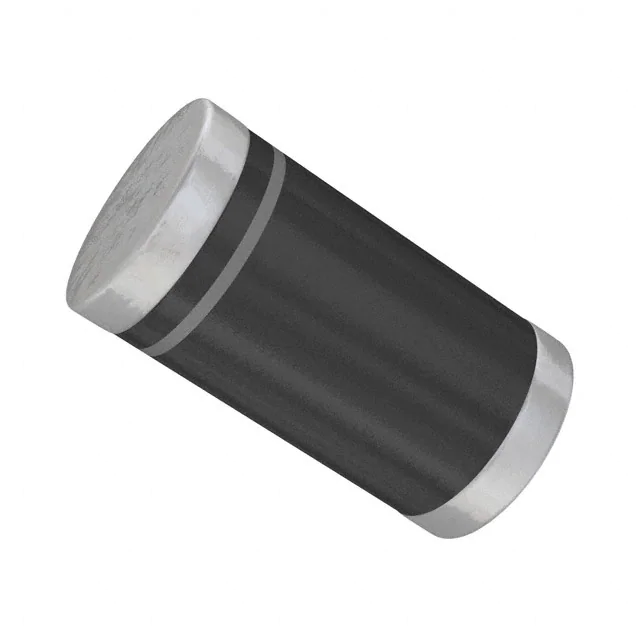

BYM11-100-E3/96DIODE GEN PURP 100V 1A DO213AB |
59,892 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 150 ns | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A |
|
SS10PH10-M3/87ADIODE SCHOTTKY 100V 10A TO277A |
7,194 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 270pF @ 4V, 1MHz | - | 10 µA @ 100 V | 100 V | 10A | -55°C ~ 175°C | 880 mV @ 10 A |
|
|
US1B-E3/61TDIODE GEN PURP 100V 1A DO214AC |
2,915 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 50 ns | 10 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
1N5392-E3/54DIODE GEN PURP 100V 1.5A DO204AL |
23,147 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 2 µs | 5 µA @ 100 V | 100 V | 1.5A | -50°C ~ 150°C | 1.4 V @ 1.5 A | |
|
|
US1JHE3_A/HDIODE GEN PURP 600V 1A DO214AC |
2,041 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 75 ns | 10 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A |
|
|
1N4003-E3/54DIODE GEN PURP 200V 1A DO204AL |
9,576 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
1N5399-E3/54DIODE GEN PURP 1KV 1.5A DO204 |
6,587 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 2 µs | 5 µA @ 1000 V | 1000 V | 1.5A | -50°C ~ 150°C | 1.4 V @ 1.5 A | |
|
|
1N5395-E3/54DIODE GEN PURP 400V 1.5A DO204AL |
8,964 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 2 µs | 5 µA @ 400 V | 400 V | 1.5A | -50°C ~ 150°C | 1.4 V @ 1.5 A | |
|
|
ES3B-E3/57TDIODE GEN PURP 100V 3A DO214AB |
18,400 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 30 ns | 10 µA @ 100 V | 100 V | 3A | -55°C ~ 150°C | 900 mV @ 3 A | |
|
|
BYV27-100-TRDIODE AVALANCHE 100V 2A SOD57 |
37,811 | 0.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 25 ns | 1 µA @ 100 V | 100 V | 2A | -55°C ~ 175°C | 1.07 V @ 3 A | |
|
|
BYV27-100-TAPDIODE AVALANCHE 100V 2A SOD57 |
13,841 | 0.77 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 25 ns | 1 µA @ 100 V | 100 V | 2A | -55°C ~ 175°C | 1.07 V @ 3 A | |
|
|
1N4934-E3/54DIODE GEN PURP 100V 1A DO204AL |
6,767 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 12pF @ 4V, 1MHz | 200 ns | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 1.2 V @ 1 A | |
~~2.jpg)
|
SS1P3L-M3/84ADIODE SCHOTTKY 30V 1.5A DO220AA |
35,451 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 130pF @ 4V, 1MHz | - | 200 µA @ 30 V | 30 V | 1.5A | -55°C ~ 150°C | 450 mV @ 1 A |
|
|
S3M-E3/9ATDIODE GEN PURP 1KV 3A DO214AB |
5,957 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | 2.5 µs | 10 µA @ 1000 V | 1000 V | 3A | -55°C ~ 150°C | 1.15 V @ 2.5 A |
