| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FWPQ2814L-100K10UH 10% Flat Wire SMD Pwr Ind |
3,935 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 10 µH | ±10% | 30 A | 17.6A | Unshielded | 1.62mOhm Max | - | 20MHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | SMD | |
|

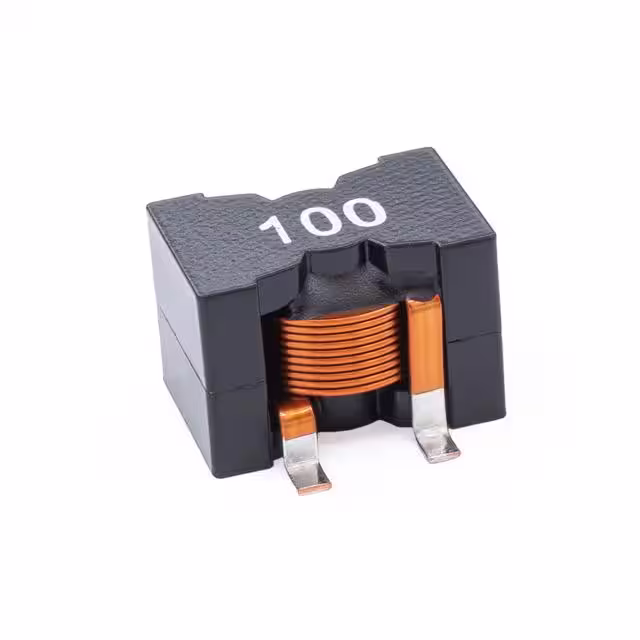

FWPQ2014-100M-RC10UH 20% Flat Wire SMD Pwr Ind |
2,744 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 10 µH | ±20% | 18 A | 23A | Shielded | 7.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|
FWPQ2918BS-150M-RC15UH 20% Flat Wire SMD Pwr Ind |
3,915 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 15 µH | ±20% | 28 A | 21.2A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|
FWPQ2918S-220M-RC22UH 20% Flat Wire SMD Pwr Ind |
3,343 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 22 µH | ±20% | 28 A | 14A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|
|
FWPQ2918BS-4R7M-RC47UH 20% Flat Wire SMD Pwr Ind |
2,971 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 4.7 µH | ±20% | 28 A | 61.2A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|
FWPQ2617S-6R8L6.8UH 15% Flat Wire SMD Pwr Ind |
2,827 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 6.8 µH | ±15% | - | - | Shielded | - | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | |
|
|
FWPQ2918BS-220M-RC22UH 20% Flat Wire SMD Pwr Ind |
3,220 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 22 µH | ±20% | 28 A | 14A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|
|
FWPQ2918BS-100M-RC10UH 20% Flat Wire SMD Pwr Ind |
3,618 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 10 µH | ±20% | 28 A | 31.2A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|
|
FWPQ2918BS-3R3M-RC3.3UH 20% Flat Wire SMD Pwr Ind |
2,429 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 3.3 µH | ±20% | 28 A | 92.5A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|
|
FWPQ2918S-330-RC33UH 20% Flat Wire SMD Pwr Ind |
3,294 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 33 µH | ±20% | 28 A | 8.7A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|
|
FWPQ2918BS-6R8M-RC6.9UH 20% Flat Wire SMD Pwr Ind |
3,182 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 6.8 µH | ±20% | 28 A | 45A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|
|
FWPQ2918S-3R3M-RC3.3UH 20% Flat Wire SMD Pwr Ind |
2,026 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 3.3 µH | ±20% | 28 A | 92.5A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|

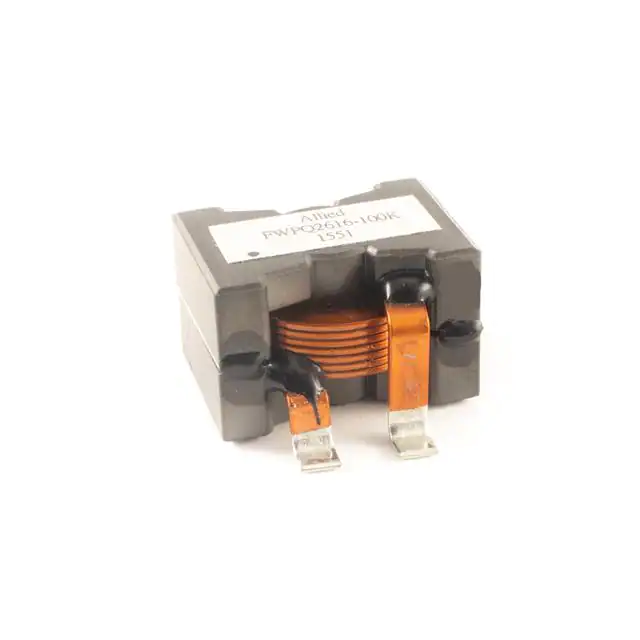

FWPQ2616-100K-RC10UH 10% Flat Wire SMD Pwr Ind |
2,844 | 7.98 |
RFQ |
Nonstandard | Tray | - | Active | Wirewound | - | 10 µH | ±10% | 28 A | 32.1A | Unshielded | 2.85mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | |
|
|

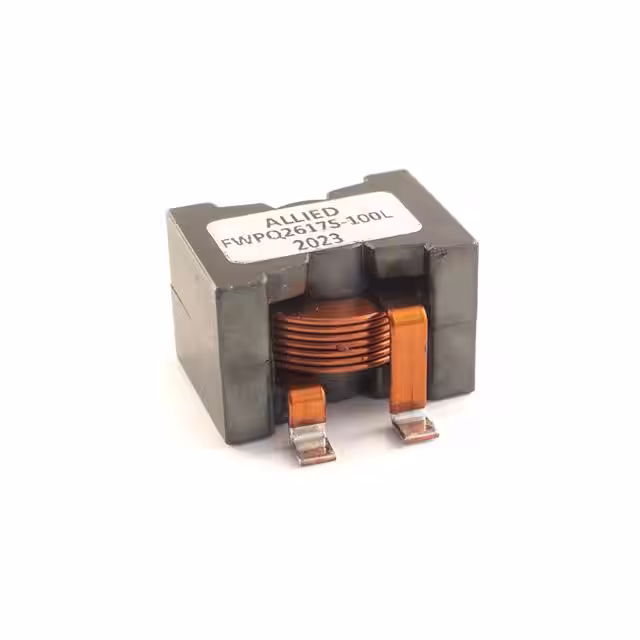

FWPQ2617S-100L10UH 15% Flat Wire SMD Pwr Ind |
3,779 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 10 µH | ±15% | - | - | Shielded | - | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | |
|
|
FWPQ2918S-150M-RC15UH 20% Flat Wire SMD Pwr Ind |
2,552 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 15 µH | ±20% | 28 A | 21.2A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|

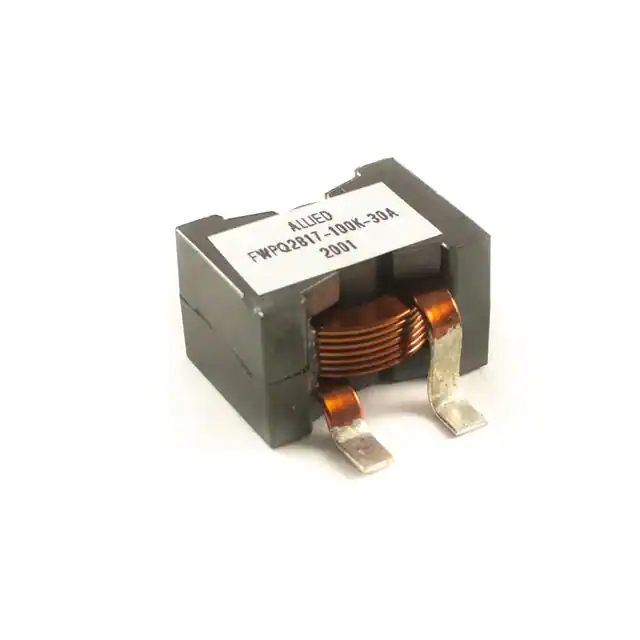

FWPQ2817-100K-30A10UH @30A Flat Wire SMD Pwr Ind |
3,423 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 10 µH | ±10% | 30 A | 30A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 500 kHz | - | Surface Mount | SMD | |
|
FWPQ2814-6R8M-RC6.8UH 20% Flat Wire SMD PwrInd |
3,458 | 7.98 |
RFQ |
Datasheet |
3-SMD, J-Lead | Tray | FWPQ | Active | Wirewound | - | 6.8 µH | ±20% | 18 A | 34A | - | 7.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
FWPQ2918S-6R8M-RC6.8UH 20% Flat Wire SMD Pwr Ind |
3,920 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 6.8 µH | ±20% | 28 A | 45A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|
|
FWPQ2918S-100M-RC10UH 20% Flat Wire SMD Pwr Ind |
2,851 | 7.98 |
RFQ |
2-SMD, Gull Wing | Tray | - | Active | Wirewound | - | 10 µH | ±20% | 28 A | 31.2A | Shielded | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | |
|
FWTPQ2817H-6R8K6.8UH 10% Flat Wire SMD Pwr Ind |
2,867 | 7.98 |
RFQ |
Nonstandard | Tray | - | Active | Wirewound | - | 6.8 µH | ±10% | 28 A | 45.9A | Shielded | 2.82mOhm | - | 25MHz | - | -40°C ~ 85°C | 500 kHz | - | Through Hole | - |
